Joysway TF520 Tolson Fish Finder (3S-2200/AC)

Joysway TF520 Tolson Fish Finder (3S-2200/AC)

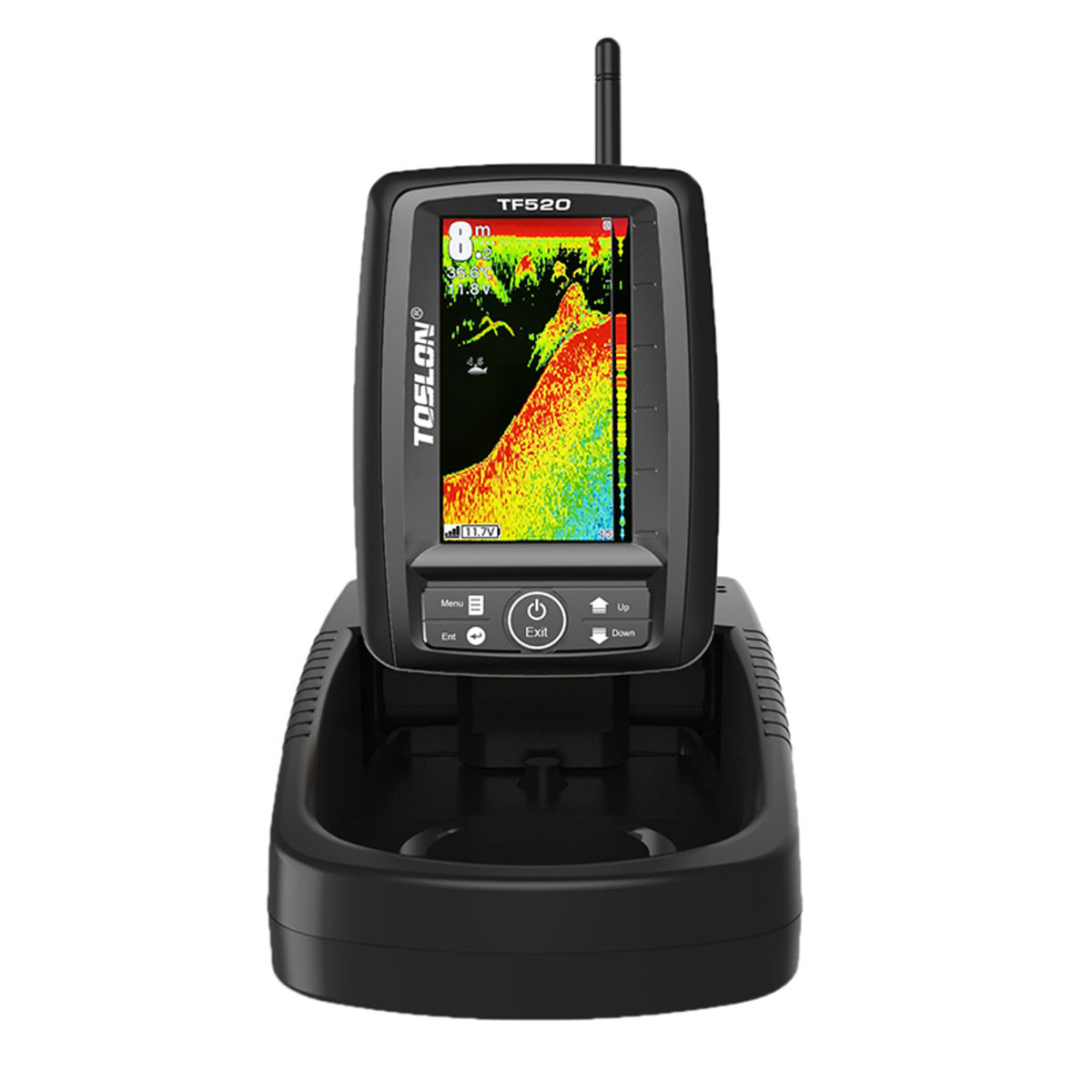

The TF520 is an advanced fish finder that gives you a sharp, detailed sonar image of the bottom. With high resolution and a clear display, you can easily spot fish and bottom conditions, whether you use it from the shore or together with a bait boat.

The unit uses wireless Frequency-hopping spread spectrum (FHSS) technology, which ensures a stable connection and makes it compatible with a wider range of wireless remote control units. The 4.3" TFT LCD screen with a resolution of 480x272 pixels is easy to read even in bright sunlight and from wide viewing angles.

With a sonar frequency of 115 kHz and up to 60 degrees of conical coverage, the TF520 is ideal for showing even the largest fish echoes and for scanning larger areas. The screen can also monitor and display the real-time voltage of the bait boat's battery, giving you good control during use.

Technical data

• Screen: 4.3" TFT LCD, sunlight viewable
• Resolution: 480x272 pixels, 65,536 colours
• Language: Multilingual
• Monitors real-time voltage of the bait boat's battery
• IPX6-rated waterproof housing
• Sonar depth capability: 30 m (100 ft)
• Sonar frequency: 115 kHz
• Sonar beam angle: 60° @ -10 dB
• Sonar alarms: Fish / Shallow water / Low battery
• Radio frequency: 2.4 GHz
• RC power: 20 dBm
• Power: DC 9~15V / 3S lithium battery
• Battery: 3S 18650 (optional)
• Sensor cable length: 0.5 m
• Sonar unit size: 153 x 110 x 44 mm
• Carry bag size: 262 x 150 x 98 mm
• Operating temperature: -10°C ~ 50°C
• Water temperature included in transducer
• Frequency-hopping spread spectrum (FHSS)
• Direct-sequence spread spectrum (DSSS)
• Adjustable hardware gain
• Built-in charging function for 3S lithium battery
• Stable wireless performance even in difficult conditions
