Crawling kit - AT4 EMO 1/10 RTR Kit (orange / white)

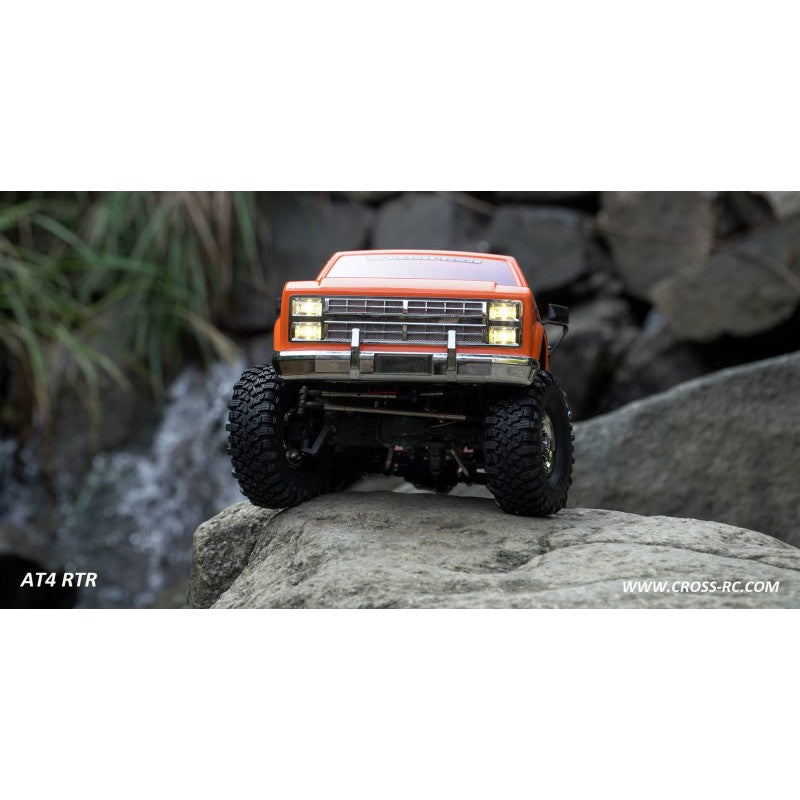

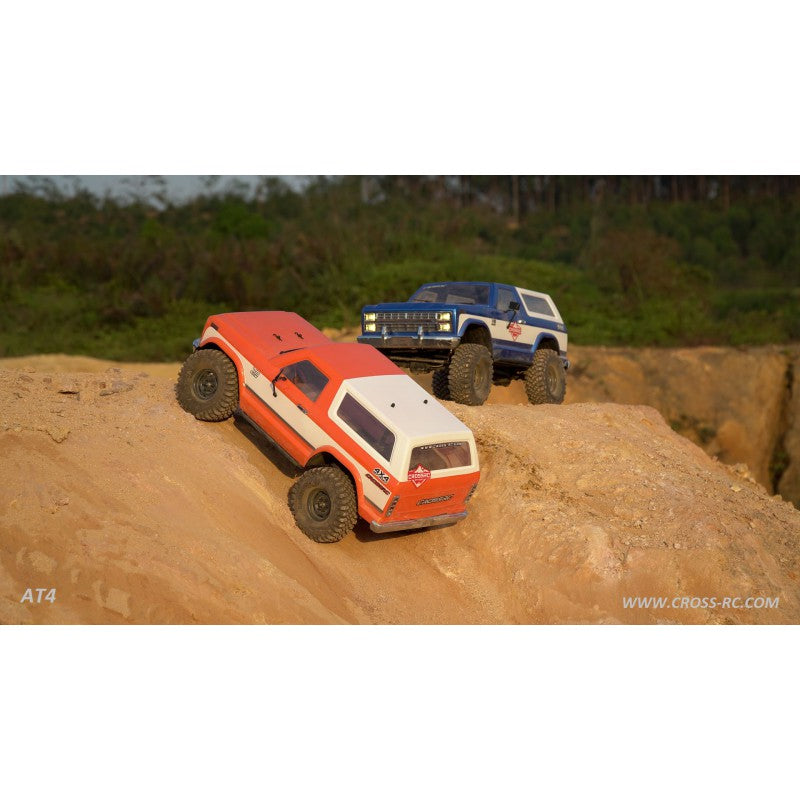

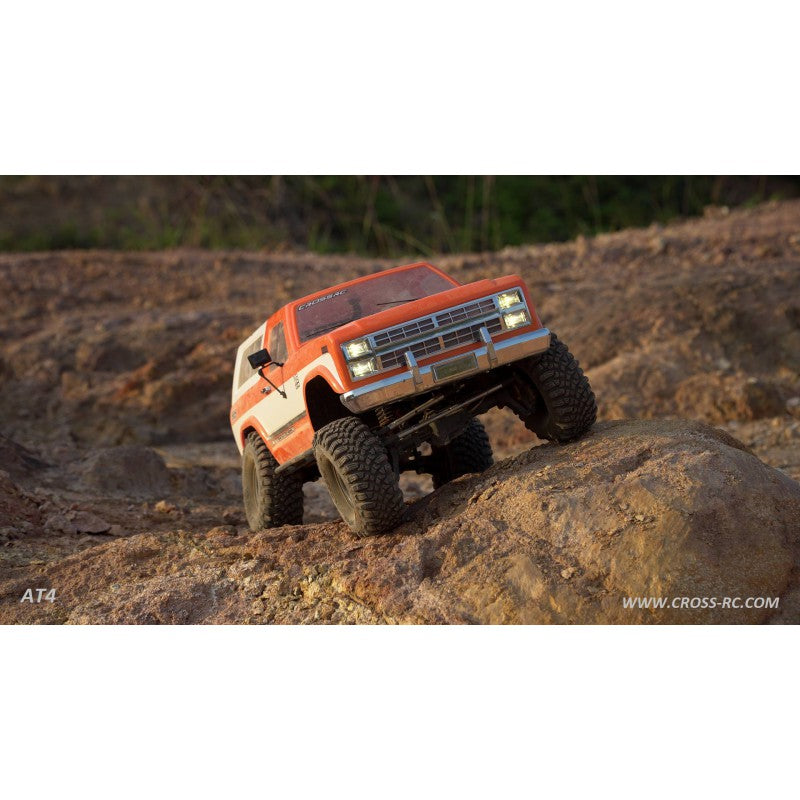

Cross RC AT4 EMO 1/10 RTR Crawler (orange/white)

The Cross RC AT4 EMO is much more than an update of the well-known Demon model – it is a completely new chassis design with far-reaching changes. The construction has been optimised in structure, choice of materials and technology, which gives clearly improved durability and reliability compared with earlier models.

The new EMO chassis has been developed to excel in versatility and outstanding climbing ability. The RTR version comes factory-assembled with a 4-channel radio system, servos and speed controller (ESC), so you can get started with crawling quickly.

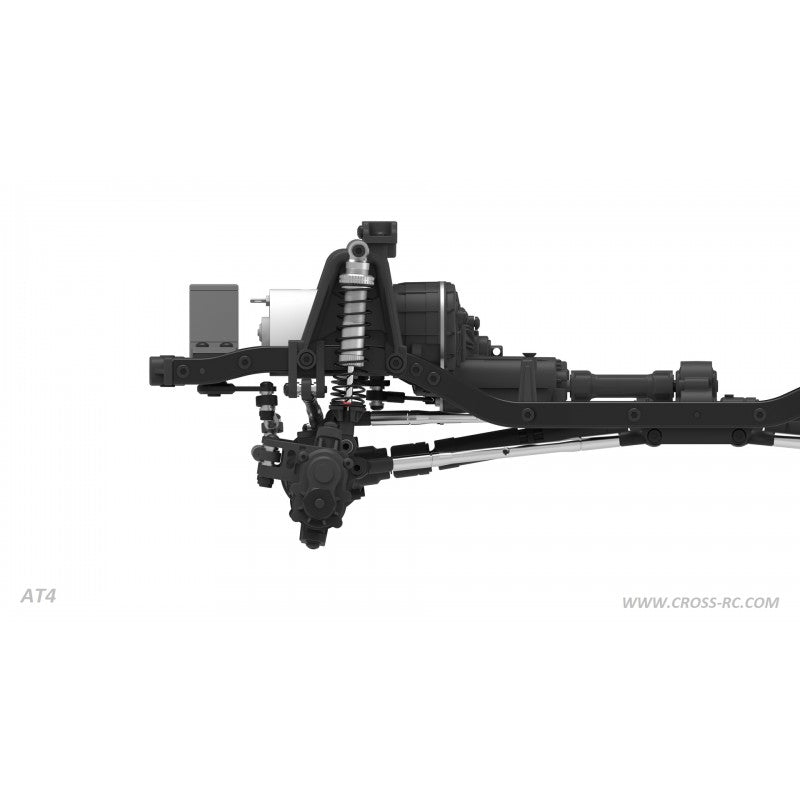

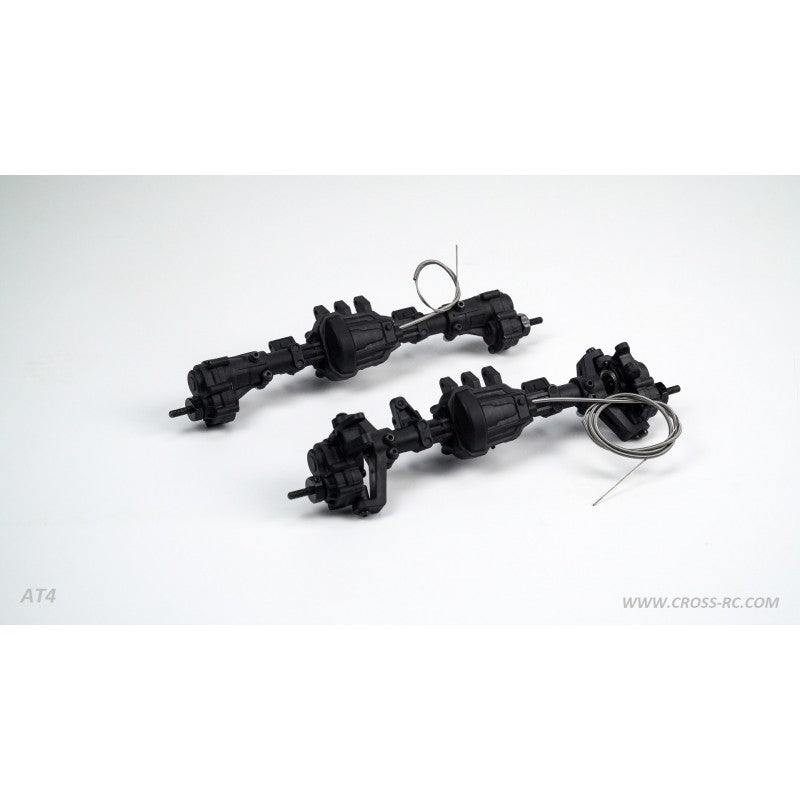

The suspension is based on a multi-link solid axle design with steel links, and the front axle has a Panhard bar for optimal steering on uneven terrain. The model has a 2-speed gearbox, transfer case, differential lock and portal axles, as well as a newly developed transmission with a low centre of gravity.

The motor mount is compatible with 540, 550 and 560 classes, and a Hobbywing AXE crawler system can also be fitted directly. As standard, the model comes with a special 540 35T climbing motor. The input gear is compatible with 10T to 18T, and the driven gear uses a double friction plate limited-slip design for optimal traction. The gears in the variable-speed gearbox are made with powder-metallurgy integrated cutting technology, which makes them solid and hard-wearing.

Technical data

• Body: Painted Lexan
• Headlights: Powerful LED lights
• Shock mounts: Multiple mounting holes
• Side protection (rock guards): Included
• Front and rear inner wings: Included
• Transmission: Adjustable limited-slip metal gear, 2-speed transmission
• Driveshafts: Metal U-joints and plastic sliders for quiet running
• Suspension: Front 3-link Panhard configuration, rear 4-link
• Shock absorbers: CNC aluminium construction
• Shock springs: Dual rate springs
• Differential: All-metal 4+2 gears
• Dig function: Front and rear locking differentials
• Portal axles: High-strength nylon
• Bead lock wheels: Weighted steel, chrome-plated plastic
• Tyres: 120 x 45mm BlackRock
• Motor: 540 35T brushed motor
• Bearings: Precision rubber-sealed bearings
• Servo (chassis-mounted): 15KG high torque servo
• 2-speed and differential lock servos: 2 x 3KG mini servo
• Speed controller (ESC): Hobbywing WP1060
• Radio: 2.4GHz, 4-channel
• Pitch: MOD 0.6

Required (not included)

• Battery and charger
