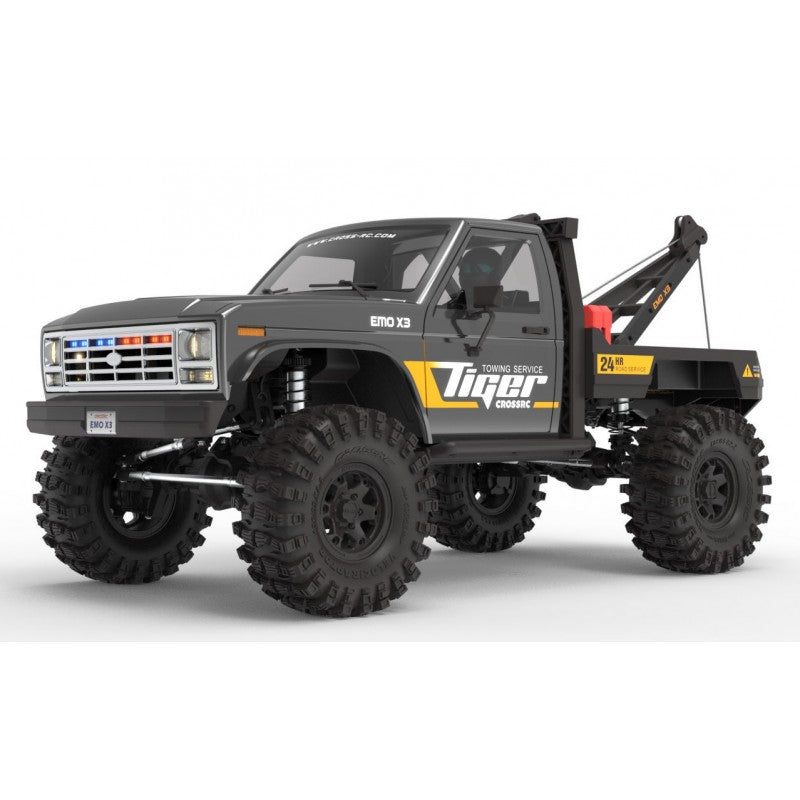

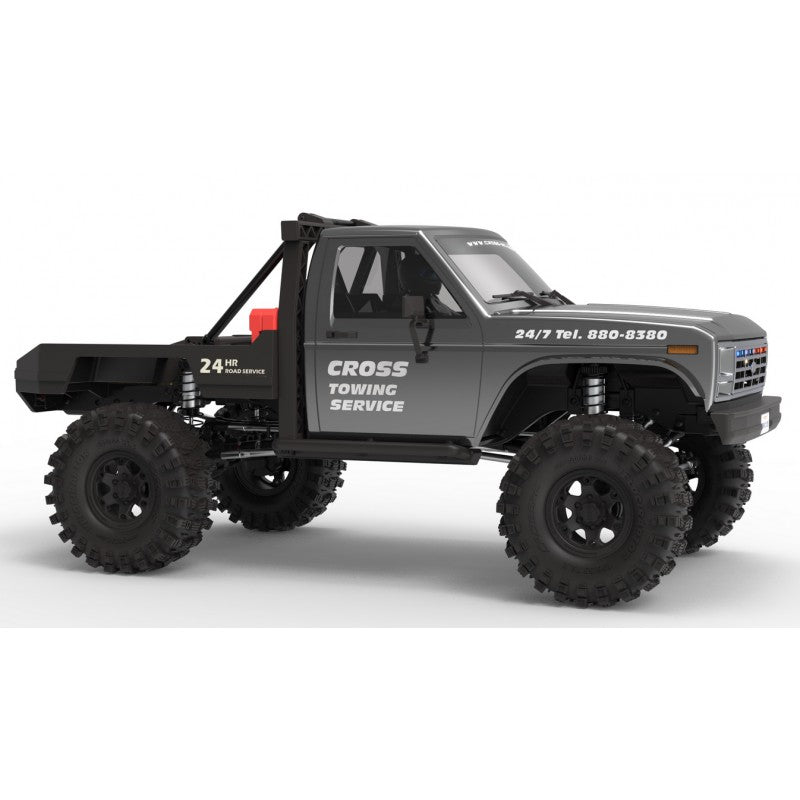

Crawling kit - EMOX3 1/8 RTR 775 Brushed kit

Cross RC EMO X3 1/8 RTR Crawler with brushed motor

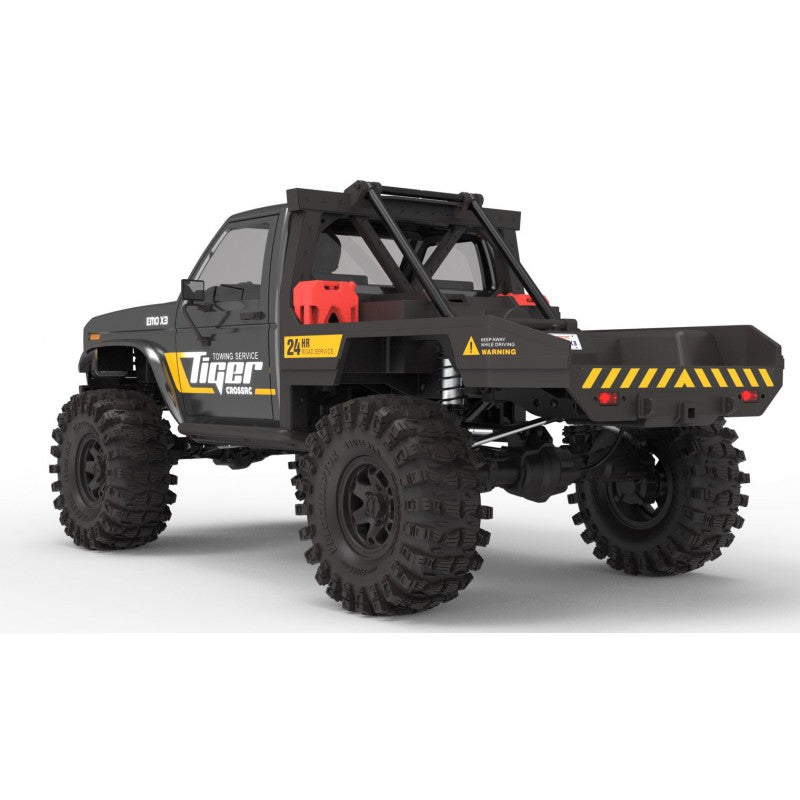

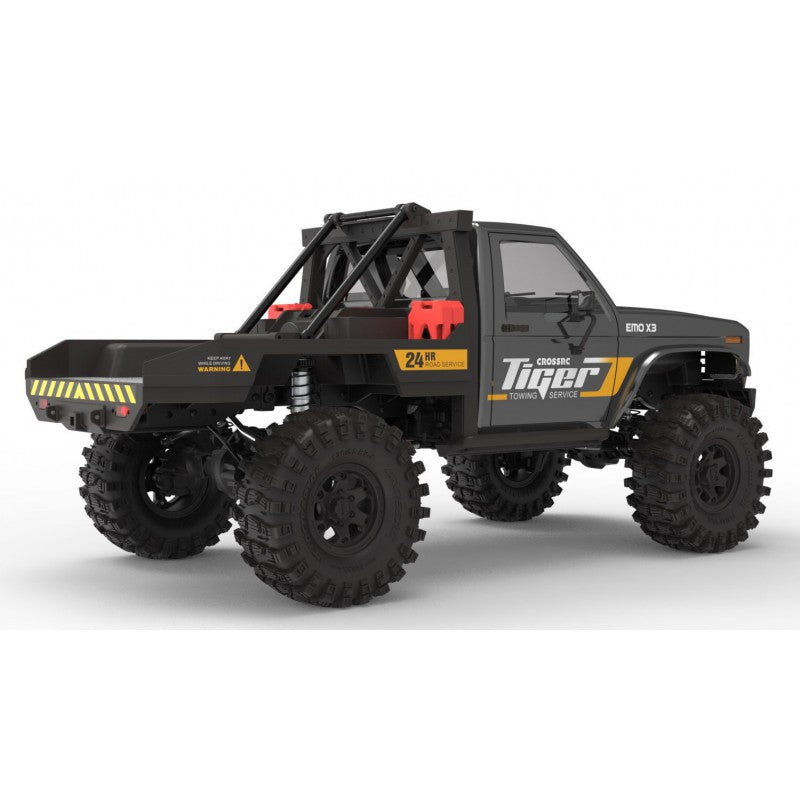

Cross RC EMO X3 is built on the well-known and powerful EMO X chassis but adds a number of significant upgrades that make this 1:8 multi-purpose 4x4 model something special. The model combines trailer-rescue functions with high-performance climbing ability, so it works both as a simulated recovery vehicle and as a pure crawler for the toughest challenges.

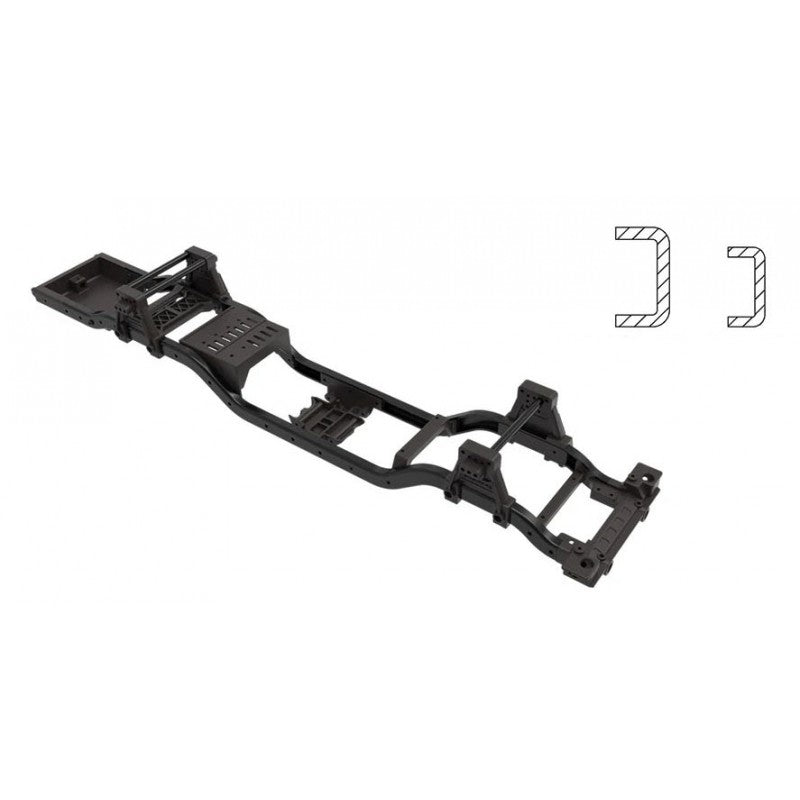

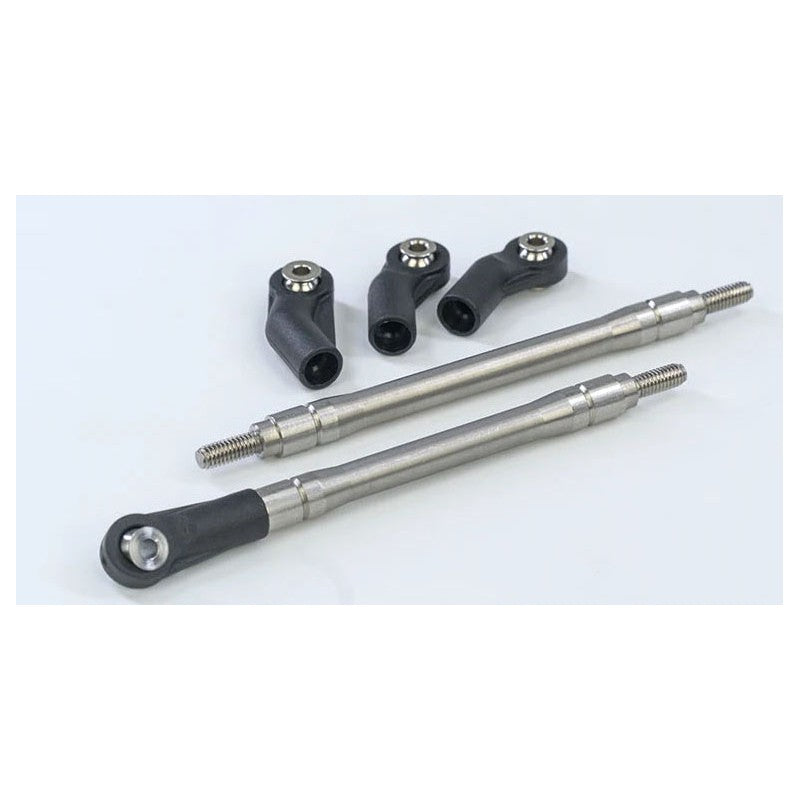

Among the upgrades is a heavily reinforced frame rail design (XL version) with a 200% larger cross-section and much greater strength than the standard rail, making the model ready for high power and heavy recovery tasks. An M4 stainless steel counterweight bar and reinforced ball ends throughout the vehicle are also fitted, so it can handle the extra load of recovery operations and upgraded electronics.

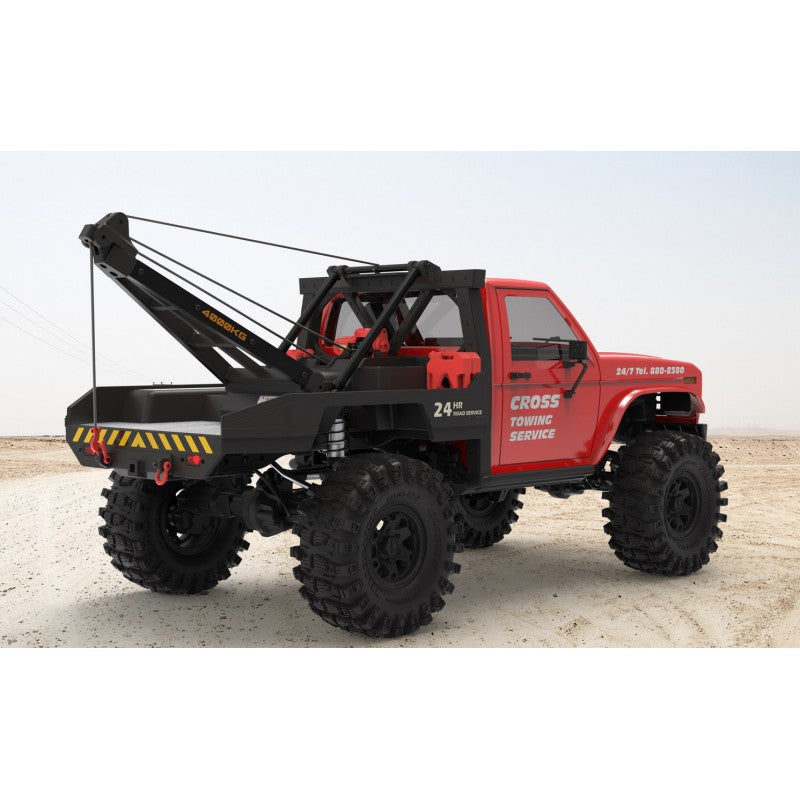

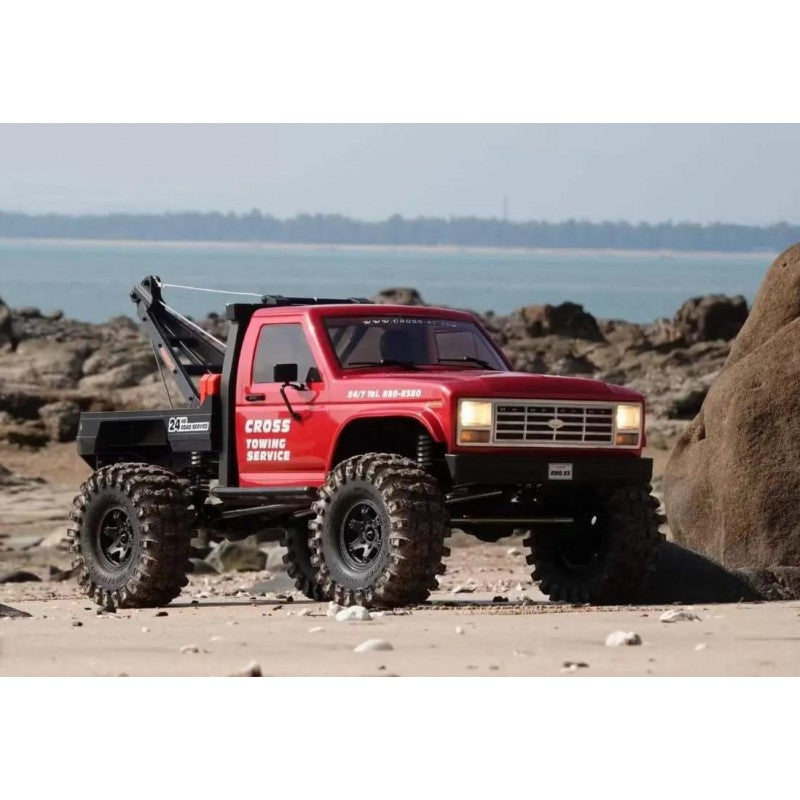

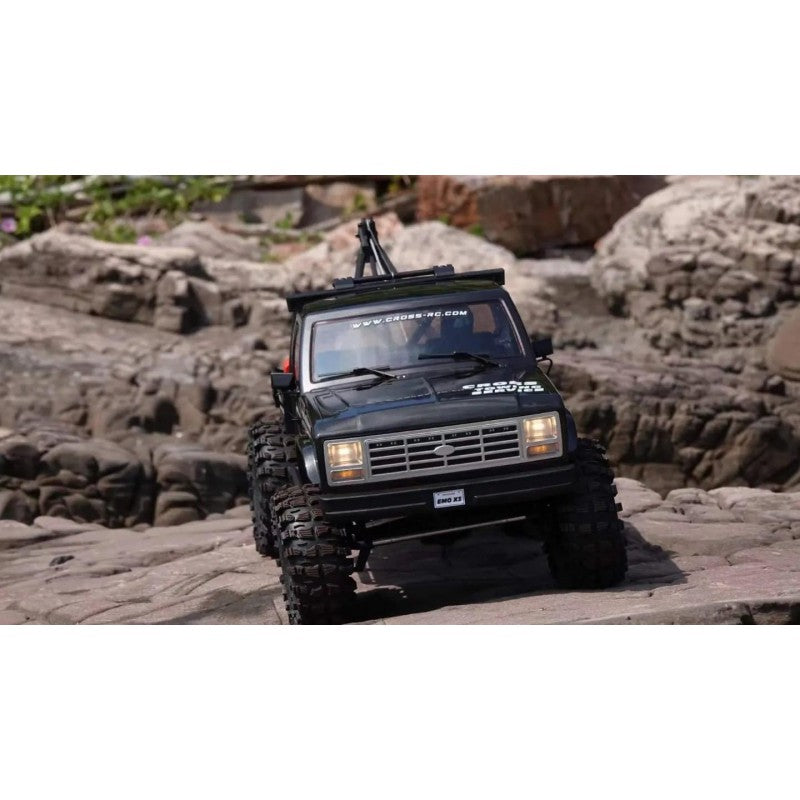

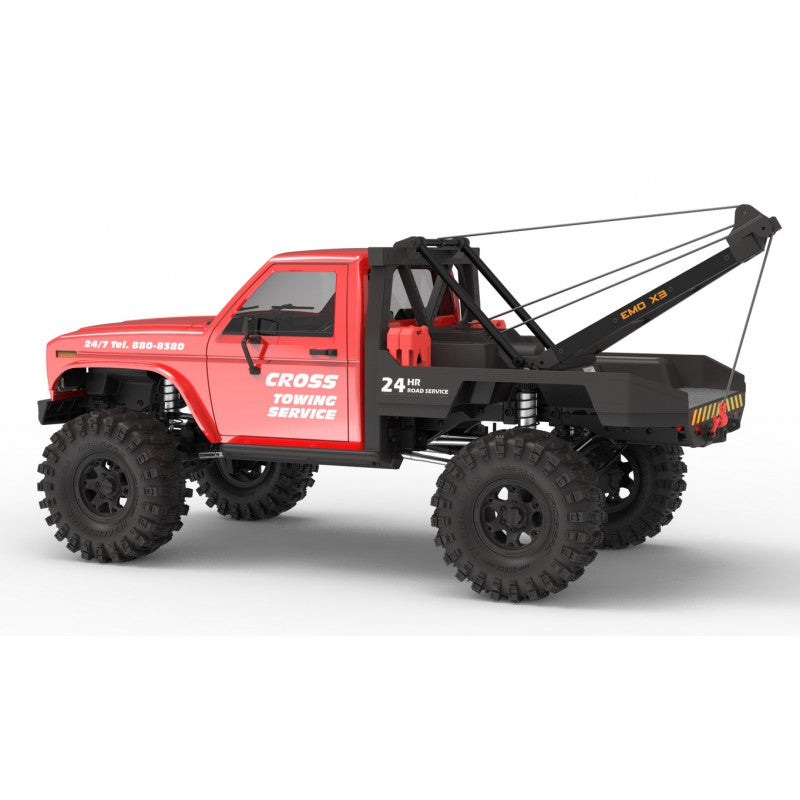

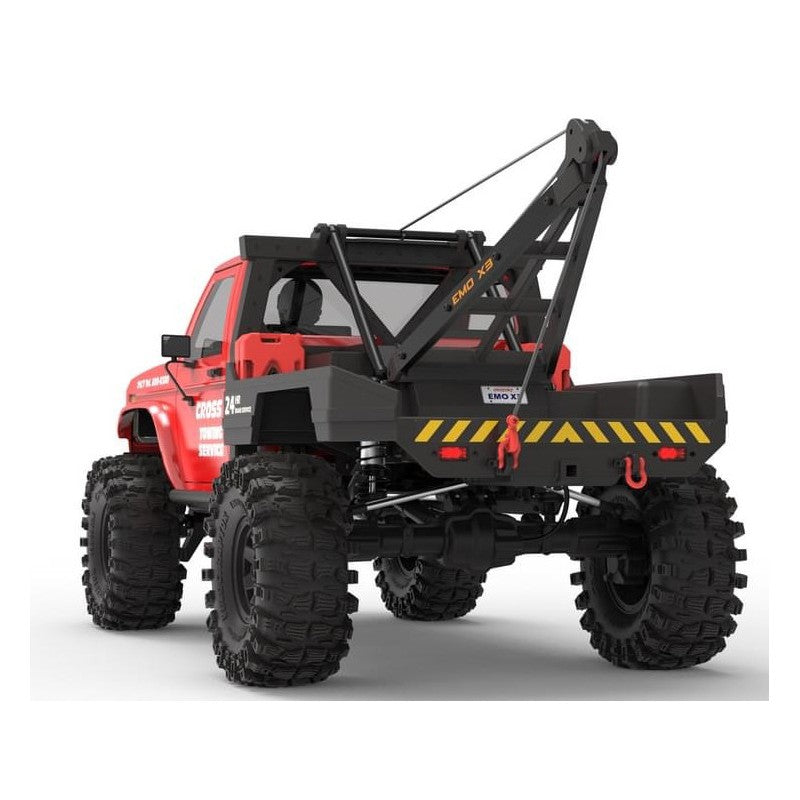

The rear-mounted recovery hook can be extended and retracted directly from the transmitter, and there are reserved channels for fitting a standard dual-motor winch, so the boom can be raised, lowered and tilted by remote control. EMO X3 comes with the newly developed VELOCIRAPTOR high-performance AT tyres, tailored for hard surfaces, and a powerful light set with a centred warning light and several lighting modes controlled from the transmitter.

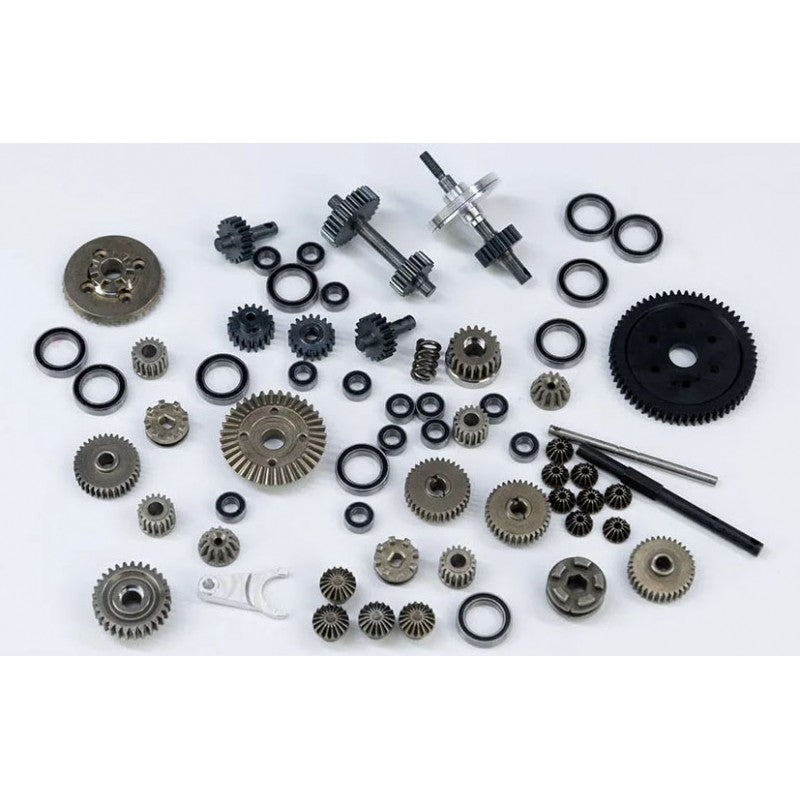

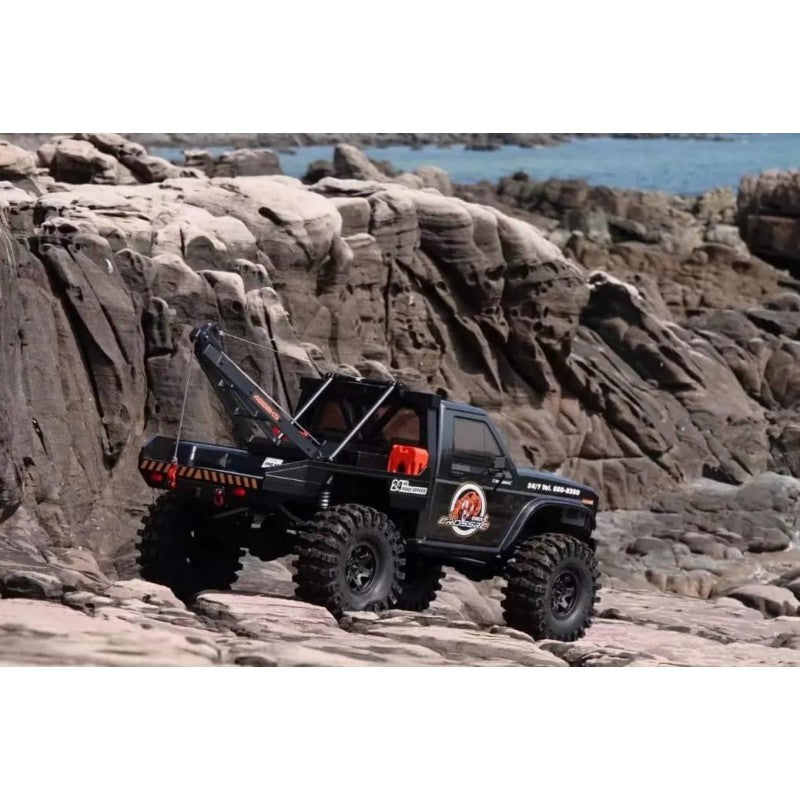

The vehicle has a solid mast-style roll cage, and the rear is covered by a metal anti-slip plate. Remove the recovery hook module and EMO X3 instantly becomes a pure, professional climbing vehicle ready to push the limits. The model builds on the well-known EMO features: a large 65-degree approach angle, a transmission geometry with minimal visible axle effect, full-servo gear shifting and differential lock mechanism, the original rear balance linkage for stable driving even at high speed or when drifting, and a hidden quick-release body lock system. The whole car uses high-strength alloy gears made by the PM process, precision-cut gears and nylon gear combinations for wear resistance and quiet running, supported by ABEC3-grade ball bearings throughout.

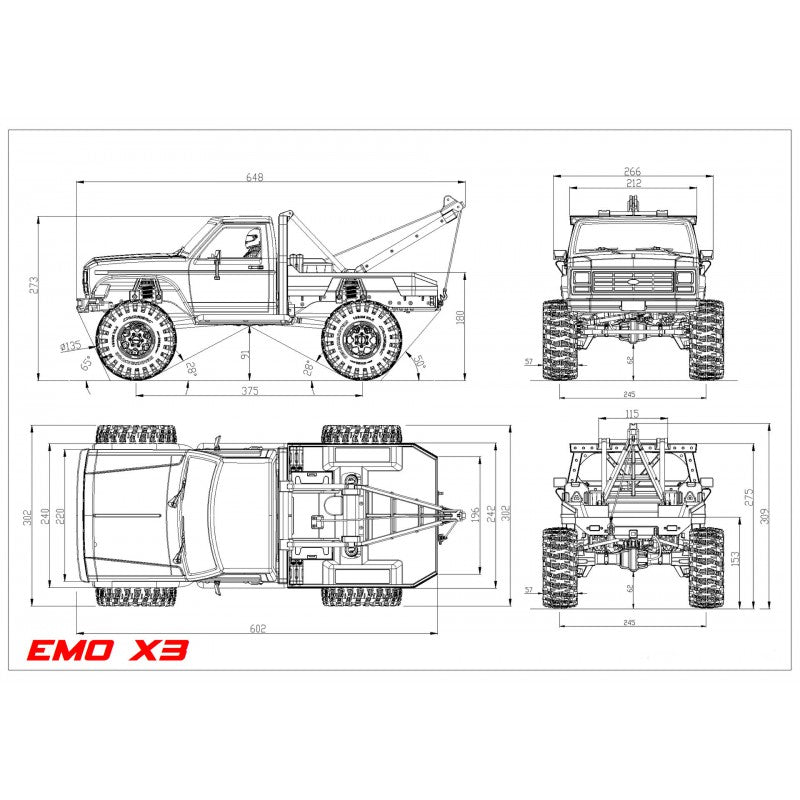

Technical data

• Scale: 1:8
• Length: 648mm
• Width: 302mm
• Height: 309mm
• Wheelbase: 375mm
• Tyres: 136 x 57mm
• Pitch: MOD 0.6
• 4x4 drive system with optimised motor and 2-speed gearbox with metal gears
• CVD drive shafts with metal universal joints and reinforced nylon sliders
• Adjustable slipper clutch, reinforced 60t spur gear and 20t metal pinion
• Gear ratio: 17.8 (high) / 38.9 (low)
• All-metal transmission gears
• Cross RC 25t high-torque brushed motor
• Cross RC Velociraptor 136X55 R2.2 high-performance crawler tyres
• 2.2" beadlock wheels
• Precision aluminium alloy coil-over shock absorbers with threaded adjustment
• EMO X portal axles with durable nylon housings and internal metal gears

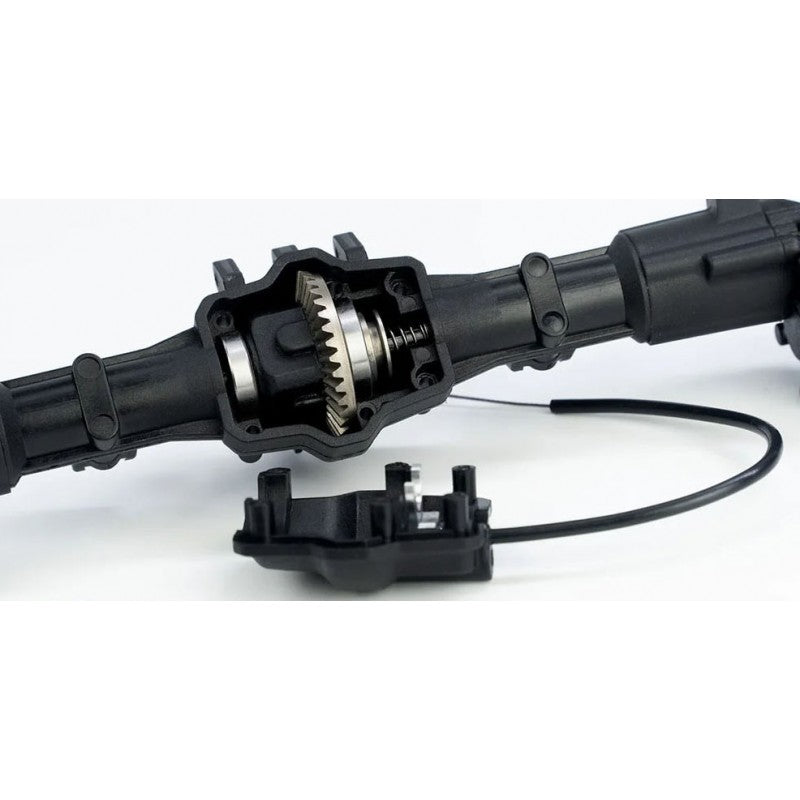

• Front and rear differential locks

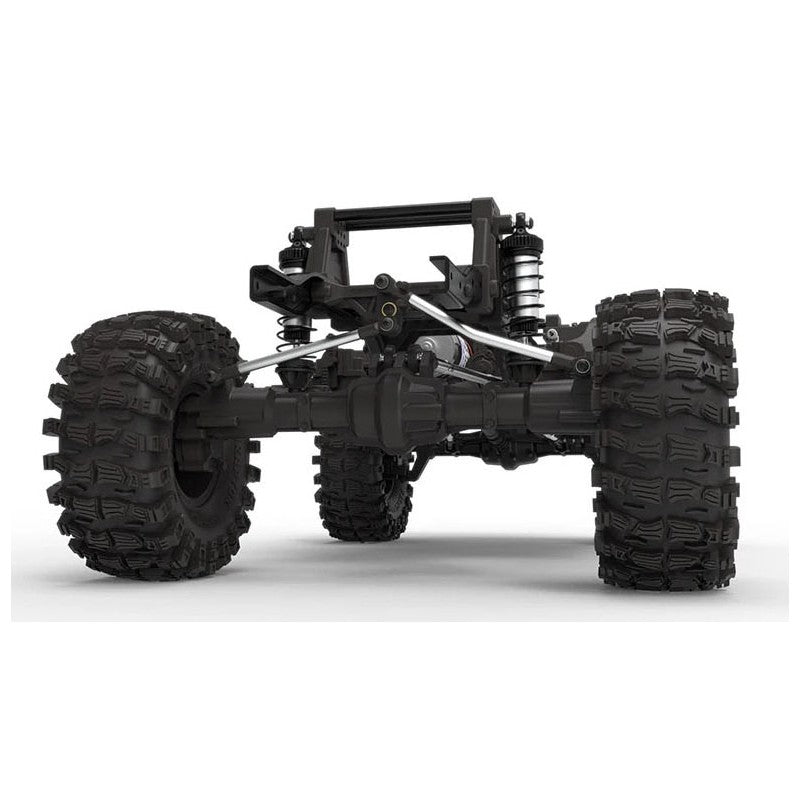

• Solid axle suspension with stainless steel links
• Front panhard rod, rear 4-link and rear balance bar
• Multi-mode LED lighting system
• 6-channel 2.4G transmitter and receiver
• Hobbywing WP-880 brushed waterproof speed controller
• DS-R003C digital steering servo

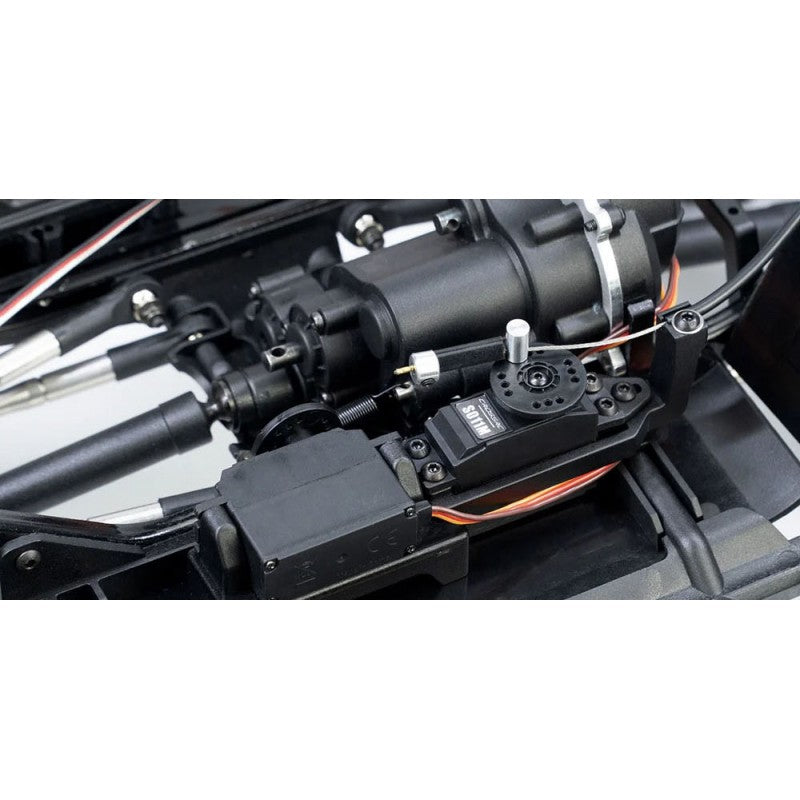

• SO11M digital servo for differentials and 2-speed shifting

Required (not included)

• Battery (battery tray dimensions: 135x50x40mm)
• Compatible charger
