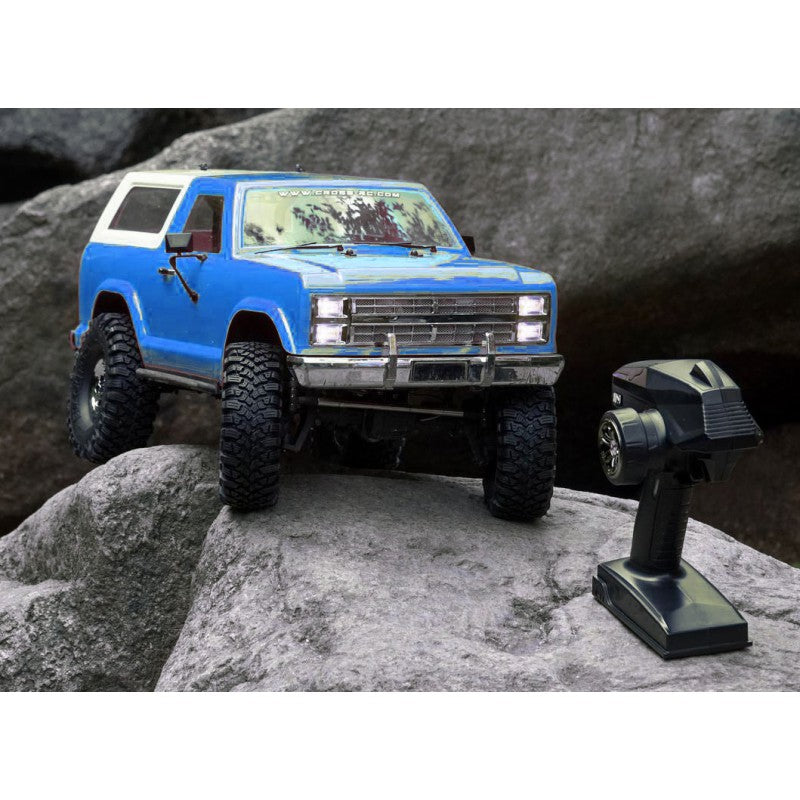

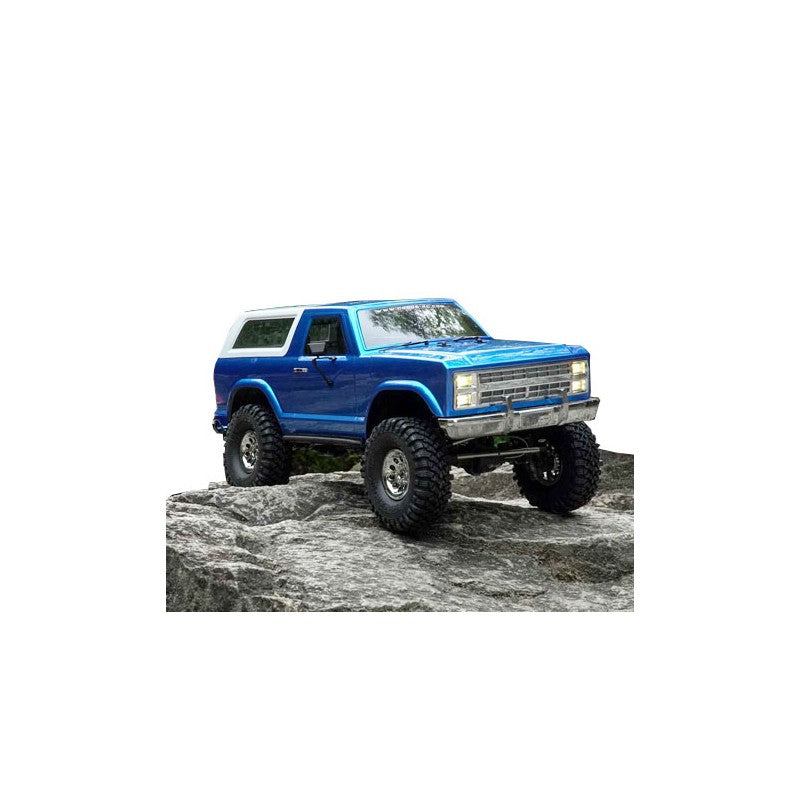

Cross RC AT4 EMO 1/10 RTR Crawler – Blue/White

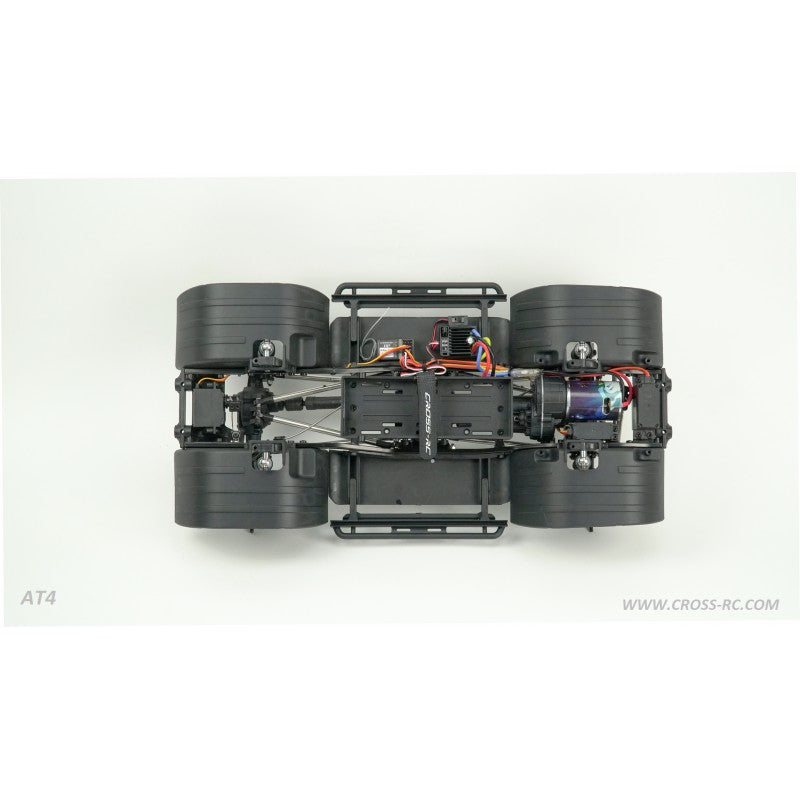

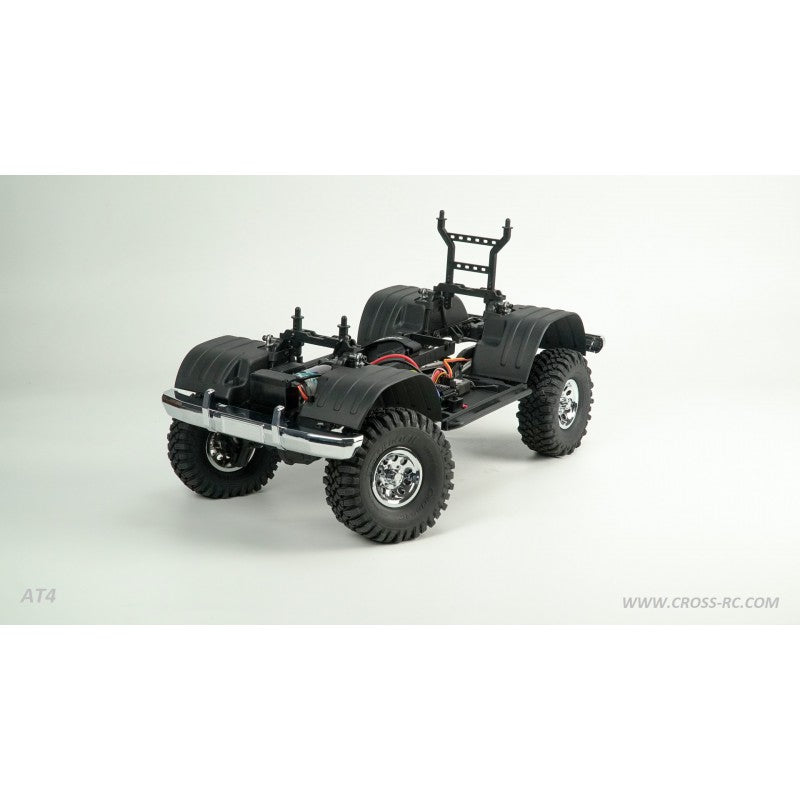

The Cross RC AT4 EMO is a 4WD scale crawler supplied in a smart blue and white colour combination. The car is built around a multi-link solid axle design with steel links, and the front has a Panhard bar for precise steering in even the most demanding conditions.

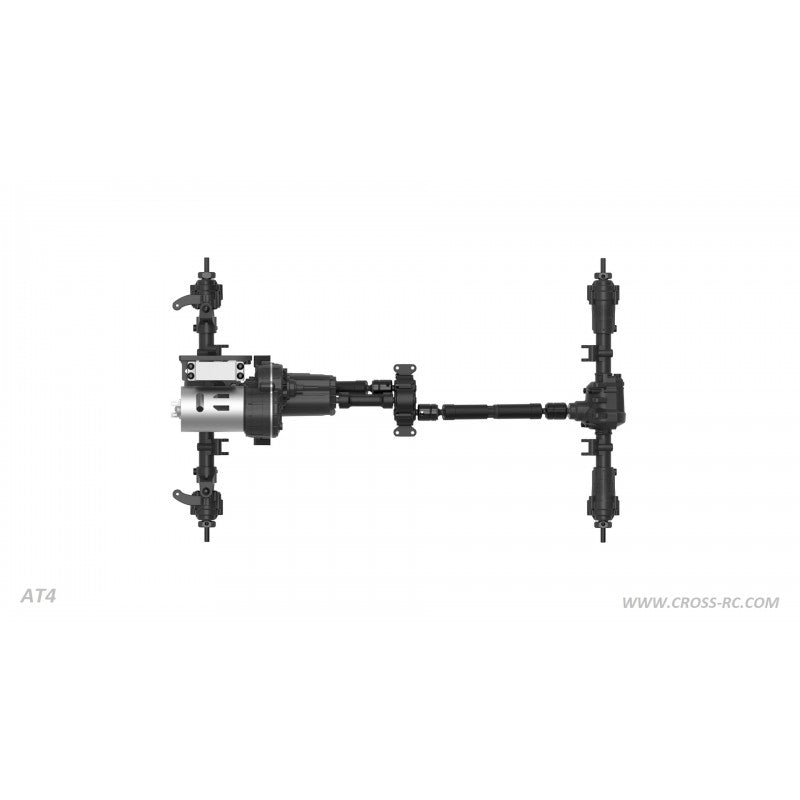

The crawler has a 2-speed gearbox system, transfer case, differential lock and portal axles, which gives great flexibility and power delivery on difficult terrain. The newly developed transmission has a low centre of gravity, which improves stability when climbing and during technical driving.

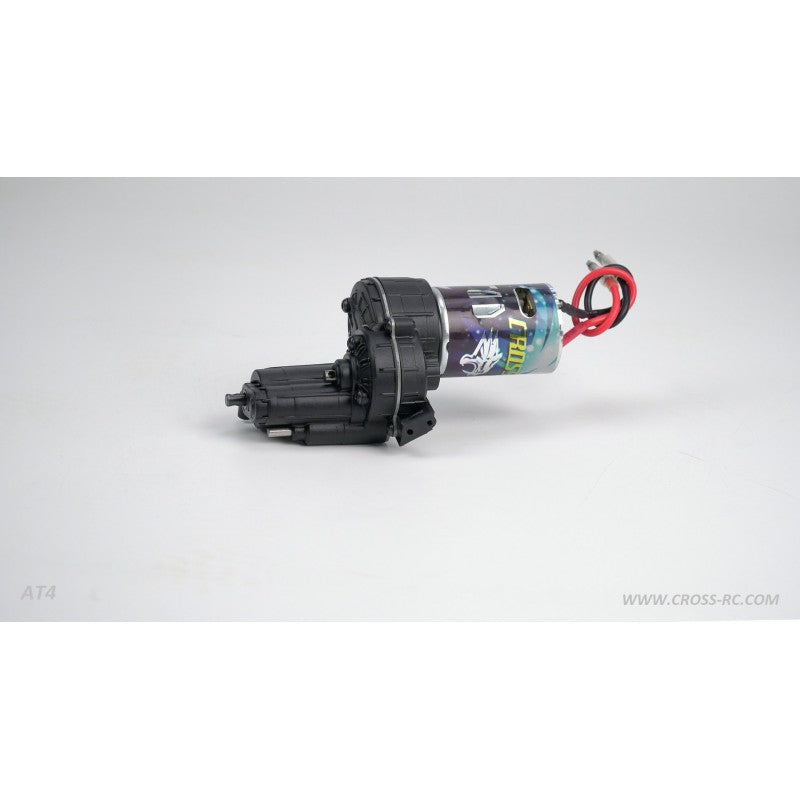

The motor mount is compatible with 540, 550 and 560 size motors, and a Hobbywing AXE crawler system can also be fitted directly. As standard, the car comes with a special 540 35T climbing motor. The input pinion is compatible with 10T to 18T, and the final drive uses a driven-gear design with a double friction plate for limited slip. The variable-speed gears are made using powder metallurgy with integrated cutting technology, which makes them solid and hard-wearing.

Technical data

• Version: RTR
• Body: High-quality painted Lexan
• Headlights: High Power LED
• Shock mounts: Multiple mounting holes
• Side protectors (rock guards): Included
• Front and rear inner wings: Included

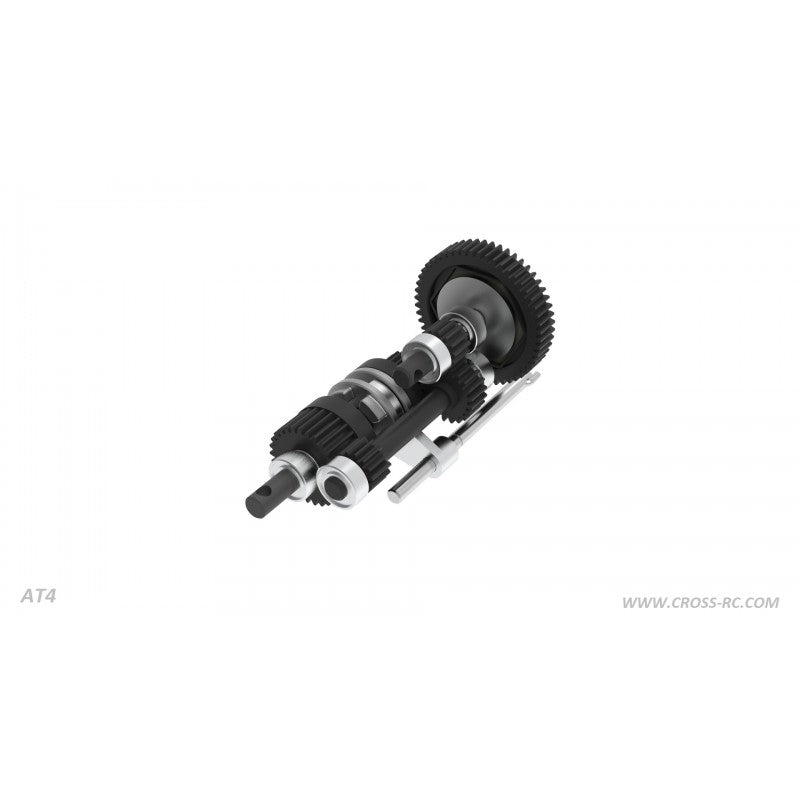

• Transmission: Adjustable limited-slip metal gear, 2-speed
• Driveshafts: Metal U-joints and plastic sliders for quiet running

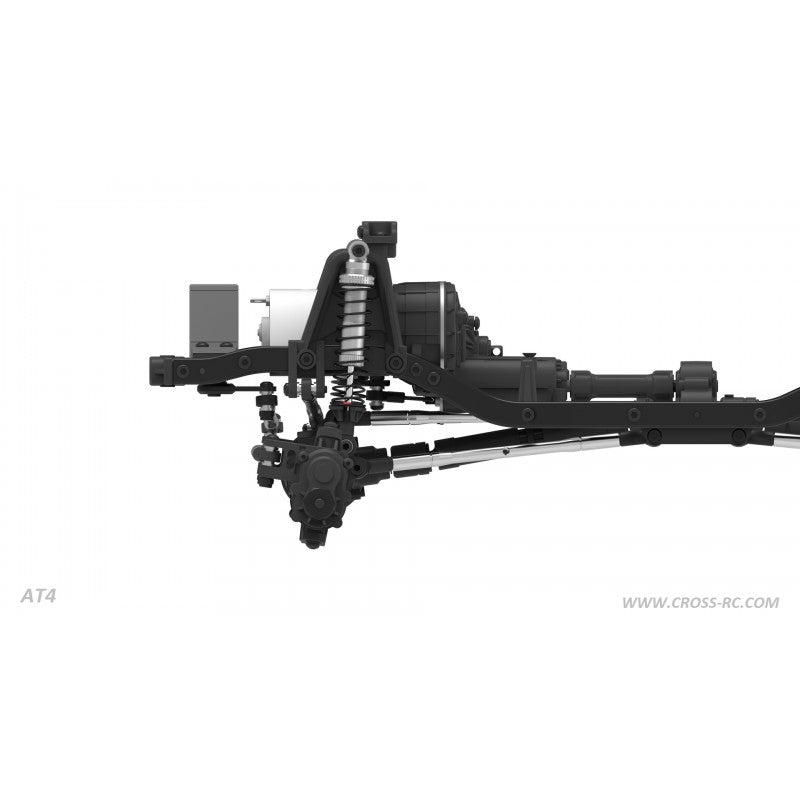

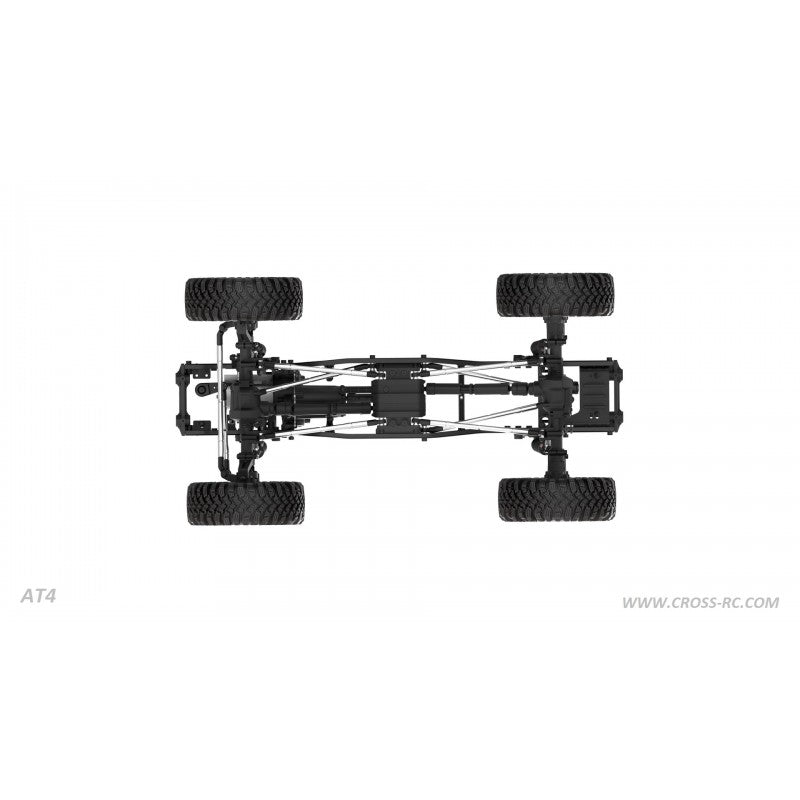

• Suspension: Front 3-link Panhard configuration, rear 4-link

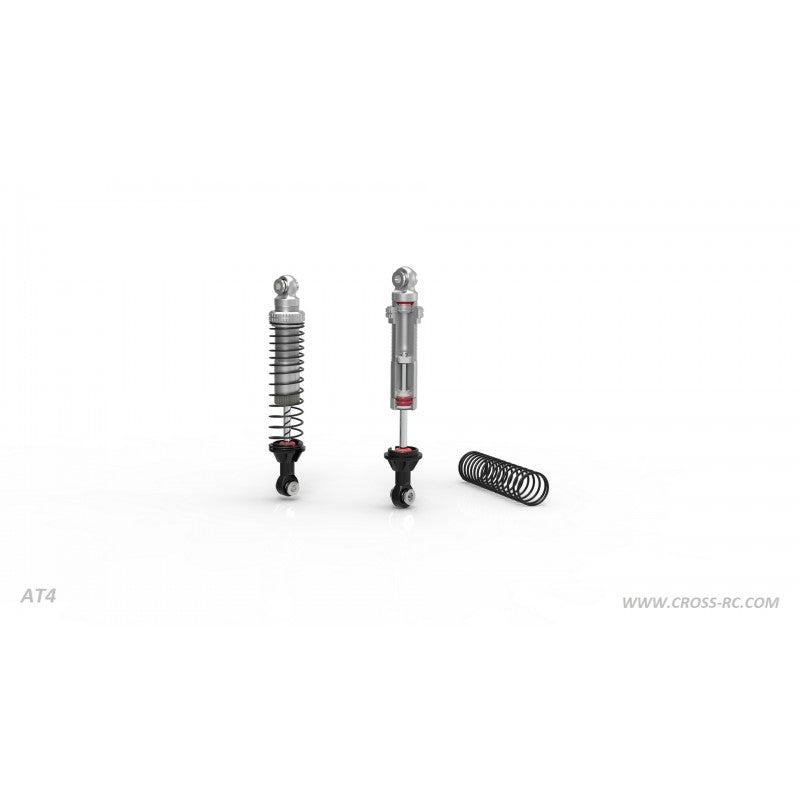

• Shock absorbers: CNC aluminium construction
• Shock springs: Dual rate springs
• Differential: All-metal 4+2 gears
• Dig function: Front and rear locking differentials

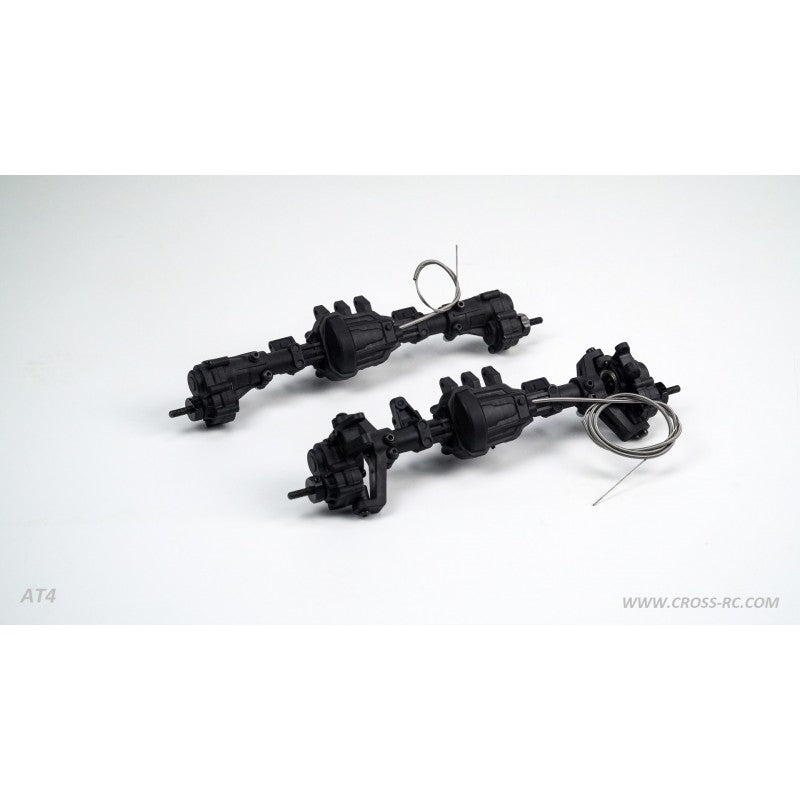

• Portal axles: Heavy-duty nylon
• Bead lock wheels: Weighted steel, chrome-plated plastic

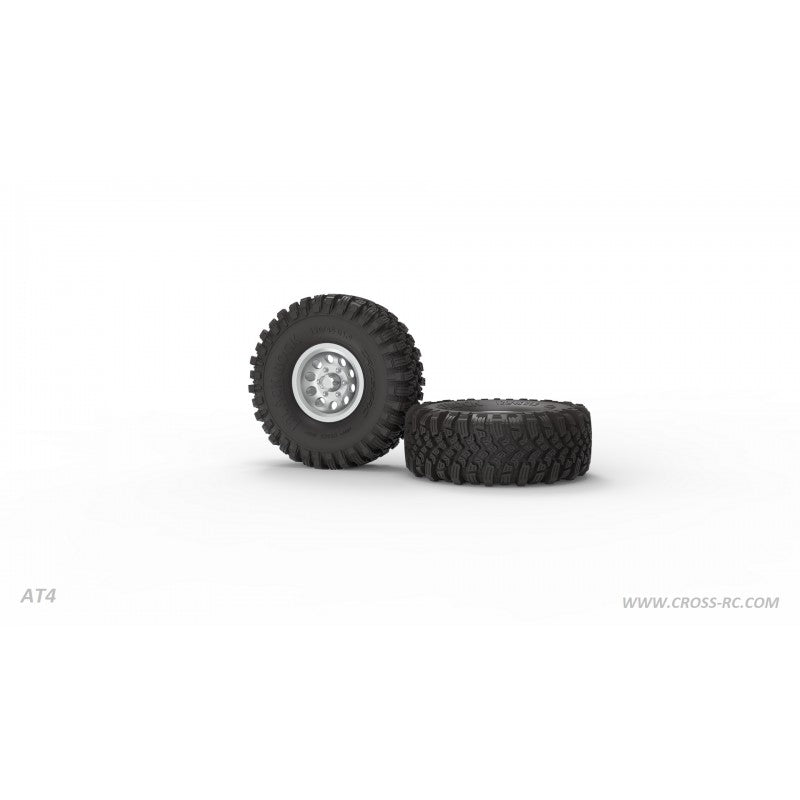

• Tyres: 120 x 45mm BlackRock tyres
• Motor: 540 35T brushed motor
• Bearings: Precision rubber-sealed bearings
• Servo (2-speed and locking differential): 2 x 3KG mini servos

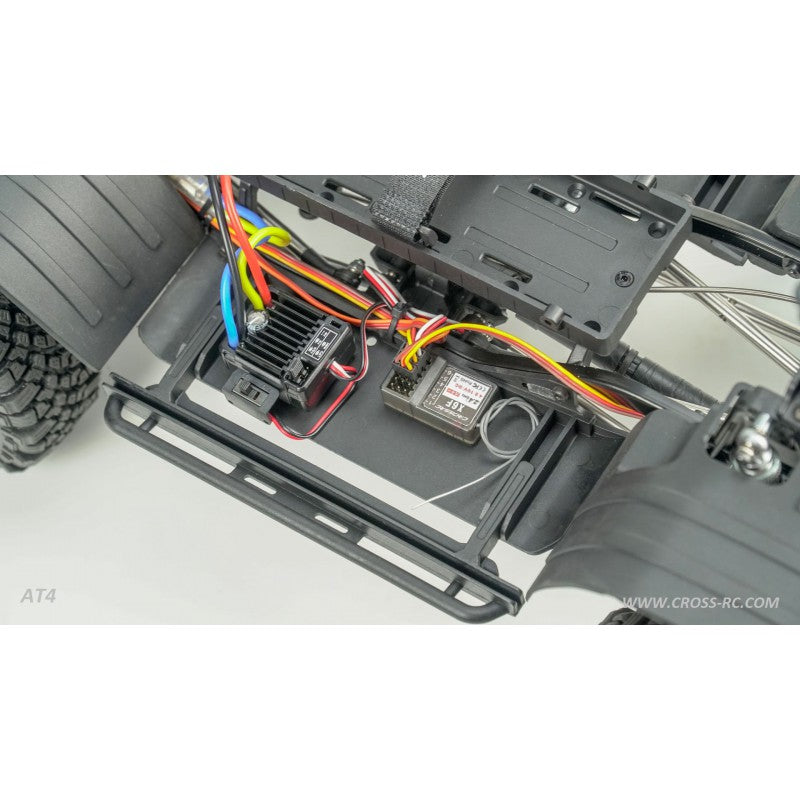

• Speed controller (ESC): Hobbywing WP1060
• Transmitter: 2.4GHz, 4 channels
• Pitch: MOD 0.6

Required (not included)

• Battery
• Charger
