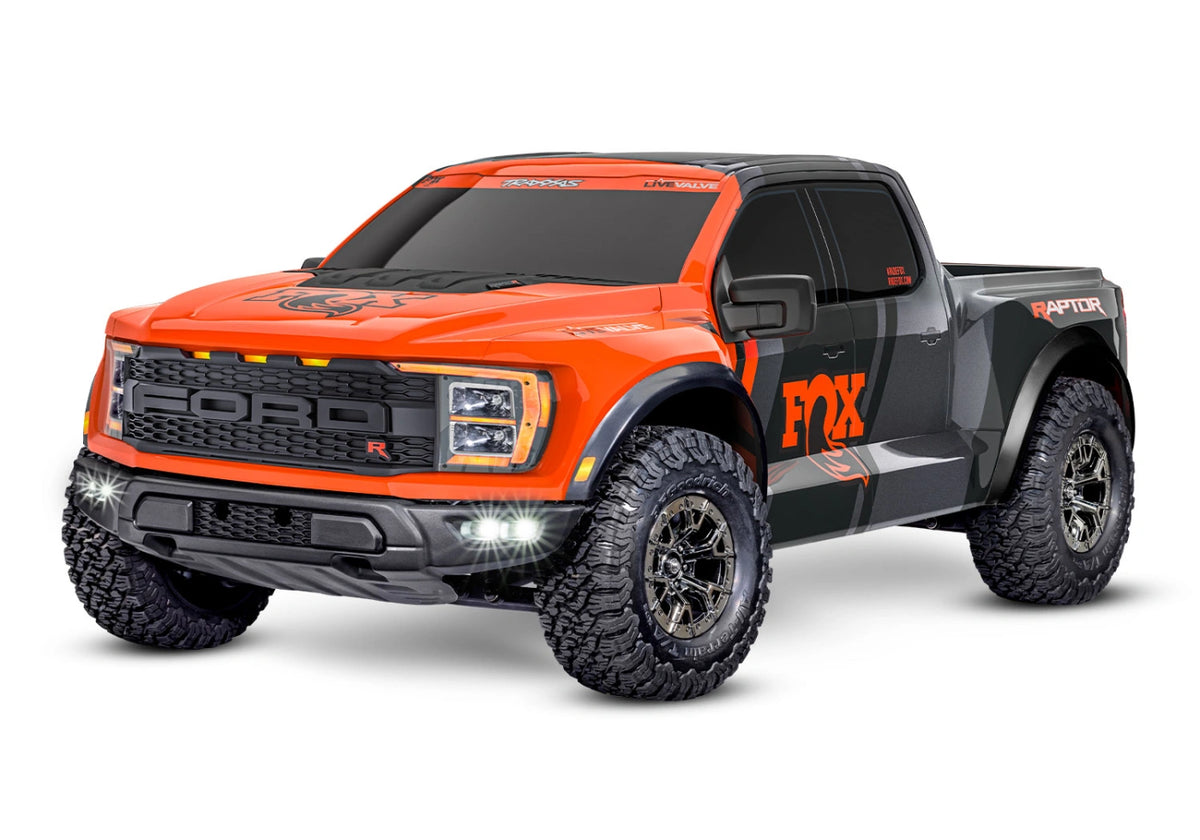

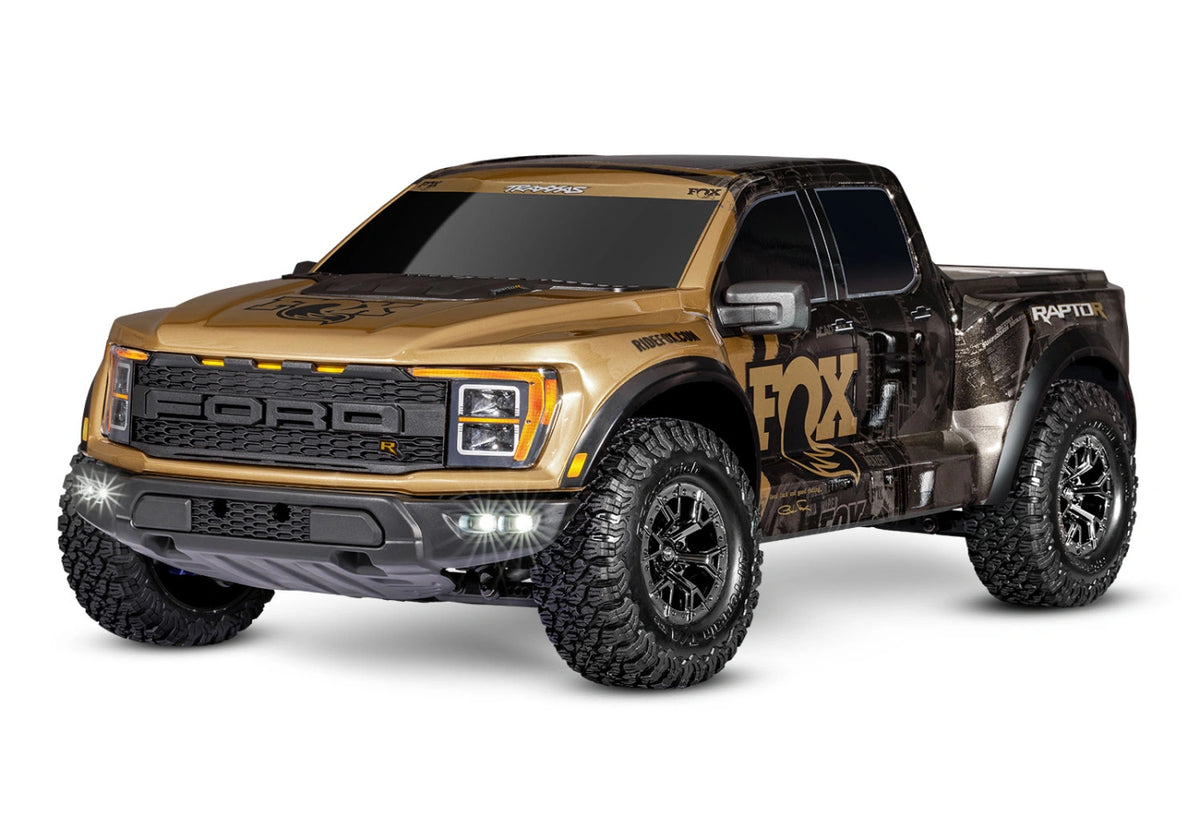

Traxxas 101177-4 Ford F-150 Raptor-R VXL-4s Ultimate 4WD 1/10 RTR TQi LED Fox2

🔧 Spare parts, batteries, chargers & upgrades

Explore the interactive spare parts maps for Traxxas Ford Raptor — easily find parts, tyres, accessories, batteries and much more for your exact model.

Open the spare parts map →

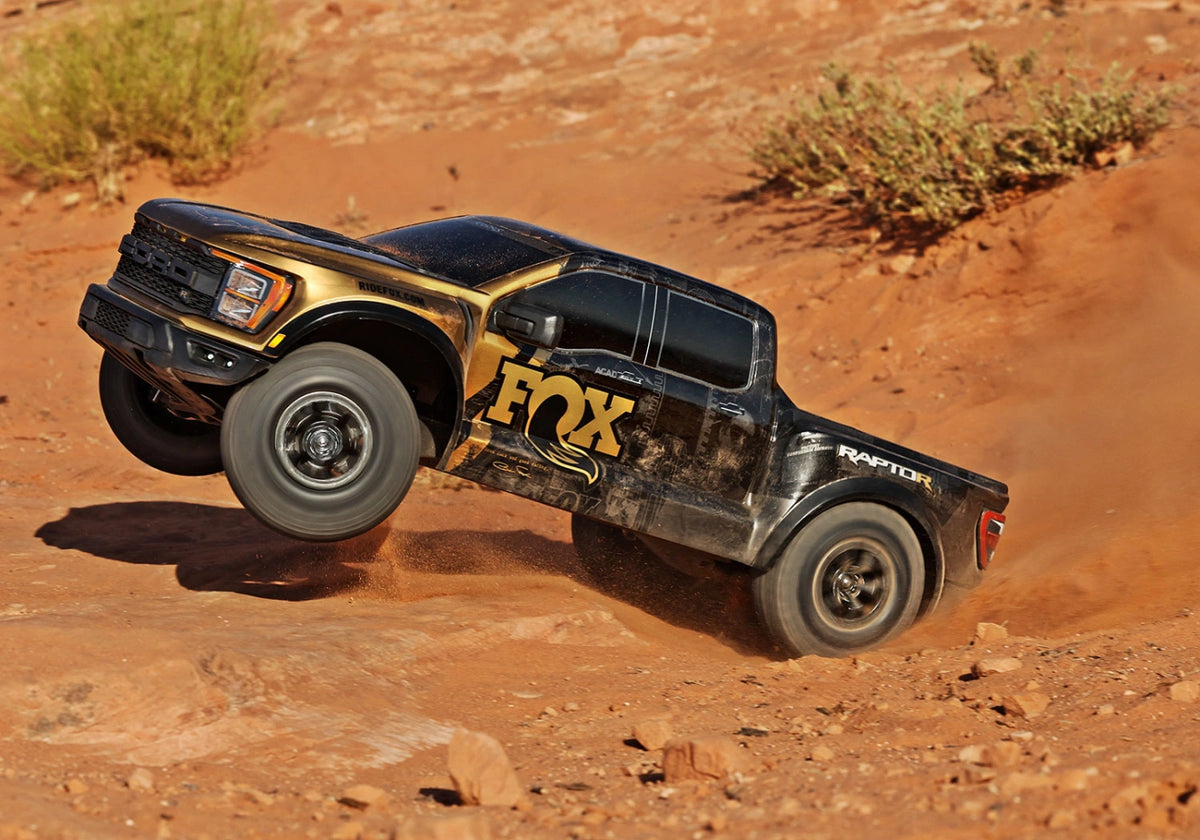

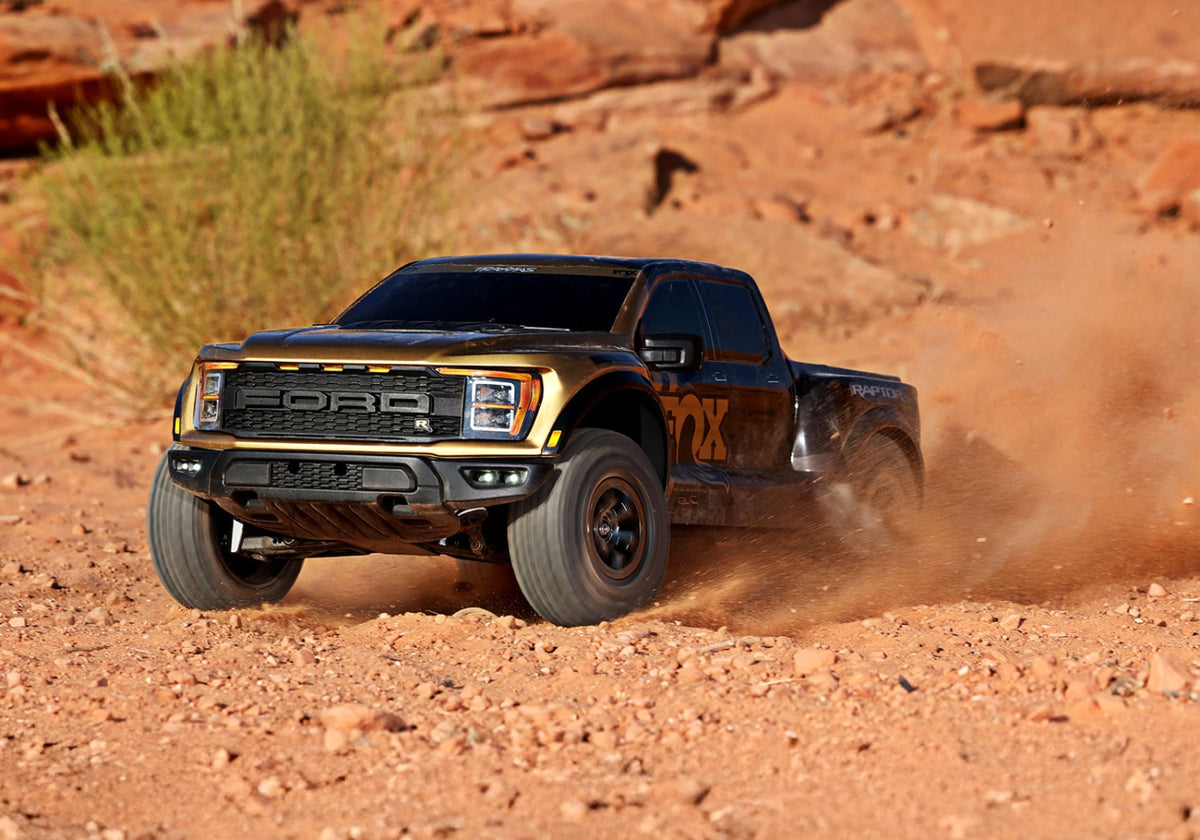

Experience the ultimate Raptor R

The Traxxas Raptor R™ 4x4 Ultimate takes Pro Scale® realism to new heights with Velineon® VXL-4s™ brushless power and the massive 540XL motor. Combined with an extremely strong 4WD drivetrain and colour-matched aluminium components, it delivers outstanding strength, speed and scale realism – perfect for enthusiasts who demand the best.

Realistic Pro Scale design

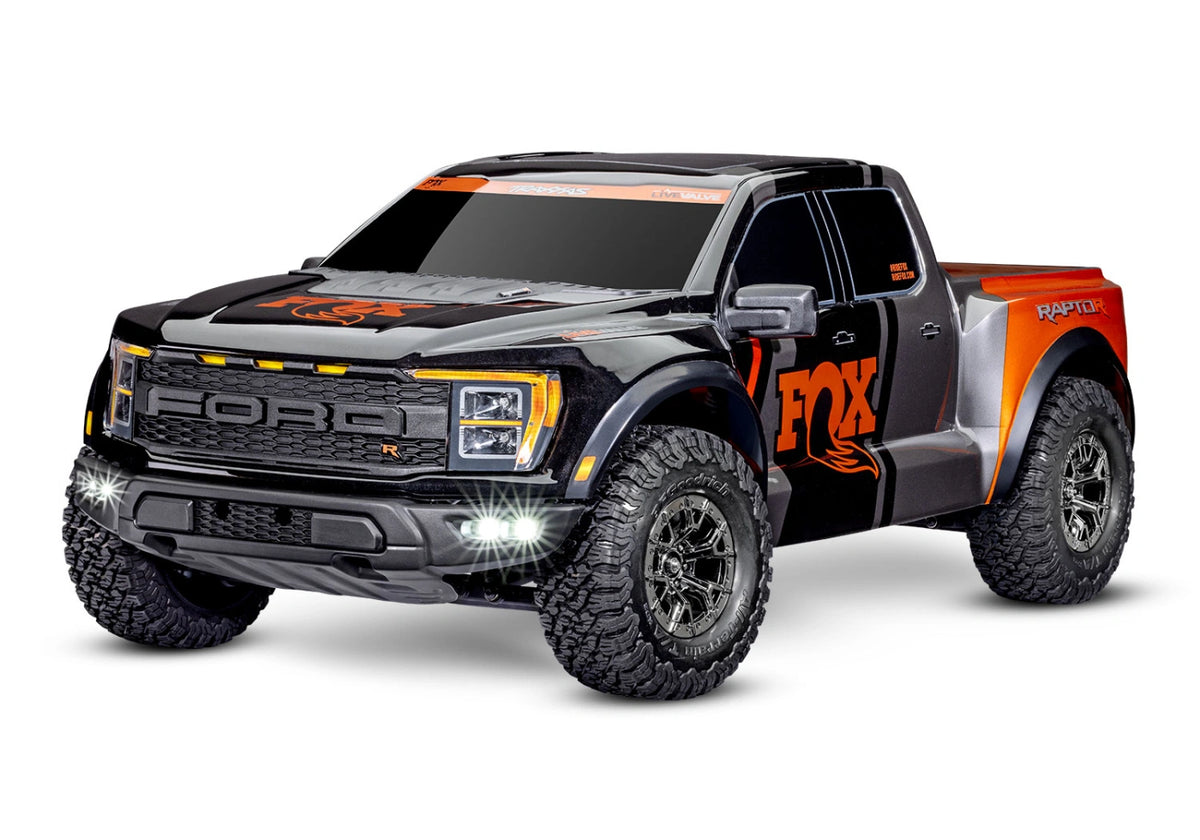

The licensed Ford Raptor R body with detailed moulded parts gives an authentic look. Under the shell is real performance – 4s brushless power, an extreme HD drivetrain and fully adjustable suspension ensure realistic handling and outstanding durability.

Ultimate upgrades

The Raptor R Ultimate comes factory-fitted with aluminium caster blocks, steering components, axle carriers and GTR shock absorbers. The strong HD drivetrain is built to handle extreme conditions and gives maximum durability – even in the toughest driving conditions.

Clipless body

The clever clipless body-mount system holds the body securely during big jumps and speeds of up to 96+ km/h, yet releases in seconds for easy access to the chassis. The hidden latch system keeps the truck's clean lines and professional look.

Extreme 4s Brushless Power

The Raptor R is powered by the strong Velineon 540XL brushless motor and VXL-4s speed controller with built-in telemetry. On a 4s LiPo it can reach over 96 km/h and delivers explosive acceleration and control that defy the laws of physics.

Built-in wireless module

A Traxxas Link™ Wireless Module is included as standard. With the free Traxxas Link app you can adjust transmitter settings and read real-time data such as speed, RPM and battery voltage directly on your smartphone.

Powerful servo system

The Raptor R Ultimate comes with a metal-gear high-performance servo with up to 34 kg/cm of torque at 7.4 volts. The aluminium case acts as a heat sink, while the fully waterproof construction ensures operation in all conditions.

Specifications

• Model name: Ford Raptor R 4x4 Ultimate
• Type: Short Course Truck
• Top speed: 96+ km/h with 4s LiPo (sold separately)
• Skill level: 2
• Scale: 1/10
• Weight: 3 kg
• Length: 637 mm
• Width: 289 mm
• Height: 226 mm

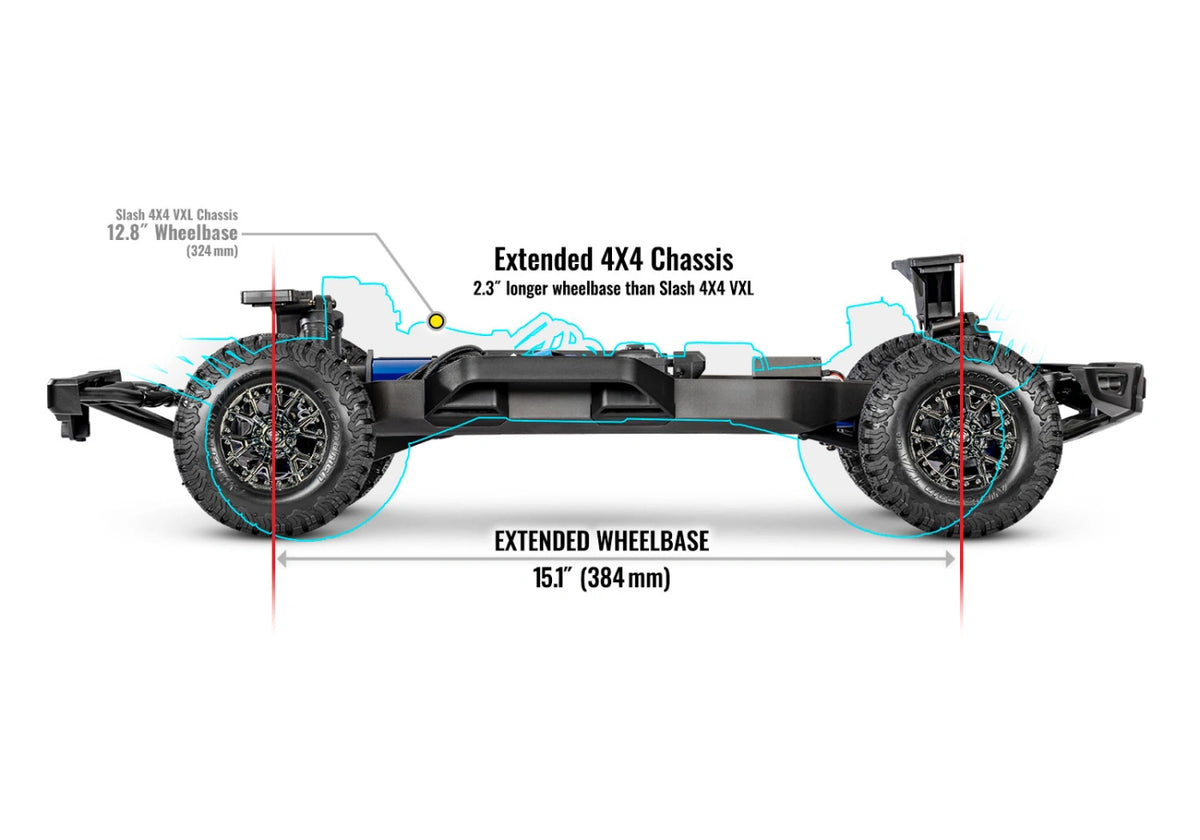

• Wheelbase: 384 mm
• Ground clearance: 52 mm
• Drive: Shaft-driven 4WD with Torque-Bias centre gear
• Differentials: Hardened steel, limited slip
• Gear pitch: 32 pitch
• Servo: 2275 high-torque metal gear (34 kg/cm, waterproof)
• Radio: TQi™ 2.4 GHz 2-channel system with wireless module
• Battery compartment: 165 x 50 x 23/26 mm

Motor

• Type: 540XL 2400 Kv sensorless brushless
• Weight: 317 g
• Length: 91 mm
• Diameter: 36 mm
• Shaft size: 5 mm
• Connector type: Traxxas 6.5 mm bullet connectors

Velineon® VXL-4s ESC

• Input: 2s–4s LiPo (7.4–16.8 V)
• BEC voltage: 6.0 V or 7.4 V (selectable)
• Motor connectors: 6.5 mm bullet connectors
• Battery connectors: Traxxas High-Current Connectors
• Thermal protection: Two-stage protection
• Extra ports: Receiver and fan

In the box

• Raptor R 4x4 Ultimate with VXL-4s ESC and 2400 Kv motor
• TQi 2.4 GHz radio system with wireless module
• Quick Start Guide
• High-quality maintenance tools

You will need

• Battery: 2s, 3s or 4s LiPo with iD® connector
• Charger: Traxxas EZ-Peak® Live (2971) recommended
• 4 pcs. AA alkaline batteries for the transmitter
