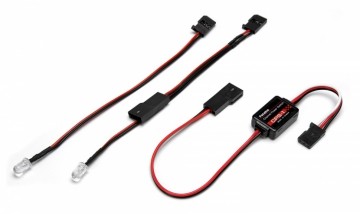

Futaba CPS-1 • Channel Power Switch

This unit allows you to freely turn on LEDs with a transmitter. You can turn on headlights and brake lamps at will. If you have a transmitter with more than 3 channels, the channel power switch CPS-1 enables you to turn on lights and brake lamps with the transmitter whenever you like, by simply connecting the CPS-1 and LEDs to an auxiliary channel of the receiver, which expands your enjoyment infinitely.

Features:

• Now updated to include two LED's!
• Control LEDs from your transmitter.
• Easy to install — simply plug into a receiver channel.
• Turn lights installed on your model on and off at any time.
• Very compact and lightweight.
• Great for airplane and heli orientation and night flying, or operating light bars, running lights or chassis under-lighting on cars and trucks.
• For use with radios with 3 or more channels with switches.

Specs:

• Main Application: Control of LEDs via your transmitter
• Current Drain: 10mA @ 6.0V
• Output Voltage: Depends on the receiver power supply
• Output Current: 200mA or less
• Operating Temperature Range: -10 to +45°C
• Power Requirement: NiCd, NiMH 4-5 cells equivalent battery
• Dimensions: 16 x 22 x 7.6 mm
• Weight: 5.9 g
