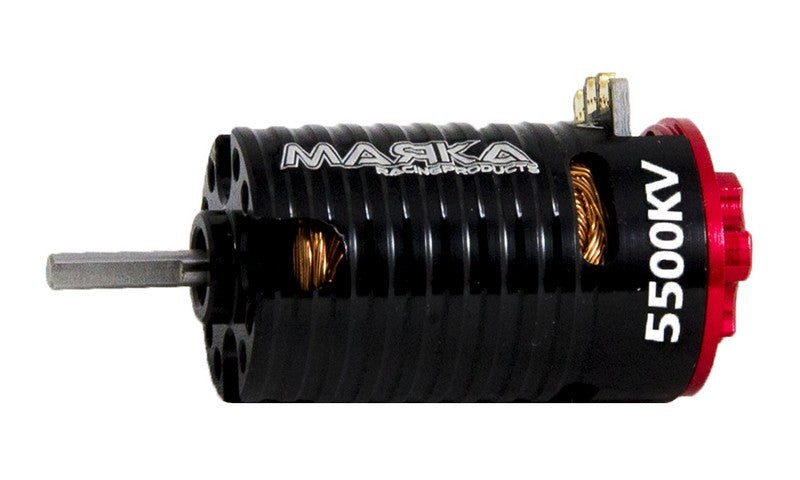

MARKA RACING MINI-Z V1 BRUSHLESS MOTOR 5500KV

249,00 kr

Get a price match on MARKA RACING MINI-Z V1 BRUSHLESS MOTOR 5500KV

Have you found the item cheaper at another retailer? Paste the link below and we will quickly let you know whether we can match the price. We look at the total price — including shipping, duties and fees — and the item should be in stock with them. We match if we can. Read the terms here.

Delivery

Last 1 units available - order now, delivery by 22 Sep (1 day)

In-store pickup

Last 1 units available - Nørresundby

In stock? Then we dispatch in:

Fast dispatch from our warehouse in Denmark

Fast dispatch from our warehouse in Denmark
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Delivery 1–2 working days
  • Shipping from 35 kr.
  • Certified Danish webshop (E-mærket)
  • Easy and secure payment
  • Can be collected at our shop in Nørresundby
     View shop information

Description

MARKA RACING MINI-Z V1 BRUSHLESS MOTOR 5500KV

Description

The Marka Racing Brushless Motor 5500kv have much-more torque and acceleration than others VE motor.
The Marka Motor heatsink can is annodized with black color and the Alu end-bell is annodized in red color.
In this way we tryed to keep Marka brand colors and offer a nice design.

Specifications
Scale: 1/28th Brushed/Brushless
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensorless
RPM: 46000 with 8.4V
KV Rating: 5467Kv
LiPo/Nimh Cells: 2S or 4xNimh 1.2V (4.8V)
No-load Current: 0.4A
Rotor: 6.0x2.0x14.5mm
Timing: Fix
Weight: 17.4gr

Aluminium Heatsink Can
- has the 15mm diameter same as normal brushed 130 motor.
- has holes in the front and lateral sides for a good ventilation that allows for a better heat dispersion
- in the front there are M2 screws holes that allows to fit the motor on all the types of Miniz motor mount and chassis
- has printed Marka logo on the lateral side and the Kv number to recognize the motor type

Stator
- high quality wires used for high temperature and longevity life
- high quality wires producing good torque and speed

Rotor
The rotor has the following size 6.0x14.5mm is the standard one.
The rotor is interchangeable and is possible change with other size 6x(11.5mm-12.5mm-13.5mm-15.5mm-16.5mm).
The shaft is 2mm.

Bearing
JAPAN high quality duel ball Bearing included

Compatible
Fits in all Kyosho, PN Racing, GL Racing, Atomic, Xpower motor mount.
Fits in all Mini-Z chassis MR02, MR03, F1, AWD, GLR, GLA, GLF, BZ ect.

Wire Connetion
For connect to the ESC use 22AWG/0.35mm silicon wire Marka (MRK-3108)

Screws
To mount the motor on the motor mount, use the following screws:
On PN Racing motor mount use M2x4mm countersunk screws for aluminum/metal
On GL Racing (GLR, GLA e GLF) or Atomic (BZ) motor mount use M2x4mm button screws for aluminum/metal
The screws are not included
