GensAce Charger iMars D300 PLUS Dual Channel (UK) White

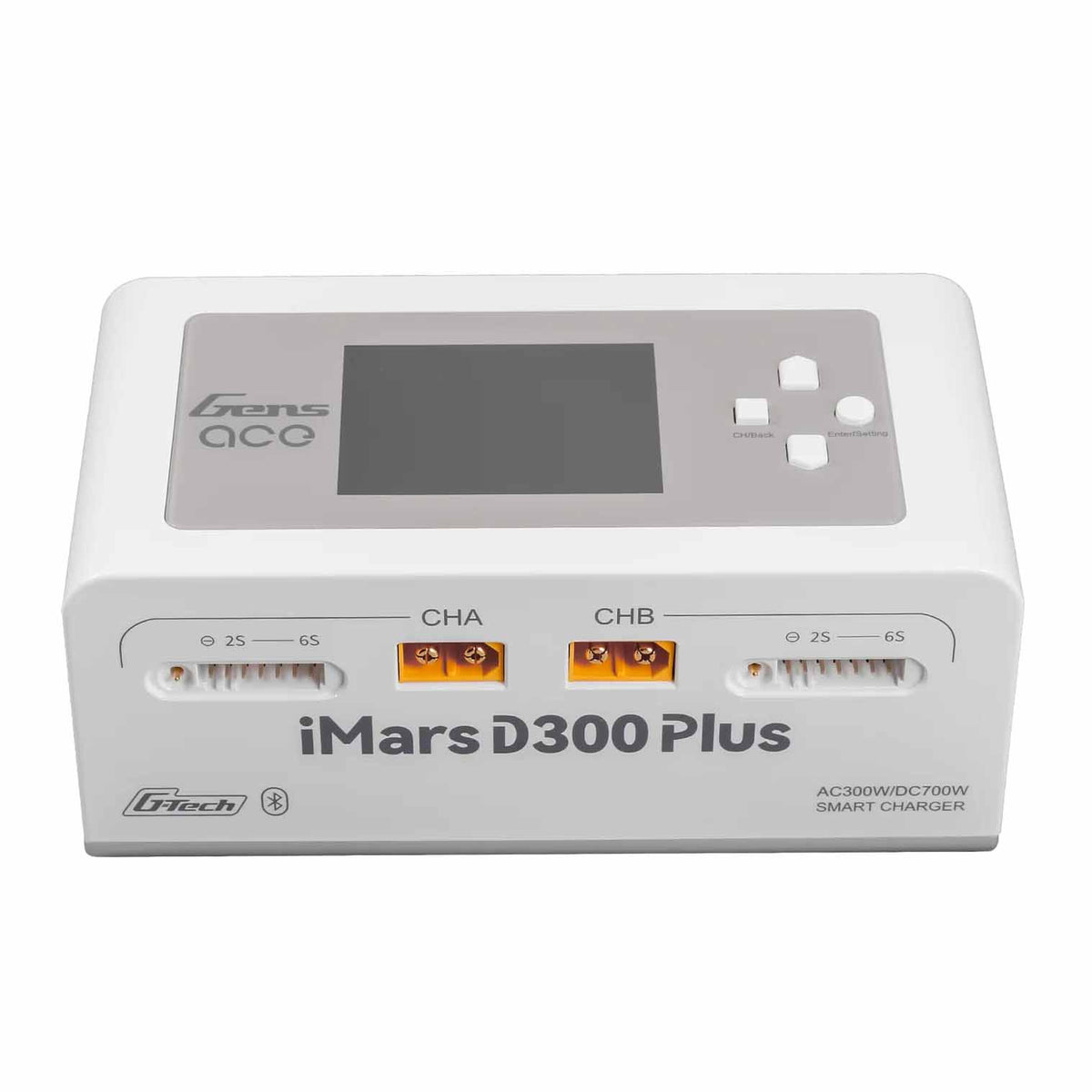

GensAce iMars D300 Plus Dual Channel Charger (UK, White)

The GensAce iMars D300 Plus is a new dual-channel smart charger based on the D300 model. The charger keeps the core functions of the G-Tech system and adds Bluetooth remote control, so you can control charging and access real-time data and historical records via the Gens Ace app. This makes the experience simpler, more efficient and safer.

With its plug and play function, the charger automatically recognises G-Tech smart batteries, removing the need for manual setup and reducing the risk of errors. Non-G-Tech batteries are also supported, but require manual setting of the parameters here.

The iMars D300 Plus is fitted with a 2.4" IPS display, built-in power supply and 8-level protection, ensuring safe operation in all conditions. The charger is compact and lightweight, and offers seven different functions for flexible battery care.

Technical data

• Input voltage: AC 100–240V / DC 7–30V
• Output voltage: DC 1–30V
• Max. input current (DC): 34A
• Max. charging power: AC 300W / DC 350W ×2
• Charging current: 0.1–16A ×2
• Discharging current: 0.1–3A ×2
• Discharging power: 15W ×2
• Supported batteries - LiPo / LiHV / LiFe: 1–6S
• Supported batteries - NiMH: 1–16S
• Cell balancing: Supported (1–6S)
• Display: 2.4" IPS LCD
• USB output: 5V / 2.4A
• Dimensions: 145 × 76 × 62 mm
• Weight: Approx. 530g
• Languages: English, German, French, Chinese, Simplified Chinese
• Firmware: V1.0.5

Features

• AC 300W / DC 700W high power
• Remote control via app
• Plug and play
• Automatic recognition of G-Tech smart batteries
• Data logging and storage
• 8-level protection
• 7 functions
• Compact and lightweight
• Built-in power supply
• Easy connection and disconnection
• IPS display

8-level protection

• Overheating protection
• Current limiting protection
• Overvoltage protection
• Wire-break protection
• Reverse polarity protection
• Short-circuit protection
• Warning for incorrect cell count
• Warning for abnormal voltage

Operating modes

• Charging
• Discharging
• Storage
• Balance
• 2-in-1 fast charging
• External discharge
• Digital Power
• Manual

Package contents

• AC cable
• XT60-T adapter
• EC5 adapter
• EC3 adapter
