Novak Activ8 / Vented Ballistic 550 4XSC – brushless combo set 4,5T (#3185)

Novak Activ8 / Vented Ballistic 550 4XSC – brushless combo set 4.5T

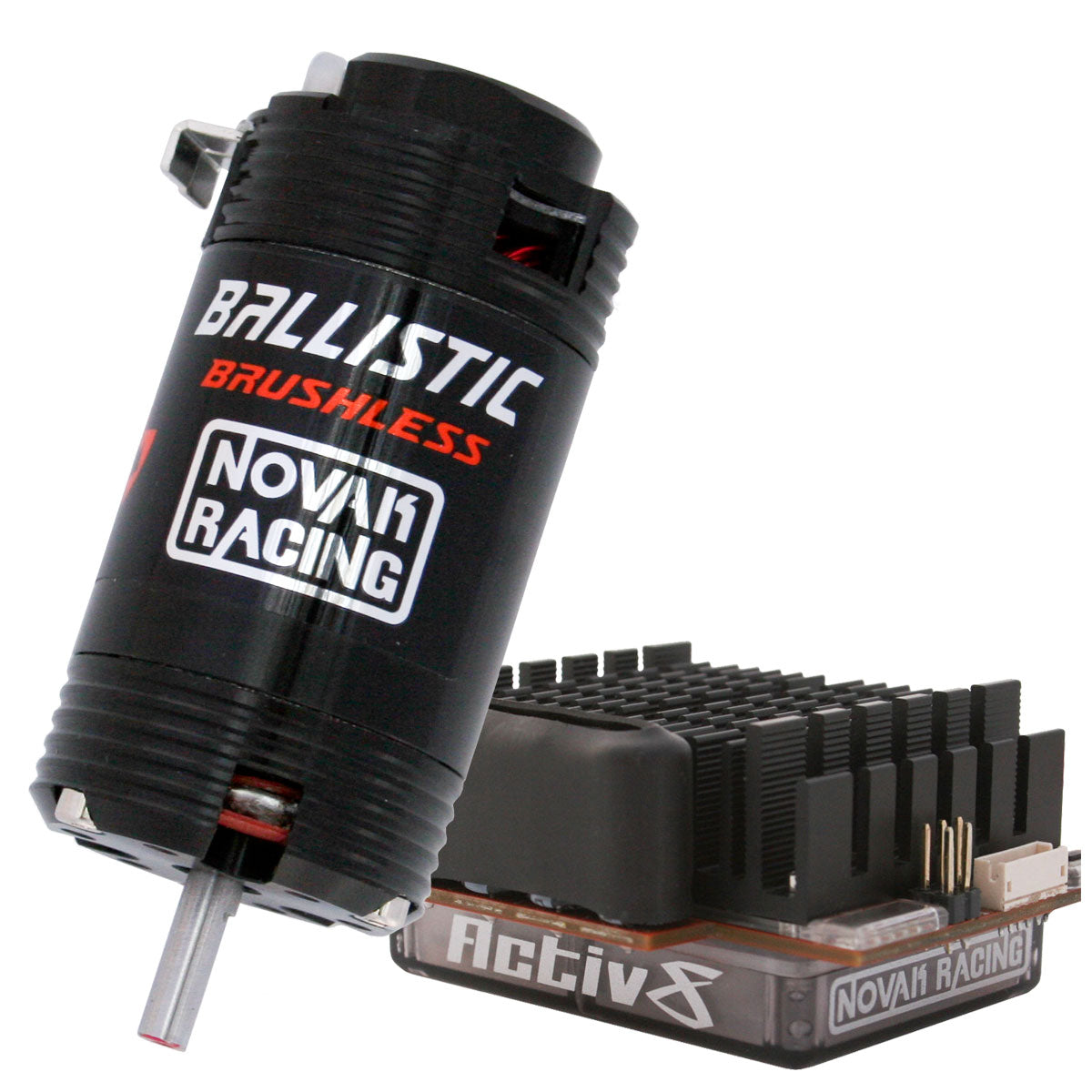

Pure sensored racing combo built for hard use in 4WD Short Course – and well suited to 1:8 buggy/truggy. The set consists of a powerful Novak Activ8 speed controller (ESC) and a Novak Vented Ballistic 550 sensored motor with 4.5 turns. Developed and hand-built by Team Novak in California.

Contents

• 1 x Novak Activ8 brushless ESC (with 40 mm cooling fan + protective grille)
• 1 x Novak Vented Ballistic 550 sensored motor, 4.5T
• (Battery, servo, receiver and motor connectors not included)

Activ8 ESC

• Input: 2S–4S LiPo (auto-detection)
• For all 540/550 and 1:8 (15-series) brushless motors
• Powerful switching BEC: 6.0 V, 4.5 A peak / 3.0 A continuous
• Cross-cut heatsink + 40 mm fan
• X-Drive throttle response, Nova-Brakes, on-board programming, adjustable timing, thermal protection
• Weight approx. 90 g (without wires), 12GA silicone wires

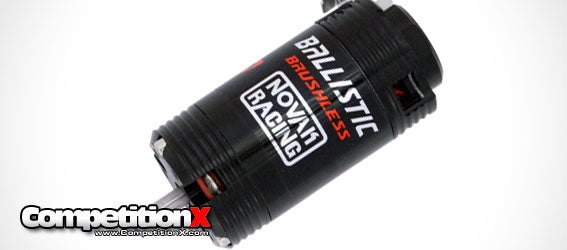

Vented Ballistic 550 motor

• 4.5 turns, sensored, hand-wound
• Kv: approx. 5,000 rpm per volt, approx. 890 W
• Size: 550 (72.1 x 35.8 mm) – double the stator length of a 540
• 5 mm shaft (Mod 1 / 32-pitch), vented end bells, rebuildable, adjustable timing
• Weight approx. 278 g

Please note: this model has been discontinued and is sold as remaining stock. Item no.: Novak #3185 · UPC: 607209031851.
