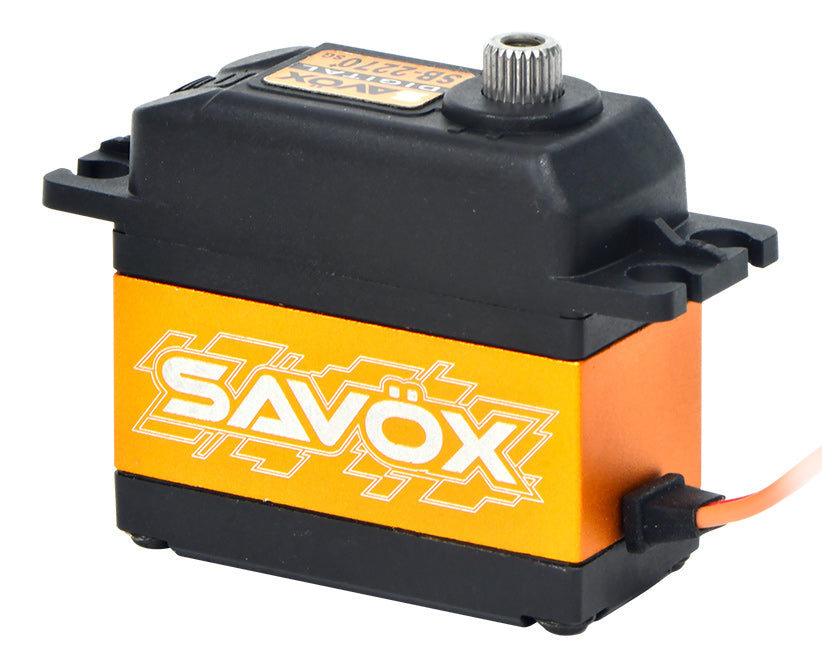

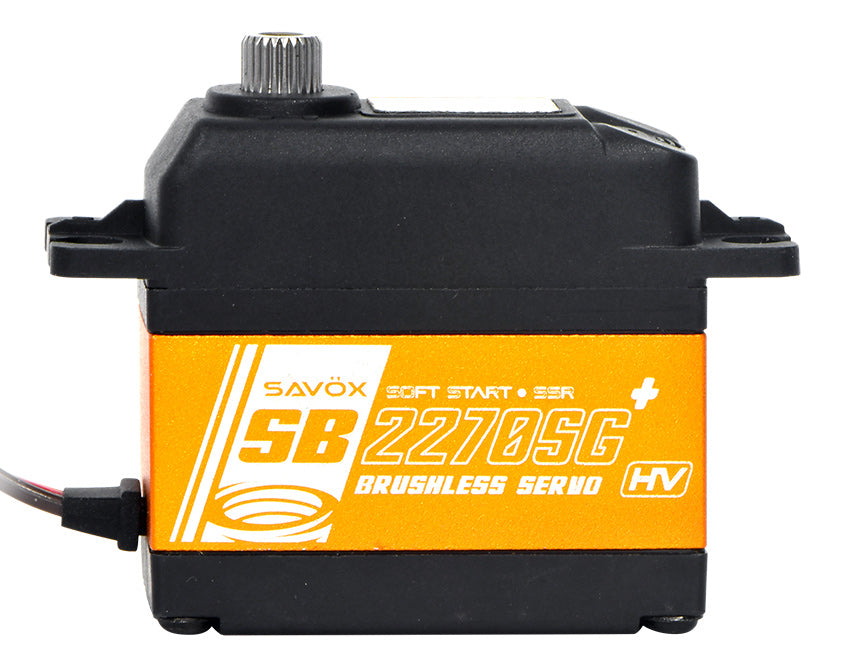

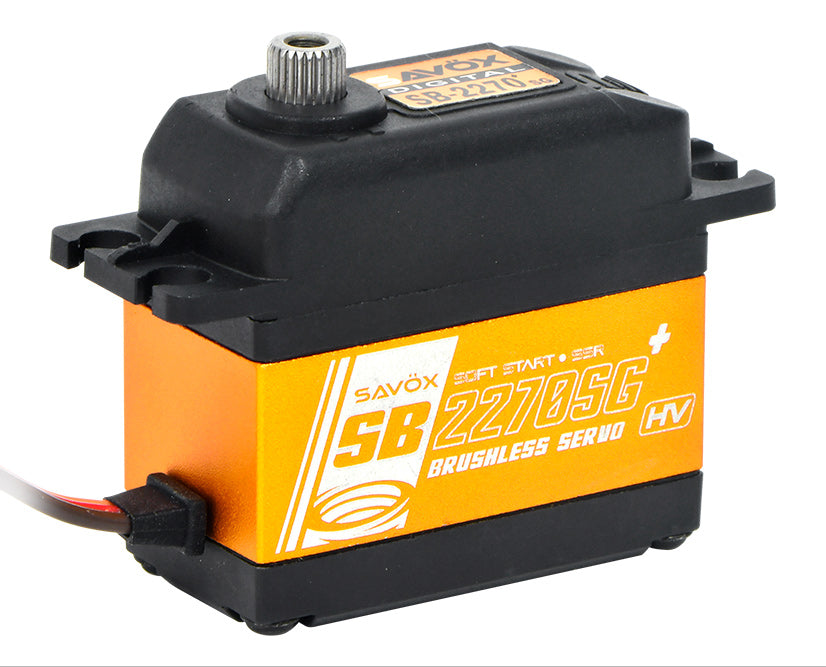

SB-2270SG Plus Servo 40Kg 0,12s HV Alu Brushless Steel Gear

Savöx SB22760SGPLUS - SB-2270SG+ Brushless Servo Steel Gears HV 40kg/cm 0.12s

Original Savöx Servo Line
Known for its iconic orange design, the Original Line covers a wide spectrum of performance - from reliable value models to proven competition-grade servos. These are the workhorses of the Savox lineup, used across countless RC platforms.

Whether you're racing, bashing, or boating, the Original Line offers dependable control backed by years of real-world use. It’s our most versatile range - and the backbone of the Team Savox ecosystem.

Specs:

• Line: ORIGINAL LINE
• Applications: CAR / AIRPLANE
• Servo Size: Standard
• Operating Voltage: 6.0V-8.4V
• Speed @ 6.0V: 0.15 s/60°
• Torque @ 6.0V: 30 kg/cm
• Speed @ 7.4V: 0.12 s/60°
• Torque @ 7.4V: 40 kg/cm
• Speed @ 8.4V: 0.11 s/60°
• Torque @ 8.4V: 45 kg/cm
• Amplifier Type: Digital Controller
• Motor Type: Original Brushless
• Case Type: Hybrid (Aluminum/Composite)
• Protection: Water Resistant

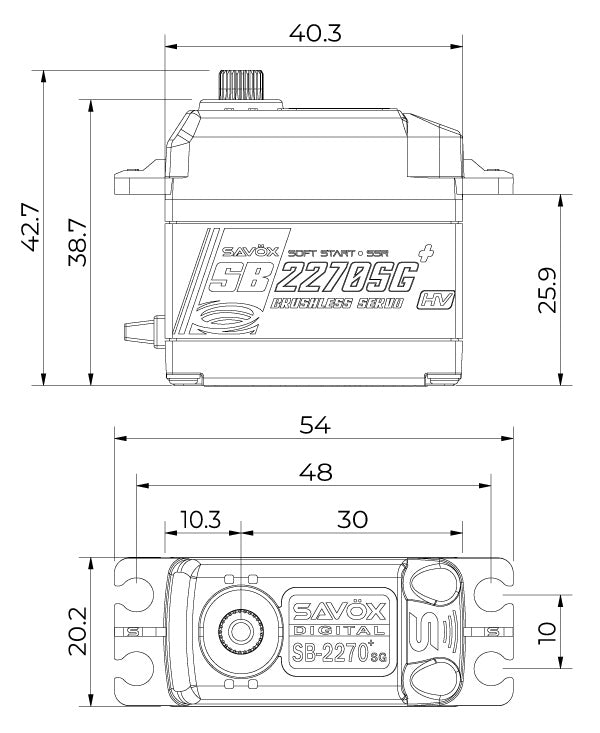

• Dimensions (L x W x H): 40.3 x 20.2 x 38.7 mm
• Weight: 74 g

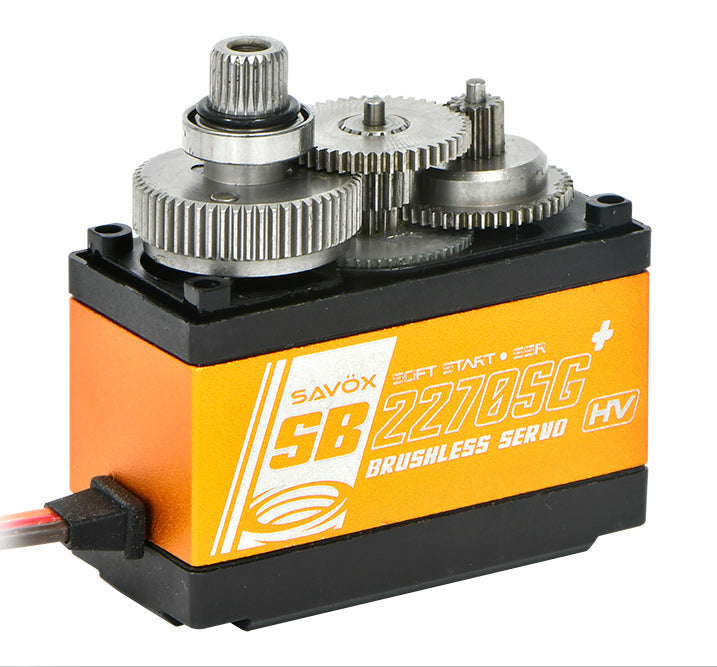

• Gear Type: Specialized Steel
• Compatibility: Sanwa SSR
• PCB Board: 8-bit
• Horn Gear Spline: 25T (Φ6)
• Rotating Direction: Counter clockwise (when 1000→2000 μsec)
• Max Travel: ~130° (when 900→2100 μsec)
• Operating Travel: 100° (when 1000→2000 μsec)
• Neutral Position: 1500 μsec
• Bearings: 2x Ball Bearings
• Potentiometer: VR
• Cable Diameter: 22 AWG
• Cable Length: 300 ±5 mm
• Connector: JR
• Stall Current @ 6.0V: 6000 mA
• Operating Current @ 6.0V: 200 mA
• Stall Current @ 7.4V: 7400 mA
• Operating Current @ 7.4V: 220 mA
• Stall Current @ 8.4V: 8400 mA
• Operating Current @ 8.4V: 250 mA
• Idle Current: 5 mA
• Dead Band Width: 3-5 μsec
• Frequency Range: 50-360 Hz
• Control System: Pulse width modification
• Operating Temperature: -10°C to 50°C
