Traxxas X-Maxx 8S Belted 4WD Brushless TQi TSM - 77096-4

🔧 Spare parts, batteries, chargers & upgrades

Discover the interactive spare parts maps for the Traxxas X-Maxx Belted — easily find parts, tyres, accessories, batteries and much more for your exact model.

Open the spare parts map →

Experience unmatched power and control with the latest version of the Traxxas X-Maxx 8s! With new belted Sledgehammer tyres and upgraded gearing, this monster truck delivers extreme performance – straight out of the box. Perfect for the passionate RC enthusiast who wants the very best.

Highlights

• New Belted Sledgehammer Off-Road tyres – improved grip and durability
• New 7886 Overdrive gear set installed – for improved acceleration
• Standard gearing 15/54 – perfectly balanced for all-round driving
• Extra speed gearing 17/46 included – reach over 80 km/h!

Vehicle specifications

• Model name: X-Maxx 8s Belted
• Type: Monster Truck
• Top speed: 80+ km/h (with 2x 4s LiPo and speed gearing)
• Skill level: 6 (advanced)
• Scale: X-Truck
• Weight: 8.66 kg

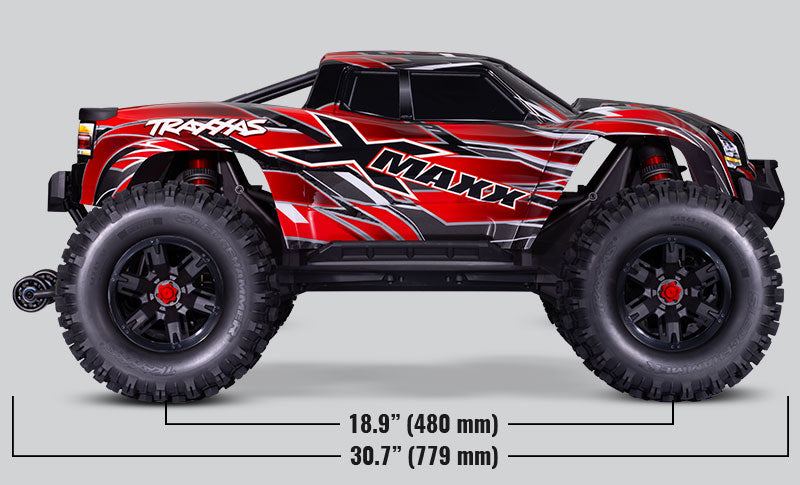

• Length: 779 mm

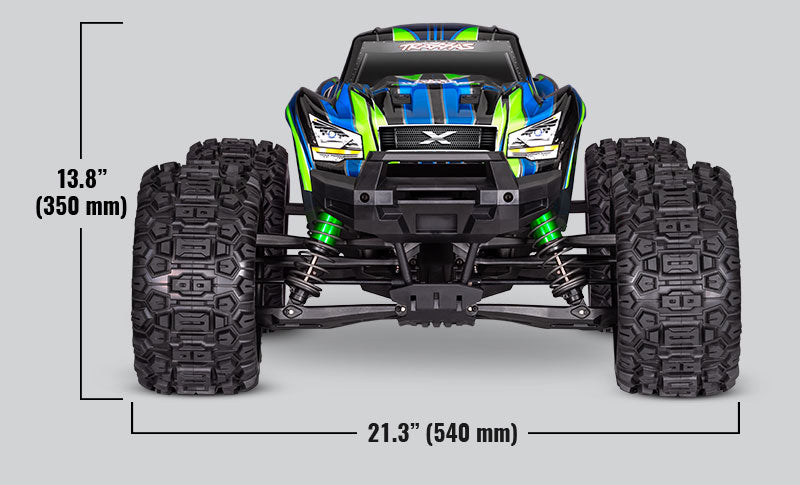

• Width: 540 mm
• Height: 355 mm
• Wheelbase: 480 mm
• Ground clearance (centre): 107 mm
• Drive system: Shaft-driven 4WD
• Transmission: Single speed
• Differential: Sealed, hardened steel gears with limited slip
• Gear pitch: 1.0 metric pitch
• Servo: 2085X metal gear, ultra-high-torque, waterproof
• Radio: TQi™ 2.4 GHz 2-channel with wireless module
• Battery compartment: 197 x 52 x 44 mm

Motor specifications

• Name: Velineon® 1200XL
• Type: 1275 kV sensorless brushless
• Weight: 665 g
• Length: 110 mm
• Diameter: 48 mm
• Shaft size: 5 mm
• Connector type: 6.5 mm bullet connectors

ESC specifications

• Name: Velineon® VXL-8s™
• Type: Brushless
• Size (case): 58 x 72 x 46 mm
• Weight: 215.5 g
• Motor connectors: 6.5 mm bullet connectors
• Battery connector: Traxxas High-Current Connectors
• Power cables: 10 gauge Maxx® cable
