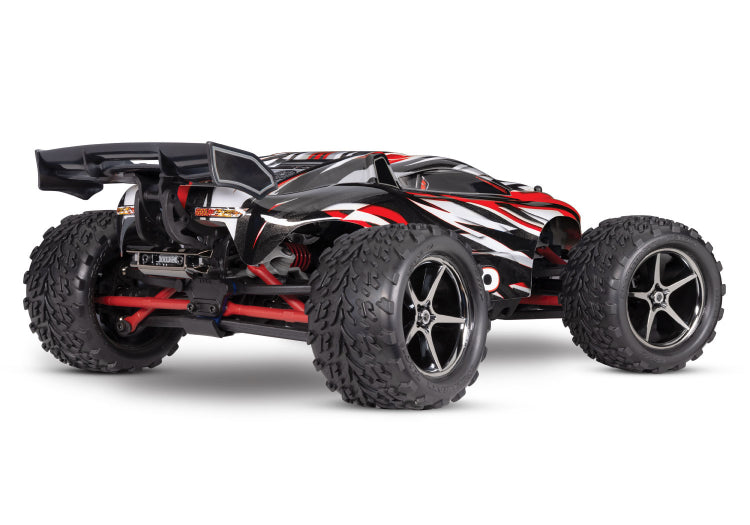

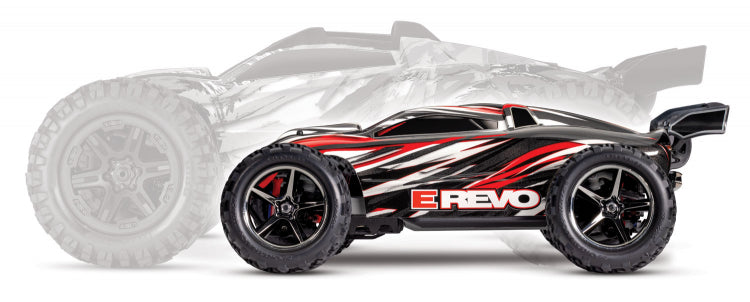

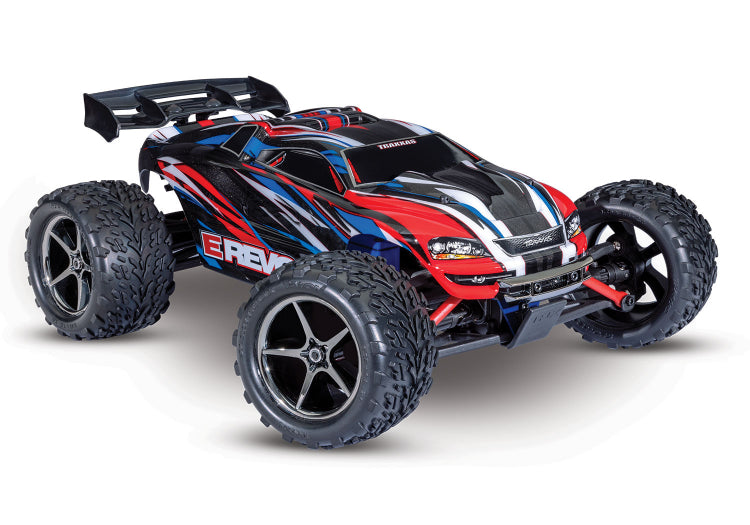

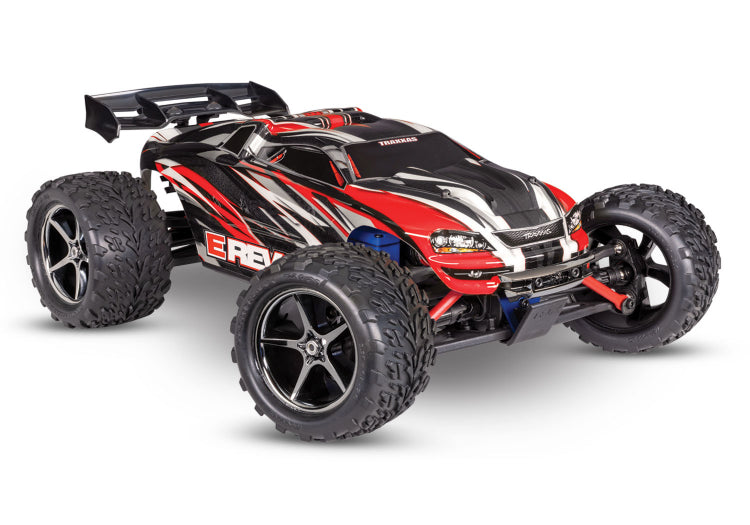

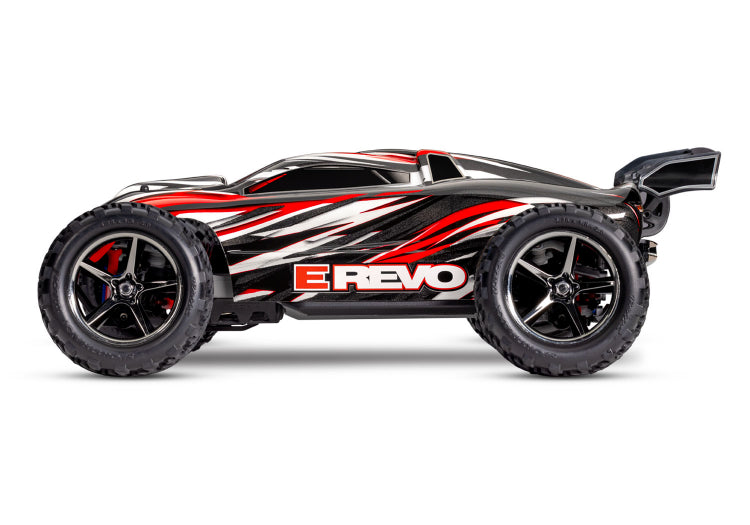

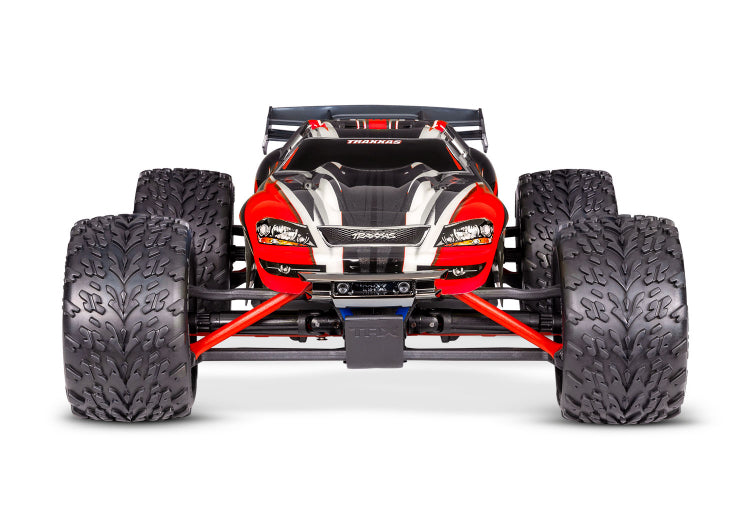

E-Revo 1/16 4WD monster truck RTR with battery and USB-C charger – red

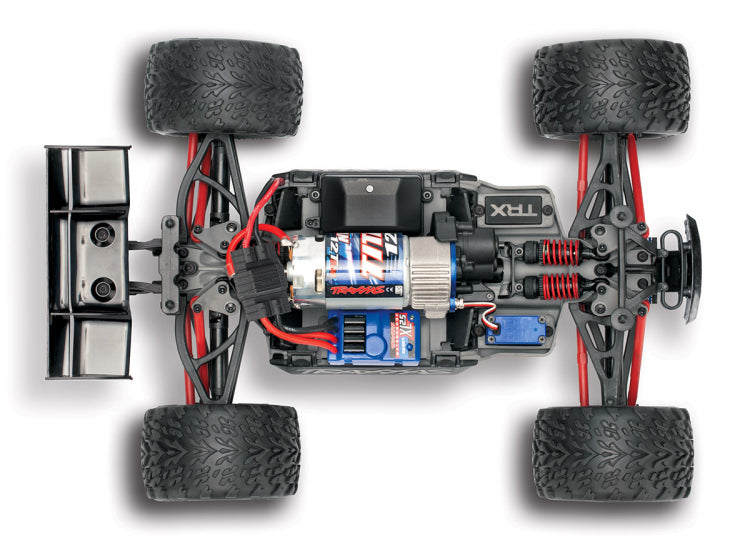

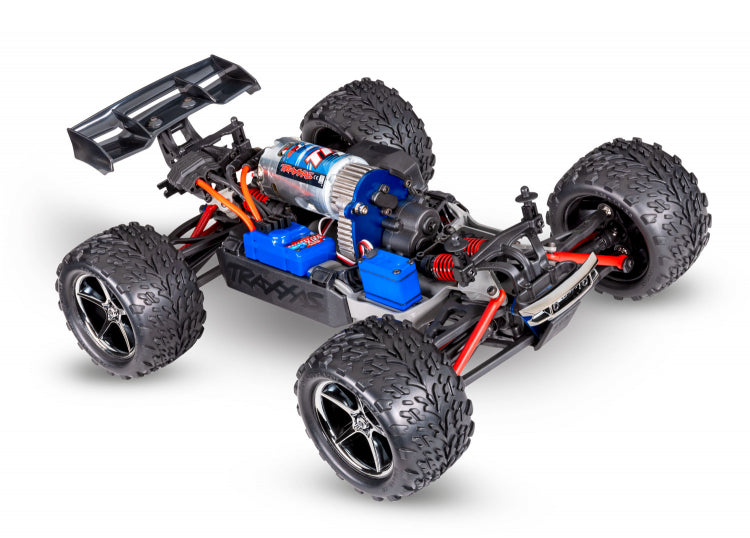

Big monster truck feel in a small format! The 1/16 E-Revo has the same Revo suspension as its big brother, and you can feel it when you send it through the garden, over gravel piles or into the local woods. Full-time 4WD, a Torque-Control slipper clutch and sealed differentials give you traction on all four wheels without damaging the driveline, while the Talon tyres with foam inserts grip almost any surface. The Titan 550 motor has a built-in cooling fan and pushes it to over approx. 48 km/h — that works out at approx. 32 km/h. Not bad for a car you can carry in one hand!

Is it ready to run out of the box? YES! The battery and USB-C charger are in the box, so you just need to find 4 AA batteries for the transmitter and charge up. The charger has Traxxas iD, so it recognises the battery by itself and sets itself up correctly — handy when you are impatient. Please note that the power adapter and cable are sold separately; if you want to charge at full speed, use the Traxxas 2912 45-watt power adapter and the 2916 100-watt cable.

The electronics are waterproof, so a puddle or wet grass will not stop the fun. The XL-2.5 ESC has three driving profiles: Training Mode with half speed for the little ones, Sport Mode for everyone, and Race Mode without reverse when dad gets his turn. We at Hobbyviking think it is a really good way to get the whole family to share one car. Low-voltage protection and thermal protection look after the battery and electronics, so you can concentrate on driving.

Features

• Ready-To-Race with included 6-cell NiMH Power Cell battery with iD
• 2 A USB-C charger with iD technology
• Revo suspension
• Full-time 4WD, shaft-driven

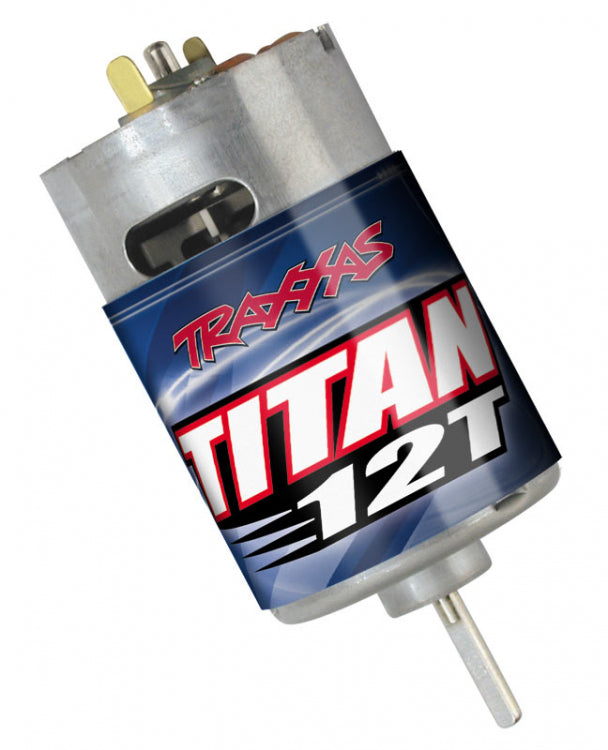

• Titan 12T 550 motor (modified) with integrated cooling fan

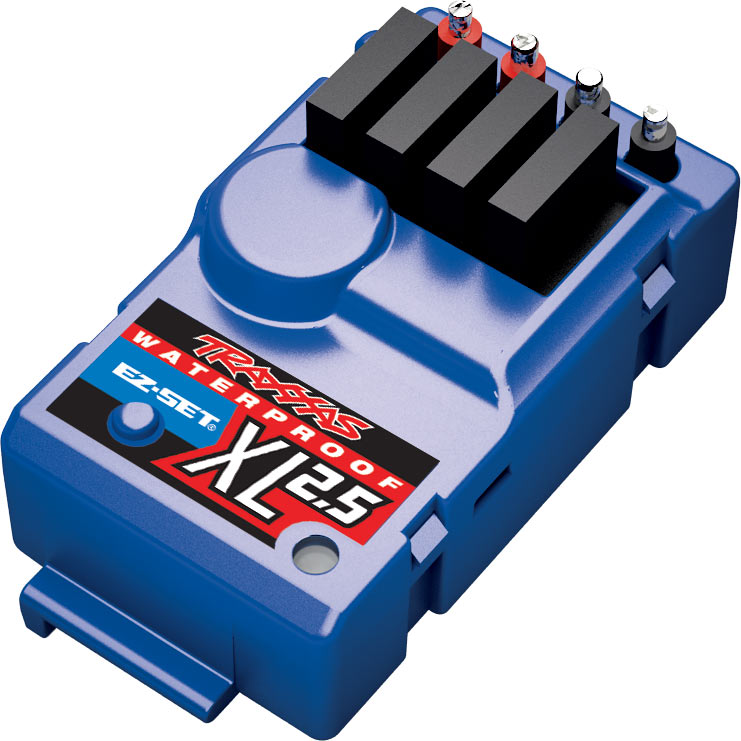

• Waterproof XL-2.5 ESC with three driving profiles and Traxxas EZ-Set one-button setup
• Low-voltage detection (2-stage, can be switched on and off) and thermal shutdown protection
• Torque-Control slipper clutch
• Sealed hardened steel differentials
• Realistic all-terrain tyres with foam inserts

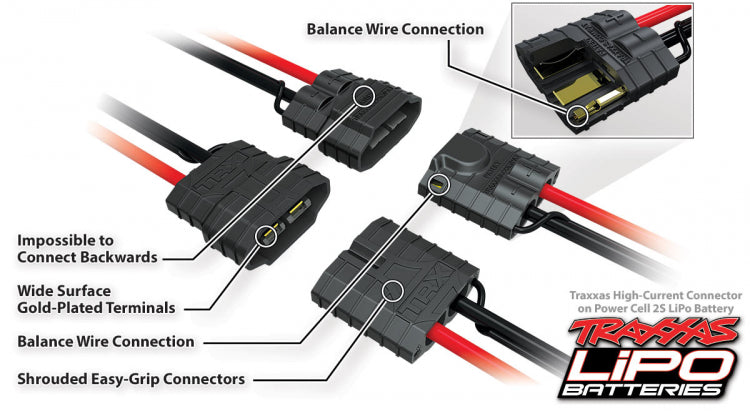

• Patented Traxxas High-Current connector and gold-plated connectors
• Metric hex hardware
• Rubber-sealed ball bearings
• 7.2 V 1200 mAh Traxxas Power Cell rechargeable NiMH battery
• The Traxxas iD system automatically recognises the iD battery
• Power adapter and cable sold separately — for maximum charging speed, the Traxxas 2912 45-watt power adapter and 2916 100-watt cable are recommended

Specifications

• Length: 328 mm
• Width: 239 mm
• Height (overall): 117 mm
• Wheelbase: 202 mm
• Weight: 1.24 kg
• Wheel diameter: 50.8 mm (2.0")
• Shock length (front/rear): 48 mm / 48 mm
• Tyres front/rear (glued): Talon 2.0"
• Wheels front/rear: 2.0" Gemini (black chrome)
• Top speed: approx. 32 km/h (over approx. 48 km/h)
• Motor: Titan 12T 550
• Transmission: Heavy-Duty single speed
• Gear ratio (internal): 5.04:1 (reversed input: 9.72:1)
• Overall gear ratio: 15.75:1 (standard, out of the box)
• Differential type: hardened steel, bevel gear, sealed
• Gear pitch: 48-pitch
• Chassis: moulded composite nylon monocoque
• Brake: electronic
• Steering: bellcrank
• Transmitter: TQ 2.4 GHz
• Receiver: 6519 3-channel micro
• Skill level: 1
• Battery tray: 89 x 35.5 x 20 mm
• Transmitter batteries: 4 pcs. AA (not included)
• ESC input voltage: 6-cell (7.2 V) NiMH, 2-cell (7.4 V) LiPo
• ESC size: 26.5 mm W x 46.5 mm D x 22 mm H
• ESC weight: 33 grams
• Motor limit: 10 turns
• On resistance (@Trans): 0.008 ohm
• Reverse delay: none
• BEC voltage: 6.0 V DC
• Power wire: 16 gauge / 40 mm
• Input harness: 26 gauge / 130 mm
• Motor wires: 26 gauge / 130 mm
• Transistor type: MOSFET
• PWM frequency: 2300 Hz
• Sport Mode: 100 % forward, 100 % brake, 100 % reverse
• Race Mode: 100 % forward, 100 % brake, no reverse
• Training Mode: 50 % forward, 100 % brake, 50 % reverse

What's in the box

• E-Revo 1/16 4WD RTR

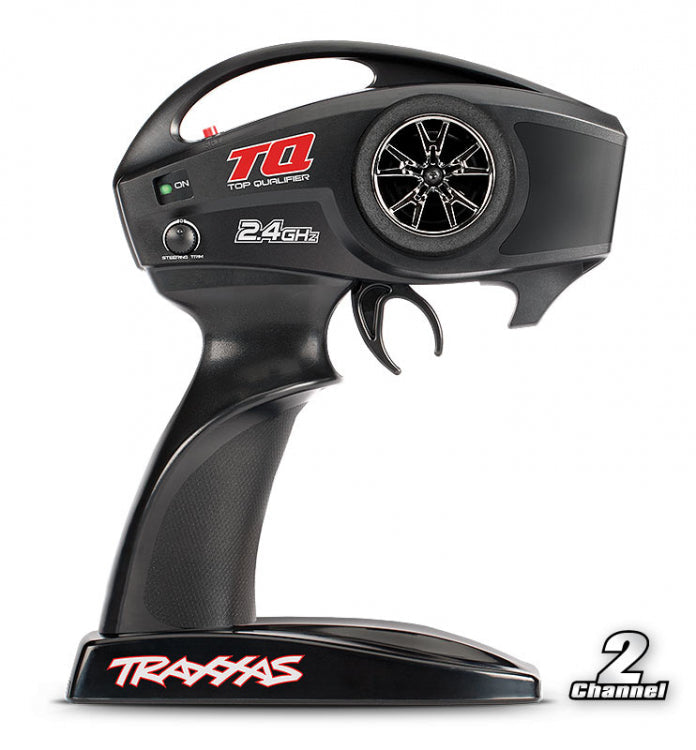

• TQ 2.4 GHz transmitter

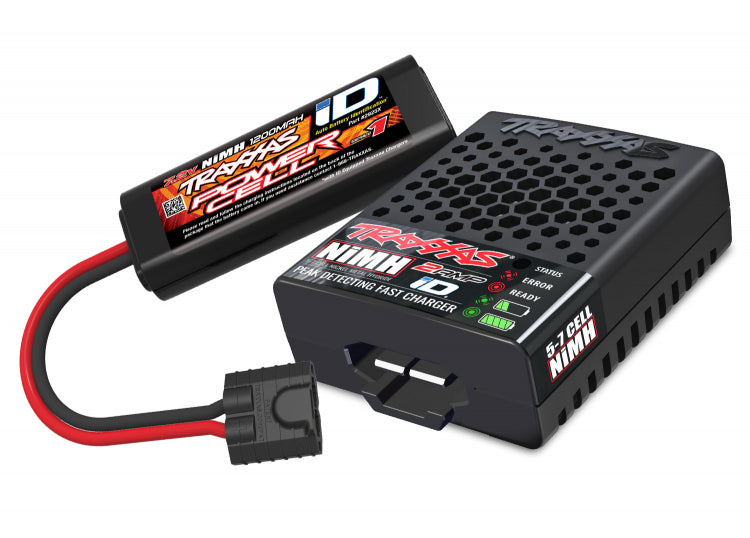

• 6-cell Power Cell iD NiMH battery (7.2 V 1200 mAh)
• 2 A USB-C charger with iD technology (peak detecting DC charger)
