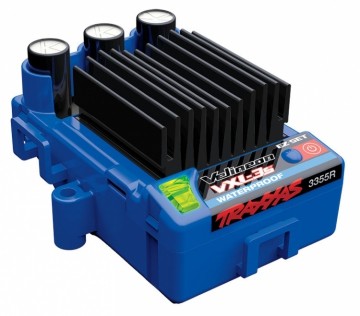

Traxxas 3355R ESC Velineon VXL-3S Brushless WP

Velineon VXL-3S brushless speed controller – waterproof

Do you want your car to run on 3S LiPo without the speed controller breaking a sweat? Then the VXL-3S is the answer. It offers forward and reverse, drives brushless motors with no motor limit and handles everything from 4-cell NiMH/NiCad up to 11.1 volt 3S LiPo. With 320 A peak, 200 A continuous and a resistance of just 0.00075 ohm, the MOSFET electronics have plenty in reserve when you push the throttle all the way. Power flows through 12-gauge Maxx wire, Traxxas' patented High-Current Connector and gold-plated 3.5 mm bullet connectors to the motor, so no watts are wasted along the way.

Rain, puddles and mud? No problem. The case is waterproof with rubber seals and O-rings, while the aluminium micro-fin heat sink and the built-in port for an extra fan keep the temperature down. If it still gets hot, two-stage thermal protection kicks in, and together with Locked Rotor Protection, Battery Over-Voltage Protection and two-stage low-voltage detection it protects itself, the motor and your LiPo packs. We at Hobbyviking especially like Training Mode: it limits the throttle to 50 %, so the little ones can practise – and when it is Dad's turn, you switch to Sport or Race with a single press. Clever!

You may already know the setup from the XL-5 family – one press of the EZ-Set button, and a multi-colour LED tells you what is going on. It does not get easier than that.

Features

• Electronic speed controller with forward and reverse
• Brushless technology – no motor limit
• Waterproof design: case with rubber seals and O-rings
• Setup and programming like the Traxxas XL-5 family
• EZ-Set one-button setup
• Three programmable driving profiles: Sport, Race and Training
• Traxxas Training Mode limits full throttle to 50 %
• Multi-colour LED feedback
• Two-stage low-voltage detection – can be switched on and off
• Supports LiPo batteries, including 11.1 volt 3S packs
• Wide battery range: 4-cell NiMH/NiCad to 3S LiPo (11.1 volt)
• Patented Traxxas High-Current Connector
• Two-stage thermal protection
• Locked Rotor Protection
• Battery Over-Voltage Protection
• Aluminium micro-fin heat sink
• Built-in port for an extra fan (auxiliary fan)
• MOSFET design
• Peak current 320 A
• Resistance 0.00075 ohm
• Gold-plated 3.5 mm bullet connectors
• 12-gauge Maxx wire

Specifications

• Input voltage, NiCad/NiMH: 4-9 cells (4.8-10.8 V DC)
• Input voltage, LiPo: 2-3 cells (7.4-11.1 V DC)
• Case dimensions: 39 x 55 x 33 mm (W x D x H)
• Weight: 90 g
• Motor limit (brushless): none
• Forward resistance: 0.00075 ohm
• Reverse resistance: 0.00075 ohm
• Peak current forward: 320 A
• Peak current reverse: 320 A
• Brake current: 320 A
• Continuous current: 200 A
• BEC voltage: 6.0 V
• BEC current: 2.5 A (with 6-cell NiMH)
• Power wire: 12-gauge Maxx wire
• Receiver wire: 26 gauge / 100 mm
• Transistor type: MOSFET
• Low-voltage detection: 2-stage indicators, can be switched on/off
• Thermal protection: 2-stage thermal shutdown
• One-button setup: yes, Traxxas EZ-Set
• Battery connector: Traxxas High-Current Connector
• Motor type: brushless
• Ports: RX input, extra fan

Profile selection

• Sport Mode: 100 % forward, 100 % brake, 100 % reverse
• Race Mode: 100 % forward, 100 % brake, no reverse
• Training Mode: 50 % forward, 100 % brake, 50 % reverse
