Crawling kit - EMOX3 1/8 RTR Brushless kit

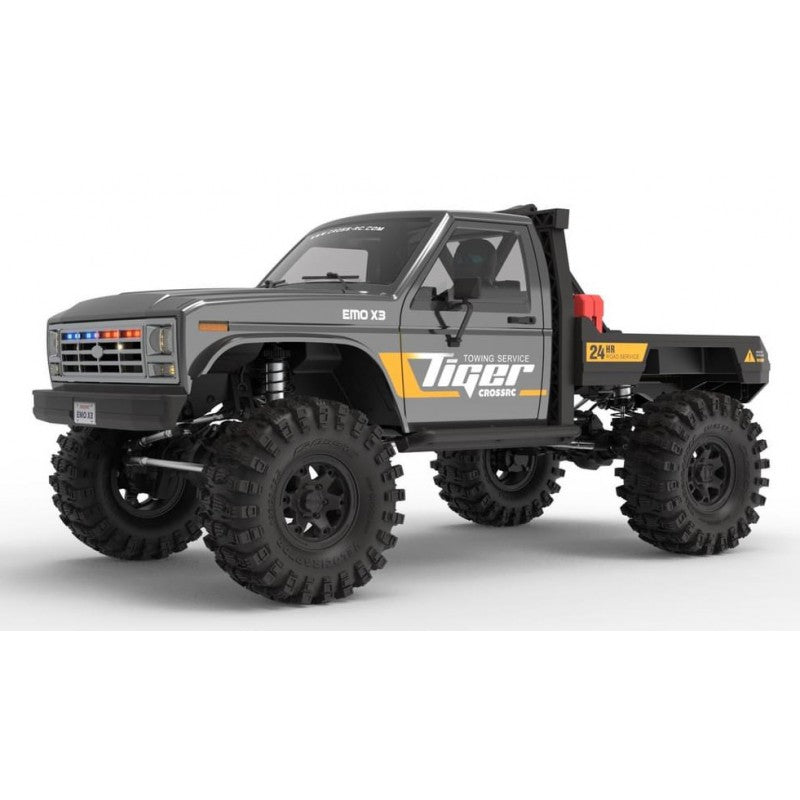

Cross RC EMO X3 1:8 4×4 Crawler – RTR Brushless

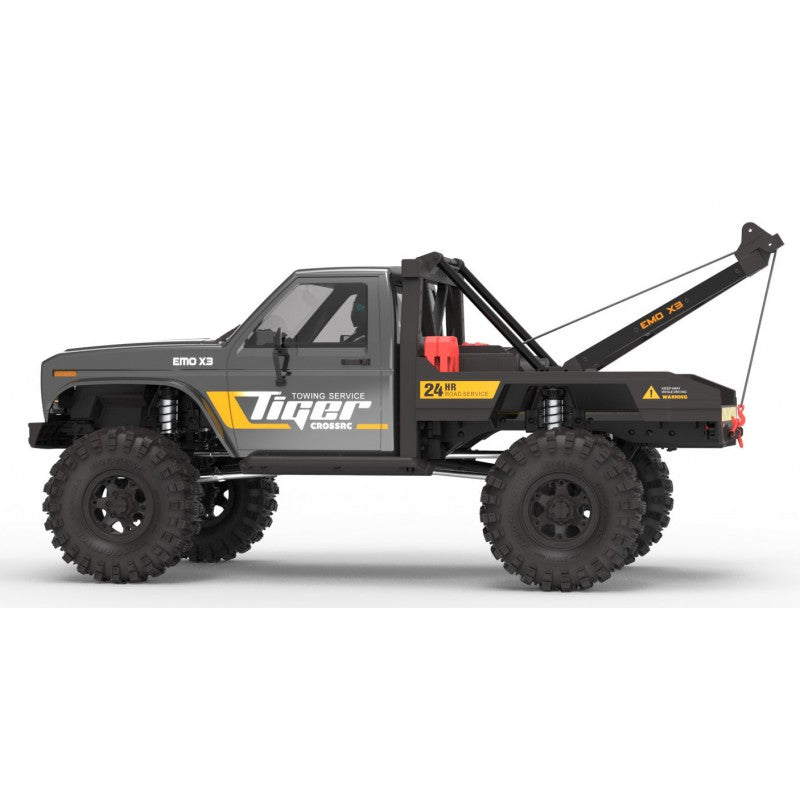

The Cross RC EMO X3 is built on the powerful EMO X chassis and further developed with a series of major upgrades that make this 1:8 four-wheel-drive crawler a multi-purpose vehicle. The model combines simulated recovery and trailer functions with high-performance climbing ability, and looks like a realistic off-road rescue vehicle with plenty of details and features.

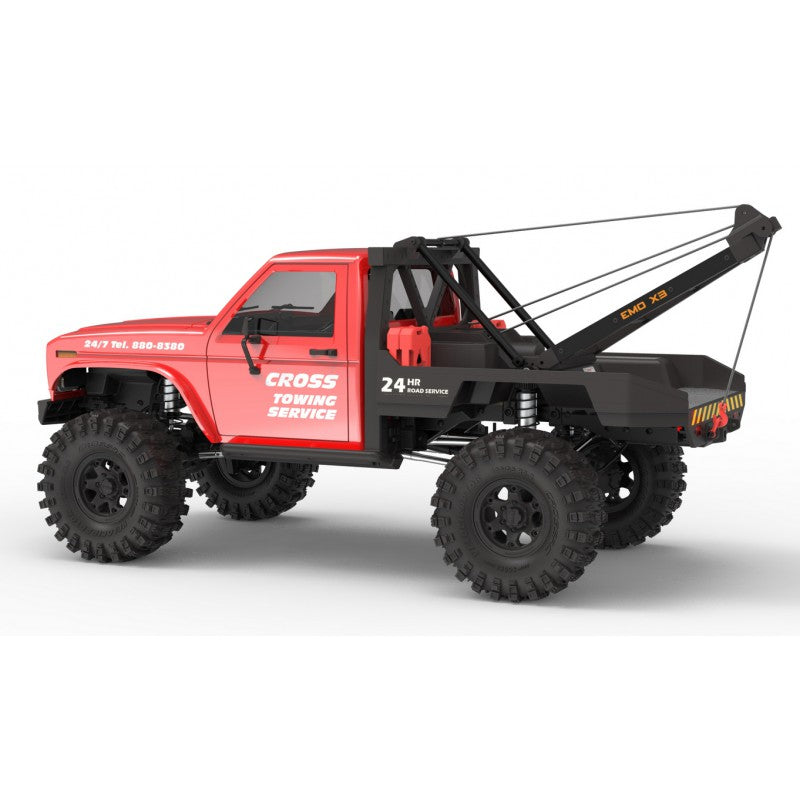

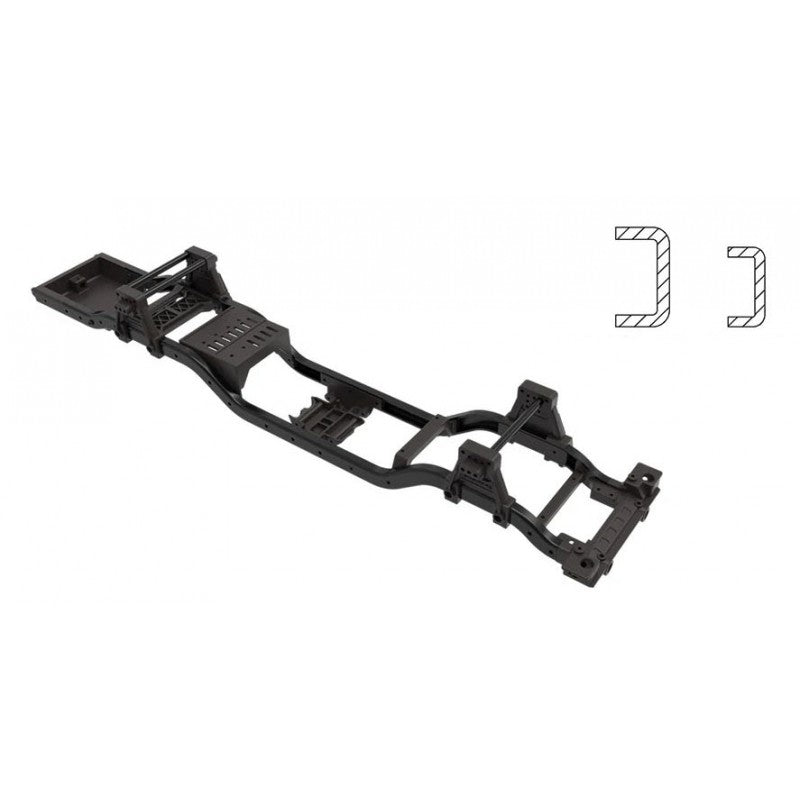

Key upgrades include a heavily reinforced XL frame rail with a 200% larger cross-section than the standard version, giving much greater strength for heavy towing. The car has an M4 stainless steel counterweight bar and reinforced ball joints that can handle the loads from recovery work and from fitting more powerful electronics. The rear-mounted rescue hook can be moved in and out from the transmitter, and there are reserved channels for fitting a standard dual-motor winch, so the boom can be raised and lowered by remote control.

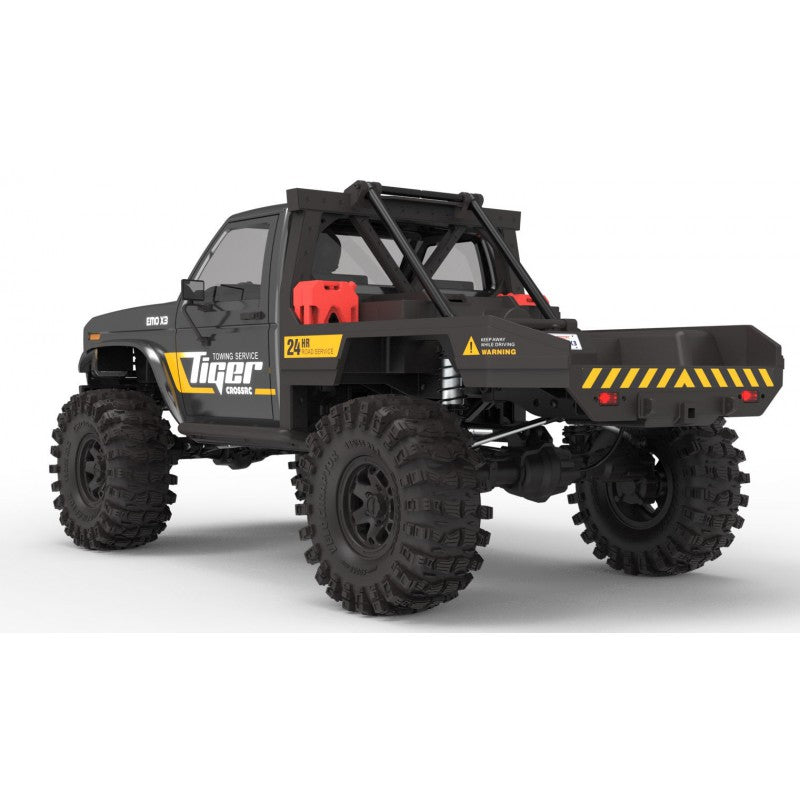

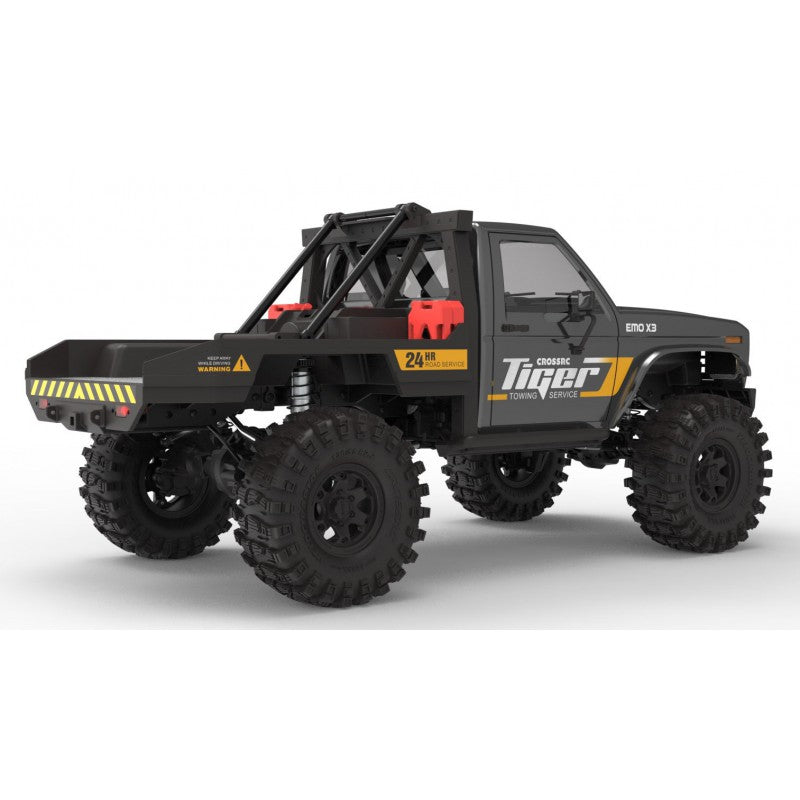

The EMO X3 rolls on newly developed VELOCIRAPTOR high-performance AT tyres with a purpose-designed tread for maximum grip on hard surfaces. The car also has a complete lighting set with a central warning light and several light modes, also controlled from the transmitter. The body has a solid mast-type roll cage, and the load bed is covered by a non-slip metal plate. Remove the rescue hook module and the car instantly becomes a professional climbing car ready for the toughest challenges.

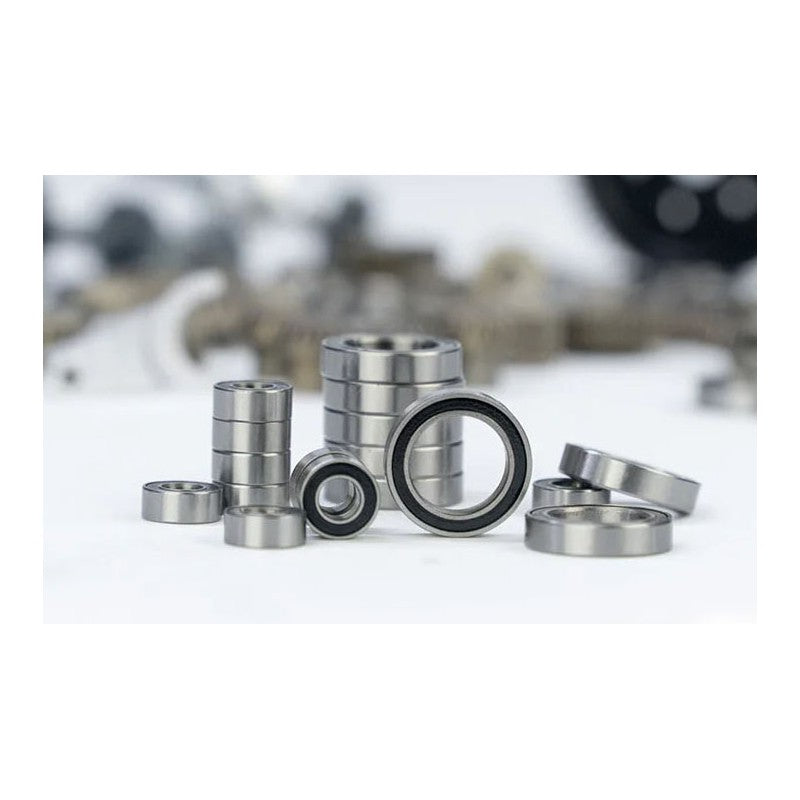

The model builds on the well-known EMO strengths: a large 65-degree approach angle, drivetrain geometry with minimal visible torque twist, full-rudder gear shifting and differential locks without the need for extra servos, and a rear balance linkage that keeps it stable at high speed and when drifting. A hidden quick-release body mount, PM-processed alloy gears, ABEC3 bearings throughout and a robust inset axle structure are among the many technical features that support both performance and durability.

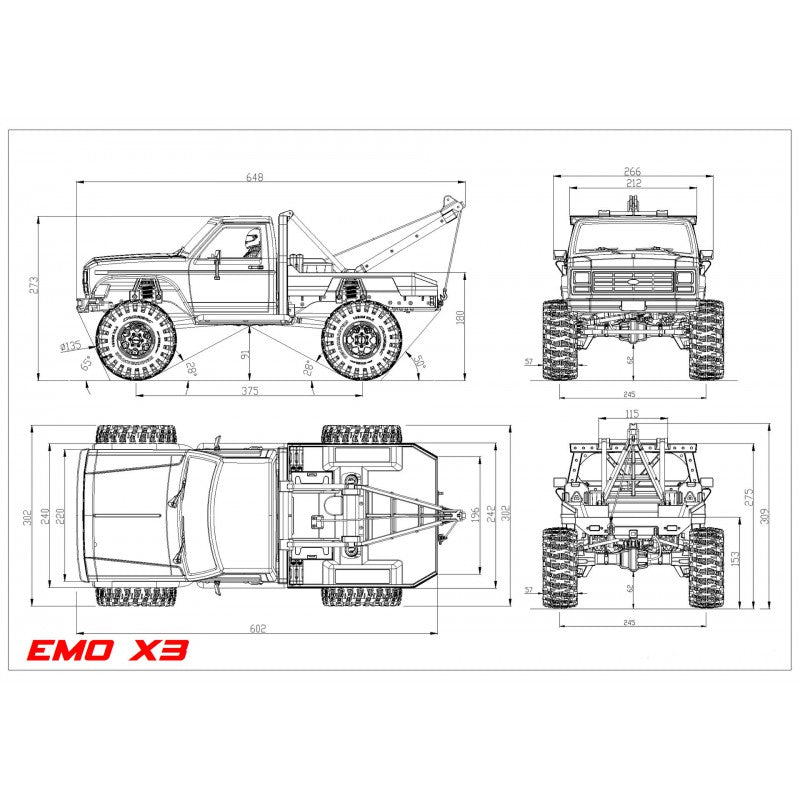

Technical data

• Scale: 1:8
• Length: 648 mm
• Width: 302 mm
• Height: 309 mm
• Wheelbase: 375 mm
• Tyres: 136 x 57 mm
• Pitch: MOD 0.6
• 4x4 drive system with optimised motor
• 2-speed gearbox with metal gears
• CVD driveshafts with metal universal joints and reinforced nylon sliders
• Adjustable slipper clutch
• Reinforced 60T spur gear and 20T metal pinion
• Final drive ratio: 17.8 (high) / 38.9 (low)

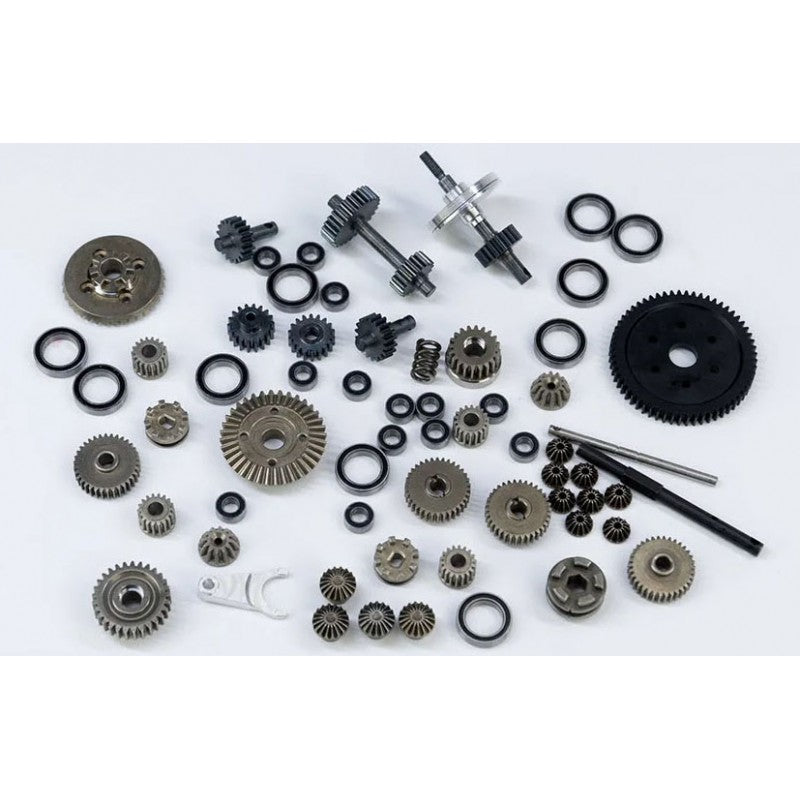

• All-metal transmission gears
• Brushless motor
• Cross RC Velociraptor 136x55 R2.2 high-performance crawler tyres
• 2.2" beadlock wheels
• Precision aluminium coil-over shock absorbers with threaded adjustment
• EMO X portal axles with nylon housing and metal internal gears

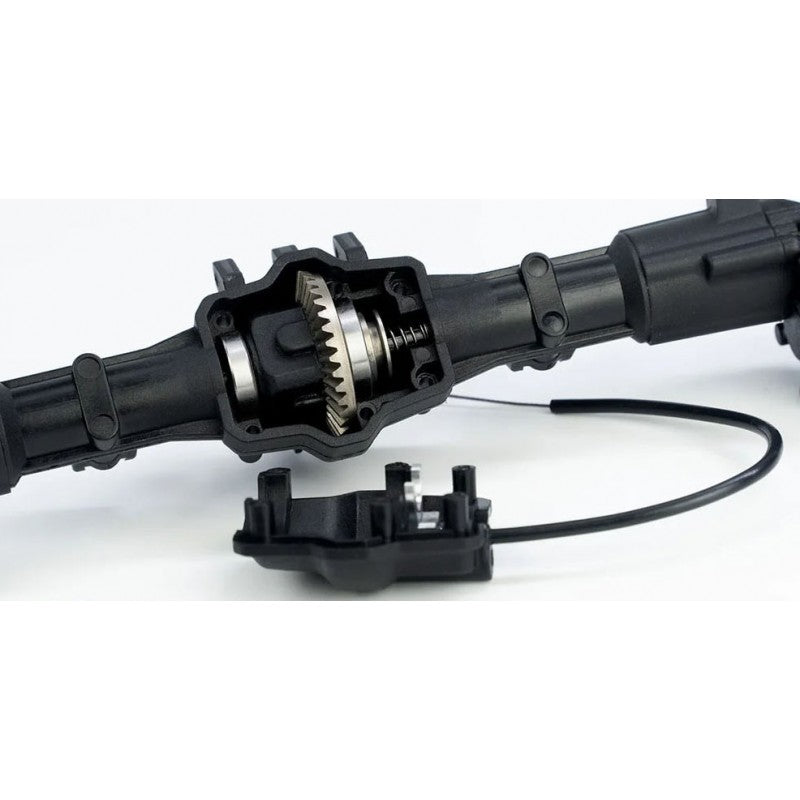

• Front and rear differential locks

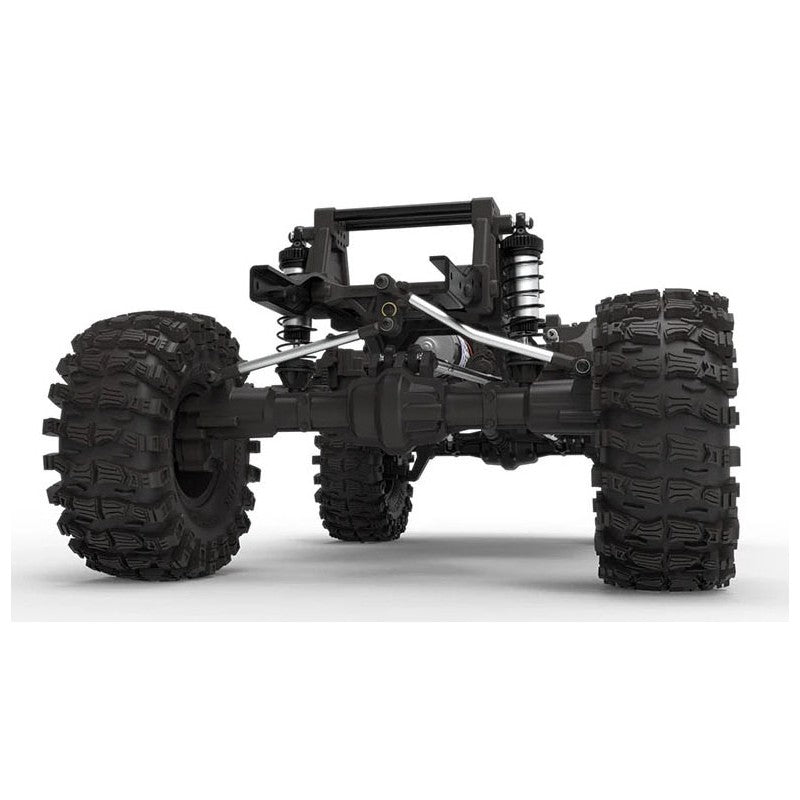

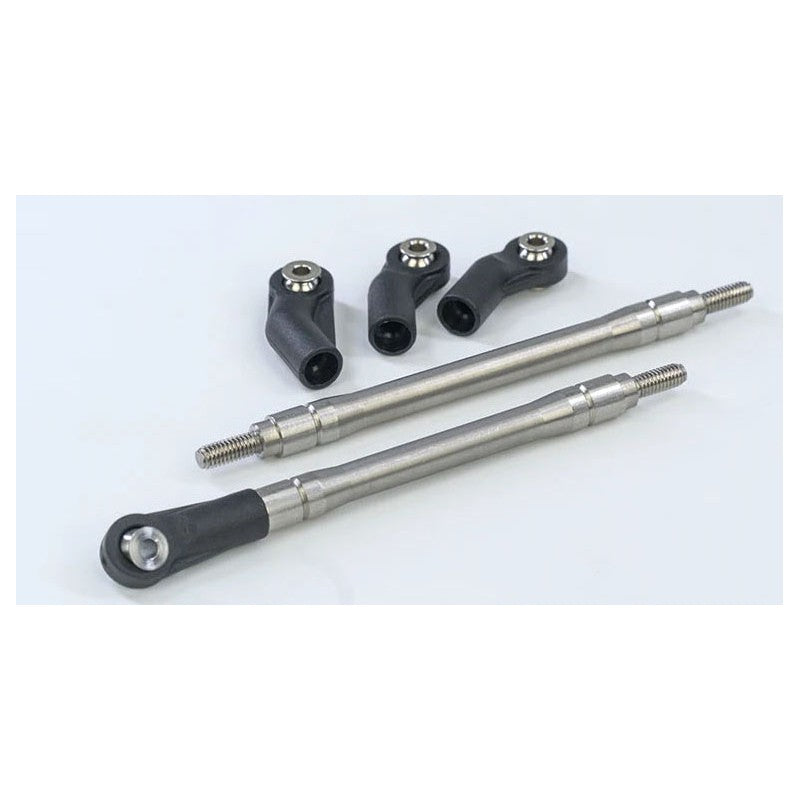

• Solid axle suspension with stainless steel links
• Front panhard bar, rear 4-link and rear balance bar
• Multi-mode LED lighting system
• 6-channel 2.4 GHz transmitter and receiver
• ESC (speed controller)
• DS-R003C digital steering servo

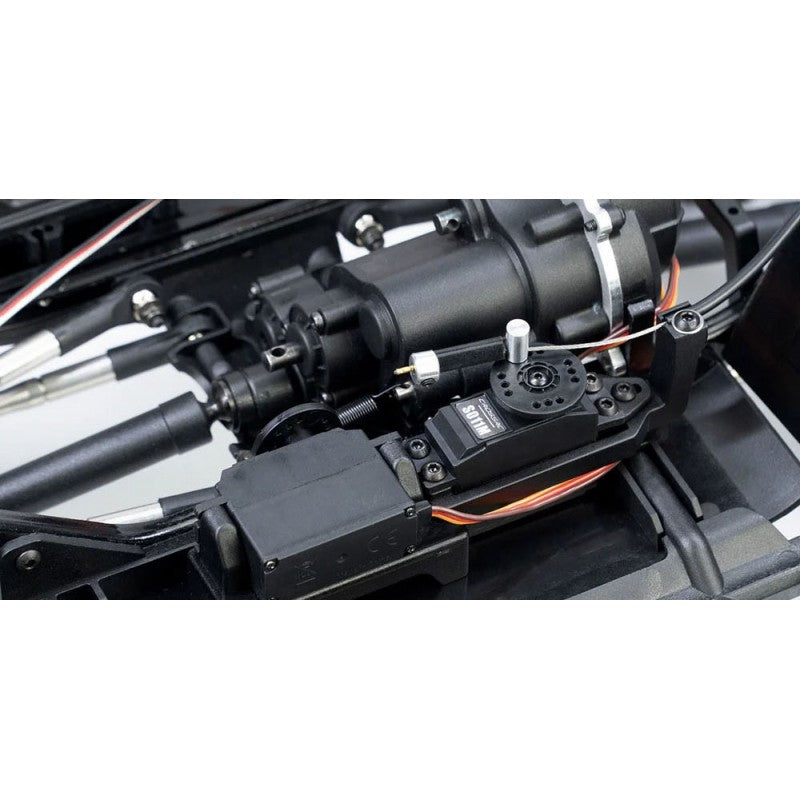

• SO11M digital servo for differentials and 2-speed gearbox
