Traxxas 77036-4-WB X-Maxx MT 8S 4WD Brushless TQi TSM (w/o Body)

🔧 Spare parts, batteries, chargers & upgrades

Discover the interactive spare parts maps for the Traxxas X-Monster Chassis — easily find parts, tyres, accessories, batteries and much more for your exact model.

Open the spare parts map →

X-Maxx strength. Monster Truck attitude.

Discover the new X-Monster – a true powerhouse that combines the legendary X-Maxx strength, size and durability with even more power, improved construction and authentic monster truck style. The new belted Chevron tyres deliver extreme grip and lightning-fast acceleration, so you can reach speeds of over 80 km/h – all with the realistic look of a real monster truck. Choose your favourite body from Ford® or Chevrolet® (sold separately) and unleash 30+ volts of extreme 8s power!

A legacy of strength

Traxxas set a new standard for RC monster trucks with the original X-Maxx. Since then the series has only become stronger, faster and tougher. The new X-Monster integrates the latest X-Truck® improvements and delivers the most durable X-Maxx chassis and driveline ever.

New wheels and Terra Groove tyres

The all-new Chevron-pattern tyres give improved control, fantastic grip and a livelier driving experience. The huge 8.6” tyres are made from an ultra-soft rubber compound with internal reinforcement that reduces ballooning. The white replica wheels with military-inspired hubs give an authentic scale look.

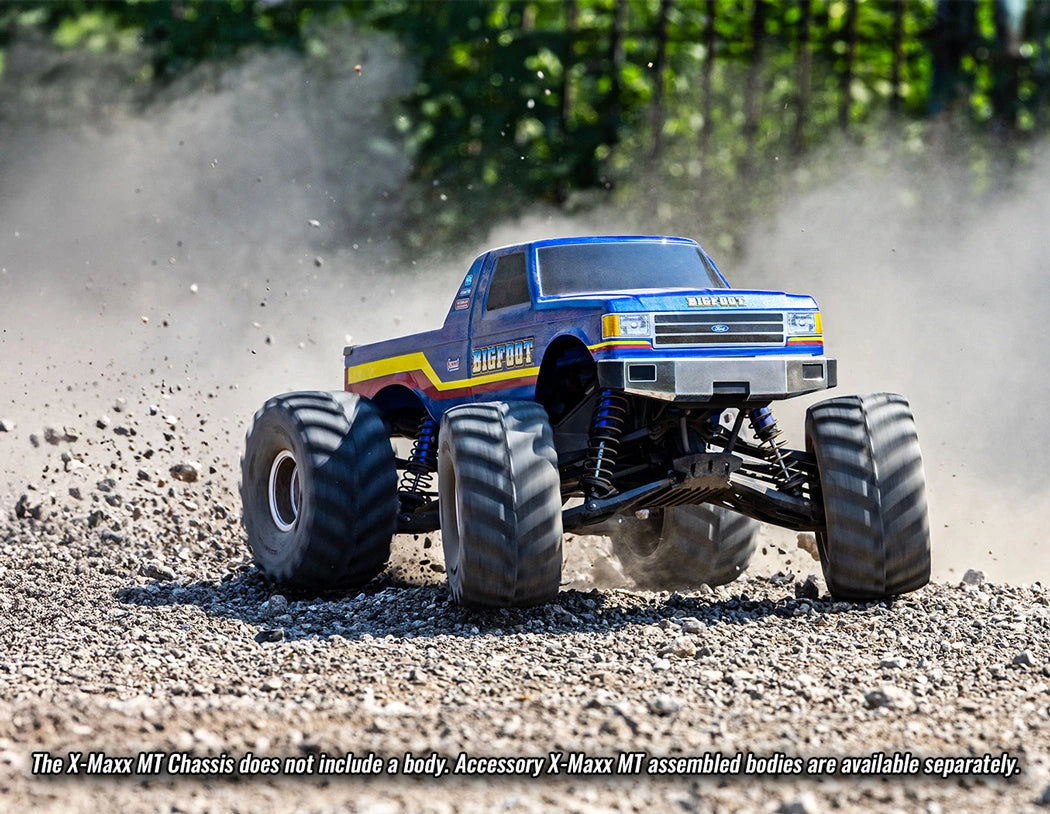

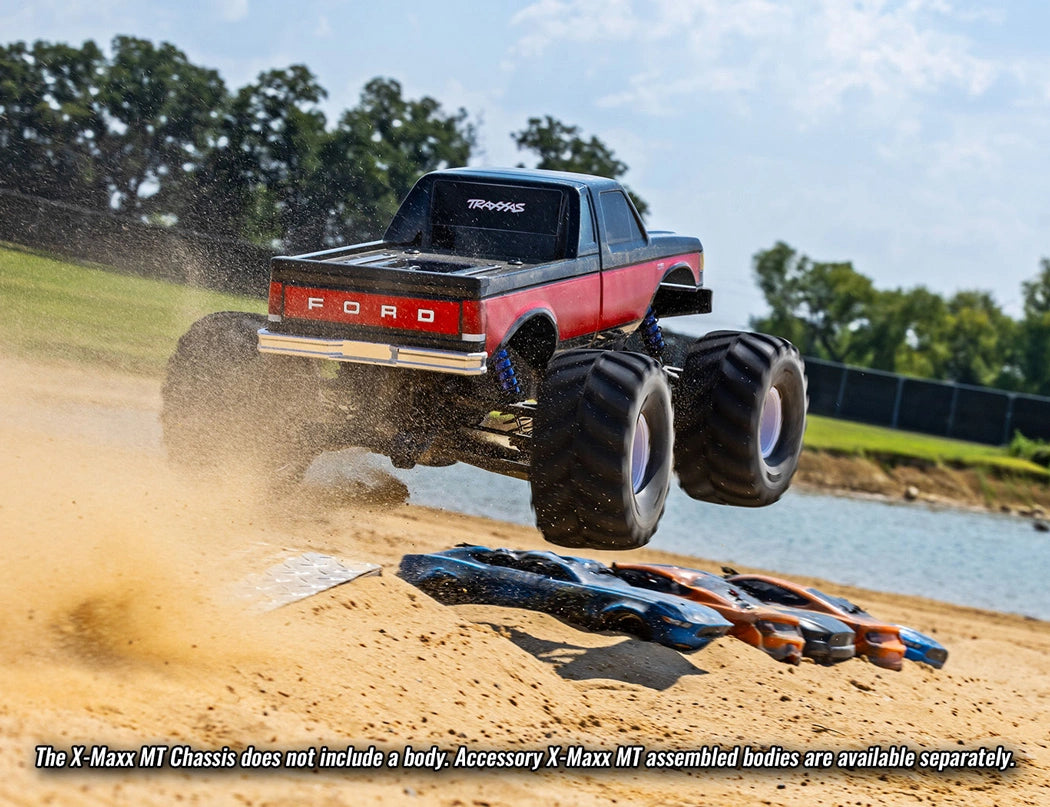

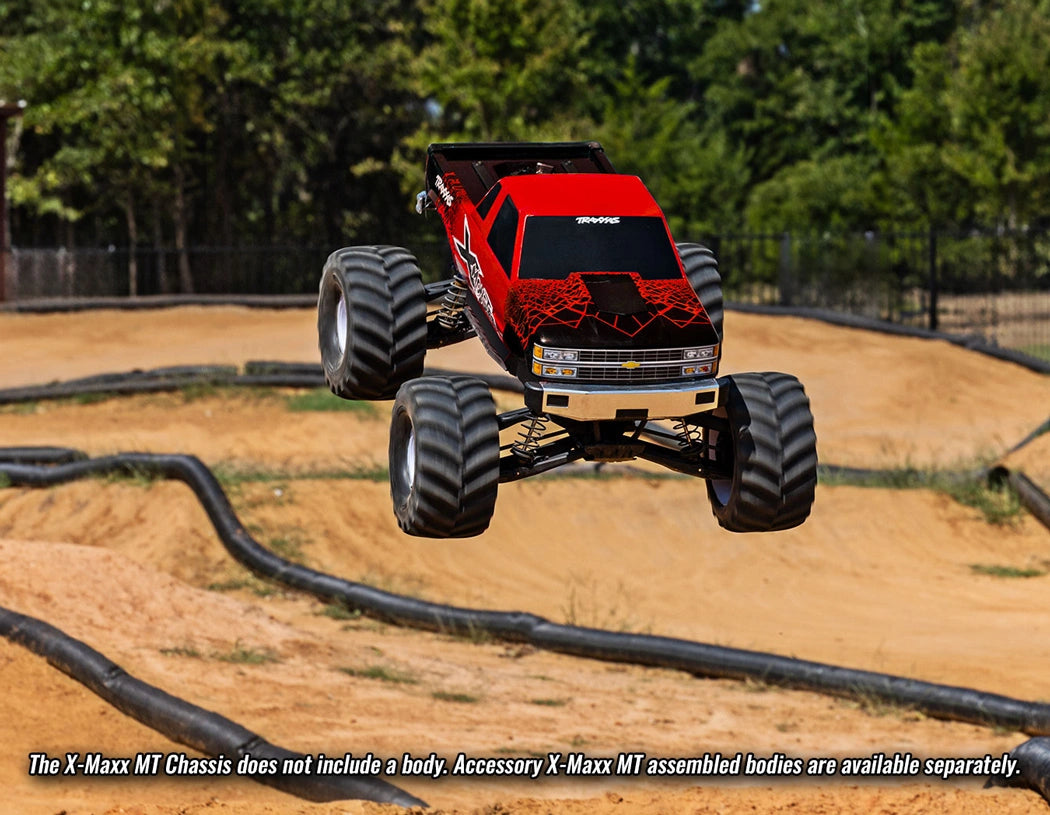

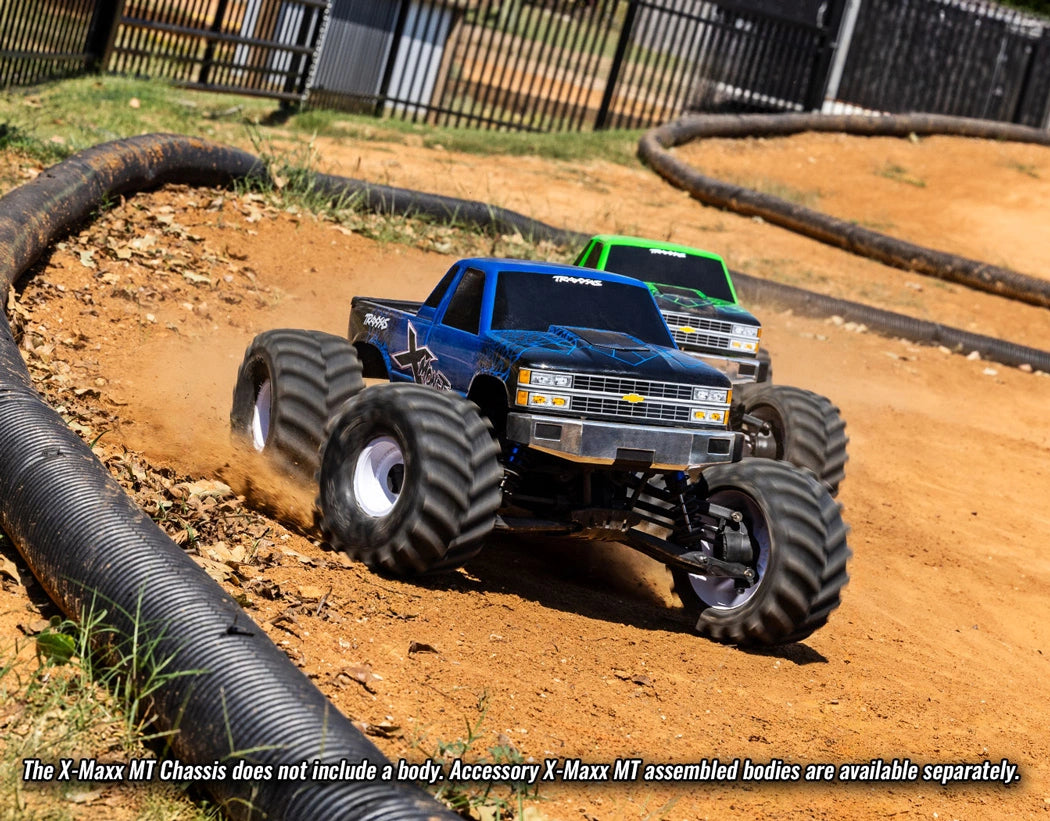

Choose your body (sold separately)

Customise your X-Maxx MT Chassis with an official Ford® F-150®, Chevrolet® C/K or BIGFOOT® No. 8 body. Each body has a fully reinforced inner cage for maximum strength. Already have an X-Maxx body? It fits straight on – thanks to the compatible clipless system.

In the box

• X-Maxx MT Chassis with Traxxas Big Block brushless motor
• VXL-8s waterproof electronic speed controller with integrated telemetry
• Extra high-speed pinion gear
• TQi™ 2.4 GHz radio system
• High-quality maintenance tools

What you need

• Body: Choose your X-Maxx MT body from several official options
• Batteries: Requires LiPo batteries with Traxxas High Current connector. Recommended: 4-cell 6700 mAh Power Cell LiPo with iD® (part 2890X)
• Charger: EZ Peak Live Dual 4s LiPo Charger with iD®
• AA batteries: Four for the transmitter

Specifications

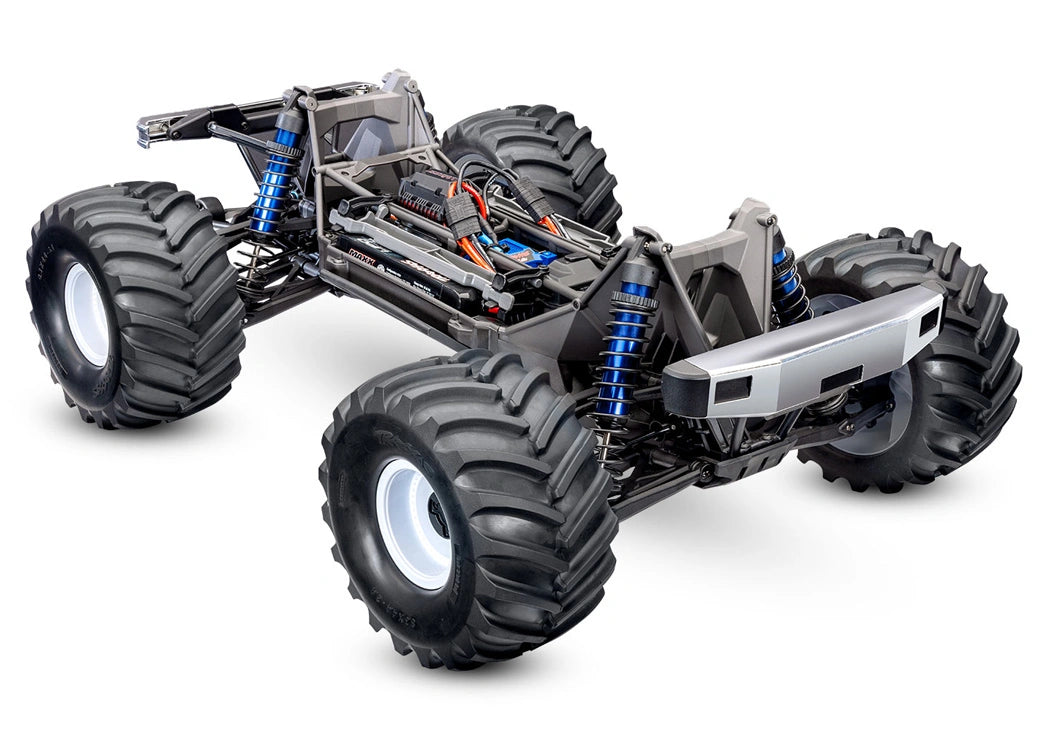

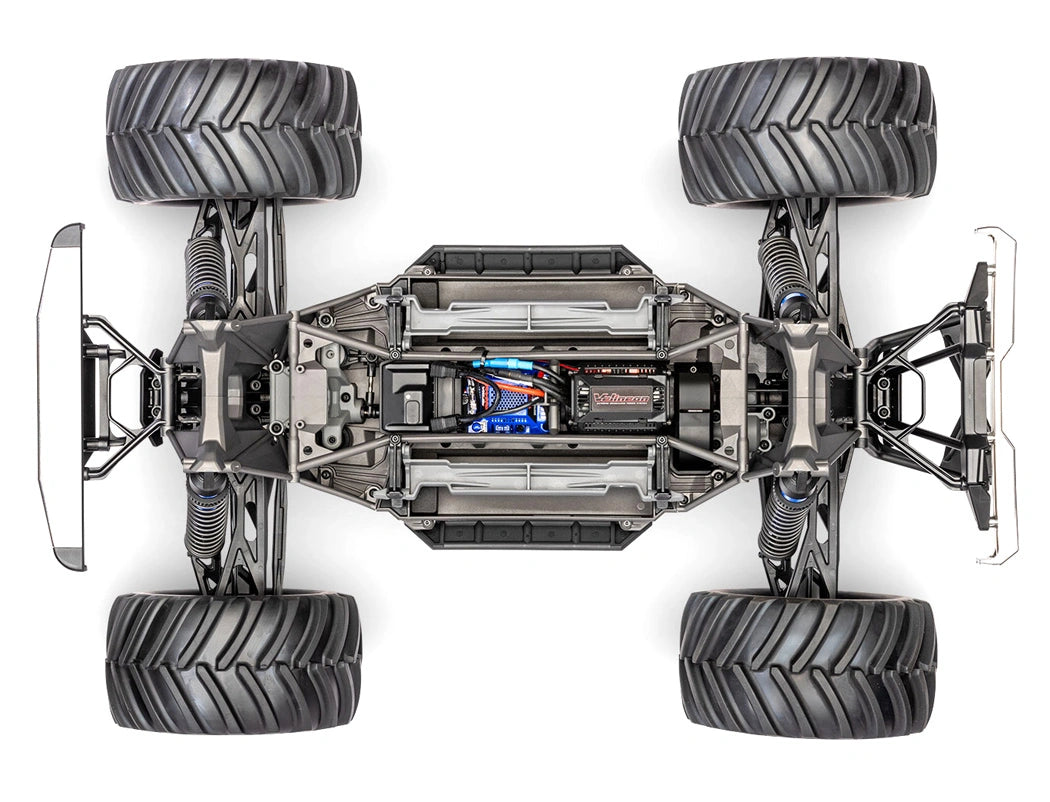

• Model name: X-Maxx MT Chassis
• Type: Monster Truck
• Top speed: 80+ km/h (with two 4s LiPo and speed gear)
• Skill level: 6
• Scale: X-Truck
• Weight: 8.66 kg
• Length: 779 mm
• Width: 540 mm
• Height: 355 mm
• Wheelbase: 480 mm
• Ground clearance: 107 mm
• Drive system: Shaft-driven 4WD
• Transmission: Single speed
• Differential: Sealed, hardened steel, limited slip
• Gear pitch: 1.0 metric
• Servo: 2085XL metal gear, ultra-high-torque, waterproof
• Radio: TQi™ 2.4 GHz 2-channel with wireless module
• Battery compartment: 197 x 52 x 44 mm

Motor

• Model: Velineon 1200XL
• Type: 1275 Kv sensorless brushless motor
• Length: 110 mm
• Diameter: 48 mm
• Shaft size: 5 mm
• Connector type: 6.5 mm bullet connectors

ESC (speed controller)

• Model: Velineon VXL-8s
• Type: Brushless
• Motor connectors: 6.5 mm bullet connectors
• Battery connector: Traxxas High-Current Connector
• Power cable: 10 gauge Maxx® Cable
