Tamiya  |  SKU: TA-58669 Producent varenr.: 58669  |  EAN: 4950344586691

1/10 R/C M-08 Concept Chassis Kit

1.038,00 kr

Get a price match on 1/10 R/C M-08 Concept Chassis Kit

Have you found the item cheaper at another retailer? Paste the link below and we will quickly let you know whether we can match the price. We look at the total price — including shipping, duties and fees — and the item should be in stock with them. We match if we can. Read the terms here.

Delivery

Last 1 units available at supplier - order now, delivered in 7-9 days

In-store pickup

Out of stock

In stock? Then we dispatch in:

Fast dispatch from our warehouse in Denmark

Fast dispatch from our warehouse in Denmark
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Delivery 1–2 working days
  • Shipping from 35 kr.
  • Certified Danish webshop (E-mærket)
  • Easy and secure payment
  • Can be collected at our shop in Nørresundby
     View shop information

Description

🔧 Reservedele, batterier, ladere & opgraderinger

Oplev de interaktive reservedelskort til Tamiya Concept Chassis — find nemt dele, dæk, tilbehør, batterier og meget mere til netop din model.

Åbn reservedelskortet →
Reservedelskort Eksploderet tegning med alle dele

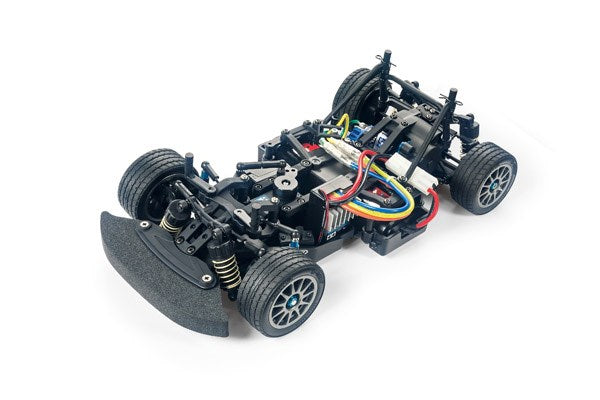

1/10 R/C M-08 Concept Chassis Kit

The long-running and popular M-Chassis series welcomes a new member with the M-08 Concept chassis, which employs a midship motor, rear-wheel drive layout for superior rear traction, plus a main frame split into front
and rear sections.


About the Model
• This is a 1/10 scale R/C model assembly kit.

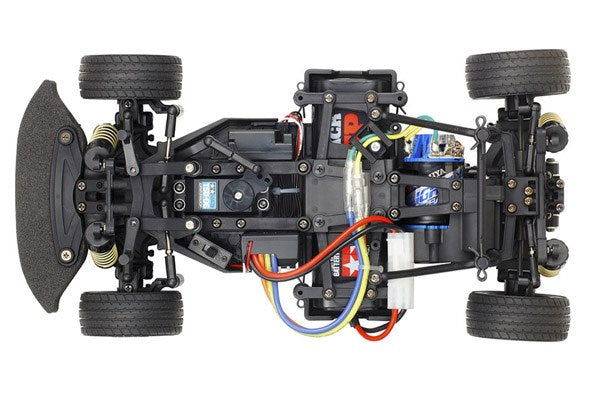

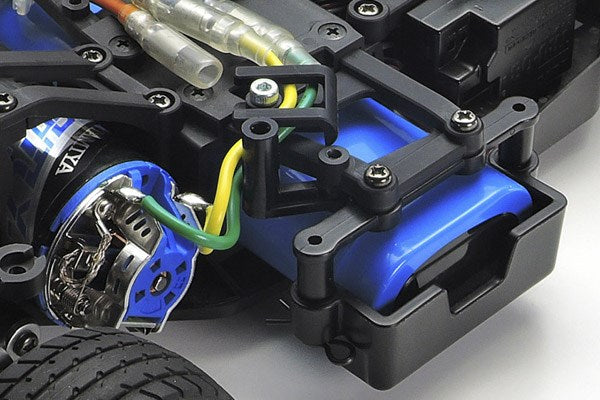

• The chassis is split into front (suspension and servo) and rear (motor and battery) sections. It can be assembled into three different wheelbases: S (210mm), M (225mm) or L (239mm).

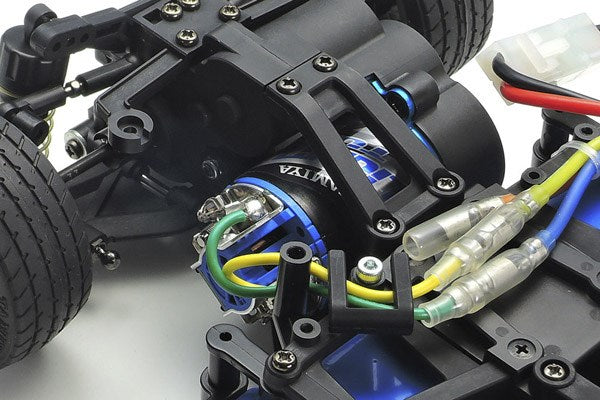

• Rear-midship motor powers rear wheels via a differential in the MR setup.

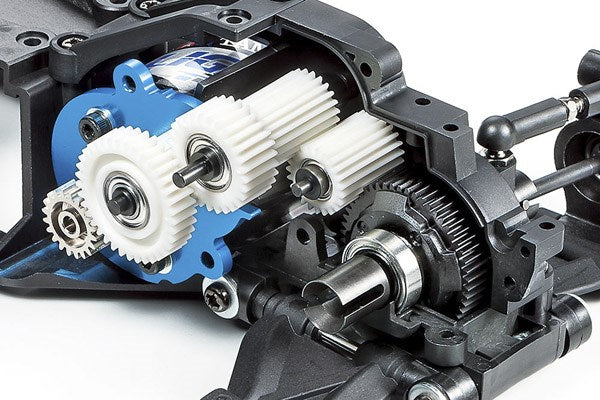

• Oil-filled differential gear is the TA06 design, which was also employed on the M-07 Concept chassis.
• Features proven M-07 Concept designs: suspension arms, uprights, suspension mounts and aluminum parts.

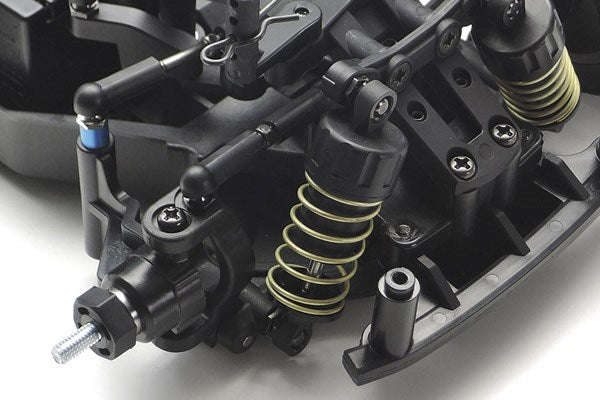

• Includes CVA oil dampers, universal drive shafts, full ball bearings and hi-torque servo saver.

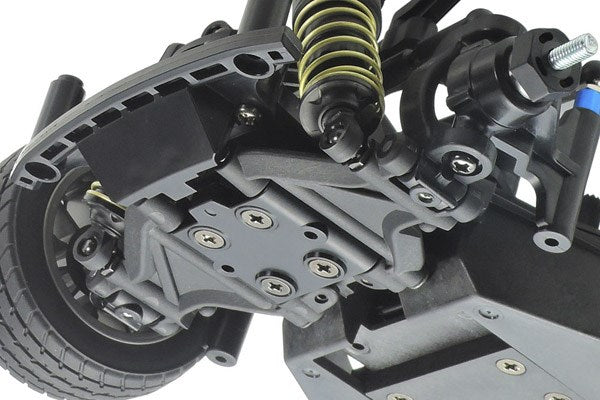

• Comes with new front suspension mounts (0 degrees) and hub carriers (2 degrees) for a total caster angle of 2 degrees, and smooth cornering.
• Compatible with M-06 Chassis bodies.
• Compatible with M-07 Concept Hop-Up Option parts such as Aluminum Rear Suspension Mount (Skid Angle Adjustment) (54787), Aluminum Rear Uprights (54781) and Low-Friction King Pin Pipes (54813).

Useful Materials from Tamiya.com

Please note all links below goes to www.tamiya.com

R/C Parts Matching List
 to get the latest list of Hop-Up Option and Spare Parts compatibility.

Chassis Parts Catalogs
 for catalogs of parts for use with various chassis.

R/C Model Chassis List
 to see a list of links to pages for major Tamiya chassis.

R/C Manual Download Page
Some of our R/C manuals are available for download.
