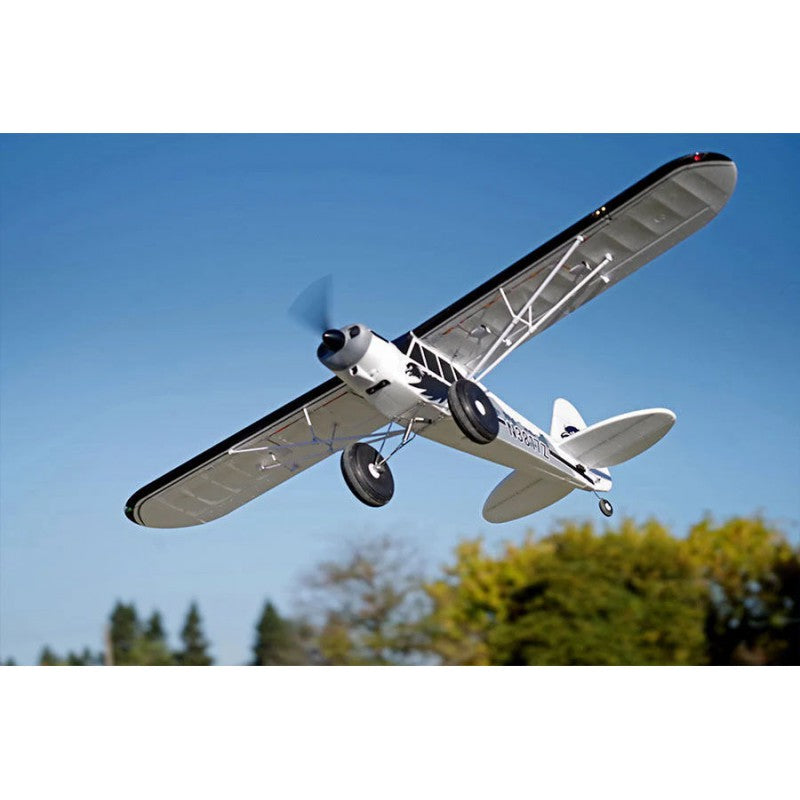

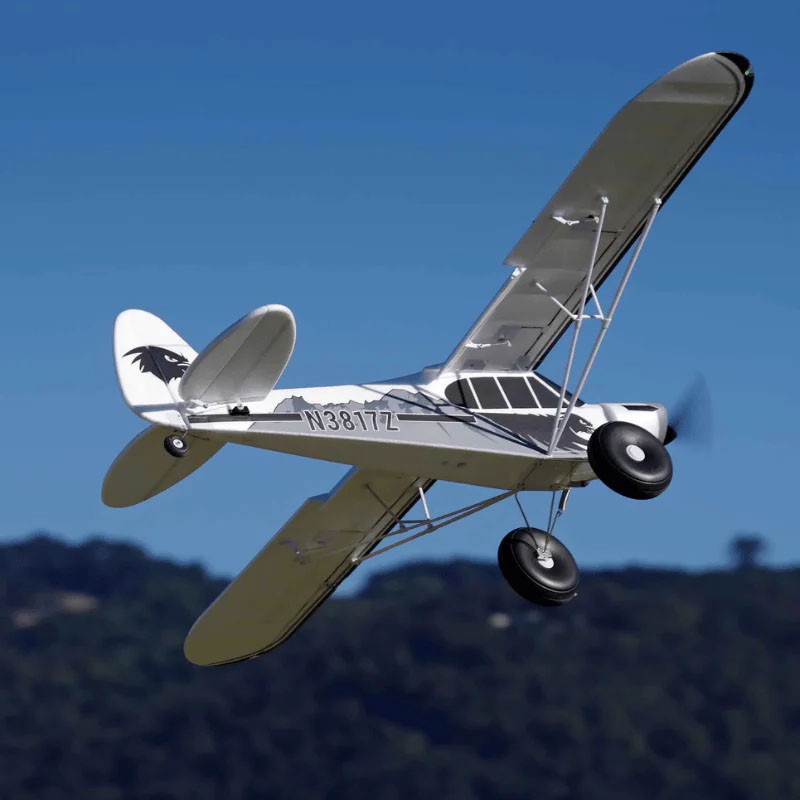

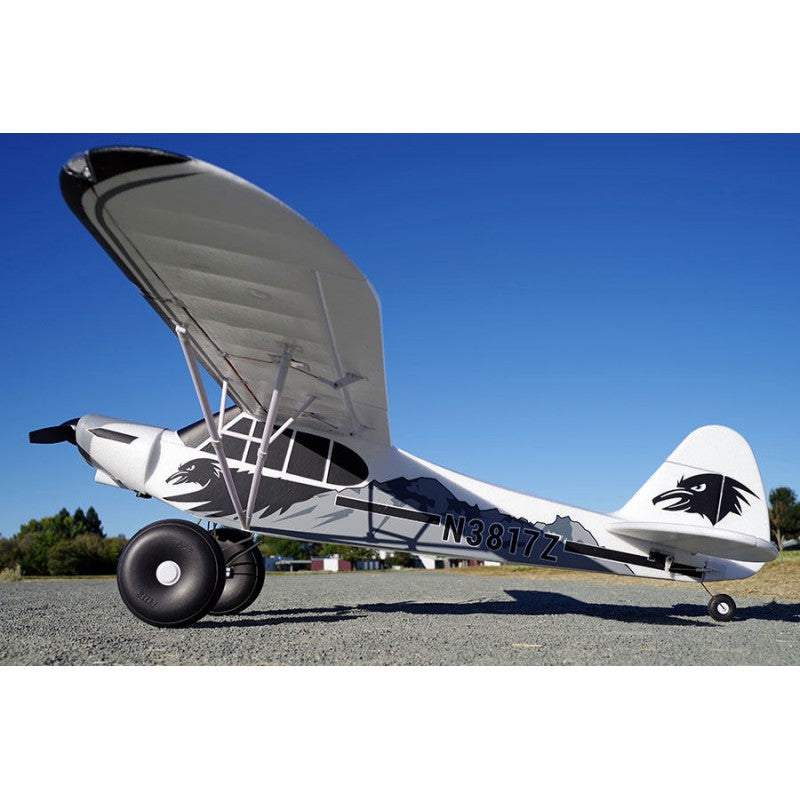

1/8 Plane 1700mm PA-18 Super Cub V2 PNP kit

FMS PA-18 Super Cub V2 -- 1700 mm wingspan

An authentic bush plane with impressive STOL performance

The PA-18 Super Cub is a classic two-seat, high-wing monoplane with legendary flight performance. With a 1700 mm wingspan, this version offers considerably more power and lift than its smaller sister, while keeping the effortless flight characteristics that have made the Super Cub a favourite among bush pilots worldwide. With working flaps, a high-lift wing profile, robust landing gear and oversize balloon tyres, the Super Cub can take off and land from practically any terrain – sand, grass, snow or water.

FMS has built the Super Cub with the latest technology: pre-installed ball-link linkages, servo connectors integrated directly into the wing structure and glue-free assembly make building quick and easy. For an authentic experience, the plane can be fitted with floats. The flying experience is calm, fun and very relaxing – perfect for pilots looking for the real bush-flying experience.

Specifications

• Manufacturer: FMS
• Wingspan: 1700 mm
• Length: 1136 mm
• Flying weight: 2100 g
• Motor: 3541-KV750
• ESC: 45A
• Servos: 17 g × 6
• Radio: 6-channel
• Centre of gravity: 80–85 mm from the leading edge
• Propeller: 12×7.5 inch, 2-blade
• Recommended battery: 14.8 V 2200–2600 mAh 4S 35C
• Battery connector: XT60
• Control surfaces: Aileron, elevator, rudder, flaps
• LED: Yes
• Flight time: approx. 4–5 minutes
• Minimum age: 14+
• Experience level: Intermediate
• Assembly time: approx. 40 minutes
• Wing loading: 50 g/dm²
• Wing area: 42 dm²

What's in the box

• Fuselage, wings and tail surfaces
• Motor, ESC and 6 servos (pre-installed)
• Propeller
• Landing gear with balloon tyres
• LED lights
• Mounting hardware

What you need

• Transmitter/receiver (not included in the PNP version)
• LiPo battery 14.8 V 4S (2200–2600 mAh)
• Battery charger
