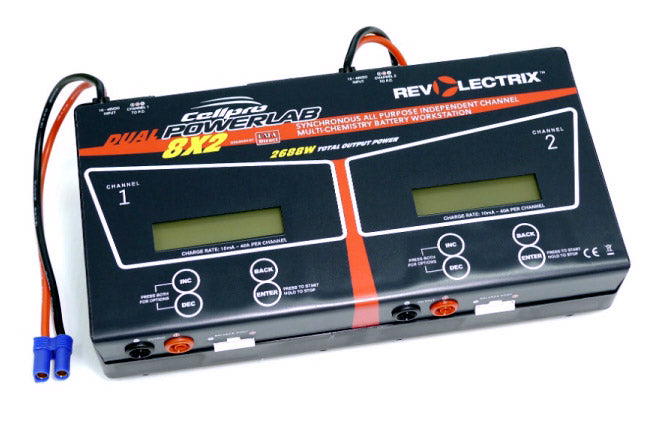

Cellpro Dual PowerLab 8x2

Cellpro Dual PowerLab 8x2 ChargerSimple to operate: just connect Dual PowerLab 8x2 between a power source and a pack, select a pack-specific preset and start charging, discharging, cycling or monitoring. No jumpers, plugs or dials to set! During Auto Charge, Dual PowerLab 8x2 automatically determines pack capacity and sets optimal current, then dynamically adjusts charge rate as needed. Alternatively, select manual charge rates from 10mA to 40A. Supports both balanced (depending on chemistry) and non-balanced charging (with certain safety limitations) of the following chemistries: LiPo (1s to 8s balanced, 1s to 2s unbalanced; maximum charge rate of 2.0A for unbalanced charging)Li-Ion (1s to 8s balanced, 1s to 2s unbalanced; maximum charge rate of 2.0A for unbalanced charging)A123©/LiFePO4 (1s to 8s balanced, 1s to 10s unbalanced; maximum charge rate of 20A for unbalanced charging)LiMn (1s to 8s balanced, 1s to 2s unbalanced; maximum charge rate of 2.0A for unbalanced charging)NiCd (1s to 21s; maximum charge rate of 20A)NiMH (1s to 21s; maximum charge rate of 20A)Lead Acid/Pb ( 6V, 12V, 24V - Flooded, Gel, AGM, SLA)Major Features:Selectable charge rates range 10mA to 40A per channelContinuous maximum output power rating, 1344W @ +39.53VDC input voltage, 408W @ +12VDC input voltageUsing +40VDC to +48VDC input, 1344W output will deliver full current rating (40A) over the full range of output voltage up to 33.6VSmart power management allows customer to select between programmable input power sources. Using the Charge Control Software (CCS), choose from several templates to get you in the ballpark, then fine tune the settings. Available settings include power supply input current limit, input low voltage limit, regenerative discharge rate and voltage limit. Dual PowerLab stores 1 set-up for Power Supply per channel and 1 set-up for Battery per channel and asks for verification one time on start-upDual PowerLab does not support charging through node wires onlyInitiate charge, discharge, monitor, and multiple cycles at the DPL or via remote control from the CCS. Graph all major operations when using CCS. When using both channels, launch separate instances of the CCS within Windows.Open Architecture presets allow for customization of any User Preset including show/hide presets on unit, preset name editing, up to 100 parameters control how presets are displayed and charging/discharge/cycling parameter associated with particular batteries and/or charging strategies. Unit includes 25 user preset banks pre-loaded for most major battery type/chemistries, plus 50 library presets.0.1mohm voltage resolution allows accurate four point internal resistance measurement of each cellEnvironmentally friendly, regenerative discharge capability of up to 1344W. Unlike traditional methods of discharge, which deplete the output battery's energy in the form of heat across a transistor, regenerative discharge takes most of that energy and puts it back into the input battery. In other words, when you discharge your LiPo for storage, you will be re-charging your Lead Acid input battery. The total amount of power that you can achieve is limited only by the amount of current that your input battery can accept, or 1344W, whichever is lower.Dual PowerLab is also equipped with a traditional, 95W internal discharge capability which is non-regenerativeHigh speed, high quality 50mm cooling fan (one per channel)Over-sized internal heat sinkTwin (per channel) 12AWG silicon input power cables with EC5 connectorsSendust core toroid capable of 40A continuous input current requirement for maximum output specificationsOther Features:Supports Cellpro (FMA) and JST-XH wiring modesAdapters available for all popular R/C battery brandsOne 2 line, 16 character backlit LCD per channelAvailable opto-isolated PC interface and free Charge Control Software (CCS)Intuitive 4 button user interface per channelSleek and attractive high-impact ABS enclosure designed for maximum airflow efficiencySturdy Aluminum top panel with reliable, recessed tactile buttonsQuick "preset over-ride access" to common charging parameters like setting charge and discharge current and operational modes of charge / discharge / monitor / cycle(s)Additional advanced options menu for adjusting in-depth charging parameters and global options at the unitGUI PC software (CCS) allows access to 25 User Presets and 50 Library Presets per channel stored in the unit or available in unlimited number on the P.C. When using both channels, launch two independent instances of the CCSFree and reliable firmware updates for the life of the product using the CCS. Firmware updates accomplished on each channel independently.Automatic Low voltage restore for recovering damaged or overdischarged packsProgrammable options allow speaker ON/OFF or volume, LCD contrast, customized welcome screen, and much moreCold weather mode reduces end-charge voltage; parameters adjustable by customer including ON/OFF, end-charge voltage offset reduction, and temperatureExpansion Channel mode whereby one DPL primary (master channel 1) can control the expansion channel 2, send over preset information, control all aspects of charging and balancing. This feature is perfect for charging multiple packs of same chemistry and capacity using multiple devices such as split packs connected in series during operation all at unbelievable rates.Auto charge mode available utilizing advanced fuel gauging technologyCustomizable fuel table lookup values based on presets. Fuel tables can be created using a Fuel Table Wizard in the CCS and applied to individual battery brands by presets for improved accuracyIndustry's first Safe Parallel adapters available to maximize available power potential. P.C. software supports up to 9 packs in parallel per channel depending on adapters used. The DPL supports parallel, charge, discharge, cycle, or monitor on each channel. Adapters are peripheral products, available separately, or included as a part of DPL combos
