Crawling kit - AT4 EMO 1/10 Kit

Cross RC AT4 EMO 1/10 Crawler Kit

The AT4 EMO from Cross RC is not just an upgrade of the Demon model, but an all-new chassis design with far-reaching changes. The construction has been optimised in structure, choice of materials and technology, giving significantly improved reliability and durability compared with the previous model.

The new EMO chassis is developed to deliver superior versatility and climbing ability. With a 2-speed gearbox, differential lock and portal axles, this kit is made for serious crawling, where traction and strength come first.

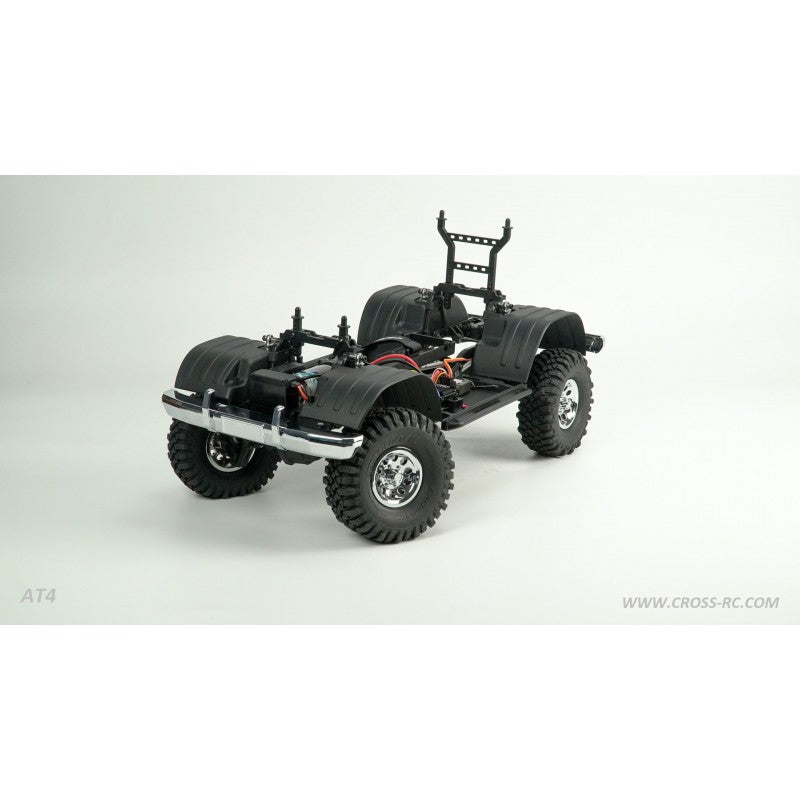

The kit comes with a clear Lexan body that you can paint and customise yourself, plus a complete chassis with metal differentials, CNC-machined shock absorbers and BlackRock tyres. As this is a kit, electronics such as servo, receiver, ESC and receiver battery must be added yourself.

Technical data

• Weight: 4530 g
• Dimensions: 558 x 330 x 330 mm
• Pitch: MOD 0.6
• Body: High quality clear lexan
• Headlights: High Power LED
• Shock mounts: Multi-position mounting holes
• Side rock guards: Included
• Front and rear inner fenders: Included
• Transmission: Adjustable limited slip metal gear, 2-speed
• Drive shafts: Metal u-joints with plastic sliders for quiet operation
• Suspension: Front 3-link panhard configuration, rear 4-link
• Shock absorbers: CNC aluminium construction
• Shock springs: Dual rate
• Differential: All-metal 4+2 gear
• Dig function: Front and rear locking differentials
• Portal axles: High strength nylon
• Bead lock wheels: Weighted steel, chrome plated plastic
• Tyres: 120 x 45mm BlackRock Tyre

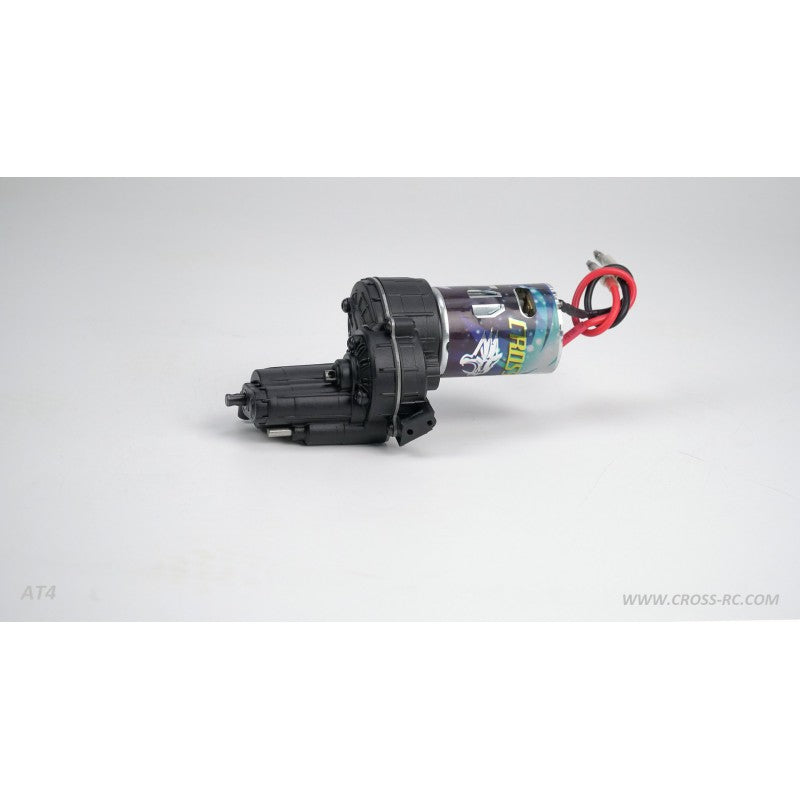

• Motor: 540 35T Brushed motor
• Bearings: Precision rubber sealed bearings

Package contents

• Multi-link integral axle suspension
• Steel link rods, front axle fitted with Panhard bar
• 2-speed gearbox, transfer case, differential lock and portal axle
• Newly developed transmission with low centre of gravity
• The chassis accepts 540, 550 and 560 size motors, and the Hobbywing AXE crawler system can also be fitted directly
• Factory-fitted 540 35T special climbing motor, input gear compatible with 10T to 18T
• Final drive with dual friction plate limited slip structure on the driven gear
• Powder-metallurgy variable speed gear with integrated cutting technology – solid and hard-wearing

Required (not included)

• Servos
• Battery
• ESC
• E4-CG radio system
• Polycarbonate paint
