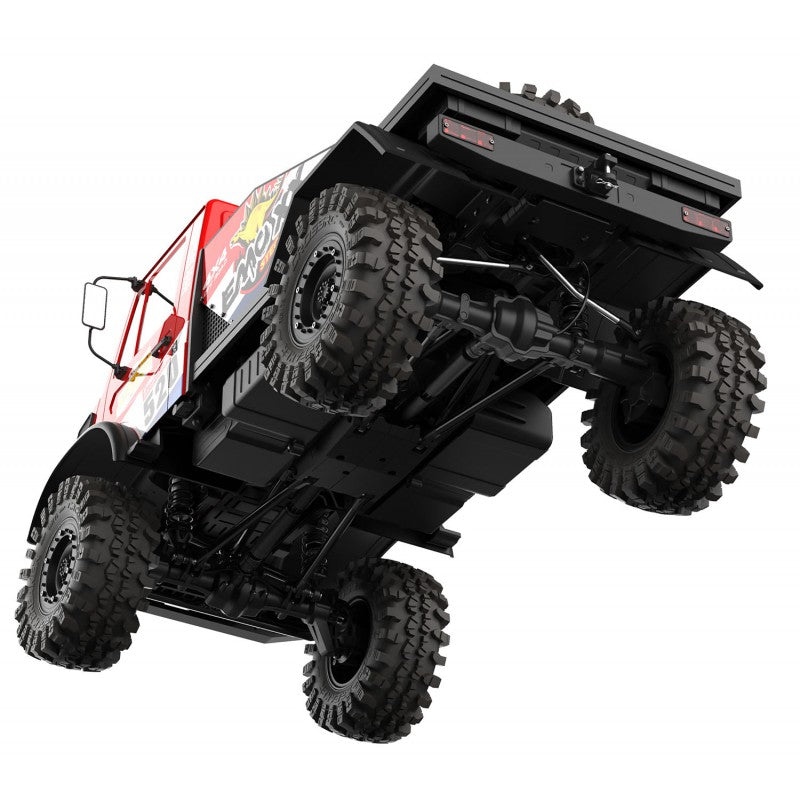

Crawling kit - EMO XX Stegosaurus 1/6 ARTR kit - Rally

Cross RC EMO XX Stegosaurus 1/6 ARTR - Rally

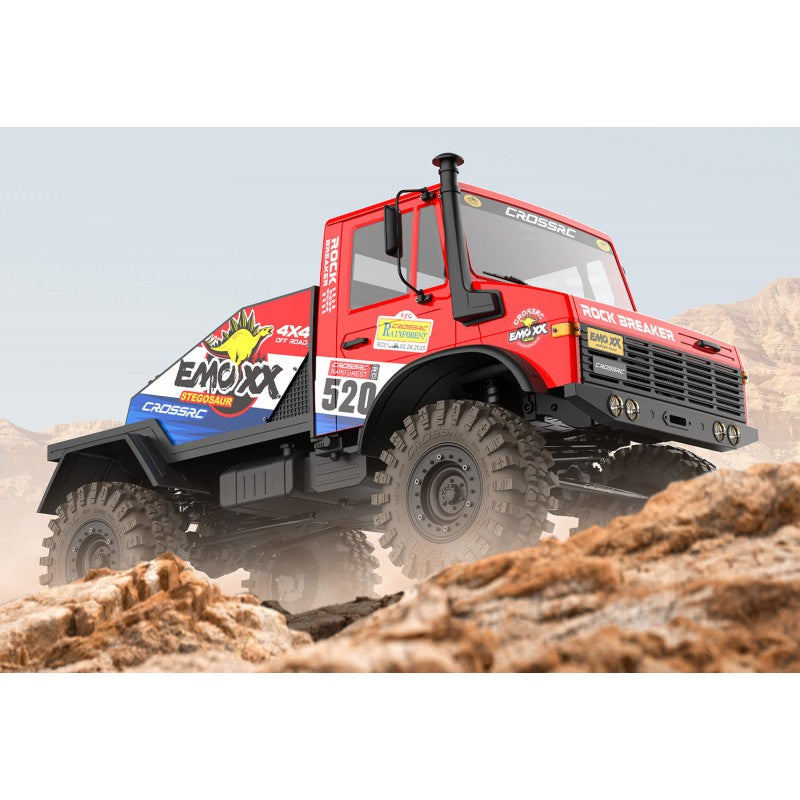

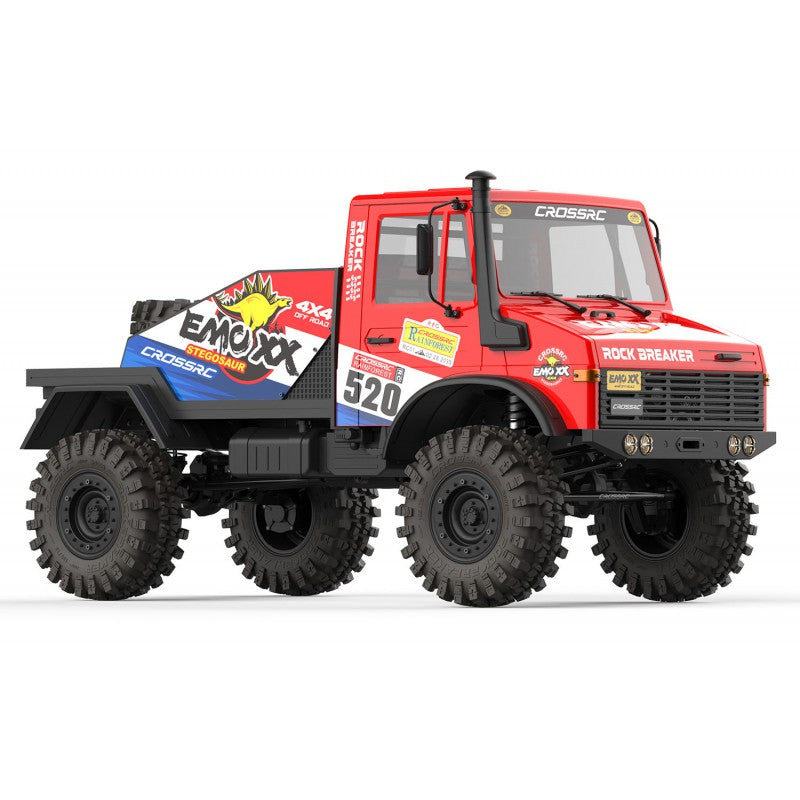

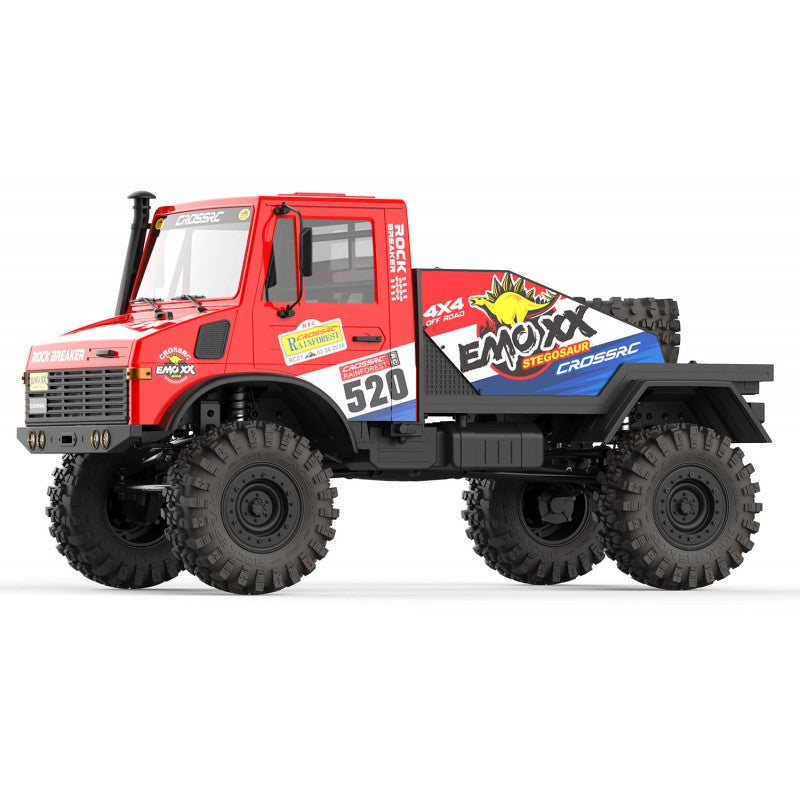

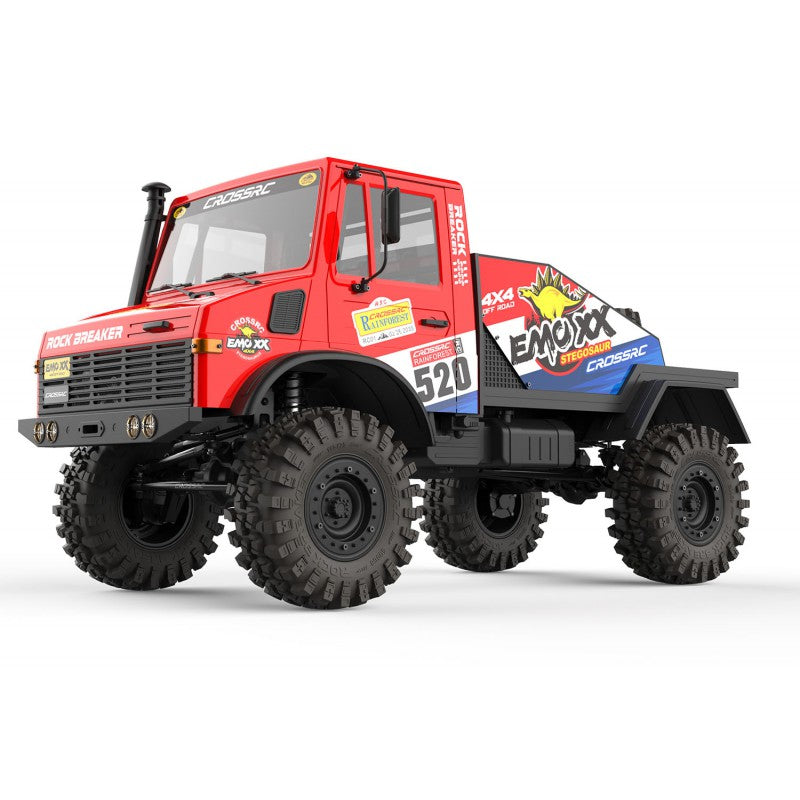

The EMO XX Stegosaurus is a giant 1/6 climbing car from Cross RC's Dinosaur Series, built to impress with both size and engineering. The complete car is over 80 cm long and weighs 13 kg, and every detail is designed to highlight the wild, prehistoric style the name suggests. This is the ARTR version in Rally trim, which means the chassis comes fully assembled from the factory but without power system, radio equipment and steering servo, so you can choose the electronics to suit your needs.

The skeleton of the EMO XX Stegosaurus is built around a strong steel frame combined with imported nylon in a special formula. The reinforced chassis is formed from thick steel plates by hundred-tonne stamping, giving a realistic and solid frame rail design. The nylon axles, cross members and various connecting parts ensure a good balance between strength and flexibility in the chassis.

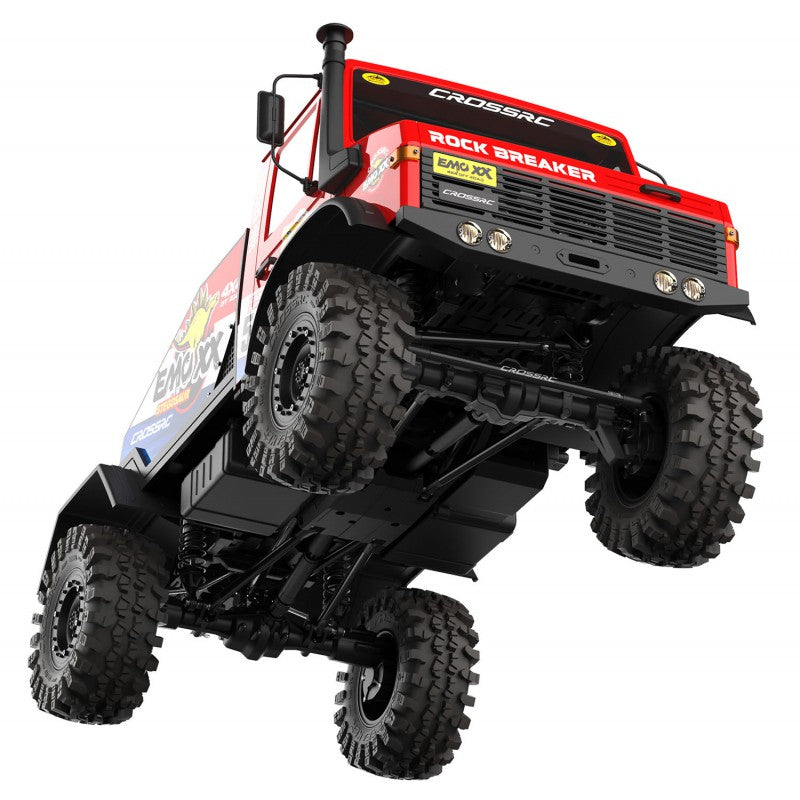

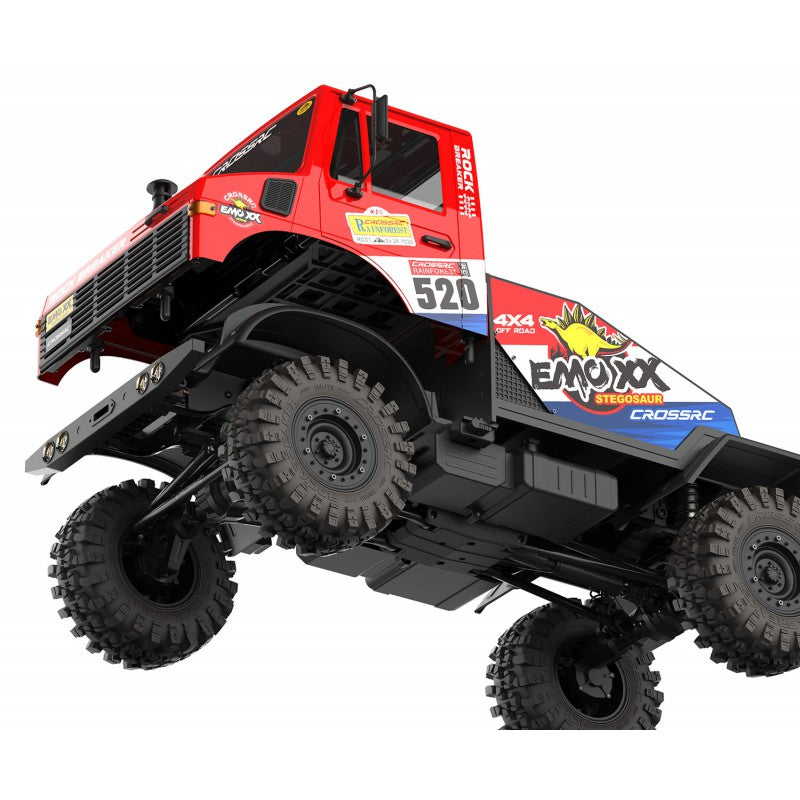

The suspension consists of a front three-link with lateral thrust rod and a rear four-link with balance bar, with link diameters of up to 10 mm for extra strength. This gives the suspension great articulation while offering high resistance to side loads. The large 26 mm CNC-machined aluminium alloy shock absorbers have adjustable preload and a maximum travel of 40 mm, giving the car good support and a smooth, aggressive stance across terrain.

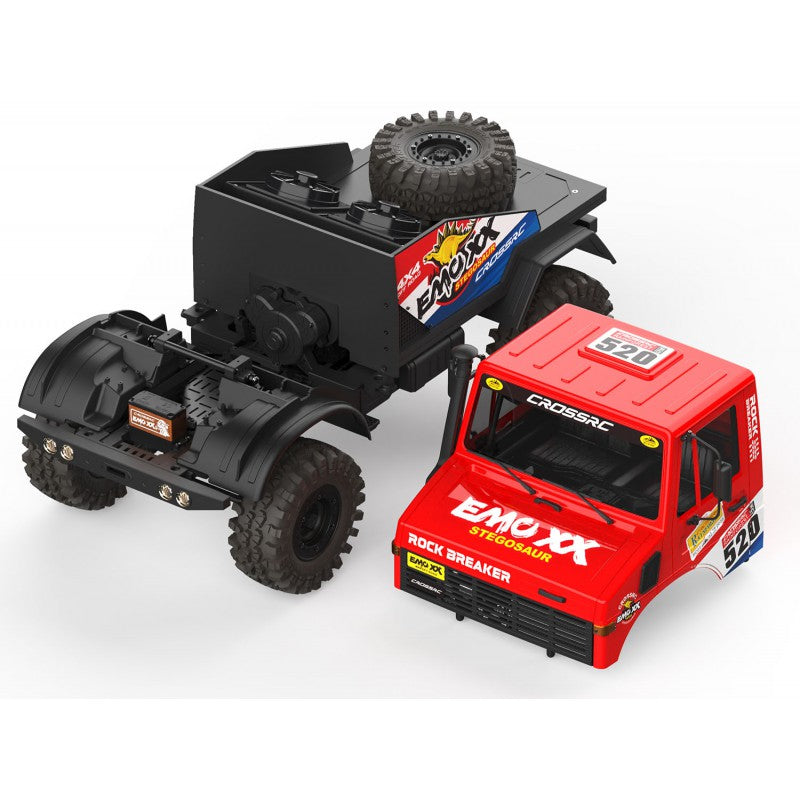

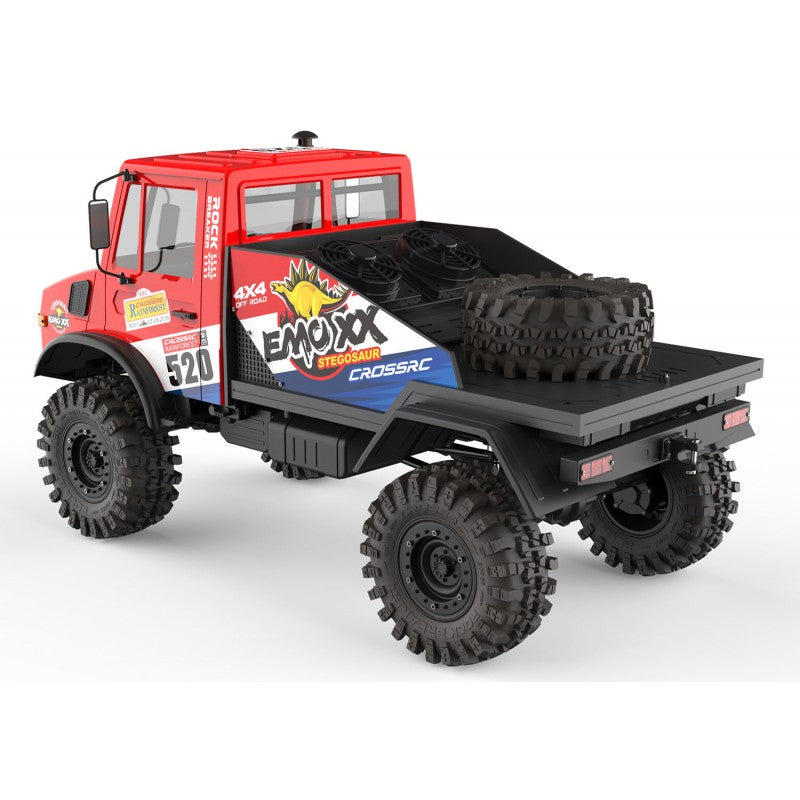

The car comes with the newly developed MARSH RANGER "Marsh Roam" MT tyres and a body in thick PC material combined with an internal roll cage, giving a realistic look while protecting the chassis. The body is mounted on the chassis with a four-point quick-release design, so it is easy to remove. The Rally version also has a rally-style load bed in ABS plastic.

Technical data

• Scale: 1/6
• Length: over 80 cm
• Weight: 13 kg
• Frame: 2mm stamped steel scale frame
• Body: PC plastic, pre-assembled
• Load bed: ABS engineering plastic in Rally style
• Spur gear: 63T nylon silent gear
• Transmission gears: steel cut gears
• Bevel gear: steel cut gear
• Propshaft: steel universal joint with nylon shaft
• Axle shafts: front steel CVD universal shaft + rear steel straight shaft
• Bearings: ABEC3 high-speed bearings
• Suspension, linkage: 10mm aluminium chassis links + steel rear stabiliser link
• Shock absorbers: 26mm CNC hydraulic, max. travel 40mm, adjustable preload
• Suspension protection: CNC upper link reinforcement + steel lateral panhard rod reinforcement
• Tyres: MARSH RANGER "Marsh Roam" MT
• Wheels: nylon clamping wheel hubs
• Battery compartment: 160 x 80 x 55 mm

Package contents

• Pre-assembled vehicle without power set
• Without radio equipment
• Without steering servo

Required (not included)

• Motors
• ESC
• Steering servo (70Kg recommended)
• Transmitter
• Receiver
• Battery
• Charger
