Crawling kit - EMO XX Stegosaurus 1/6 RTR 775 Brushed kit - Truck

Cross RC EMO XX Stegosaurus 1/6 RTR – 775 Brushed Truck

The EMO XX Stegosaurus is a huge 1/6 crawler from Cross RC’s Dinosaur Series, built to combine raw power with surprising agility. With its massive, dinosaur-inspired design and a robust steel frame, this model is made for those who want a true "large-scale climbing" vehicle that can tumble through the roughest terrain.

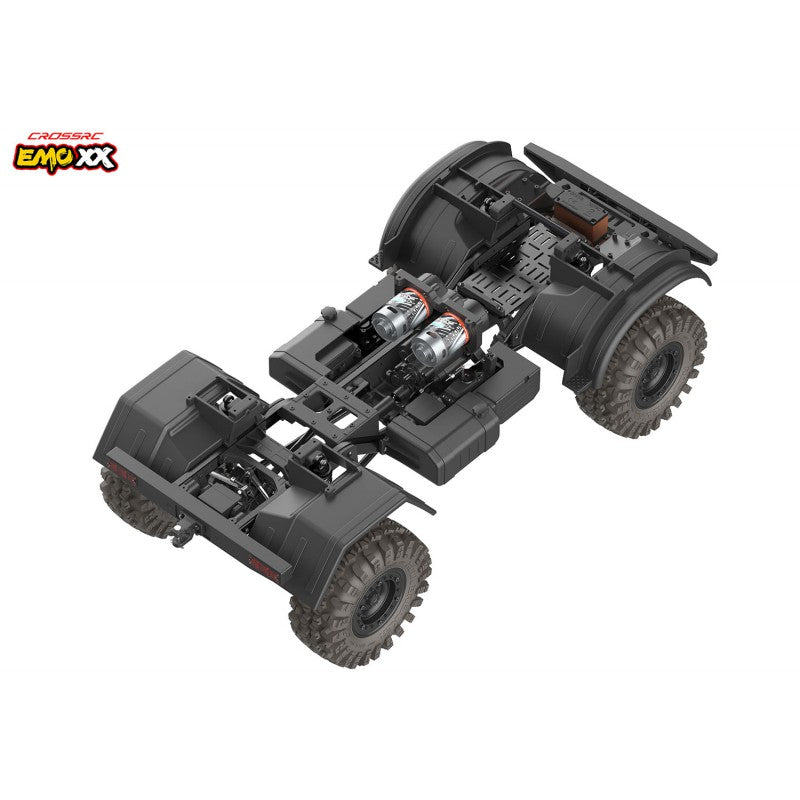

The chassis is built around a reinforced frame of thick, stamped steel plates, while the axles, cross members and connecting parts are made from imported nylon with a special formula. This gives a good balance between strength and flexibility in the chassis. At the front and rear sits a reverse transmission door axle structure which, together with carefully matched steering angles, ensures stable and easy handling even at high speed.

The suspension uses a three-link system with a lateral link at the front and a four-link system with a balance bar at the rear, with links up to 10 mm in diameter. The 26 mm CNC-machined aluminium shock absorbers have adjustable preload and up to 40 mm of travel, giving the vehicle both good support and a very agile character.

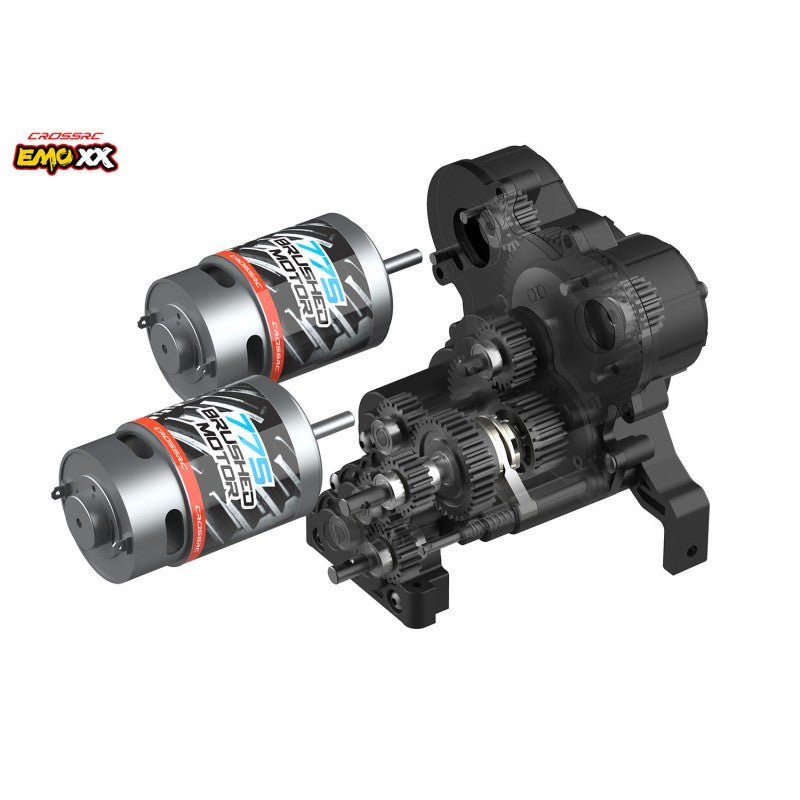

This 775 Brushed RTR version comes with two powerful 775 motors mounted in parallel, drawing power through dual high-voltage 880 ESCs. Steering is handled by a 70KG high-voltage servo, plus three 25KG high-voltage standard servos for the differential locks and gear shifting, all with built-in stall protection so the servos do not burn out. The car is fitted with "Rock Roar" Rock Breaker tyres and a synchronised LED light system with strobe function.

Technical data

• Version: EMO XX 4x4 Truck, RTR, 775 Brushed
• Body: PC plastic, pre-assembled
• Truck bed module: ABS engineering plastic
• Frame: 2mm stamped steel, scale design
• ESC: 2x Hobbywing 880 (2-4S)
• Motor: 2x powerful 775 brushed motors
• Steering servo: 70KG 7.4V high-voltage servo for 1/5 scale vehicles
• Transmission and differential servo: 3x factory-fitted 25KG 7.4V high-voltage standard servos
• Radio system: DumboRC X6 6-channel 2.4GHz transmitter
• Lights: Synchronised LED light system with strobe function
• Spur gear: 63T nylon silent gear
• Transmission gears: All-steel cut gears
• Bevel gear: All-steel cut gears
