Crawling kit - GC4M 1/10 4x4 Truck

Kyosho GC4M 1/10 4x4 Crawling Truck – kit

The GC4M is a kit that combines pure crawling fun with an incredibly detailed scale truck. Kyosho has put great emphasis on realistic details, so the result is a model that can both impress on the shelf and perform on the trail.

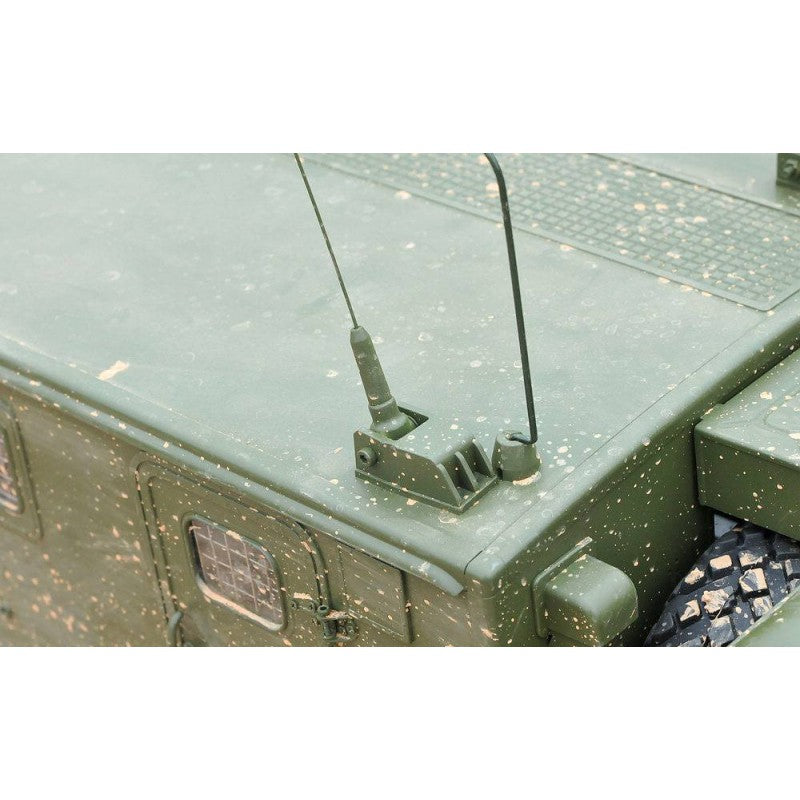

The body is made of ABS and has a high level of detail, including a detailed rear compartment with opening doors, a scale interior and an equipment box and speaker box, which give the model an even more authentic look.

Under the body you will find a solid technical build with a steel chassis frame, steel driveshafts and tough axles with cast aluminium housings. The truck has a pre-assembled 2-speed gearbox with two gear ratios, leaf springs and shock absorbers front and rear, and 1.9" steel beadlock wheels. The spare wheel rim is plastic.

The model comes with a high-quality LED light kit and a built-in 4 ohm speaker, which together give a more lively and realistic experience while driving. An illustrated manual is included to make the build as straightforward as possible.

Technical data

• Length: 520 mm
• Width: 237 mm
• Overall height: 329 mm
• Wheelbase: 305 mm
• Ground clearance: 62 mm
• Pitch: MOD 0.6

In the box

• Detailed ABS body
• Detailed rear compartment with opening doors
• Scale interior
• Equipment box
• Speaker box
• 1.9" steel beadlock wheels, 100/35 (the spare wheel rim is plastic)
• Pre-assembled 2-speed gearbox with gear ratios of 1:7.69 and 1:3.35, plus 14T pinion with ratios of 1:57.3 and 1:24.9
• Solid axles with cast aluminium housings, ratio 1:3
• Leaf springs and shock absorbers (front and rear)
• Steel chassis frame
• Steel driveshafts
• High-quality LED light kit
• 4 ohm speaker
• Illustrated manual

Required (not included)

• Steering servo
• Gear shift servo
• Receiver
• Transmitter (4-channel recommended)
• ESC (speed controller)
• Motor
• Battery
• ABS glue
• Paint
• Grease
