Hobbywing  |  SKU: HW30415150 Producent varenr.: 30415150  |  EAN: 6938994423069

Hobbywing 30415150 - Skywalker 2814 Motor D35.1x34mm 1000kV 55A/810W/43s

316,69 kr

Get a price match on Hobbywing 30415150 - Skywalker 2814 Motor D35.1x34mm 1000kV 55A/810W/43s

Have you found the item cheaper at another retailer? Paste the link below and we will quickly let you know whether we can match the price. We look at the total price — including shipping, duties and fees — and the item should be in stock with them. We match if we can. Read the terms here.

Delivery

Available at supplier - order now, delivered in 5-7 days

In-store pickup

Out of stock

In stock? Then we dispatch in:

Fast dispatch from our warehouse in Denmark

Fast dispatch from our warehouse in Denmark
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Delivery 1–2 working days
  • Shipping from 35 kr.
  • Certified Danish webshop (E-mærket)
  • Easy and secure payment
  • Can be collected at our shop in Nørresundby
     View shop information

Description

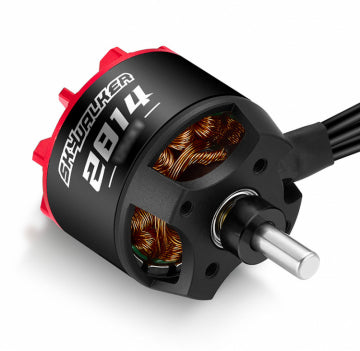

Hobbywing HW30415150 - SkyWalker 2814SL 1000Kv Outrunner

High power & High performance
The newly designed 2814, 2820, and 2826 fixed-wing motors have increased output power. Suitable for 800-2300g 3D fixed wings, gliders, sport fixed wings, etc. Suitable for many airplane applications!

Excellent heat dissipation design
The large hollow design, combined with the self-dissipating structure of the top cover, enhances the cooling capacity and prolongs the lifespan of the motor.

Higher dynamic balance requirements
Adopts an excellent production and assembly dynamic balance technology with high-quality bearing and high-precision CNC machining, it provides an extremely low dynamic balance of the rotor to reduce motor vibration and provide smoother operation.

Multi-anti-loosening rotor design
After installing the copper pad and retainer spring on the core of the rotor shaft, the bushing and set screw help secure the rotor and improving the reliability of the motor.

Excellent materials
  • Top branded JNEH1200 silicon steel sheet, 0.2mm thick material, provides lower iron loss.
  • N48 strong magnetic arc magnetic steel design provides maximum torque output for the motor.
  • 180°C high temperature resistant enameled wire, enhances the high temperature resistance of the stator coil.
  • Silicone wire outlet, which is softer and easier to route than the traditional straight outlet silicone wire.



Included Accessories:
  • Propeller Adapter Assembly
  • Motor mounting plate
  • Screws

Specs:
  • Recommended Battery: 3-4S LiPo
  • KV Rating: 1000KV
  • No-load Current: 2A/14.8V
  • Winding Resistance: 29mO
  • Number of slot poles: 12N14P
  • Maximum continuous current: 55.2A/43s
  • Maximum continuous power: 815W/43s
  • Motor Size: D35.1xL36mm
  • Motor Weight: 115g
  • Shaft Diameter: 5mm
  • Bearing model: 685ZZ(OD11xiD5xT5mm)
  • Phase cable: 16AWG
  • Cable length: 110mm
  • Connectors: 4mm Bullet
  • Recommended ESC: Skywalker 80A
  • Recommended Propellers: 3S: 12X6E, 13X6.5E / 4S: 10X5E, 10X6E, 11X5.5E
  • Clip mounting hole threads: D15mm-3xM2.5
  • Base threads: D19mm-2xM3 / D25mm-2xM3

Shipping

We ship with GLS:

From our warehouse in Denmark.
Shipping is calculated at checkout.
Business customers are welcome.
