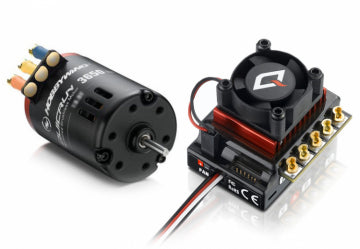

Hobbywing 38020382 - QuicRun Combo 10BL120 G2 Sensor - 3650SD 13.5T 2850kV G2 1/10

Hobbywing HW38020382 - QuicRun 10BL120 Sensored G2 ESC + QuicRun 3650SD-13.5T/2850KV G2 2-3S Motor Combo

Best value for money, Easy to use
The new 10BL120 G2, takes the outstanding quality and durability of proven HOBBYWING platforms and makes it even easier to use and setup. The perfect choice for 10th scale setups.

BEC upgrade, stronger driver
The BEC's continuous output current has been upgraded from 3A to 4A. The maximum current is at 7A, and the output voltage is now 6V/7.4V adjustable. Hobbyist will be able to use high-voltage and powerful servos available on the market with greater control.

Boost/Turbo timing technology
The 10BL120 G2 features adjustable electronic timing. Turbo and Boost can be used to fine tune power delivery and get the most out of your setup. Up to 32 degrees of electronic timing is available.
Note: Boost and Turbo timing cannot be used with a 3S battery to prevent damage.

Comprehensive Protection
Combining software and hardware to provide comprehensive protection The ESC is built using top of the line hardware, and proven software to provide a robust and reliable platform.

• Low-voltage protection
• Over-heating protection
• Throttle-loss protection
• Overload protection

Supports Motor Rotation CW/CCW
The motor rotation is adjustable CW (clockwise) and CCW (counterclockwise), adapting to different chassis.

ESC Specs:

• Sensored, brushless, 1/10 ESC
• Cont./Peak Current: 120A/760A
• Input Voltage: 2-3S Lipo
• BEC Output: Switch Mode 6V/7.4V @4A
• Input Wires: 12AWG-200mm
• Output Wires: 12AWG-200mm
• Input Connectors: No
• Output Connectors: No
• Fan size: 25x25x10mm
• Fan input: 5-8.4V
• Input Connectors: Powered by BEC
• Firmware Upgrade: Not Supported
• Size: 43x36.8x32.3mm
• Weight: 101.5g
• Motors: Sensorless or Sensored Brushless Motors
• Vehicles: 1/10 Touring Cars, Buggies, Drift Cars
• KV Rating/T Count: 2S Lipo =4.5T / 3S Lipo =10.5T 3650 Size Motor

ESC Programing via:

• SET Button on ESC: Supported
• LED Program Box: Supported
• LCD Pro Program Box: Supported
• OTA Programmer: Not Supported
• Program Port: Separate Programming Port

Motor Specs:

• Sensored, brushless 1/10 motor
• Pole count: 2
• KV Rating: 2850
• LiPo cells: 2-3
• No-load: 2.4A
• Diameter: 36mm
• Length: 52.8mm
• Shaft Diameter: 3.17mm
• Weight: 186g
• Front Bearing: OD9.525xiD3.175xT4mm
• Rear Bearing: OD9.525xiD3.175xT4mm
• Timing: Fixed
• Applications: 1/10, 1/12 On-road (Race or drift Touring cars, F1, M-vehicles and etc.) & Off-road (Buggies, 2WD SCTs & Trucks)
