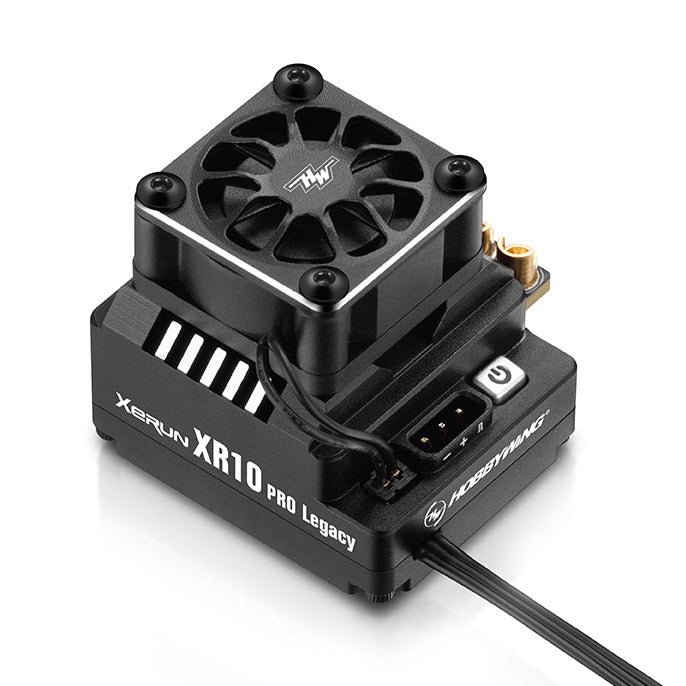

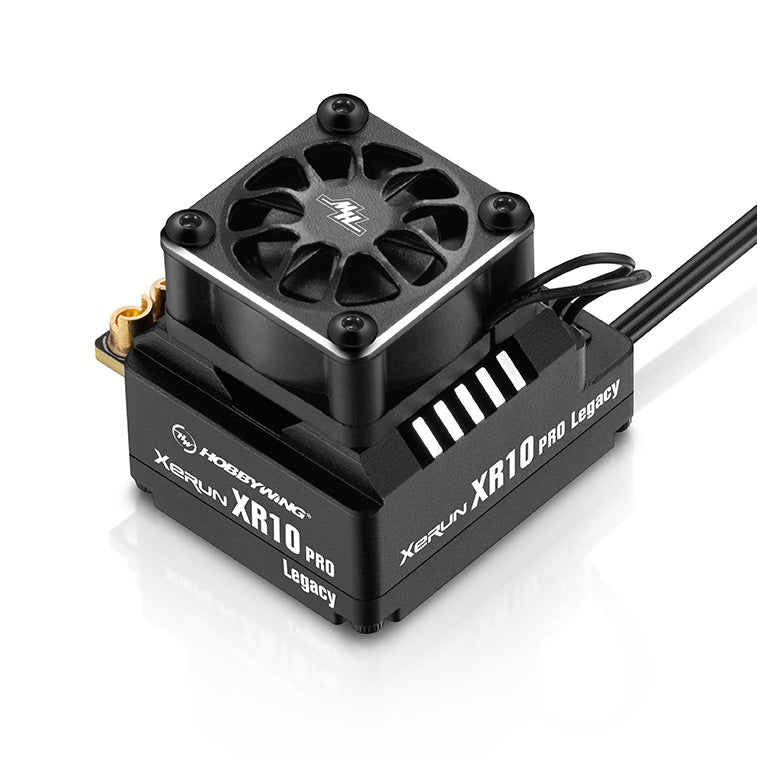

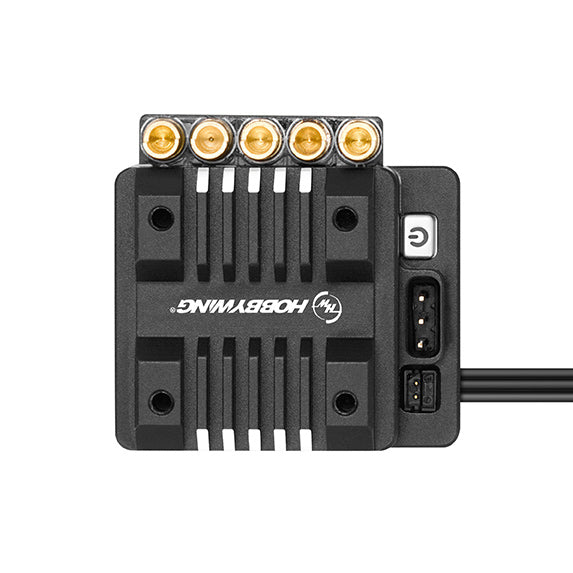

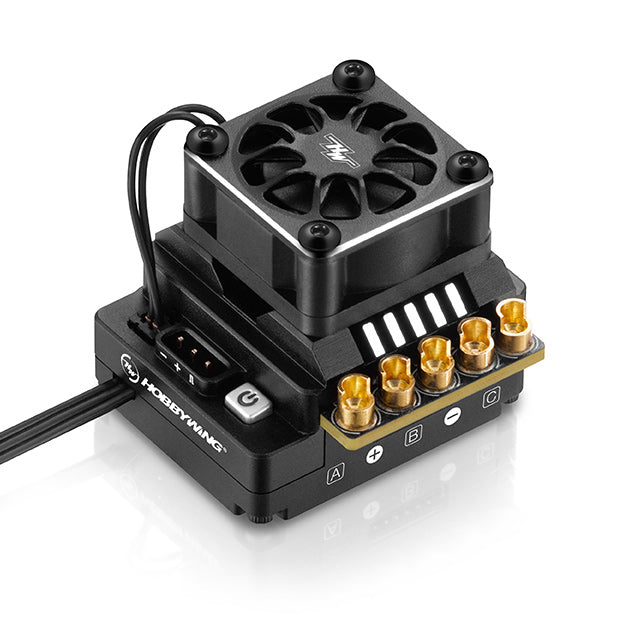

XeRun XR10 Pro Legacy ESC

Hobbywing HW30112800 - XeRun XR10 Pro Legacy Race ESC

Legendary Design, Proven Performance, Amazing Value

Built-in Reverse Polarity Protection
Equipped with a built-in reverse polarity protection circuit, the ESC offers worry-free operation by preventing damage from incorrect battery connections, ensuring reliability and peace of mind every time you power up.

Note: Full reverse polarity1 protection of the entire power system can only be achieved when using the optional non-polarized capacitor. The standard ESC is equipped with capacitor that is not protected against reverse polarity. If the battery is connected incorrectly, the capacitor may be damaged; however, the ESC itself will not be affected.

Competition-Ready, Driven by a Powerful Core
Powered by a 32-bit M4 processor, the ESC delivers lightning-fast response, and handles more data with precision. With the potential for continuous feature optimization and expansion, it combines pro-level racing hardware with advanced software to create the ultimate game-changer on track.

Competition-Ready, Driven by a Powerful Core
Powered by a 32-bit M4 processor, the ESC delivers lightning-fast response, and handles more data with precision. With the potential for continuous feature optimization and expansion, it combines pro-level racing hardware with advanced software to create the ultimate game-changer on track.

Built-in BEC Supporting High-Voltage Servos

• Built-in Maximum output current up to 10A switch-mode BEC
• Adjustable voltage from 5.0 to 7.4V(0.1V steps)
• Delivering power and precision demanded by high-torque and high-voltage servos.

Softening Function for Enhanced Control
Updated to include HOBBYWING's patended Softening, the Legacy now includes a useful tool for tuning tricky track conditions.

External OTA Makes Parameter Tuning and Firmware Upgrades More Convenient
Pair the ESC with the OTA Bluetooth module to access wireless connectivity with your smartphone. Using the mobile app, you will effortlessly adjust parameters, read data, and upgrade firmware improving quality of life.

Real-time Data Logging Function for Easy Access to Power System Status
Connect the ESC to the OTA Bluetooth module and pair it with the HW Link mobile app to access real-time data monitoring. Monitor throttle, voltage, temperature, RPM and other data, while the OTA’s built-in memory records everything for detailed post-race analysis to fine-tune performance like never before.

Note: Due to Bluetooth transmission limits, the effective range is approximately 5 meters.

Designed for All Forms of 1/10 Racing
Built on the stable and powerful XR10 Pro series platform, this ESC is perfect for 1/10th on-road and off-road racing across both Modified and Stock classes.

Specs:

• Type: 1/10, Brushless, Sensored 2S LiPo Racing ESC
• Waterproof: No
• Cont./Peak Current: 150A/1000A
• Input Voltage: 2S LiPo
• BEC Output: 5-7.4V, 5A
• Input Wires: 13AWG-200MM
• Output Wires: 13AWG-200MM
• Input Connectors: No
• Output Connectors: No
• SET Button on ESC: Not Supported
• LED Program Box: Not Supported
• LCD G2 Program Box: Supported
• LCD PRO: Supported
• OTA Programmer: Supported
• Program Port: Independent program port
• Firmware Upgrade: Supported
• Size: 37.7x37x33.2mm
• Weight: 94.2g (Included wires & connectors)

Data Recording:

• Extreme value: Supported
• Real-time Data: Supported
• Historical data (Graph): Supported

Applications:

• Motors: Sensorless Brushless/Sensored Brushless Motor
• Vehicles: 1/10 On-Road/Off-Road Racing, 1/10 Drift/F1/Rally
• KV Rating/T Count: 3650 (540) size 2-pole motor, On-Road ≥ 4.5T≥ Off-Road ≥ 5.5T
