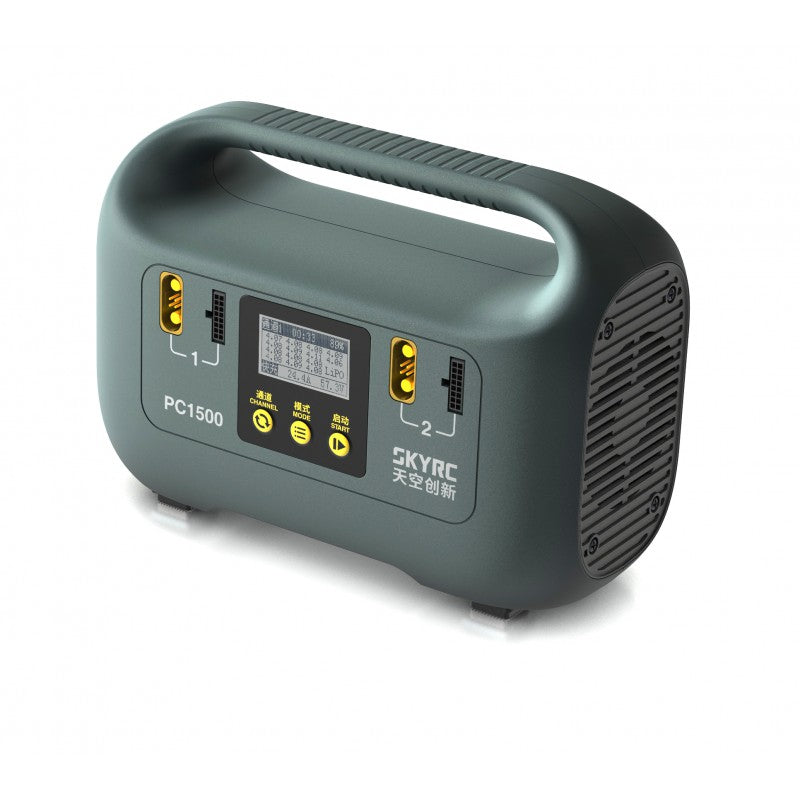

PC1500 AC Charger (12S-14S LiPo/LiHV - 1500w)

Kyosho PC1500 AC Charger (12S-14S LiPo/LiHV - 1500W)

The PC1500 is a smart charger that integrates CAN communication for smart batteries as well as standard lithium batteries. The charger can connect two batteries at the same time and has a maximum output power of up to 1500W across three modes: Fast (fast charging), Charge (slow charging) and Storage. Batteries with dedicated CAN communication are instantly recognised by the charger, providing simple operation and a good user experience.

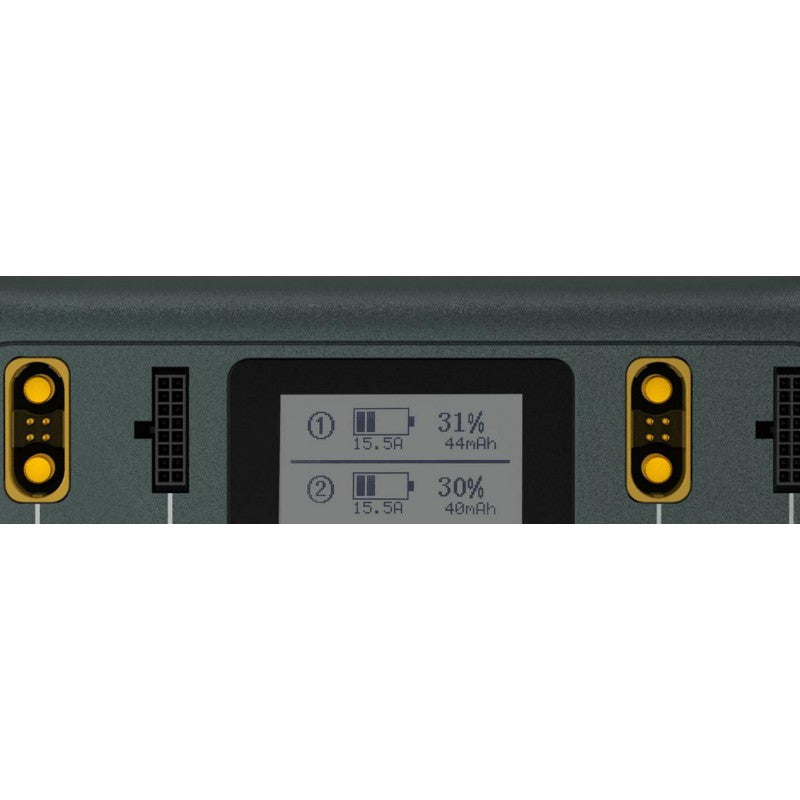

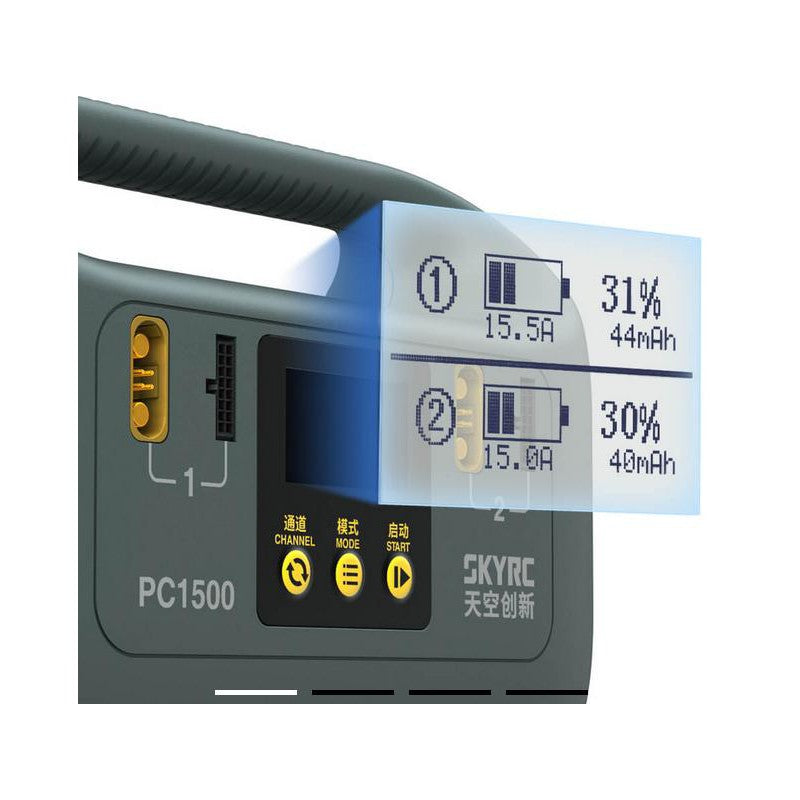

The intuitive interface makes routine charging easy – simply choose between Fast, Charge or Storage and press Start. The LCD display shows charging time, the battery's charge level as a percentage and each individual cell's voltage in real time, so you always have full visibility during charging.

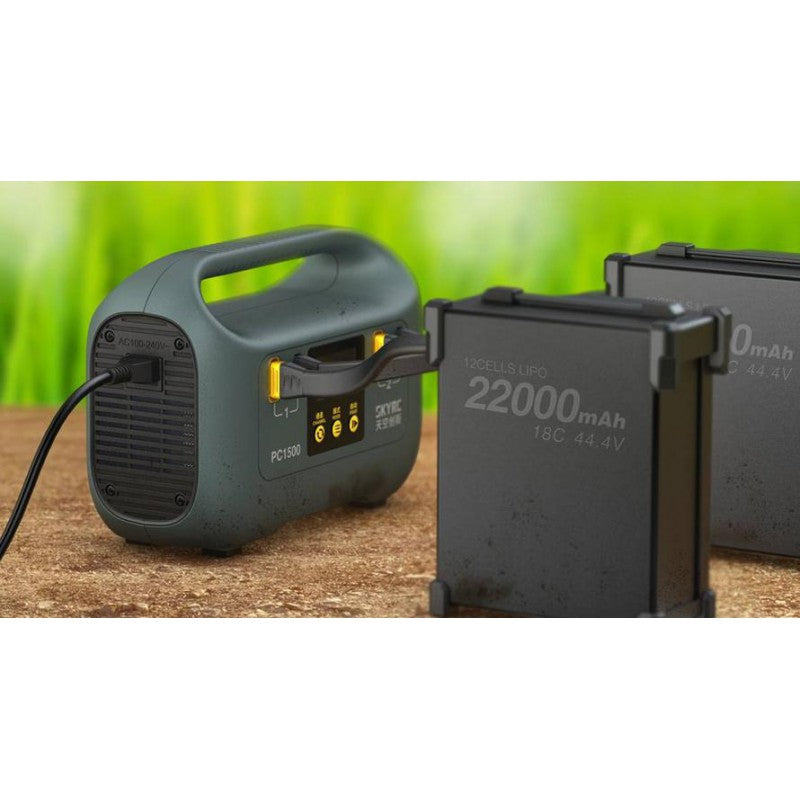

With high power and two channels, two batteries can be charged simultaneously in slow charge mode at a maximum charge power of 1500W. The PC1500 supports built-in industrial CAN Bus communication, so both smart batteries and lithium batteries with a balance port can be charged. A pre-charge function measures the battery pack's total voltage through the balance port and intelligently adjusts the charge current to match the battery's voltage, extending the battery's lifespan.

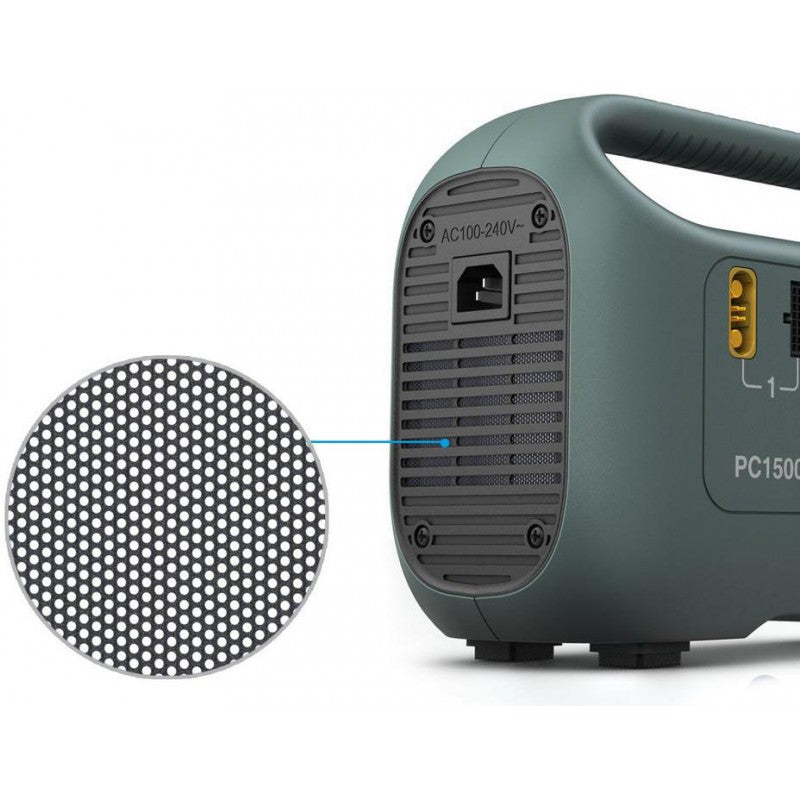

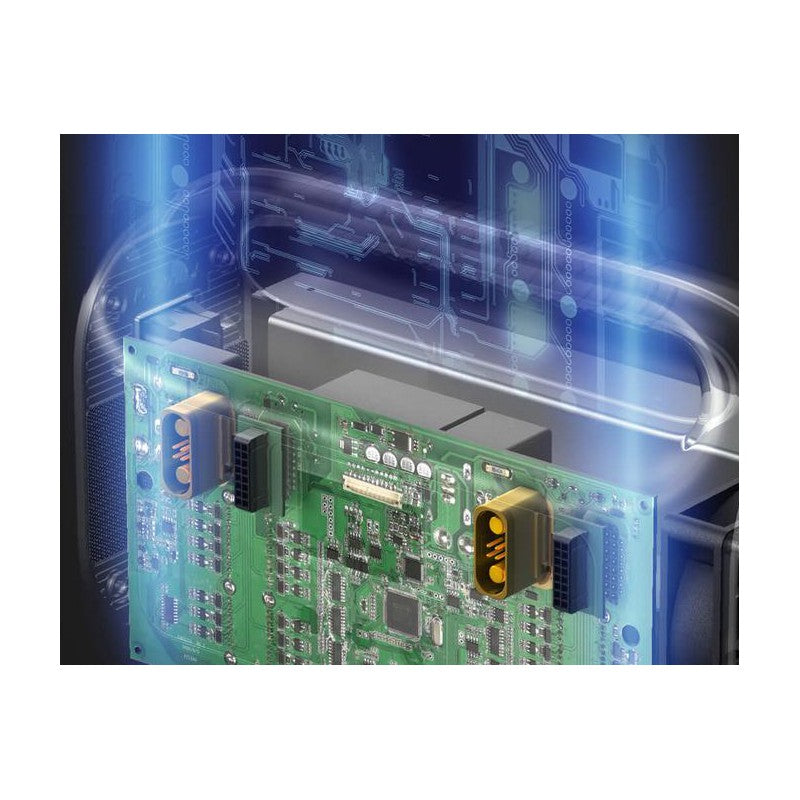

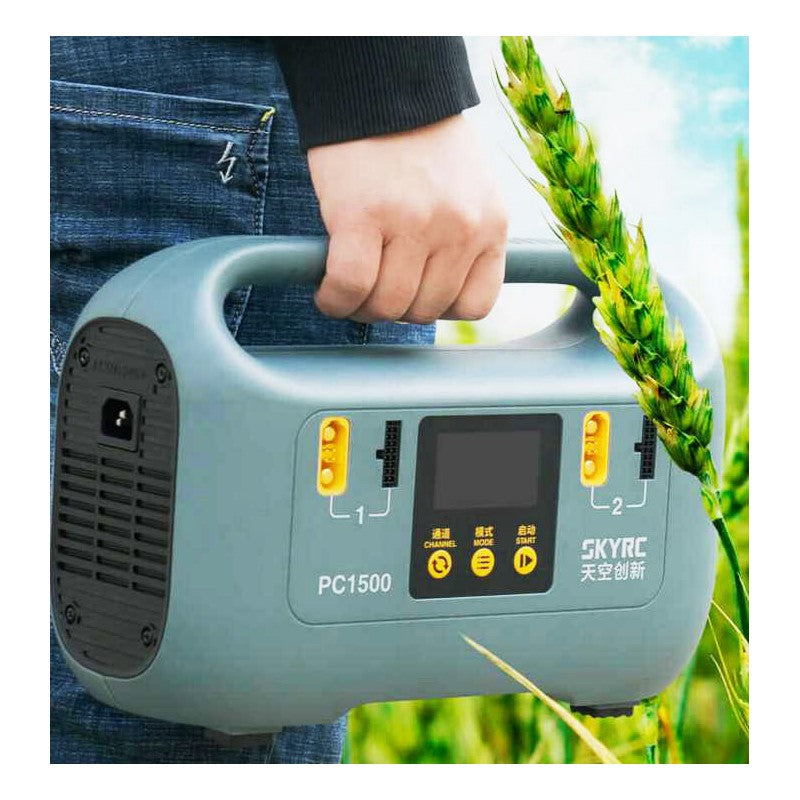

The charger's convection air duct with a vane-blade design reduces noise, delivers high airflow performance and significantly improves heat dissipation. The fans are mounted at the convection outlet in a removable design that's easy to clean and effectively filters out dust, sand and other harmful particles. Despite its compact size, the charger is powerful and easy to transport, thanks to an optimised structure with a good power-to-volume ratio. An innovative circuit design and an optimised algorithm ensure high efficiency, reliability, stability and durability through modular industrial design and components from renowned brands. Conformal coating protects the key electronic components against moisture, mould and smoke corrosion, ensuring reliability in outdoor use.

The PC1500 uses a universal AC input and innovative active PFC circuit technology for industrial power control with a conversion rate of up to 93%. This provides high efficiency, better stability and reduces interference to the mains. The charger is equipped with several protection functions: short-circuit protection, reverse polarity protection and over-temperature protection.

Technical data

• Size: 294x136x212mm
• Weight: 4.2 kg
• AC input: 100-240V
• Charge power AC220V: 1500W
• Charge power AC120V: 600W
• Battery type: Lithium Battery
• LiPo battery cells: 12S/14S
• LiHV battery cells: 12S
• Fast Charge current (AC 220V): 25A
• Charge current (AC 220V): 25A (total 25A for two channels)
• Fast Charge current (AC 120V): 9A
• Charge current (AC 120V): 9A (total 9A for two channels)
• Discharge Power: 60W
• Charge modes: Fast charge, Slow, Storage
• Output power connector: AS150U
• Balance connector: Molex 3.0
