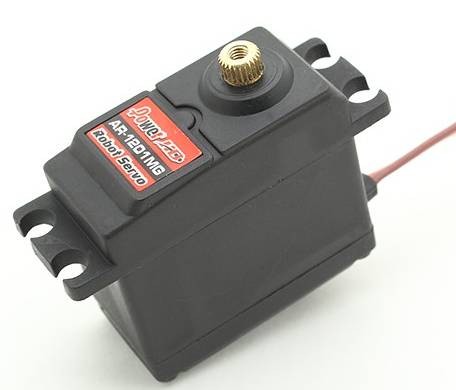

Power HD AR-1201MG Robot Servo 25T

Power HD AR-1201MG Robot Servo 25T

The Power HD AR-1201MG is a robot servo that features an output shaft on one side and a pivot to the rear which is specifically designed for driving balanced brackets and joint mechanisms on robot arms. The AR-1201 offers a good combination of torque and speed at an operating range 4.8 ~ 6.0v. The servos durability is increased by the use of metal gears.

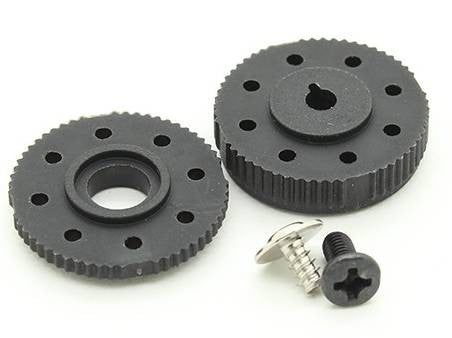

The servo has a 300 mm lead that is terminated with a JR-style connector and includes additional geared servo horns and mounting hardware.

Specifikationer:

• Model: AR-1201MG
• Voltage: 4.8 ~ 6v
• Speed @ 4.8V: .22sec
• Speed @ 6V: .20sec
• Torque @ 4.8V: 12kg/cm
• Torque @ 6V: 13.5kg/cm
• Weight: 60g
• Size: 40.5 x 20.0 x 38mm
• Spline Count: 25
• SKU 068000015-0
• Weight(g): 85.00
• Length: 70.00
• Width 40.00
• Height 60.00
• Speed (Sec/60deg): 0.20
• Torque(kg)(min. 0.01kg): 13.50
• Unit Weight (g) 60
• A(mm) 43.00
• B(mm): 40.00
• C(mm): 39.00
• D(mm) 20.00
• E(mm) 54.00
• F(mm): 27.00
