Savöx  |  SKU: SAV-SB3262SG Producent varenr.: SB-3262SG  |  EAN: 4710006994888

SB-3262SG Servo 28Kg 0,08s HV Alu Brushless Steel Gear Low Profile

785,00 kr

Get a price match on SB-3262SG Servo 28Kg 0,08s HV Alu Brushless Steel Gear Low Profile

Have you found the item cheaper at another retailer? Paste the link below and we will quickly let you know whether we can match the price. We look at the total price — including shipping, duties and fees — and the item should be in stock with them. We match if we can. Read the terms here.

Delivery

Out of stock

In-store pickup

Out of stock

In stock? Then we dispatch in:

Fast dispatch from our warehouse in Denmark

Fast dispatch from our warehouse in Denmark
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Delivery 1–2 working days
  • Shipping from 35 kr.
  • Certified Danish webshop (E-mærket)
  • Easy and secure payment
  • Can be collected at our shop in Nørresundby
     View shop information

Description

SAVÖX SAV-SB3262SG - SB-3262SG Servo 28Kg 0.08s HV Alu Brushless Steelgears Low Profile


Monster Line
The pinnacle of Team Savox engineering - the Monster Line features our most advanced servos, built for drivers, pilots, and racers who demand the absolute best in torque, speed, and durability. With high-voltage brushless motors, steel gears, and optimized internals, Monster Line servos dominate in everything from 1/8 racing to high-load surface builds and heavy-duty off-road. It’s performance without compromise.



SB-3262SG Lightweight Brushless
Introducing the SB-3262SG — a lightweight servo with a next-gen brushless motor that delivers more torque with less weight. Ideal for weight-conscious racers who need fast response and high output.

Specs:
  • Line: MONSTER LINE
  • Application: CAR / BOAT / AIRPLANE
  • Servo Size: Low Profile
  • Operating Voltage: 6.0V-8.4V
  • Speed @6.0V: 0.1s/60°
  • Torque @6.0V: 22kg/cm
  • Speed @7.4V: 0.08s/60°
  • Torque @7.4V: 28kg/cm
  • Speed @8.4V: 0.065s/60°
  • Torque @8.4V: 35kg/cm
  • Amplifier Type: Digital Controller
  • Motor Type: Patented Lightweight Brushless
  • Case Type: Aluminium
  • Protection: Water Resistant

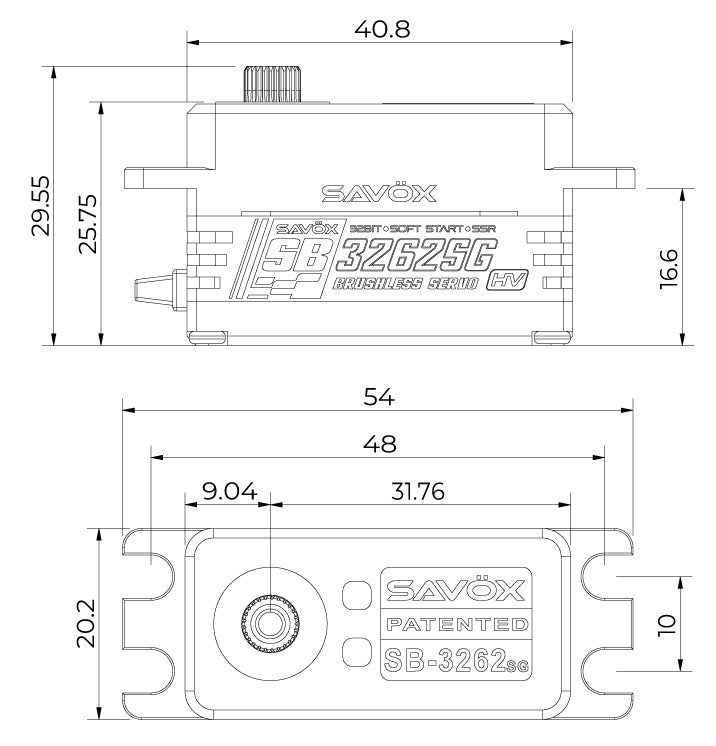

  • Dimensions: L40.8xW20.2xH25.4mm
  • Weight: 53g

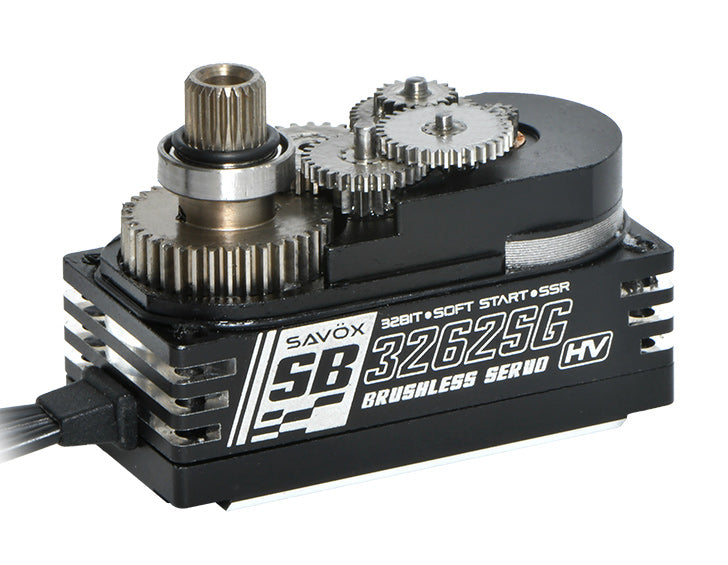

  • Gear Type: Specialized Steel
  • Compatibility: Sanwa SUR & SSR, Futaba UR & SR
  • PCB Board: 32-bit
  • Horn Gear Spline: 25T (Φ6)
  • Rotating Direction: Clockwise (when 1000→2000μsec)
  • Max Travel: ~130° (when 900→2100μsec)
  • Operating Travel: 90° (when 1000→2000μsec)
  • Neutral Position: 1500μsec
  • Bearing: 2x Ball Bearings
  • Potentiometer: VR
  • Cable Diameter: 22AWG
  • Cable Length: 300±5mm
  • Connector: JR
  • Stall Current @6.0V: 4500mA
  • Operating Current @6.0V: 200mA
  • Stall Current @7.4V: 5600mA
  • Operating Current @7.4V: 220mA
  • Stall Current @8.4V: 6300mA
  • Operating Current @8.4V: 250mA
  • Idle Current: 5mA
  • Dead Band Width: 3-5μsec
  • Frequency Range: 50-360Hz
  • Control System: Pulse Width Modification
  • Operating Temperature: -10°C to 50°C
