Savöx  |  SKU: SAV-SA1256TGPLUS Producent varenr.: SA-1256TG PLUS  |  EAN: 4710006994147

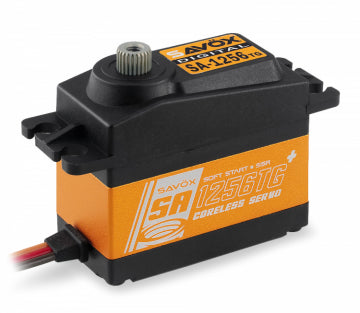

Savöx SA-1256TG PLUS - SA-1256TG Plus Servo 20Kg 0,15s Alu Coreless Titanium Gear

529,00 kr

Get a price match on Savöx SA-1256TG PLUS - SA-1256TG Plus Servo 20Kg 0,15s Alu Coreless Titanium Gear

Have you found the item cheaper at another retailer? Paste the link below and we will quickly let you know whether we can match the price. We look at the total price — including shipping, duties and fees — and the item should be in stock with them. We match if we can. Read the terms here.

Delivery

Available at supplier - order now, delivered in 3-5 days

In-store pickup

Out of stock

In stock? Then we dispatch in:

Fast dispatch from our warehouse in Denmark

Fast dispatch from our warehouse in Denmark
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Delivery 1–2 working days
  • Shipping from 35 kr.
  • Certified Danish webshop (E-mærket)
  • Easy and secure payment
  • Can be collected at our shop in Nørresundby
     View shop information

Description

SAVÖX SA-1256TG PLUS - Coreless Titanium-Geared High Torque Servo

The SA-1256TG-PLUS servo is a high torque servo and is perfect for those who are looking for a minimized backlash to use on flying surfaces of RC planes.

Features:
  • New: Soft Start
  • New: Sanwa SSR Compatible
  • Titanium gears ensure long life, durability & lighter weight
  • Minimized backlash for precision aerobatic airplane use
  • Aluminum middle case to help with cooler operating temperatures

Specifications:
  • Torque @ 4.8V: 16kg/cm
  • Torque @ 6V: 20kg/cm
  • Speed @ 4.8V: 0.18 sec/60 deg
  • Speed @ 6V: 0.15 sec/60 deg
  • Dimensions L x W x H: 40.3 x 20.2 x 37.2mm
  • Weight: 64g

Technical Details:
  • Operating Temperature: -10° - 50°C
  • Running Current (no load): 100mA @4.8V, 120mA @6.0V
  • Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 200 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless

Shipping

We ship with GLS:

From our warehouse in Denmark.
Shipping is calculated at checkout.
Business customers are welcome.

Savöx

Savöx SA-1256TG PLUS - SA-1256TG Plus Servo 20Kg 0,15s Alu Coreless Titanium Gear

529,00 kr

SAVÖX SA-1256TG PLUS - Coreless Titanium-Geared High Torque Servo

The SA-1256TG-PLUS servo is a high torque servo and is perfect for those who are looking for a minimized backlash to use on flying surfaces of RC planes.

Features:
  • New: Soft Start
  • New: Sanwa SSR Compatible
  • Titanium gears ensure long life, durability & lighter weight
  • Minimized backlash for precision aerobatic airplane use
  • Aluminum middle case to help with cooler operating temperatures

Specifications:
  • Torque @ 4.8V: 16kg/cm
  • Torque @ 6V: 20kg/cm
  • Speed @ 4.8V: 0.18 sec/60 deg
  • Speed @ 6V: 0.15 sec/60 deg
  • Dimensions L x W x H: 40.3 x 20.2 x 37.2mm
  • Weight: 64g

Technical Details:
  • Operating Temperature: -10° - 50°C
  • Running Current (no load): 100mA @4.8V, 120mA @6.0V
  • Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 200 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless
