Savöx  |  SKU: SAV-SB2263MGBE Producent varenr.: SB-2263MG BLACK EDIT  |  EAN: 4710006993263

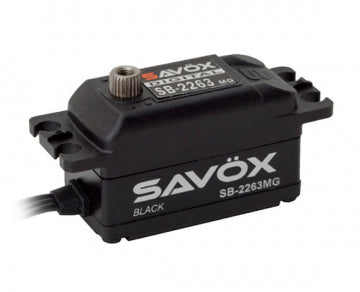

Savöx SB-2263MG BLACK EDIT - SB-2263MG Servo 10Kg 0,076s Brushless Black Edition Low

598,16 kr

Get a price match on Savöx SB-2263MG BLACK EDIT - SB-2263MG Servo 10Kg 0,076s Brushless Black Edition Low

Have you found the item cheaper at another retailer? Paste the link below and we will quickly let you know whether we can match the price. We look at the total price — including shipping, duties and fees — and the item should be in stock with them. We match if we can. Read the terms here.

Delivery

Available at supplier - order now, delivered in 6-8 days

In-store pickup

Out of stock

In stock? Then we dispatch in:

Fast dispatch from our warehouse in Denmark

Fast dispatch from our warehouse in Denmark
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Delivery 1–2 working days
  • Shipping from 35 kr.
  • Certified Danish webshop (E-mærket)
  • Easy and secure payment
  • Can be collected at our shop in Nørresundby
     View shop information

Description

SAVÖX SB-2263MGBE - Brushless Metal-Geared High Speed Low-Profile Servo


The SB-2263MGBE is a high speed, brushless, low profile servo suitable for RC cars and boats where you want/need a fast and low servo that is not High Voltage. The "BE" version has a cool and sleek all black look.

Features:
  • Metal gear train ensures durability under harsh situations
  • Cool black design
  • Ideal for 1/10 on road cars requiring a high speed servo

Specifications:
  • Voltage range: 4.8-6.6V
  • Torque @ 4.8V: 8kg/cm
  • Torque @ 6V: 10kg/cm
  • Speed @ 4.8V: 0.10 sec/60 deg
  • Speed @ 6V: 0.076 sec/60 deg
  • Dimensions L x W x H: 40.8 x 20.2 x 25.4mm
  • Weight: 48g

Technical Details:
  • Operating Temperature: -10° - 50°C
  • Running Current (no load): 180mA @4.8V, 220mA @6.0V
  • Stall Current (at locked): 2900mA @4.8 V, 3700mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 50 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 90° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Brushless

Shipping

We ship with GLS:

From our warehouse in Denmark.
Shipping is calculated at checkout.
Business customers are welcome.

Savöx

Savöx SB-2263MG BLACK EDIT - SB-2263MG Servo 10Kg 0,076s Brushless Black Edition Low

598,16 kr

SAVÖX SB-2263MGBE - Brushless Metal-Geared High Speed Low-Profile Servo


The SB-2263MGBE is a high speed, brushless, low profile servo suitable for RC cars and boats where you want/need a fast and low servo that is not High Voltage. The "BE" version has a cool and sleek all black look.

Features:
  • Metal gear train ensures durability under harsh situations
  • Cool black design
  • Ideal for 1/10 on road cars requiring a high speed servo

Specifications:
  • Voltage range: 4.8-6.6V
  • Torque @ 4.8V: 8kg/cm
  • Torque @ 6V: 10kg/cm
  • Speed @ 4.8V: 0.10 sec/60 deg
  • Speed @ 6V: 0.076 sec/60 deg
  • Dimensions L x W x H: 40.8 x 20.2 x 25.4mm
  • Weight: 48g

Technical Details:
  • Operating Temperature: -10° - 50°C
  • Running Current (no load): 180mA @4.8V, 220mA @6.0V
  • Stall Current (at locked): 2900mA @4.8 V, 3700mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 50 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 90° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Brushless
