Savöx  |  SKU: SB-2271SG-PLUS Producent varenr.: SB-2271SG PLUS  |  EAN: 4710006994659

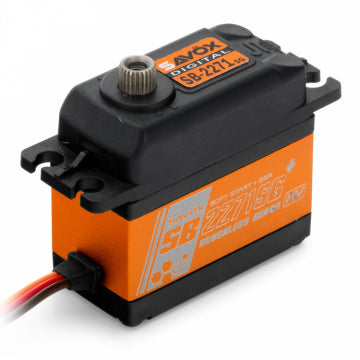

Savöx SB-2271SG PLUS - SB-2271SG Plus Servo 20Kg 0,065s HV Alu Brushless Steel Gear

714,44 kr

Get a price match on Savöx SB-2271SG PLUS - SB-2271SG Plus Servo 20Kg 0,065s HV Alu Brushless Steel Gear

Have you found the item cheaper at another retailer? Paste the link below and we will quickly let you know whether we can match the price. We look at the total price — including shipping, duties and fees — and the item should be in stock with them. We match if we can. Read the terms here.

Delivery

Available at supplier - order now, delivered in 5-7 days

In-store pickup

Out of stock

In stock? Then we dispatch in:

Fast dispatch from our warehouse in Denmark

Fast dispatch from our warehouse in Denmark
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Delivery 1–2 working days
  • Shipping from 35 kr.
  • Certified Danish webshop (E-mærket)
  • Easy and secure payment
  • Can be collected at our shop in Nørresundby
     View shop information

Description

SAVÖX SB-2271SGPLUS - High Voltage Brushless Metal-Geared High Speed/Torque Servo

The Savöx SB-2271SG Plus High Voltage Brushless Digital Servo combines leading edge technology with super high 12 bit (4096) resolution.

Features:
  • Soft Start
  • SSR compatible
  • Unique steel gear train
  • Capable of HV operation
  • Brushless motor for smooth operation and efficiency
  • Ideal for 1/10 buggies and trucks, and some heli applications

Specifications:
  • Torque @ 6V: 15kg/cm
  • Torque @ 7.4V: 20kg/cm
  • Torque @ 8.4V: 25kg/cm
  • Speed @ 6V: 0.085 sec/60 deg
  • Speed @ 7.4V: 0.065 sec/60 deg
  • Speed @ 8.4V: 0.055 sec/60 deg
  • Dimensions L x W x H: 40.3 x 20.2 x 38.7mm
  • Weight: 69g

Technical Details:
  • Operating Temperature: -10° - 50°C
  • Running Current (no load): 180mA @6.0V, 220mA @7.4V
  • Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Brushless

Shipping

We ship with GLS:

From our warehouse in Denmark.
Shipping is calculated at checkout.
Business customers are welcome.

Savöx

Savöx SB-2271SG PLUS - SB-2271SG Plus Servo 20Kg 0,065s HV Alu Brushless Steel Gear

714,44 kr

SAVÖX SB-2271SGPLUS - High Voltage Brushless Metal-Geared High Speed/Torque Servo

The Savöx SB-2271SG Plus High Voltage Brushless Digital Servo combines leading edge technology with super high 12 bit (4096) resolution.

Features:
  • Soft Start
  • SSR compatible
  • Unique steel gear train
  • Capable of HV operation
  • Brushless motor for smooth operation and efficiency
  • Ideal for 1/10 buggies and trucks, and some heli applications

Specifications:
  • Torque @ 6V: 15kg/cm
  • Torque @ 7.4V: 20kg/cm
  • Torque @ 8.4V: 25kg/cm
  • Speed @ 6V: 0.085 sec/60 deg
  • Speed @ 7.4V: 0.065 sec/60 deg
  • Speed @ 8.4V: 0.055 sec/60 deg
  • Dimensions L x W x H: 40.3 x 20.2 x 38.7mm
  • Weight: 69g

Technical Details:
  • Operating Temperature: -10° - 50°C
  • Running Current (no load): 180mA @6.0V, 220mA @7.4V
  • Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Brushless
