Savöx  |  SKU: SAV-SC0253MGPLUS Producent varenr.: SC-0253MGPLUS  |  EAN: 42596942

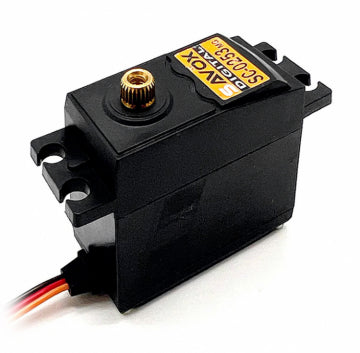

Savöx SC-0253MGPLUS - SC-0253MG Servo 6Kg 0,15s Metal Gear

199,99 kr

Get a price match on Savöx SC-0253MGPLUS - SC-0253MG Servo 6Kg 0,15s Metal Gear

Have you found the item cheaper at another retailer? Paste the link below and we will quickly let you know whether we can match the price. We look at the total price — including shipping, duties and fees — and the item should be in stock with them. We match if we can. Read the terms here.

Delivery

Out of stock

In-store pickup

Out of stock

In stock? Then we dispatch in:

Fast dispatch from our warehouse in Denmark

Fast dispatch from our warehouse in Denmark
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Delivery 1–2 working days
  • Shipping from 35 kr.
  • Certified Danish webshop (E-mærket)
  • Easy and secure payment
  • Can be collected at our shop in Nørresundby
     View shop information

Description

SAVÖX SC-0253MGPLUS - Metal-Geared Digital Standard Servo

The SC-0253MG Plus is a budget friendly, digital standard servo with metal gears and a bearing support for those wanting more than what a standard servo offers.

Features:
  • Soft Start
  • SSR compatible
  • DC motor
  • Strong metal gear train for added durability
  • Ideal for 1/10 cars and planes
  • Great replacement for standard servos with plastic gearing

Specifications:
  • Torque @ 4.8V: 4kg/cm
  • Torque @ 6V: 6kg/cm
  • Speed @ 4.8V: 0.17sec/60°
  • Speed @ 6V: 0.15sec/60°
  • Dimensions L x W x H: 40.7x20x37mm
  • Weight: 59g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 220mA @4.8V, 240mA @6.0V
  • Stall Current (at locked): 800mA @4.8 V, 1000mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 250 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 120° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 164° (800 ? 2200 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed
