Savöx  |  SKU: SC-0254MG-PLUS Producent varenr.: SC-0254MG PLUS  |  EAN: 4710006994567

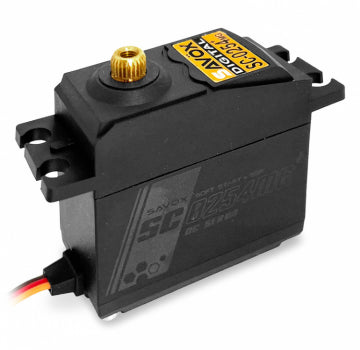

Savöx SC-0254MG PLUS - SC-0254MG Plus Servo 7,2Kg 0,14s Metal Gear

199,99 kr

Get a price match on Savöx SC-0254MG PLUS - SC-0254MG Plus Servo 7,2Kg 0,14s Metal Gear

Have you found the item cheaper at another retailer? Paste the link below and we will quickly let you know whether we can match the price. We look at the total price — including shipping, duties and fees — and the item should be in stock with them. We match if we can. Read the terms here.

Delivery

Last 1 units available - order now, delivery by 29 Sep (1 day)

In-store pickup

Last 1 units available - Nørresundby

In stock? Then we dispatch in:

Fast dispatch from our warehouse in Denmark

Fast dispatch from our warehouse in Denmark
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Delivery 1–2 working days
  • Shipping from 35 kr.
  • Certified Danish webshop (E-mærket)
  • Easy and secure payment
  • Can be collected at our shop in Nørresundby
     View shop information

Description

Savox SC-0254MGPLUS - Standard Sized Digital Servo with Soft Start 0.14sec 7.2kg/cm @ 6V

The Savox SC-0254MG Plus is a high torque, metal-geared, digital, standard servo. A great replacement for standard, plastic-geared servos with less torque.

Features:
  • Soft Start
  • Sanwa SSR compatible
  • Metal gear train ensures durability under harsh situations
  • Higher torque output than standard servos
  • Ideal for 30-60 size aircraft, and some car applications
  • Leading edge digital servo technology
  • Strong 3-Pole Brushed motor
  • Accurate and fast response
  • Fine resolution
  • Composite case
  • Ball bearings

Specifications:
  • Torque @ 4.8v: 6.9kg/cm
  • Torque @ 6v: 7.2kg/cm
  • Speed @ 4.8v: 0.19s/60deg
  • Speed @ 6v: 0.14s/60deg
  • Dimensions: L40.7 x W20 x H39.4mm
  • Weight: 49g
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 220mA @4.8V, 240mA @6.0V
  • Stall Current (at locked): 1300mA @4.8V, 1500mA @6.0V
  • Idle Current: 6mA @4.8V, 6mA @6.0V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 120° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 164° (800 ? 2200 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed
