Savöx  |  SKU: SAV-SC0352PLUS Producent varenr.: SC-0352 PLUS  |  EAN: 4710006994796

Savöx SC-0352 PLUS - SC-0352 Plus Servo 6,5Kg 0,11s

150,05 kr

Get a price match on Savöx SC-0352 PLUS - SC-0352 Plus Servo 6,5Kg 0,11s

Have you found the item cheaper at another retailer? Paste the link below and we will quickly let you know whether we can match the price. We look at the total price — including shipping, duties and fees — and the item should be in stock with them. We match if we can. Read the terms here.

Delivery

Available at supplier - order now, delivered in 3-5 days

In-store pickup

Out of stock

In stock? Then we dispatch in:

Fast dispatch from our warehouse in Denmark

Fast dispatch from our warehouse in Denmark
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Delivery 1–2 working days
  • Shipping from 35 kr.
  • Certified Danish webshop (E-mærket)
  • Easy and secure payment
  • Can be collected at our shop in Nørresundby
     View shop information

Description

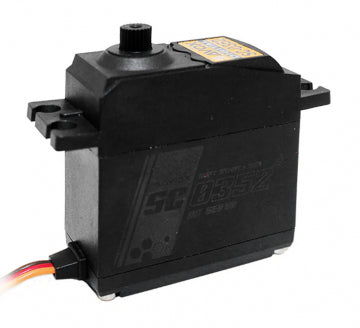

SAVÖX SC-0352PLUS - Plastic-Geared Digital Standard Servo

The Savox SC-0352 Plus is considered a 'standard' servo, but outperforms other standard servos with more torque and dual bearing support.

Features:
  • Soft Start
  • SSR compatible
  • Dual ball bearing support for precision and gear support
  • Industrial plastic gear train is quiet and smooth
  • More torque than other standard servos

Specifications:
  • Torque @ 4.8V: 4.2kg/cm
  • Torque @ 6V: 6.5kg/cm
  • Speed @ 4.8V: 0.14 sec/60 deg
  • Speed @ 6V: 0.11 sec/60 deg
  • Dimensions L x W x H: 40.7 x 20.0 x 39.4mm
  • Weight: 42g

Technical Details:
  • Operating Temperature: -10° - 50°C
  • Running Current (no load): 180mA @4.8V, 240mA @6.0V
  • Stall Current (at locked): 1300mA @4.8V, 1500mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 250 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 120° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 164° (800 ? 2200 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed

Shipping

We ship with GLS:

From our warehouse in Denmark.
Shipping is calculated at checkout.
Business customers are welcome.
