Savöx  |  SKU: SH-0257MGPLUS Producent varenr.: SH-0257MG PLUS  |  EAN: 4710006994277

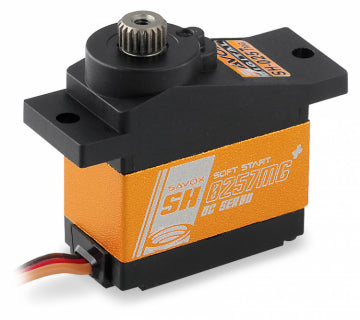

Savöx SH-0257MG PLUS - SH-0257MG Plus Servo 2,2Kg 0,09s Alu Metal Gear Micro

155,00 kr

Get a price match on Savöx SH-0257MG PLUS - SH-0257MG Plus Servo 2,2Kg 0,09s Alu Metal Gear Micro

Have you found the item cheaper at another retailer? Paste the link below and we will quickly let you know whether we can match the price. We look at the total price — including shipping, duties and fees — and the item should be in stock with them. We match if we can. Read the terms here.

Delivery

Out of stock

In-store pickup

Out of stock

In stock? Then we dispatch in:

Fast dispatch from our warehouse in Denmark

Fast dispatch from our warehouse in Denmark
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Delivery 1–2 working days
  • Shipping from 35 kr.
  • Certified Danish webshop (E-mærket)
  • Easy and secure payment
  • Can be collected at our shop in Nørresundby
     View shop information

Description

SAVÖX SH-0257MGPLUS - Metal-Geared Micro Servo

The Savox SH-0257MG-PLUS metal-gear, high-torque, digital, micro servo has more output torque than larger servos without sacrificing speed.

Features:
  • New: Soft Start
  • New: Sanwa SSR compatible
  • Metal gear train ensures durability and longevity
  • Aluminum middle case allows for cooler operating temperatures
  • Ideal for small planes and 450 size helicopters

Specifications:
  • Torque @4.8V: 1.8kg/cm
  • Torque @6V: 2.2kg/cm
  • Speed @4.8V: 0.13 sec/60 deg
  • Speed @6V: 0.09 sec/60 deg
  • Dimensions L x W x H: 22.8 x 12.0 x 25.4mm
  • Weight: 14g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 150mA @4.8V, 180mA @6.0V
  • Stall Current (at locked): 1000mA @4.8V, 1200mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 250 ± 5mm
  • Output Gear Spline: 21 Tooth
  • Bearings: 1BB
  • Operating Travel: 90° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 700 ? 2300 µ second
  • Maximum Travel: Appx 150° (700 ? 2300 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed

Shipping

We ship with GLS:

From our warehouse in Denmark.
Shipping is calculated at checkout.
Business customers are welcome.

Savöx

Savöx SH-0257MG PLUS - SH-0257MG Plus Servo 2,2Kg 0,09s Alu Metal Gear Micro

155,00 kr

SAVÖX SH-0257MGPLUS - Metal-Geared Micro Servo

The Savox SH-0257MG-PLUS metal-gear, high-torque, digital, micro servo has more output torque than larger servos without sacrificing speed.

Features:
  • New: Soft Start
  • New: Sanwa SSR compatible
  • Metal gear train ensures durability and longevity
  • Aluminum middle case allows for cooler operating temperatures
  • Ideal for small planes and 450 size helicopters

Specifications:
  • Torque @4.8V: 1.8kg/cm
  • Torque @6V: 2.2kg/cm
  • Speed @4.8V: 0.13 sec/60 deg
  • Speed @6V: 0.09 sec/60 deg
  • Dimensions L x W x H: 22.8 x 12.0 x 25.4mm
  • Weight: 14g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 150mA @4.8V, 180mA @6.0V
  • Stall Current (at locked): 1000mA @4.8V, 1200mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 250 ± 5mm
  • Output Gear Spline: 21 Tooth
  • Bearings: 1BB
  • Operating Travel: 90° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 700 ? 2300 µ second
  • Maximum Travel: Appx 150° (700 ? 2300 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed
