Description

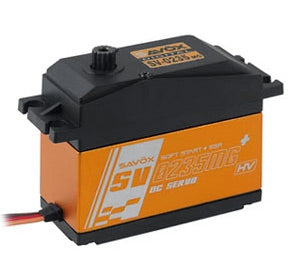

SAVÖX SV-0235MGPLUS - Metal-Geared Giant-Scale High Voltage Servo

The SW0235MG Plus is a metal-geared, and digital servo. It is a fast large scale servo and capable of operating on high voltage.

Features:
  • Soft Start
  • SSR compatible
  • High Voltage
  • Ideal for 1/5 scale off road and large scale aircraft applications
  • Strong metal gear train for added durability
  • Good torque and speed for a nice balance

Specifications:
  • Torque @6V: 28kg/cm
  • Torque @7.4V: 35kg/cm
  • Speed @6V: 0.18 sec/60 deg
  • Speed @7.4V: 0.15 sec/60 deg
  • Dimensions L x W x H: 65.8 x 30.0 x 57.4mm
  • Weight: 200g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 150mA @6.0V, 180mA @7.4V
  • Stall Current (at locked): 7500mA @6.0V, 9000mA @7.4V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 200 ± 5mm
  • Output Gear Spline: 15 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed
