Description

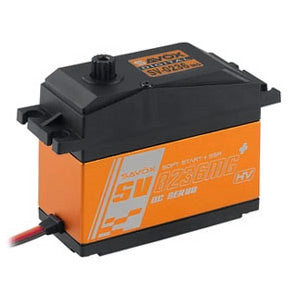

SAVÖX SV-0236MGPLUS - High Voltage 1/5 Scale Servo

The SV-0236MG Plus is a large scale, and digital servo. It is metal-geared with an amazing amount of torque while capable of operating on high voltage.

Features:
  • Soft Start
  • SSR compatible
  • High Voltage
  • Ideal for 1/5 scale off road and large scale aircraft applications
  • Strong metal gear train for added durability
  • Extremely high torque output
  • Capable of operating on high voltage

Specifications:
  • Torque @6v: 30kg
  • Torque @7.4v: 40kg
  • Speed @6v: 0.21sec/60deg
  • Speed @7.4v: 0.17sec/60deg
  • Dimensions L x W x H: 65.8 x 30.0 x 57.4mm
  • Weight: 200g

Tech Details:
  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 150mA @6.0V, 180mA @7.4V
  • Stall Current (at locked): 4600mA @6.0V, 5700mA @7.4V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 200 ± 5mm
  • Output Gear Spline: 15 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed
