Savöx  |  SKU: SAV-SV1272SGPLUS Producent varenr.: SV-1272SG PLUS  |  EAN: 4710006994222

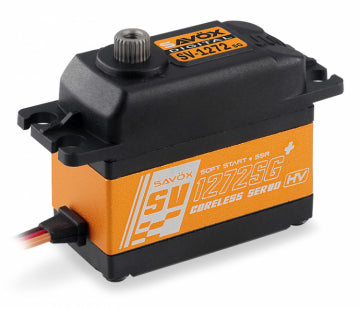

Savöx SV-1272SG PLUS - SV-1272SG Plus Servo 35Kg 0,10s HV Alu Coreless Steel Gear

609,09 kr

Get a price match on Savöx SV-1272SG PLUS - SV-1272SG Plus Servo 35Kg 0,10s HV Alu Coreless Steel Gear

Have you found the item cheaper at another retailer? Paste the link below and we will quickly let you know whether we can match the price. We look at the total price — including shipping, duties and fees — and the item should be in stock with them. We match if we can. Read the terms here.

Delivery

Available at supplier - order now, delivered in 3-5 days

In-store pickup

Out of stock

In stock? Then we dispatch in:

Fast dispatch from our warehouse in Denmark

Fast dispatch from our warehouse in Denmark
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Delivery 1–2 working days
  • Shipping from 35 kr.
  • Certified Danish webshop (E-mærket)
  • Easy and secure payment
  • Can be collected at our shop in Nørresundby
     View shop information

Description

SAVÖX SV-1272SG - Monster Torque High Voltage Performance Servo - PLUS/V2

This is the newly updated Savox SV-1272SG v2 Monster Torque, High Voltage Digital Servo. A very powerful servo in a standard case, the SV1272SG v2 servo fits many applications.

Features:
  • NEW! Softstart Function
  • NEW! Sanwa SSR compatible
  • High Voltage
  • Super strong and precision made unique steel gears provide durability and survive heavy use
  • Extreme amount of torque in a standard case
  • Ideal for large scale aircraft, 1/8 off road buggies and trucks and Monster Trucks

Specifications:
  • Torque @6V: 23kg/cm
  • Torque @7.4V: 35kg/cm
  • Speed @6V: 0.13 sec/60 deg
  • Speed @7.4V: 0.10 sec/60 deg
  • Torque @8.4V: 40kg/cm
  • Speed @8.4V: 0.09 sec/60 deg
  • Dimensions L x W x H: 40.3 x 20.2 x 37.2mm
  • Weight: 63g

Technical Details:
  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 120mA @6.0V, 150mA @7.4V
  • Stall Current (at locked): 4000mA @6.0V, 5000mA @7.4V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 200 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless
