UNIVERSAL BATTERY CHARGER & ANALYZER

The World's Most Joyful Round Battery Charger
The creation of this product arose from the desire to finally have a charger as versatile, accurate and powerful as a SkyRC hobby charger but tailored to a sweet battery tray for cylindrical single cell batteries; no more hassle with battery holders, fiddly wiring, clamps or similar DIY solutions.

• Multi-Chemistry Support
• 7+ battery chemistries
• Support 42+ battery sizes

Powerful and Accurate

NiMH / NiCd / NiZn / Eneloop:

• Charge current: Max. 3A (x4 slots)
• Discharge current: Max. 2A (x4 slots)
• Internal Accuracy**
• (calibrated w/ accurate calibration source)
• Voltage: < |±2mV|
• Current: < |±2mA|

Li-Ion / LiLo4.35 / LiFe-P04:

• Charge current: Max. 3A (x4 slots)
• Discharge current: Max. 2A (x1 slot)
• Max. 1A (x4 slots)
• Display Resolution
• Voltage: 0.01V
• Current: 0.01A

Effective Cooling
The built-in aluminum cooler effectively dissipates heat generated in the inside of the charger to the environment, even at slow fan speed.

Compact Display
The 128x64 pixels screen shows 5 different views during operation, see above a picture of Total Overview (TOV).

Rich User Interface
Eight Buttons for easy programming and operation. Four Slot Number Buttons (SNB) help to address the different slots. The other four buttons are for programming and operation.

Easy Programmability
In Simple and Advanced UI modes, the charger operates off 30 user-defined operation profiles. The programs can be called up and run with few clicks, very conveniently.

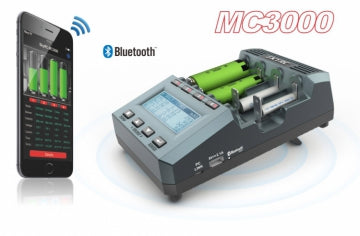

APP Control
BLE 4.0 technique enables user to operate the charger and view real time data and graphs via mobile application.Secure Stand
Rubber feet and strong tilt stand elements provide a firm stand. Tilted position enhances viewing angle and cooling air flow at the bottom side.



PC Control
User can use PC Link software to control the charger, view real time data with graphs, and also update the charger firmware through it.



Specs:

• Input Power: DC 11-18V/4A
• Charge Current Range: 0.05-3.00A
• Discharge Current Range: 0.05-2.00A
• Max. Charge Power: 50W
• Max. Discharge Power: 15W
• Battery Chemistry Type: NiMH, NiCd, NiZn, Eneloop,Lithium-Ion, LiIo4.35, LiFePO4
• Battery Capacity: 100-50000 mAh
• Operating Temperature: 0-40?
• USB Power Output: DC 5V/2.1A
• Dimensions (LxWxH): 200 × 124 × 69 mm
• Weight (Without DC Adaptor): 600 g
