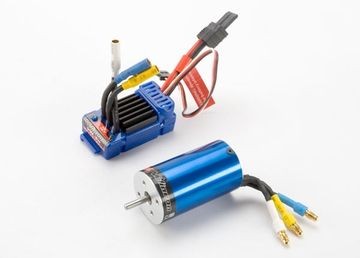

Traxxas 3370 Velineon VXL-3m Brushless Power System

Velineon VXL-3m brushless power system for 1/16 scale

Is your 1/16 model still running a brushed motor? Then this is the ultimate upgrade. The Velineon VXL-3m is a complete brushless power system in which every component is designed to work together — total system optimisation, as Traxxas calls it. In plain English: you get far more power than from comparable brushed motors, and you feel it from the first squeeze of the throttle!

At its heart is the Velineon 380 brushless motor with 8 turns and 4000 Kv. It is built with ultra high-temperature sintered neodymium magnets, silicone steel laminations and a precision-balanced rotor spinning on efficient high-speed ball bearings. The result? Massive torque and linear power, delivered consistently — run after run. The motor is optimised specifically for 1/16 scale, so you get both power and efficiency without wasting energy. And if it wears out one day after many seasons? You can take it apart and rebuild it, because it is rebuildable. Hex hardware and the blue anodised finish also make it good-looking when the body is off.

The electronics are optimised to remove bottlenecks and maximise current flow. High-frequency transistors and an advanced circuit design give really smooth and refined throttle control — you can creep through a technical corner and then give it everything on the straight. A Traxxas High Current battery connector is fitted, so power flows freely from the battery. And the best part? It is Traxxas' own design with minimal maintenance. We at Hobbyviking think that's smart!

Features

• Complete brushless power system for 1/16 scale — all components designed to work together
• Velineon 380 brushless motor, 8-turn / 4000 Kv
• Traxxas High Current battery connector
• Optimised to eliminate limitations and maximise current flow
• High-frequency transistors and advanced circuit design
• Very smooth and refined throttle control
• Ultra high-temperature sintered neodymium magnets
• Massive torque and linear power
• Consistent high-power output, run after run
• Efficient high-speed ball bearings and precision-balanced rotor
• Silicone steel laminations
• Rebuildable, hex hardware and blue anodised finish
• Traxxas' own design with minimal maintenance
• More power than comparable brushed motors

Specifications

• Motor can length: 48.15 mm
• Motor can diameter: 28 mm
• Shaft length: 12.7 mm
• Shaft diameter: 3.17 mm (1/8")
• Kv: 4000 (8-turn)
• Current: 25 A continuous / 50 A burst
• Max. rpm: 50,000 RPM
• Weight: 140 g
