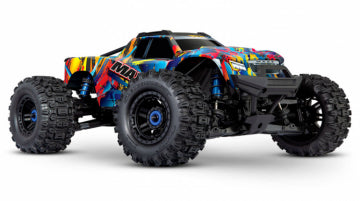

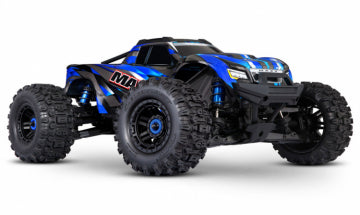

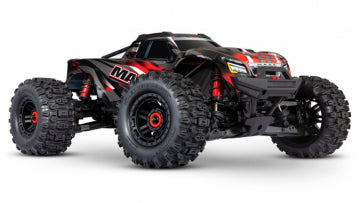

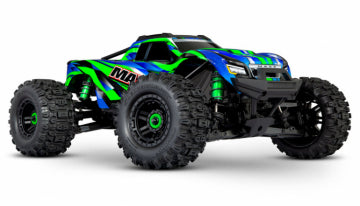

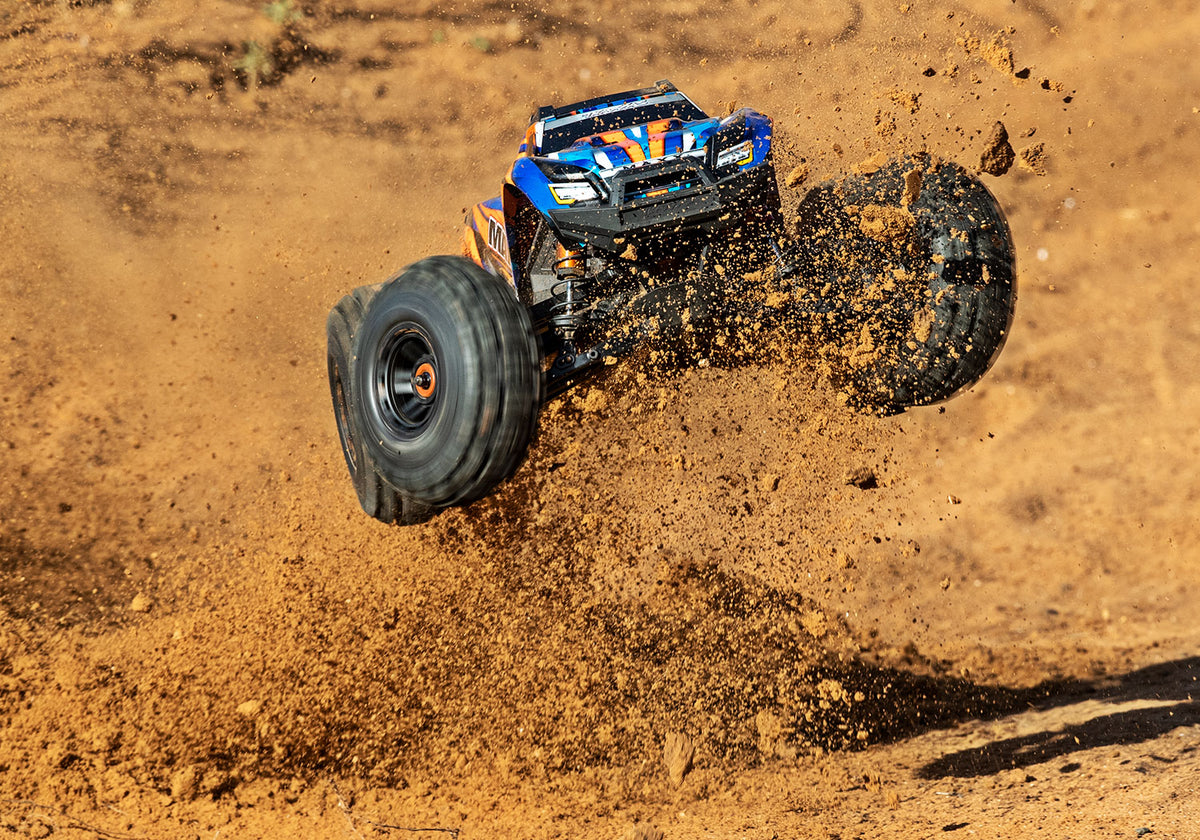

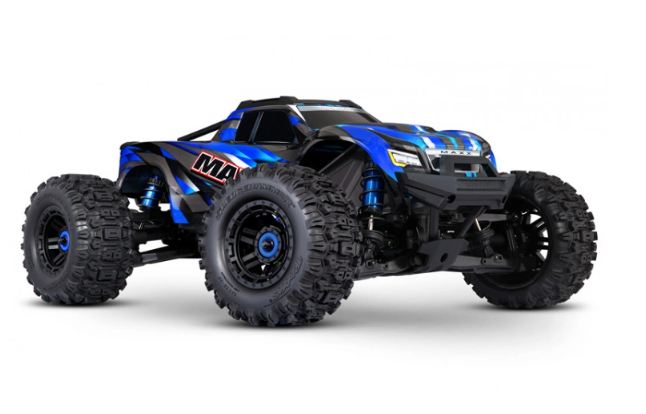

Traxxas 89086-4 MAXX with WideMAXX 4x4 1/10 RTR TQi TSM

🔧 Spare parts, batteries, chargers & upgrades

Explore the interactive spare parts maps for the Traxxas Maxx — easily find parts, tyres, accessories, batteries and much more for your exact model.

Open the spare parts map →

Discover the new Traxxas Maxx® with WideMAXX – extreme performance, improved stability and outstanding durability!

The new Maxx is wider, stronger and wilder than ever before. With the upgraded WideMAXX suspension kit and the tough SLEDGEHAMMER® tyres, this 1/10 monster truck brings the best of the X-Maxx in a lighter, more compact format. Get ready for extreme speed and endless fun!

Highlights

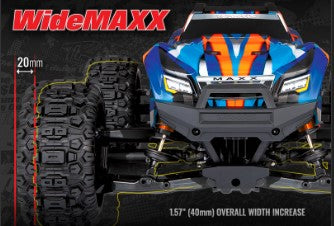

• NEW! WideMAXX suspension kit for increased stability
• NEW! SLEDGEHAMMER® TSM-approved all-terrain tyres
• NEW! Now also supports the 4S 6700mAh Traxxas Power Cell LiPo battery
• NEW! Wheelbase extended by 23 mm
• VXL-4s™ waterproof electronic speed controller for 3-4S LiPo
• Velineon® 540XL 2400kV brushless motor
• Traxxas Stability Management™ (TSM)
• High-performance TQi™ 2.4GHz radio system
• Clipless body for easy removal
• Modular composite chassis for easy battery access
• Powerful steering servo and new heavy-duty servo components
• GT-Maxx® aluminium shock absorbers
• Strong 2.8" wheels with 17 mm hex

Outstanding Power and Durability

With a top speed of 96+ km/h, the Maxx delivers raw power with its Velineon brushless motor and advanced 32-bit ESC control. It is built to withstand even the most extreme challenges – from massive jumps to hard off-road driving. GT-Maxx shock absorbers and a solid chassis ensure stability and control at high speed.

Video

Specifications

• Length: 572 mm
• Front/rear track width: 408 mm
• Ground clearance: 49 mm
• Weight: 4.4 kg
• Height: 232 mm
• Wheelbase: 352 mm
• Shock absorber length: 129.2 mm
• Tyre height: 140 mm
• Wheel dimensions: 2.8/3.6" (71/91 mm)
• Top speed: 96+ km/h with 4S LiPo and optional gearing (sold separately)
• Skill level: 4
• Battery compartment: L162 × W45 × H51 mm

Motor (Velineon 540XL)

• Type: 2400 kV sensorless brushless
• Weight: 317 g
• Length: 91 mm
• Diameter: 36 mm
• Connector type: Traxxas 6.5 mm

ESC (VXL-4s)

• Input voltage: 3S–4S LiPo (11.1 V – 16.8 V)
• Size: 72 × 59 × 49 mm
• Weight: 201 g
• BEC: 6.0 V / 10 A continuous / 20 A peak
• Connectors: Traxxas High-Current and 6.5 mm bullet
• Wires: 10-gauge Maxx wire
• Ports: RX, fan, accessories

Drive profiles

• Sport Mode: 100 % forward, brake and reverse
• Race Mode: 100 % forward, brake, no reverse
• Training Mode: 50 % forward/reverse, 100 % brake

Package Contents

• Traxxas Maxx with WideMAXX – Ready-To-Race®
• Velineon 540XL motor and VXL-4s waterproof ESC
• TQi™ 2.4 GHz radio system
• Quick Start Guide
• High-quality maintenance tools

You Will Need

• LiPo battery: 4S 14.8 V Power Cell LiPo recommended for maximum performance. NiMH is not supported
• LiPo charger: Traxxas EZ-Peak Live 4S (model #2971GX) recommended
• AA batteries: 4 pcs. AA for the transmitter
