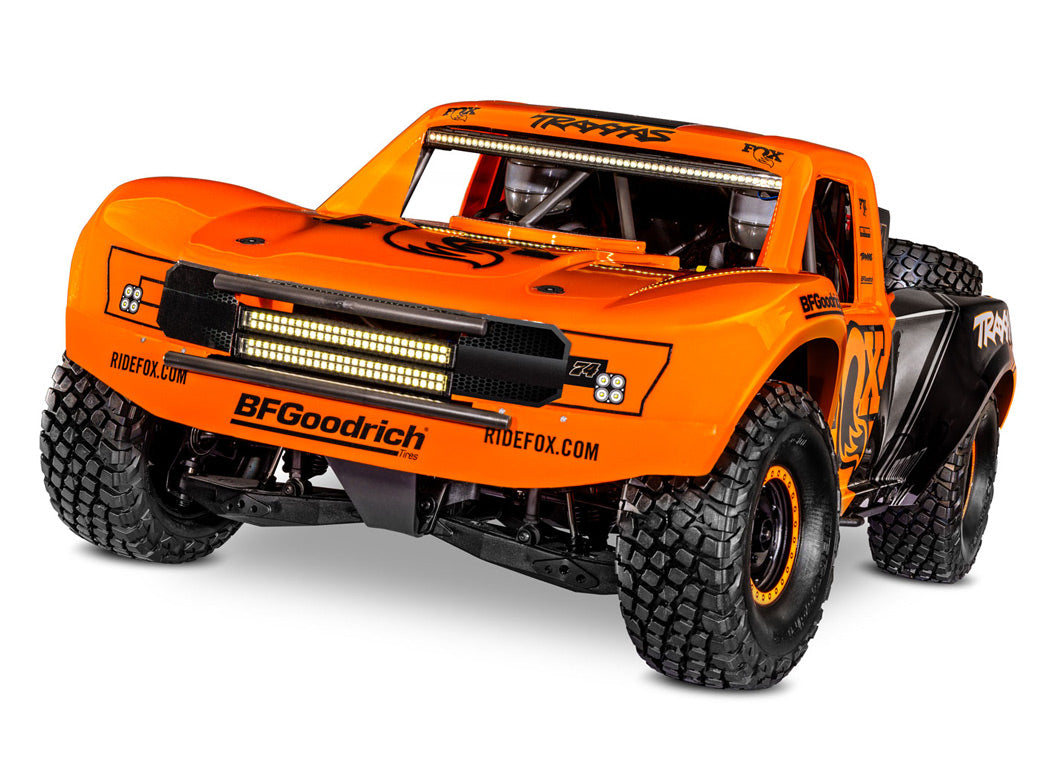

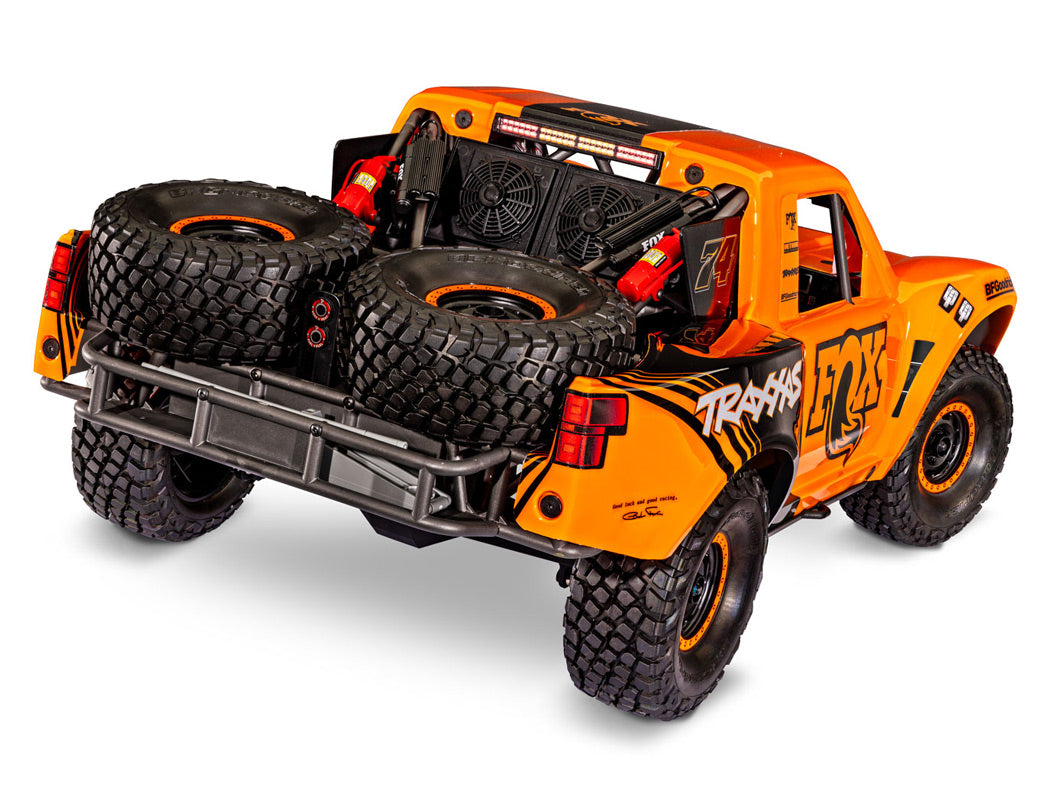

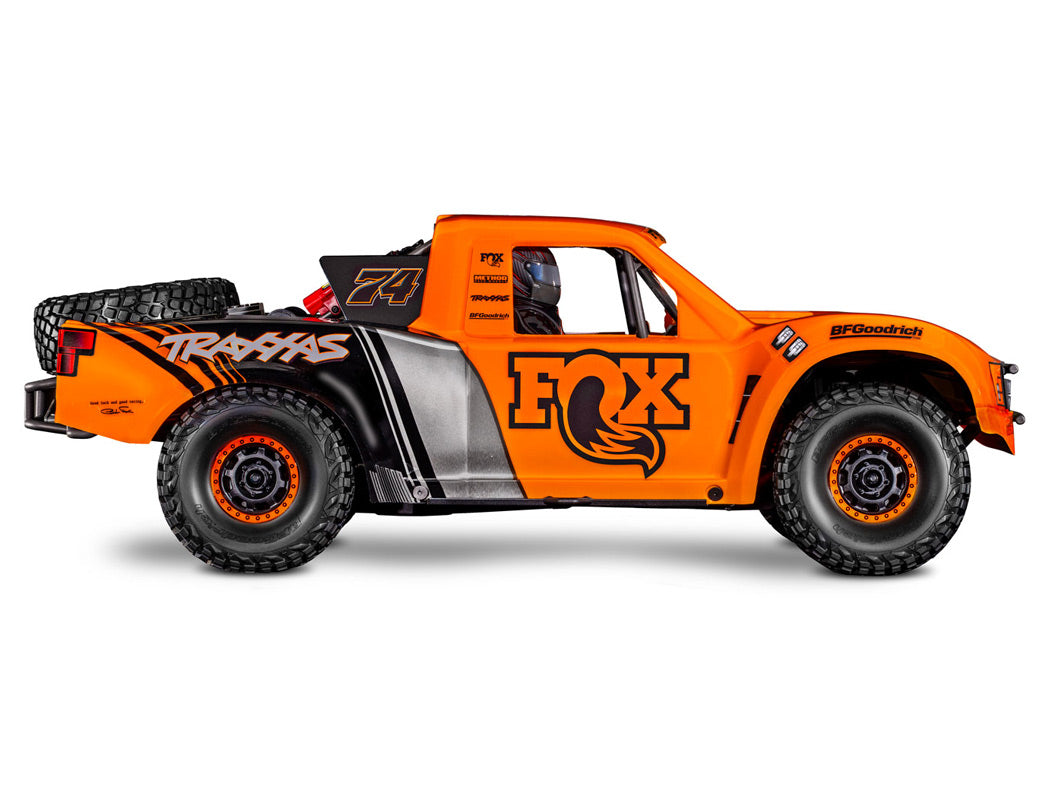

Traxxas UDR 4WD desert racer RTR with LED lights – Fox orange

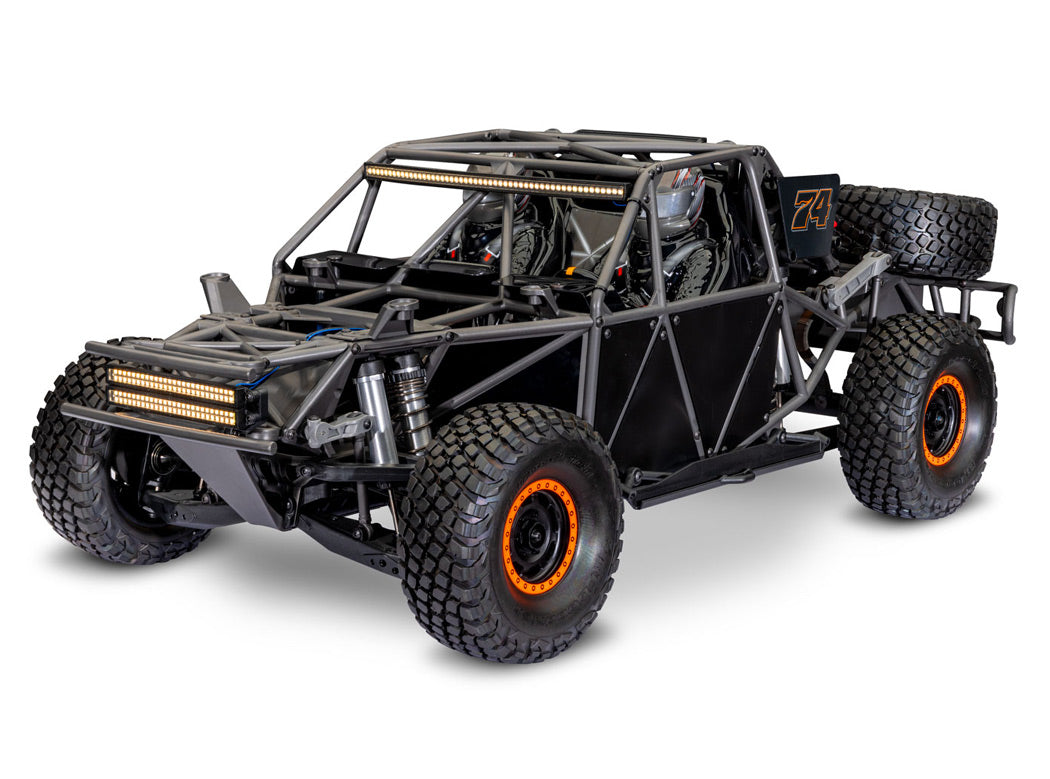

Have you seen the real Trophy Trucks fly across the desert with their wheels sticking out to the sides? That is exactly the feeling the UDR gives you. The chassis is a scale-accurate replica of a four-wheel-drive desert race truck, and the rear end sits on a solid axle with 4-link suspension – just like the full-size trucks. The suspension travel is enormous, so driving over jumps, holes and ruts looks like what you see on YouTube, and not just a toy car bouncing around. We at Hobbyviking are quite excited about how well Traxxas has captured the look and feel of both Trophy Trucks and Unlimited Trick Trucks.

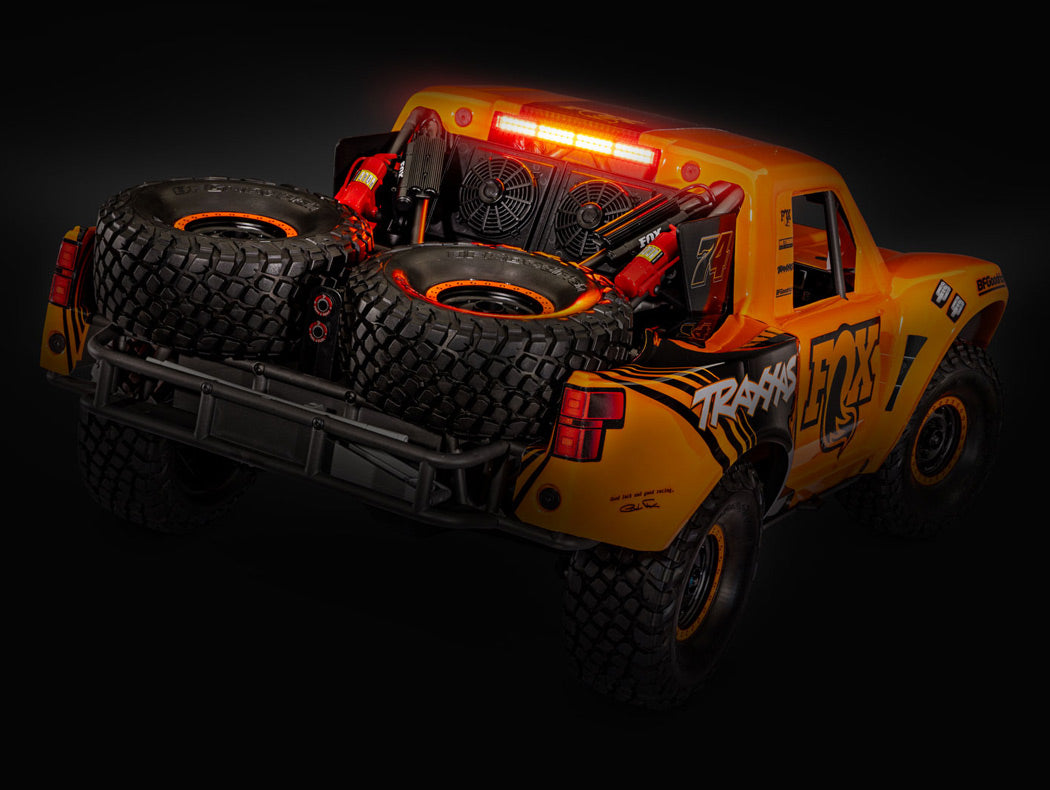

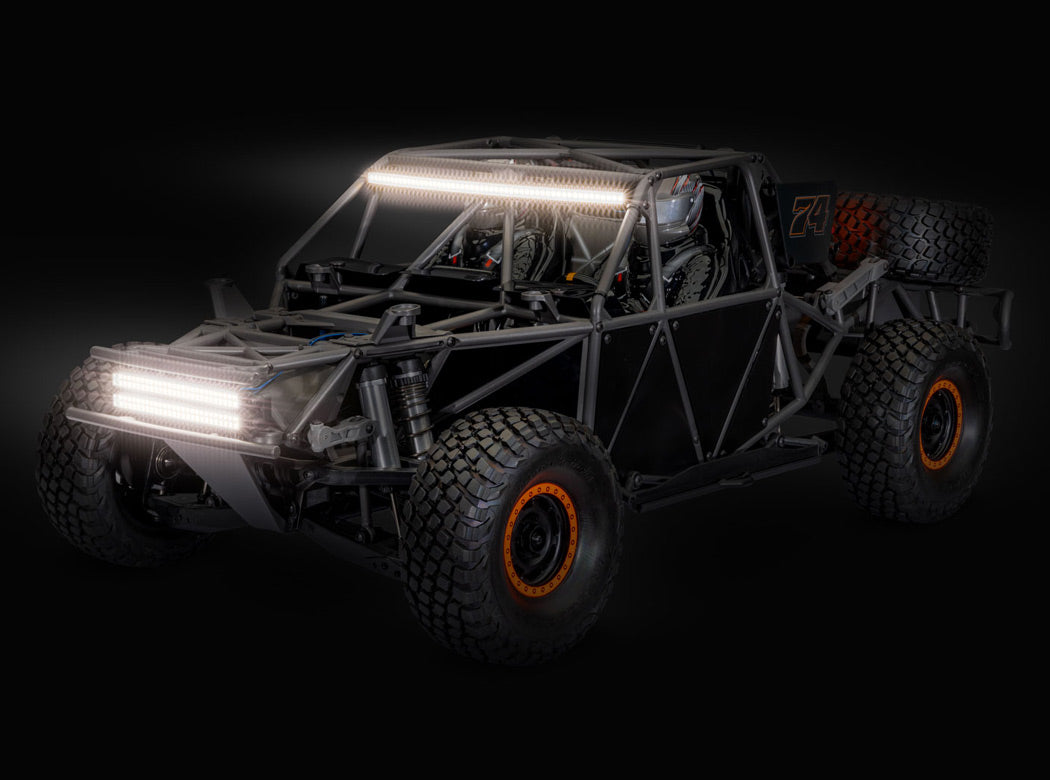

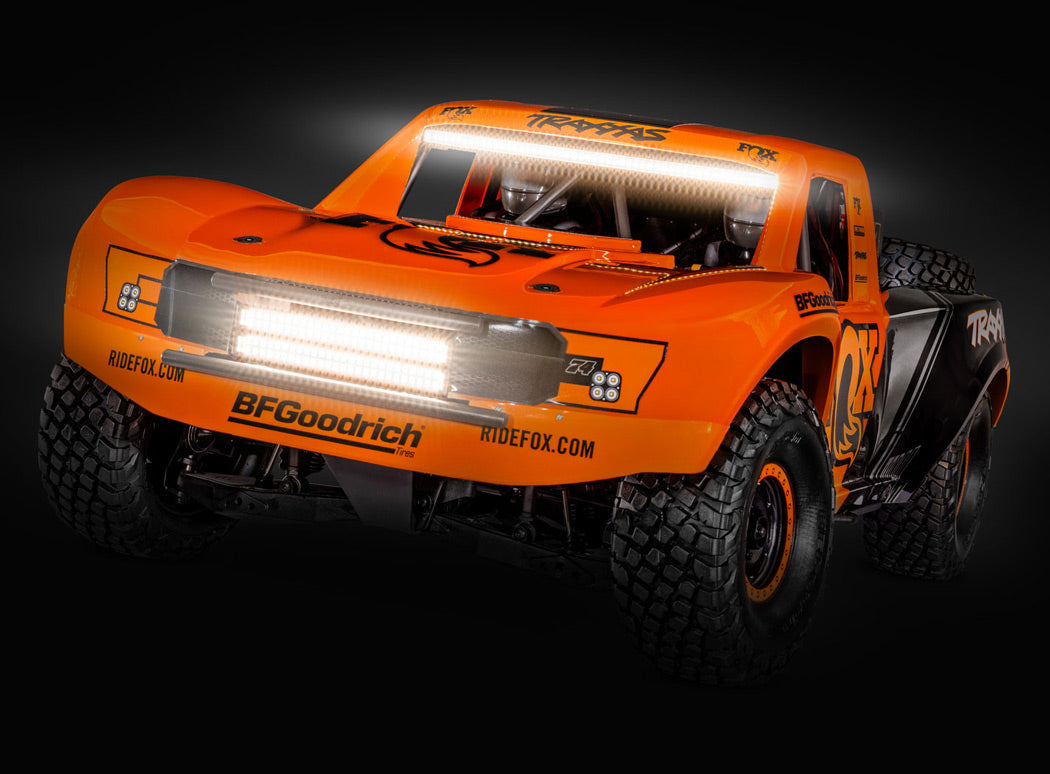

And the speed? On 6s LiPo it does approx. 80 km/h – on 4s approx. 48 km/h, if you want to get used to it first. The brushless 2200kV motor and the Velineon VXL-6s speed controller provide the punch, while the TSM stability management in the receiver helps you keep the nose straight when things get wild. This version comes in the Fox colours with orange, and the LED kit is fitted from the start. That is handy – you can keep driving after the sun goes down!

The UDR is Traxxas' Pro-Scale thinking in practice: scale-accurate details, but built to be driven hard. It is RTR, so the radio and maintenance tools are ready in the box. The skill level is 5 – this is a car for you if you have some experience and want the big thrill.

Features

• Scale-accurate 4WD desert race truck chassis

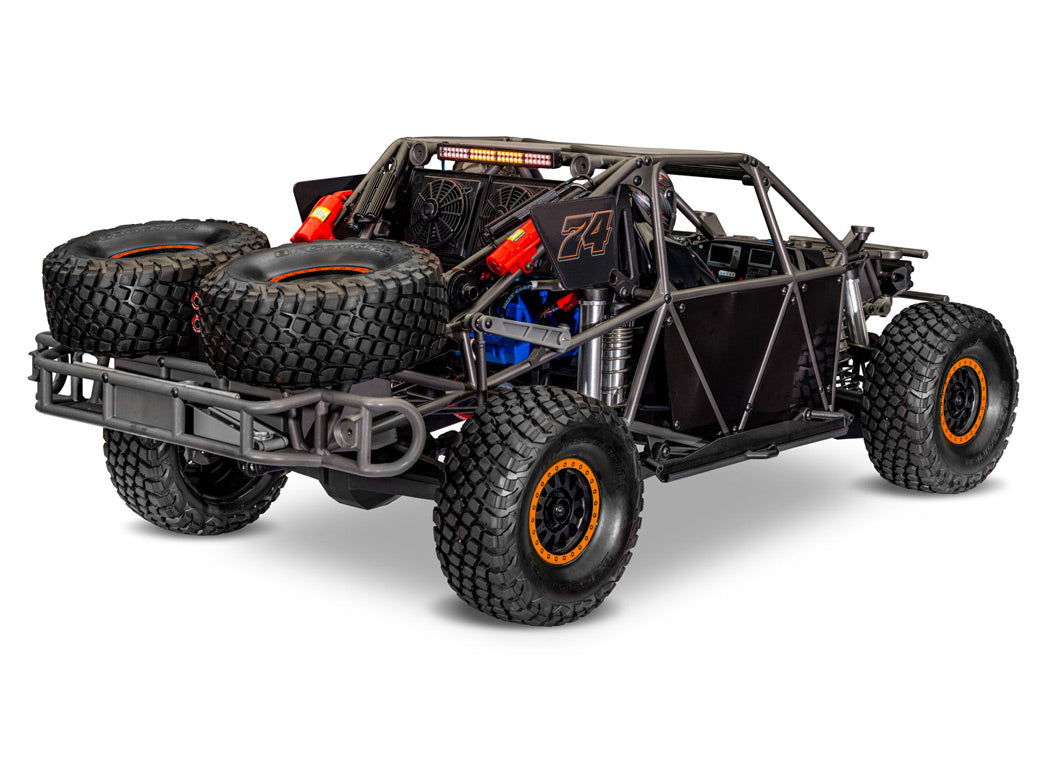

• Solid rear axle with 4-link suspension
• Massive suspension travel
• Pro-Scale thinking from Traxxas
• Extreme 6s LiPo power – approx. 80 km/h
• Captures the look and feel of Trophy Trucks and Unlimited Trick Trucks
• Colour: orange/Fox
• LED kit included

Specifications

• Length: 694 mm
• Front track width: 345 mm
• Rear track width: 345 mm
• Ground clearance: 58 mm
• Weight: 6.1 kg
• Height: 261 mm
• Wheelbase: 420 mm
• Front shock length: 134 mm (thread: 134 mm)
• Rear shock length: 160 mm (thread: 139 mm)
• Tyres (glued): 134 x 57 mm BFGoodrich® KR3 replicas
• Wheels: dual diameter 40 x 56/81 mm
• Speed controller: Velineon® VXL-6s
• Motor: 2200kV sensorless brushless, 406 g, length 76 mm, diameter 42 mm, Traxxas 6.5 mm bullet connectors
• Transmission: direct drive with Torque-Biasing Center Drive
• Overall gear ratio: 17.89:1
• Front differential: sealed, 4-gear
• Rear differential: locked spool
• Centre differential: sealed, 4-gear (1M oil)

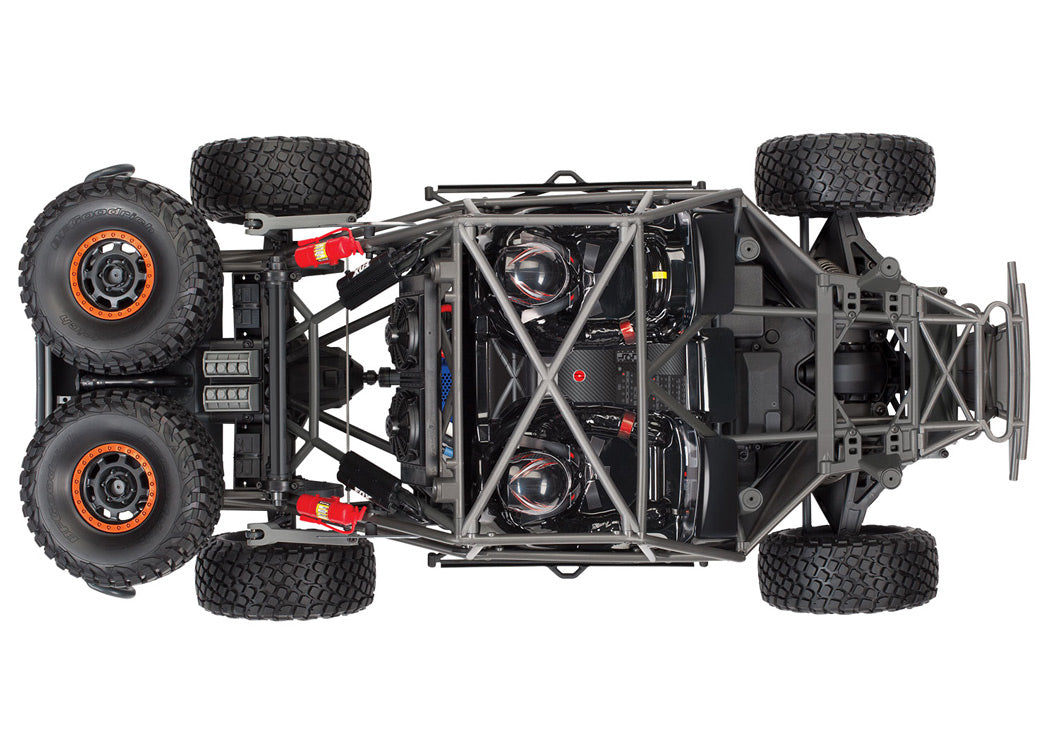

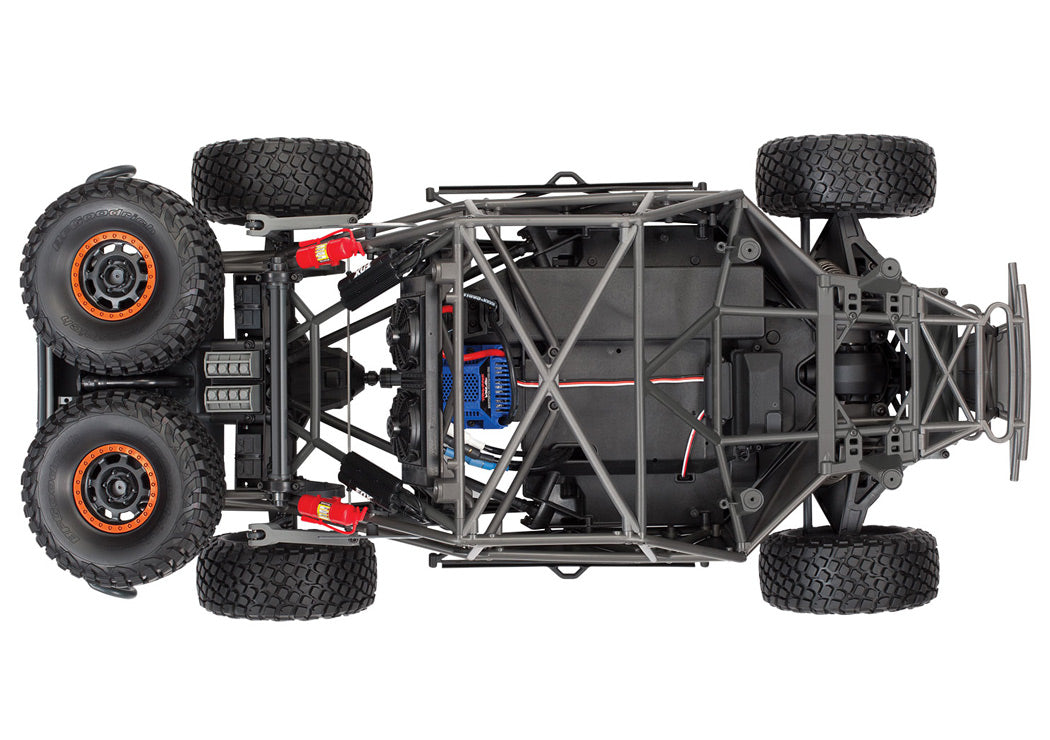

• Chassis: inverted composite tub
• Brake: electronic
• Drive system: shaft-driven 4WD
• Steering: dual bellcranks with ball bearings
• Radio system: TQi™ 2-channel transmitter with 6533 TSM receiver
• Servo: 2075X metal gear
• Top speed (standard gearing): 4s LiPo – approx. 48 km/h, 6s LiPo – approx. 80 km/h
• Skill level: 5
• Battery compartment: 181 x 46 x 56 mm
• ESC input voltage: 4s–6s LiPo (max. 25.2 volts)
• ESC case: 58 x 48 x 29 mm, weight 121 g
• ESC on-resistance (forward/reverse): 0.0003 ohm per phase
• ESC reverse delay: yes, with lockout
• ESC low-voltage protection (LVD): yes, programmable

What's in the box

• Unlimited Desert Racer with VXL-6s ESC and 2200kV motor
• Quick Start Guide
• TQi™ 2.4 GHz radio system
• High-quality maintenance tools
