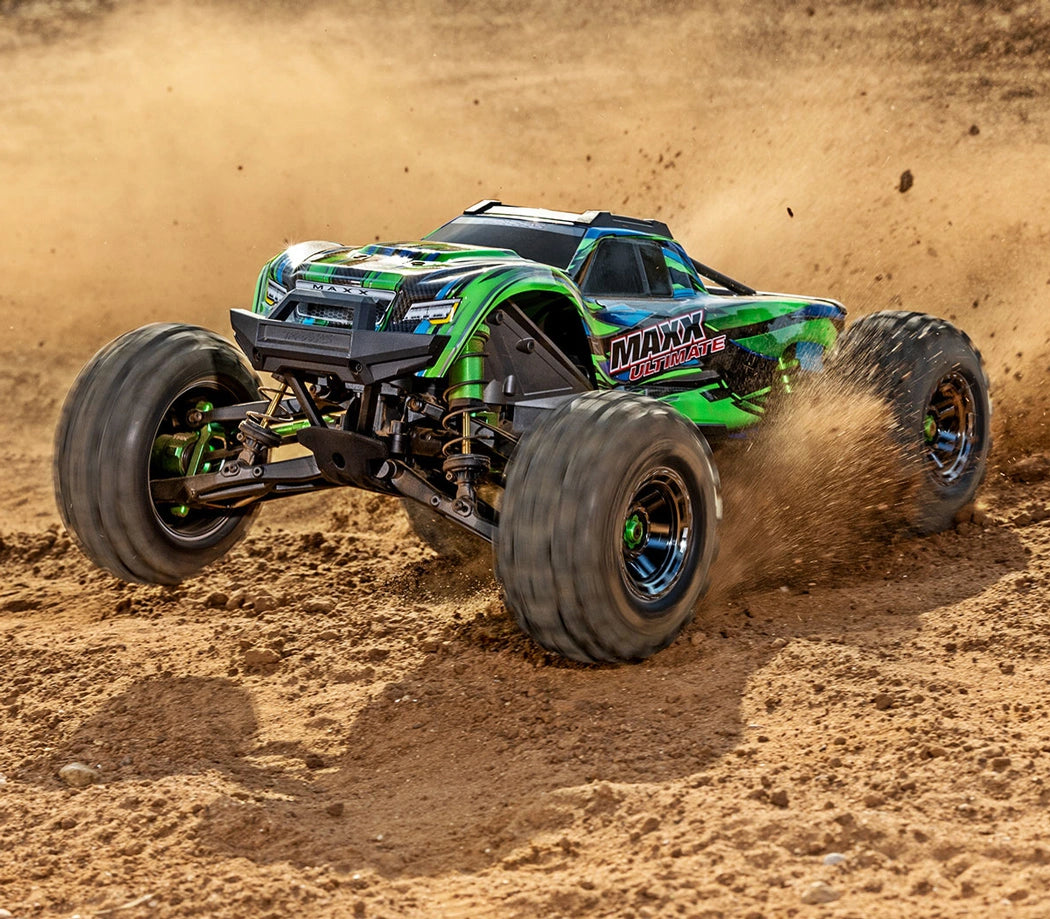

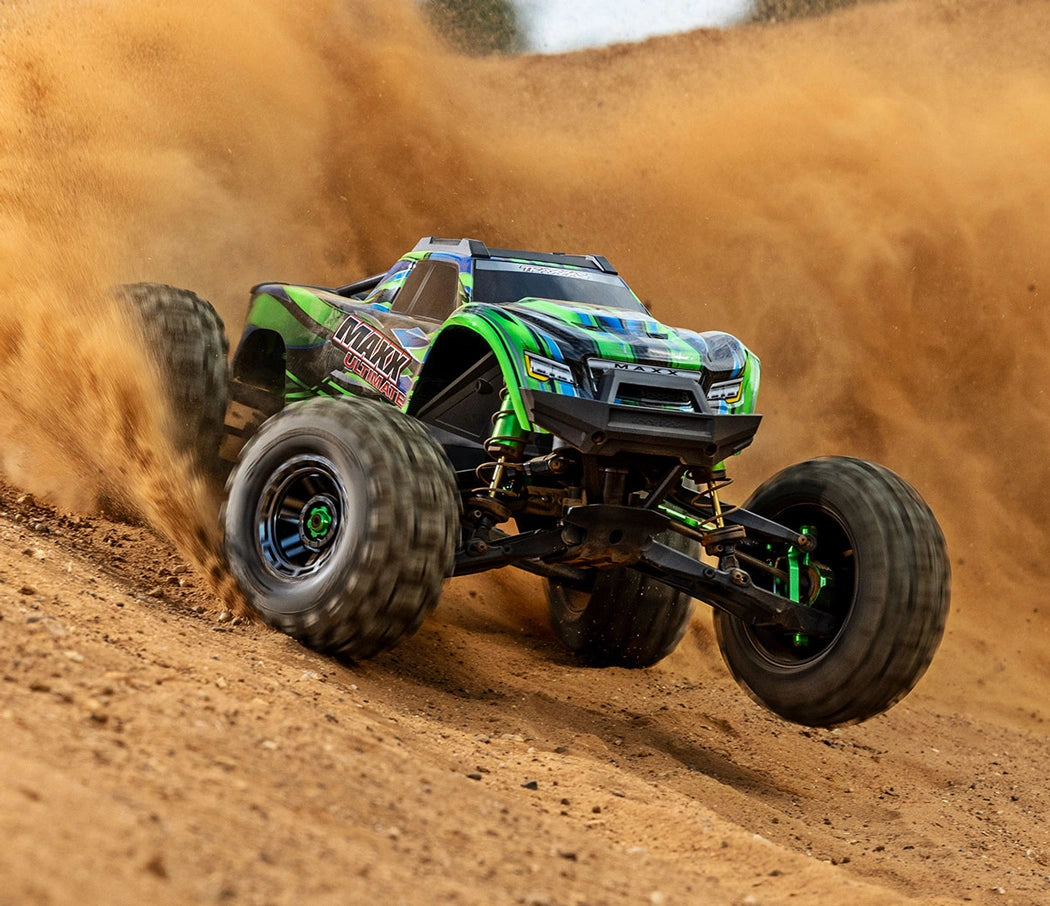

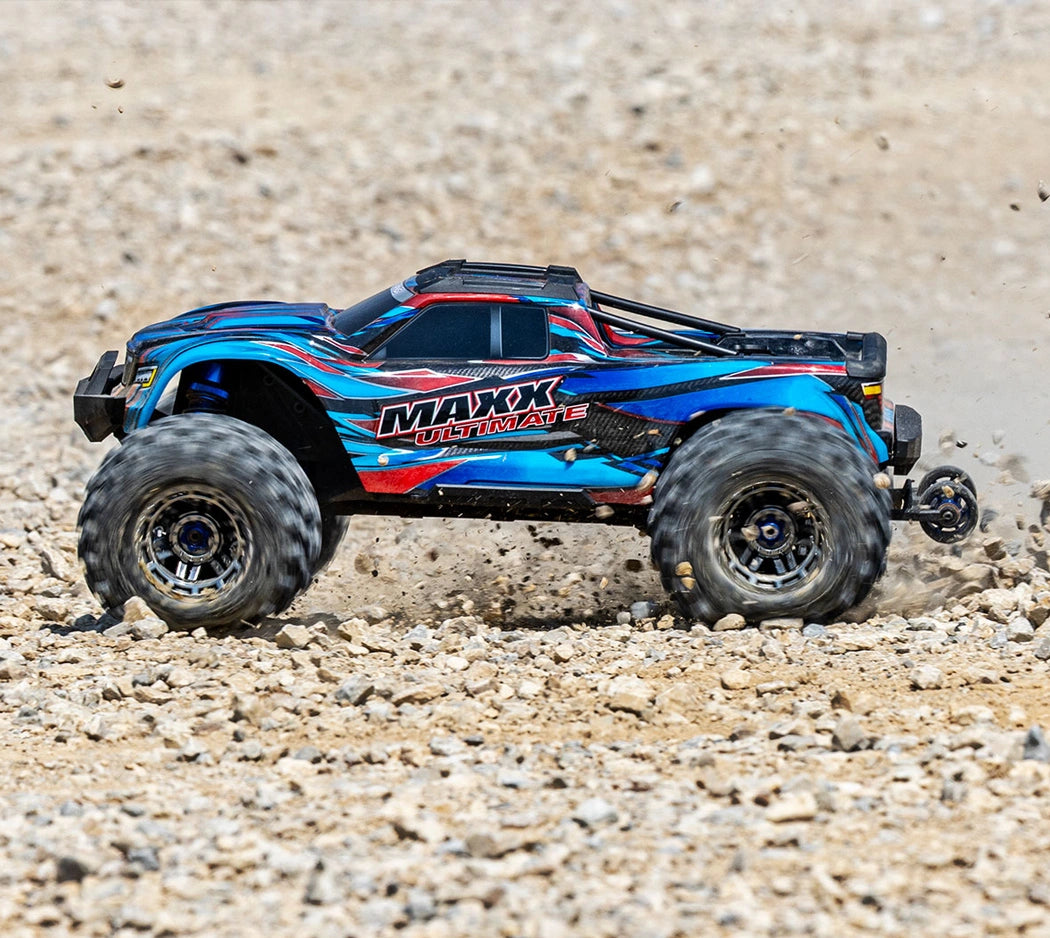

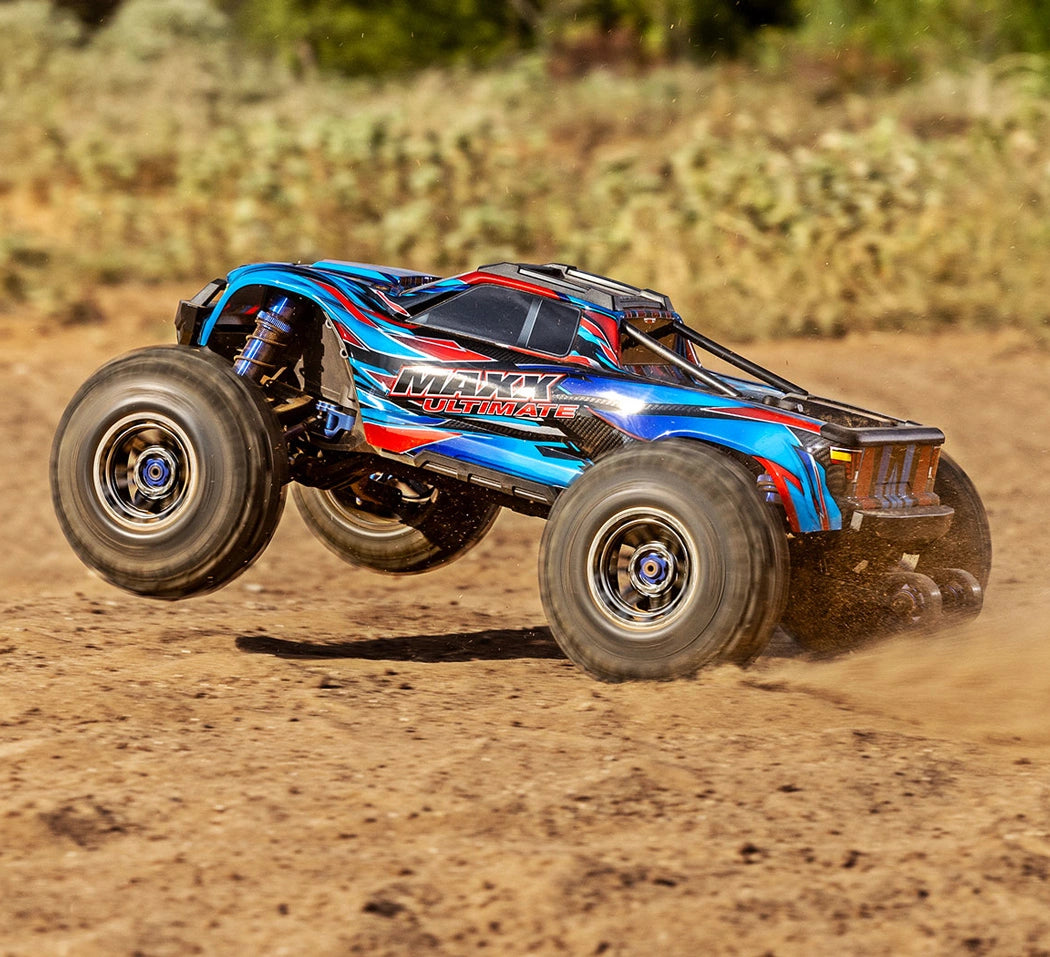

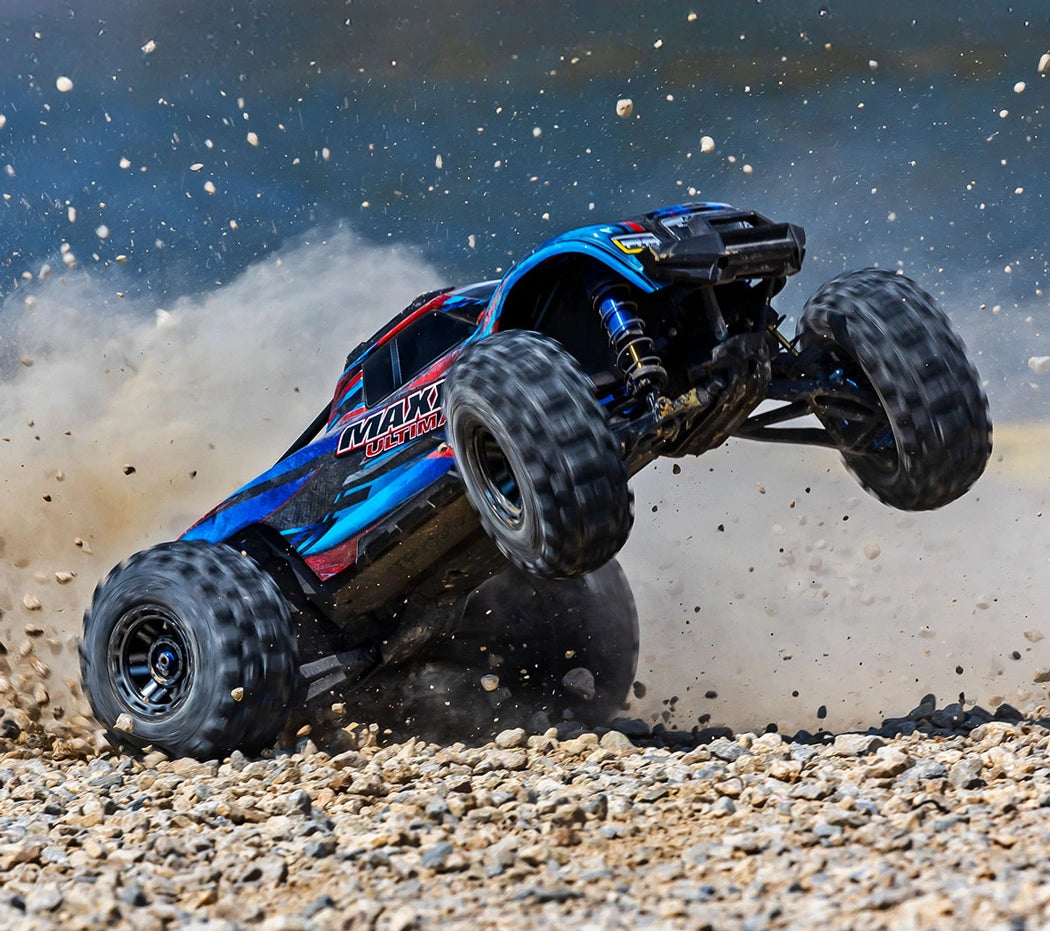

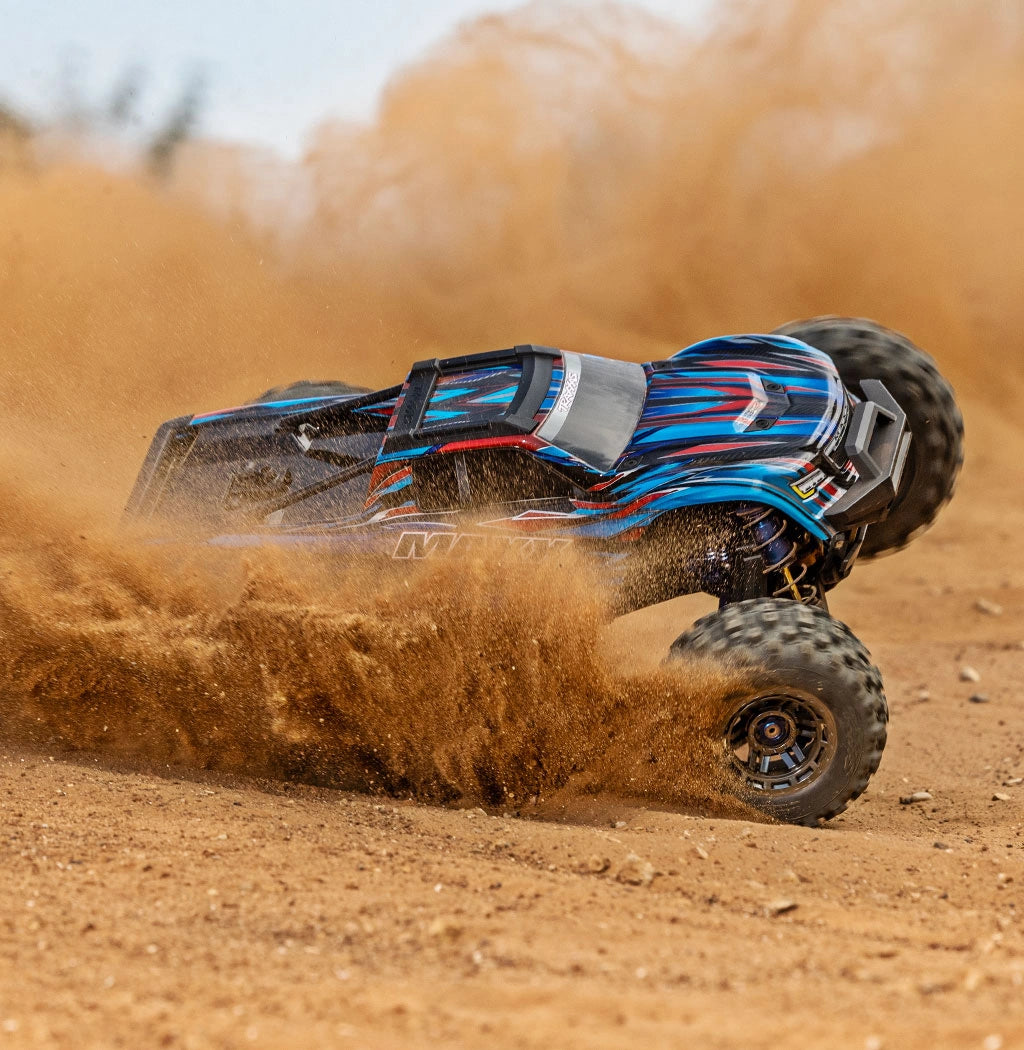

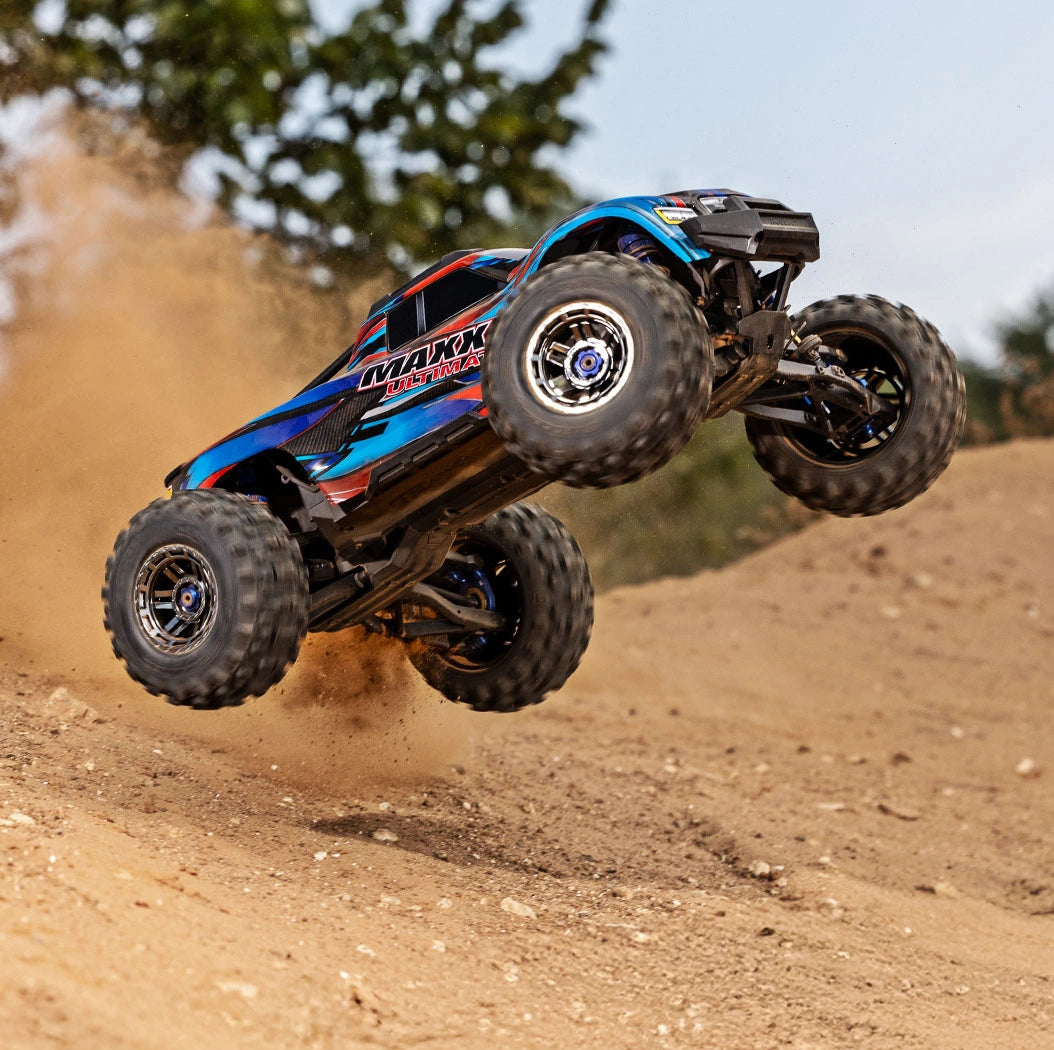

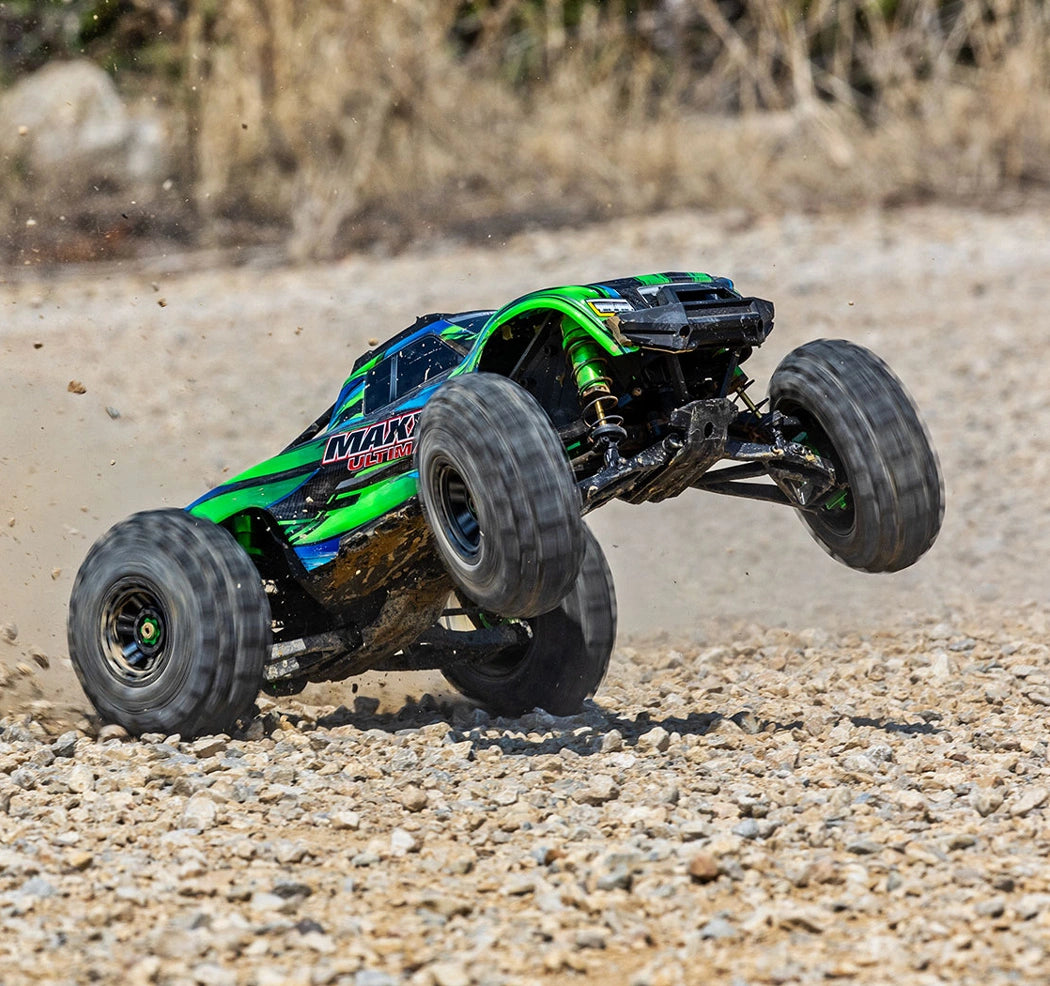

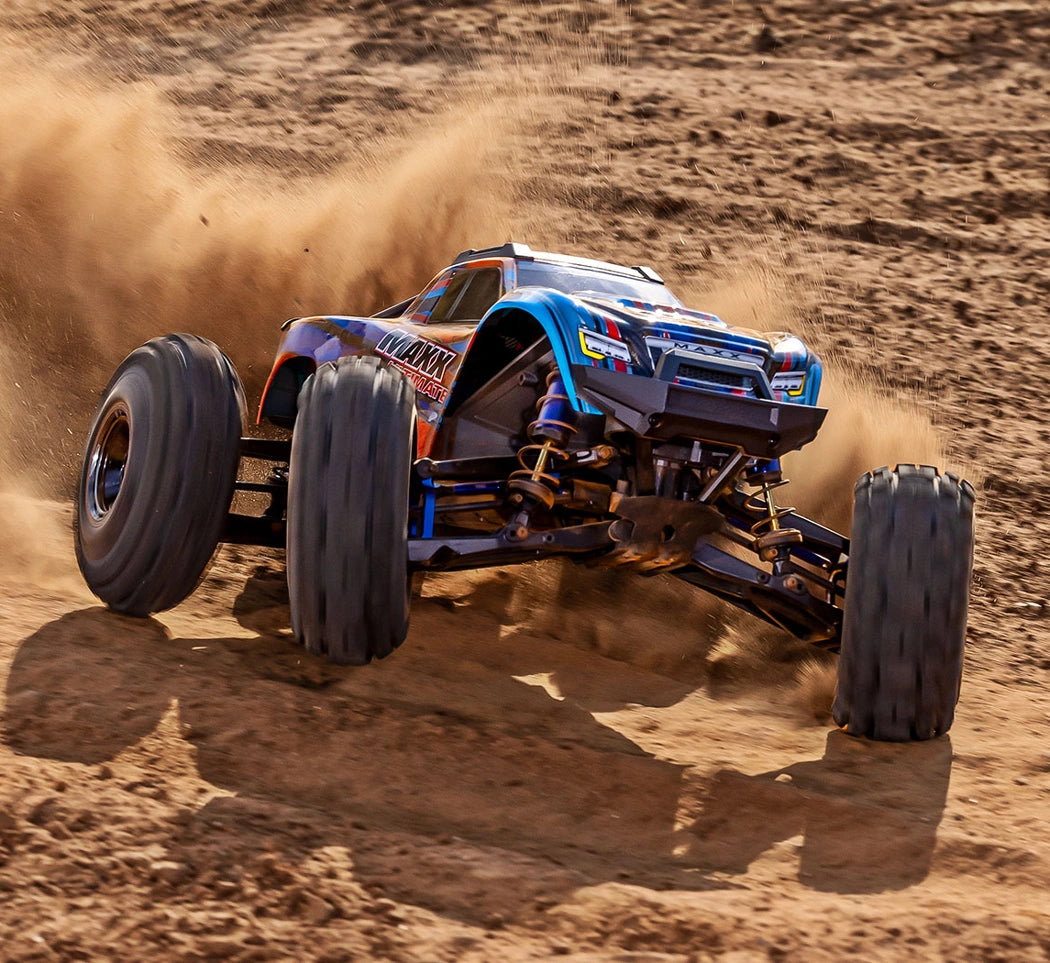

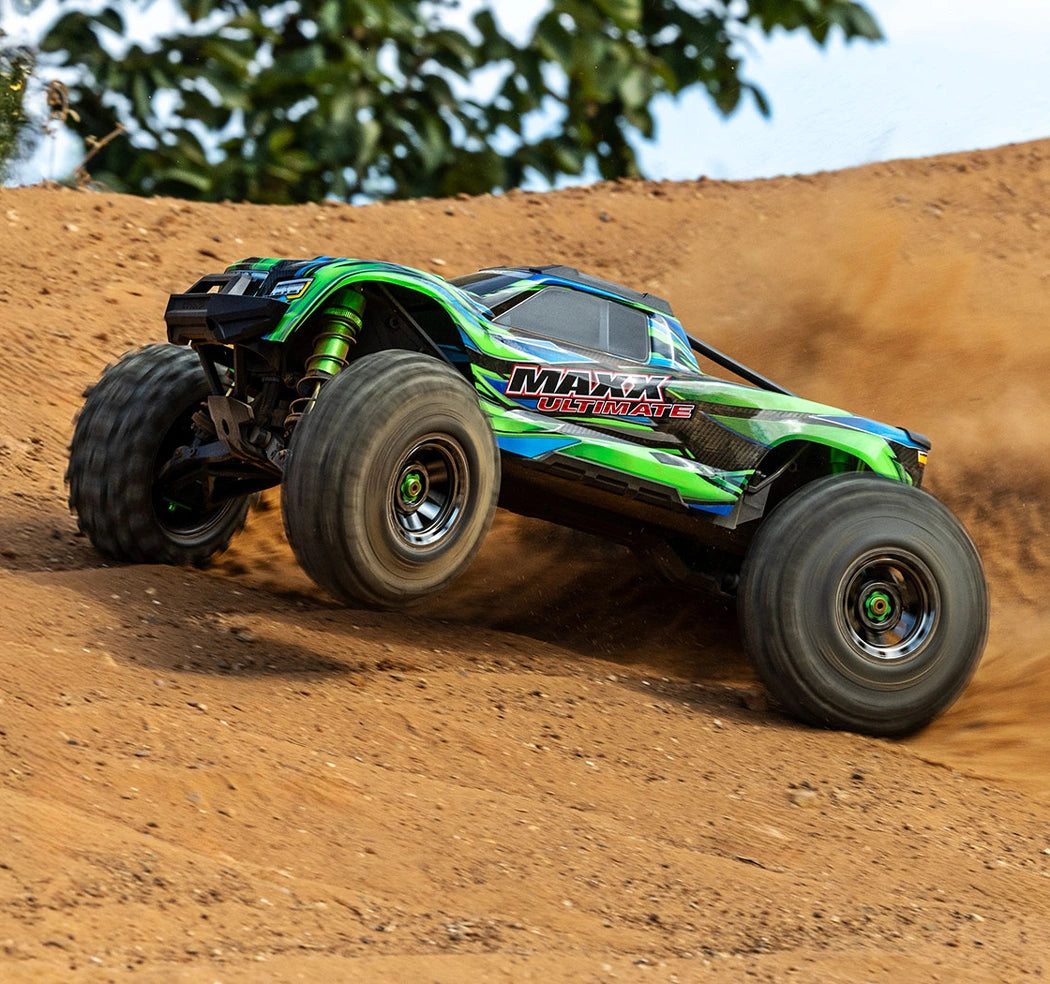

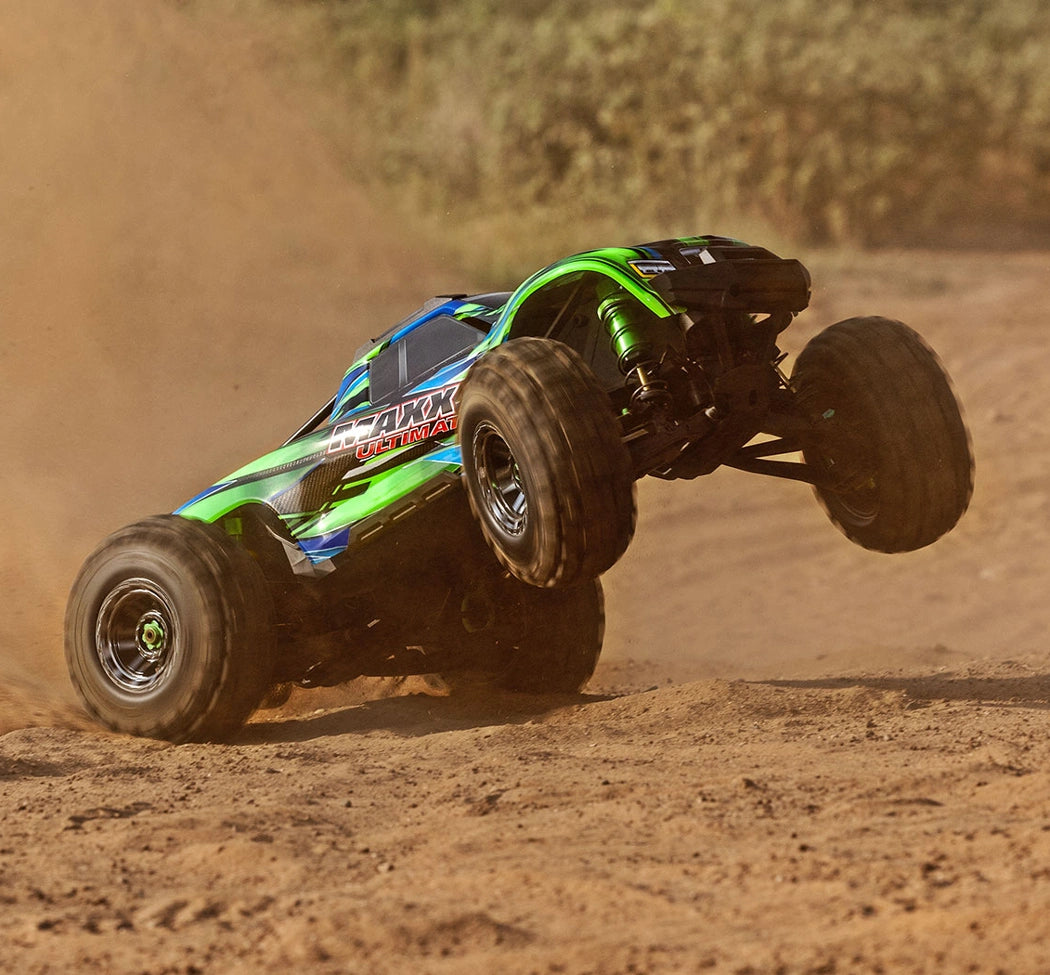

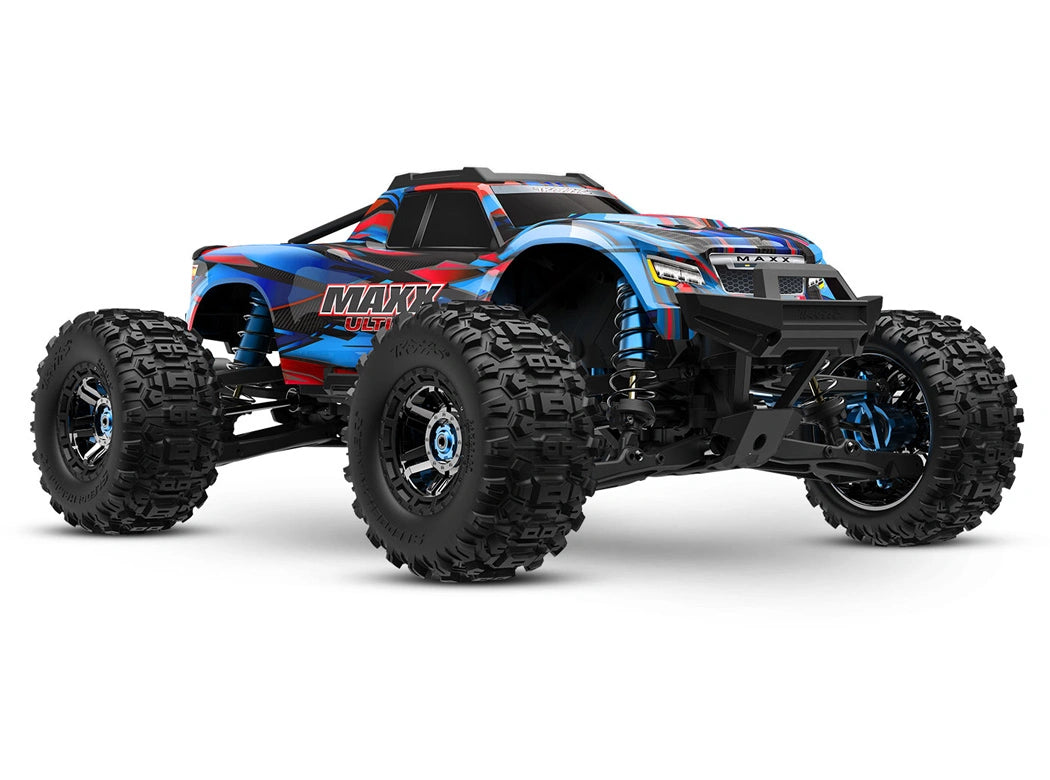

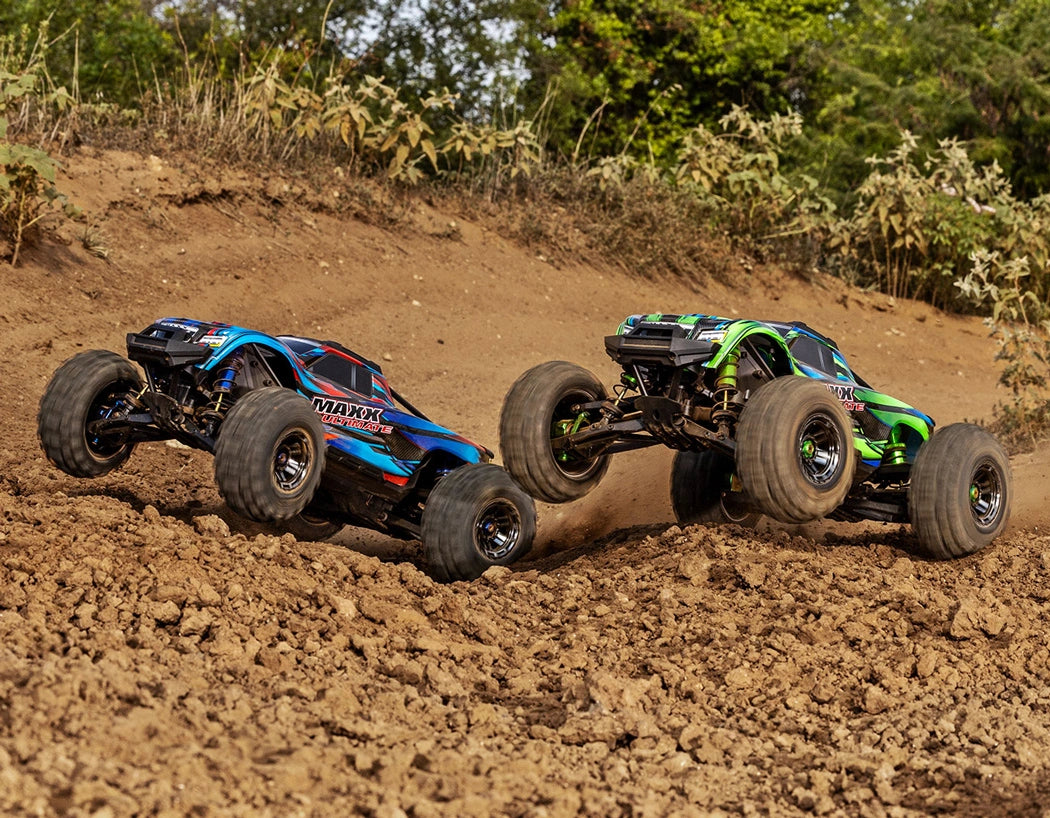

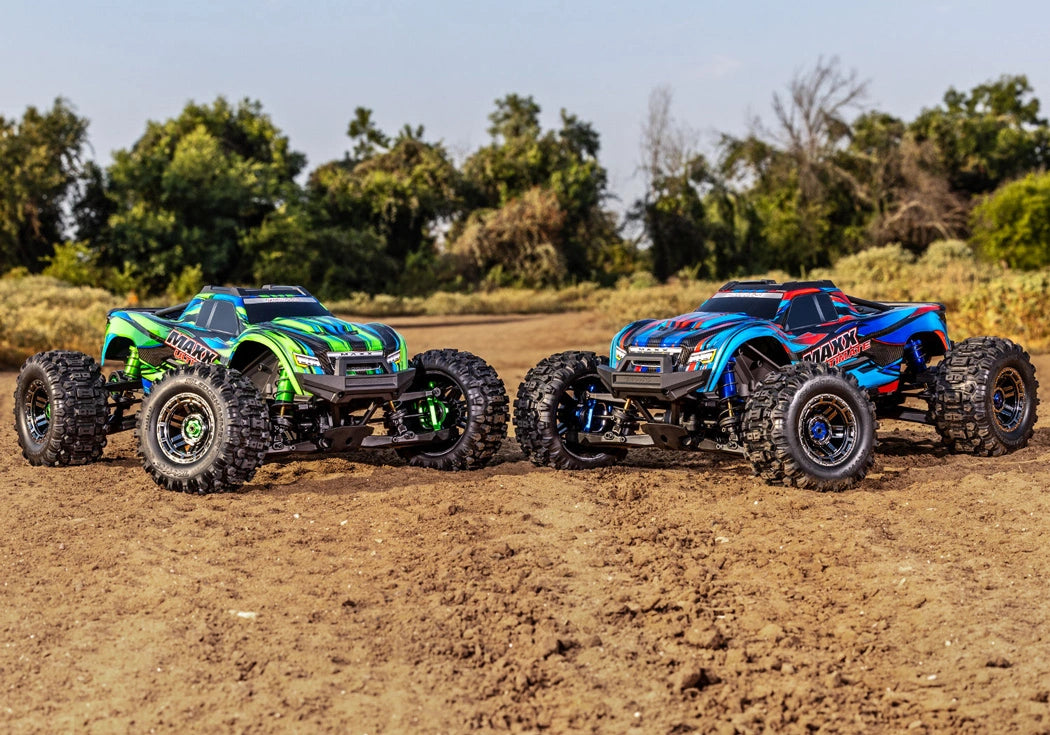

Traxxas 89087-4 Maxx Ultimate 4x4 4s Brushless

Experience the ultimate monster truck adventure!
Maxx Ultimate takes everything that made the original Traxxas Maxx® legendary – extreme strength, durability and performance – and takes it to the next level. With unique graphics, premium aluminium upgrades, steel CV driveshafts and Traxxas’ most powerful steering servo ever, Maxx Ultimate is built to dominate any track.

Unmatched durability

Maxx Ultimate is reinforced with robust 6061-T6 aluminium components on the chassis, suspension and driveline. The heavy-duty steel driveshafts and Mod-1 steel gears handle massive torque and deliver maximum durability – ready for any challenge.

Built-in wireless module

The pre-installed Traxxas Link™ Wireless Module gives you full access to real-time data and fine-tuning via the free Traxxas Link app. See speed, RPM and battery voltage directly on your smartphone.

Sledgehammer tyres

The huge 5.6” Sledgehammer tyres with an open block tread give superior grip and clean themselves of mud and dirt. The black chrome wheels match the truck’s raw look, and 17 mm splined aluminium hubs ensure a strong, precise fit.

Maximum steering control

With a full 46 kg/cm of torque and all-steel gears, the High Torque Maxx servo delivers extreme precision and control – even with the big Sledgehammer tyres. The anodised aluminium case with cooling fins and ball bearings ensures high precision and a long service life.

What’s in the box

• Traxxas Maxx Ultimate 4x4 4s brushless monster truck
• Velineon® 540XL brushless motor
• VXL-4s waterproof ESC with integrated telemetry
• TQi™ 2.4 GHz radio system with wireless module
• Quick Start Guide
• High-quality maintenance tools

What you need

• LiPo battery: Traxxas recommends a 4-cell 14.8 V Power Cell LiPo battery for maximum performance. (3-cell 11.1 V can be used with reduced power. NiMH batteries are not supported.)
• Charger: LiPo Balance Charger with iD® connector
• Transmitter batteries: 4 × AA alkaline batteries

Specifications

• Model name: Maxx Ultimate
• Type: Monster Truck
• Top speed: 96+ km/h with 4s LiPo and optional gearing
• Skill level: 4
• Scale: 1/10
• Weight: 4.63 kg
• Length: 572 mm
• Width: 405 mm
• Height: 232 mm
• Wheelbase: 352 mm
• Ground clearance: 67 mm
• Driveline: Shaft-driven 4WD
• Transmission: Single speed
• Differential: Sealed, hardened steel with limited slip
• Gear ratio (internal): 12.37:1
• Gear pitch: 1.0 metric pitch
• Servo: 2085RL metal gear ultra-high-torque (46 kg/cm)
• Radio system: TQi™ 2.4 GHz 2-channel transmitter with wireless module
• Battery compartment: 186 × 48 × 43 mm

Motor specifications

• Motor: Velineon® 540XL
• Type: 2400 Kv sensorless brushless
• Weight: 317 g
• Length: 91 mm
• Diameter: 36 mm
• Shaft diameter: 5 mm
• Connector type: 6.5 mm bullet connectors

ESC specifications

• ESC: Velineon® VXL-4s
• Type: Brushless
• Motor connectors: 6.5 mm bullet connectors
• Battery connector: Traxxas High-Current connector
