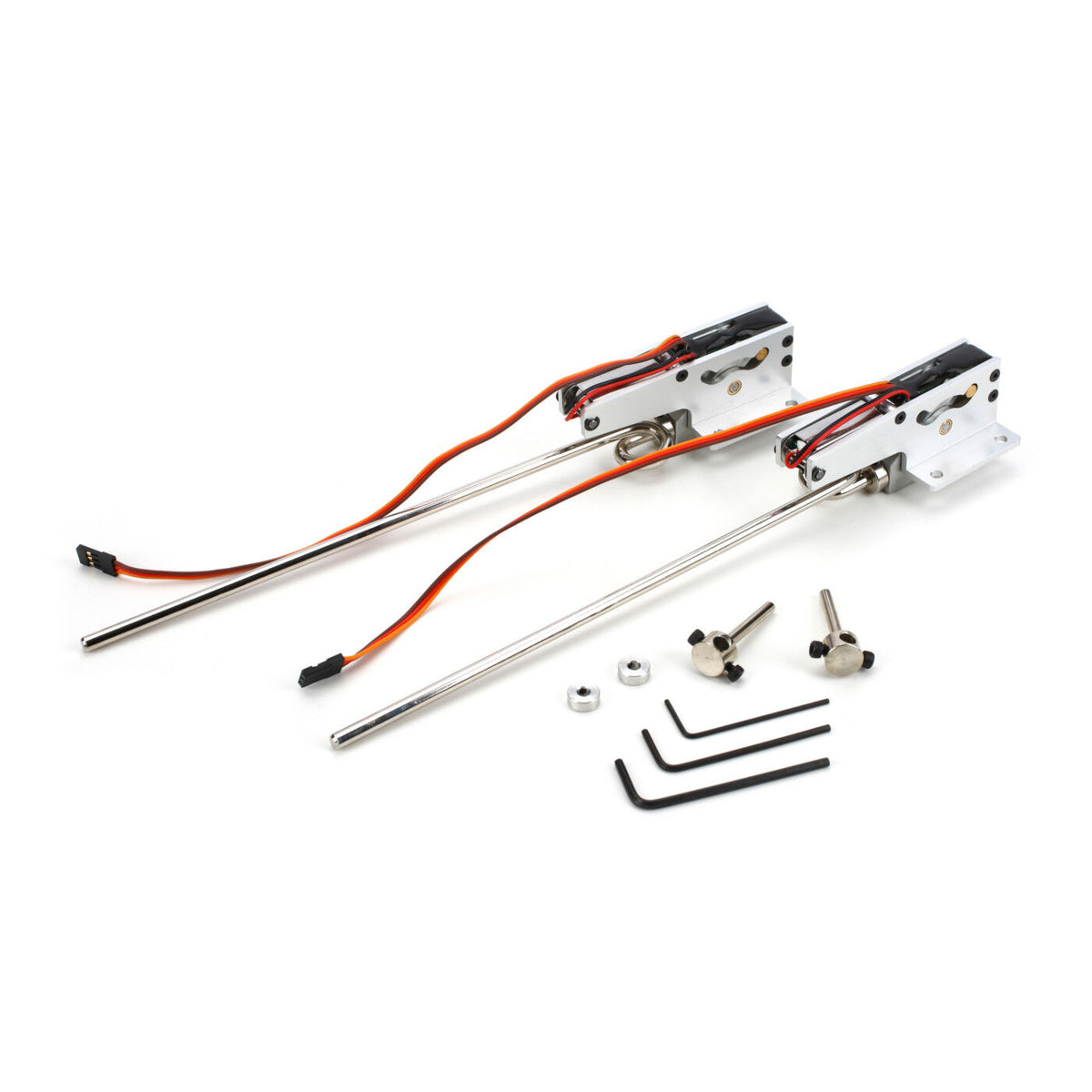

25-46 100 Degree Rotating Electric Retracts
1.565,00 kr
1.645,00 kr
Unit price
/
Unavailable
Delivery
Out of stockIn-store pickup
Out of stock
- Delivery 1–2 working days
- Shipping from 35 kr.
-
Certified Danish webshop (E-mærket)
- Easy and secure payment
-
Can be collected at our shop in Nørresundby
View shop information
Description
Description
Key Features
- All-aluminum CNC-machined retract unit
- Integrated electric motor with a micro PCB eliminating the need for a retract servo
- Brass wheel collars and fully-bushed brass pivot points for smooth, trouble-free operation
- Built-in over-current protection
- Scale-appearance 100-degree retraction sweep and 90-degree rotation
- Chrome-plated landing gear strut
- Recommended for use in the Hangar 9® F4U-1D Corsair 50 ARF, .46-.55 (HAN2590)
- Strut diameter: 4mm
Specifications
Current draw
Idle: 5mA
Operating: 900mA (maximum)
Pulse width trigger points
Down: 1.331ms
Up: 1.690ms
Operation with FM and DSM
FM: 22ms frame rate, 5V signal
DSM: 20ms frame rate, 3.3V signal
Sequence time
@4.8V 2.75sec
@6.0V 2.50sec
@7.4V 2.25sec
Operating voltage range
4.8—7.4V
Aircraft weight
5.00–9.50 lb (2.25–4.30 kg)
Unit weight
Nose gear: 3.5 oz (99.5 g)
Main gear: 2.8 oz (79.5 g) each
Detailed Information
25-46 Size Main Retract Units (mm)
