60-Amp Pro Switch-Mode BEC Brushless ESC (V2)

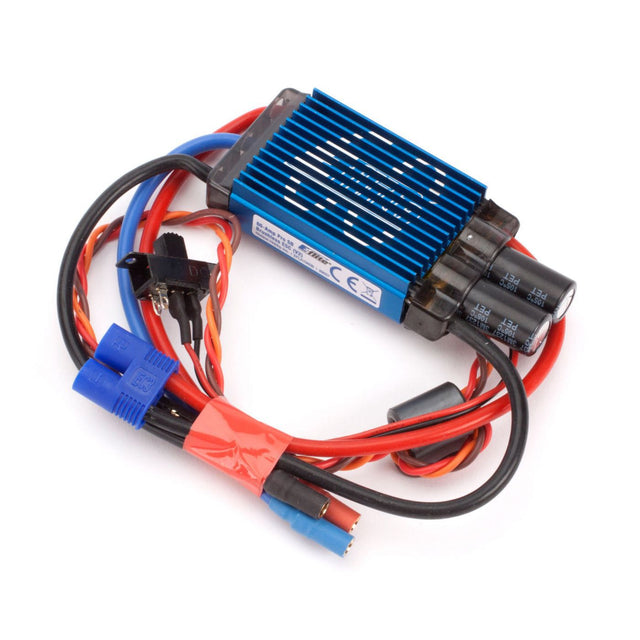

E-flite 60 A Pro Switch-Mode BEC brushless speed controller (V2)

A high-quality sensorless brushless speed controller with a built-in switch-mode BEC. It is light and efficient and can power the servos and receiver without a separate receiver battery – saving weight and hassle. Many functions can be programmed: low-voltage cutoff, brake, timing, throttle range and soft start.

Features

• Up to 60 A continuous with proper airflow, 75 A burst (15 seconds)
• 5 V switch-mode BEC with 5 A continuous
• Powers up to 7 analogue or 6 digital standard servos via the BEC
• Programmable motor brake
• Safe arming prevents accidental start-up
• Programmable low-voltage cutoff: 3S (9 V), 4S (12 V), 5S (15 V), 6S (18 V) or 74 % of the starting voltage
• Programmable throttle range and soft start for aeroplanes and helicopters
• Automatic motor shutdown on signal loss or interference
• Programmable timing with 5 ranges – suits many brushless motors
• More powerful BEC – supports most 3-axis stabilisation systems
• Finned heat sinks
• New, smaller MOSFETs for lower weight
• On/off switch for the radio system

Specifications

• Current: 60 A continuous / 75 A burst
• BEC: 5 V / 5 A switch-mode
• Battery: 3-6S LiPo or 9-18 cells NiMH/NiCd
• Connectors: E-flite EC3 on the battery side, 3.5 mm gold bullet connectors to the motor

Please note: If you are buying it as a replacement in the Carbon-Z Cub SS (EFL12450/EFL12475) or Carbon-Z Cessna 150 (ELF1450/EFL1475), you need the DYNC0029 adapter.
