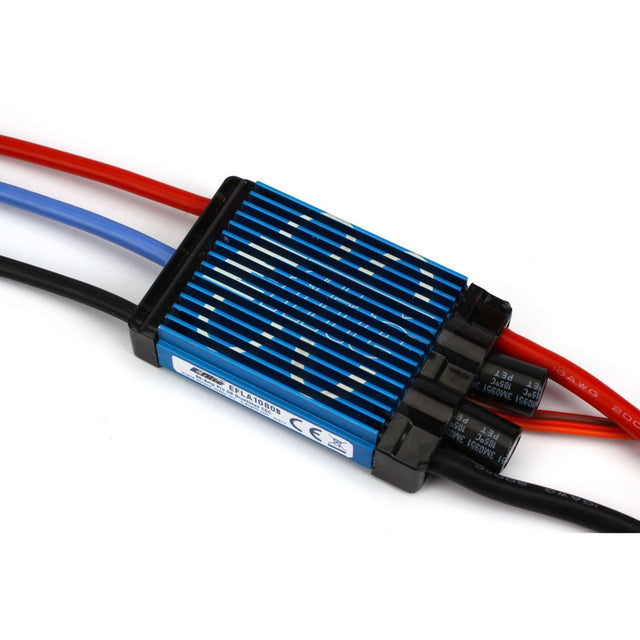

80-Amp Pro Switch-Mode BEC Brushless ESC, EC5 (V2)

E-flite 80 A Pro Switch-Mode BEC brushless speed controller (V2)

A high-quality sensorless brushless speed controller with a built-in switch-mode BEC. It is light and efficient and can power the servos and receiver without a separate receiver battery – saving weight and hassle. Many functions are programmable: low-voltage cutoff, brake, timing, throttle range and soft start.

Features

• Up to 80 A continuous with proper airflow, 100 A burst (15 seconds)
• 5 V switch-mode BEC with 5 A continuous
• Drives up to 7 analogue or 6 digital standard servos via the BEC
• Programmable motor brake
• Safe arming prevents accidental start-up
• Programmable low-voltage cutoff: 3S (9.2 V), 4S (12 V), 5S (15 V), 6S (18 V) or 74% of the starting voltage
• Programmable throttle range and soft start for aeroplanes and helicopters
• Automatic motor shutdown on signal loss or interference
• Programmable timing with 5 ranges – suits many brushless motors
• Operating modes: aeroplane or helicopter
• Exposed, finned aluminium heat sink with lightweight plastic end caps

Specifications

• Current: 80 A continuous / 100 A burst
• BEC: 5 V / 5 A switch-mode
• Battery: 3-6S LiPo or 9-18 cells NiMH/NiCd
• Connectors: E-flite EC5 on the battery side, 4.0 mm gold bullet connectors (female) to the motor

Note: Can power the servos and receiver without a separate receiver battery. Not recommended for the E-flite Power 60 Brushless Outrunner (EFLM4060B). Not intended for children under 14 without adult supervision.
