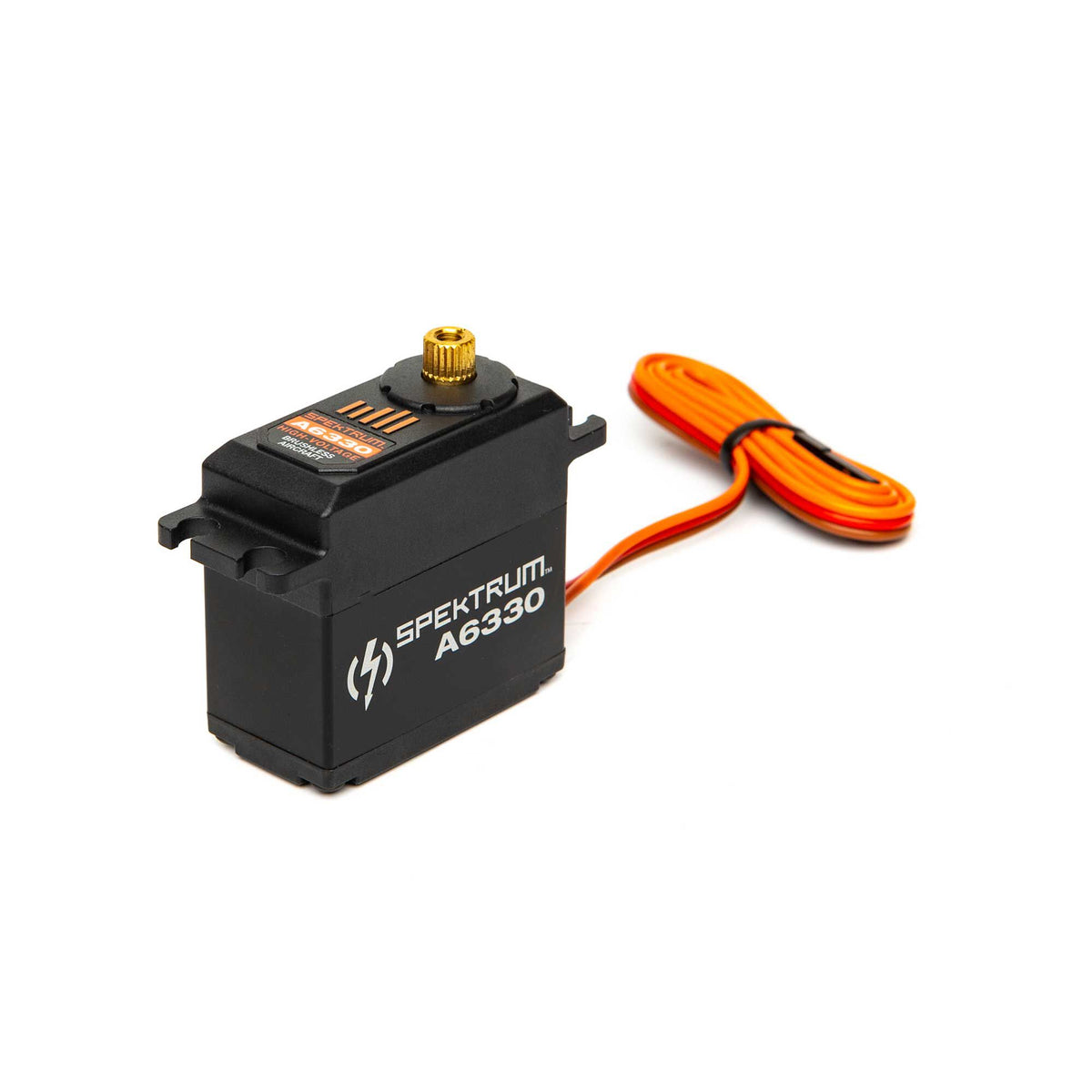

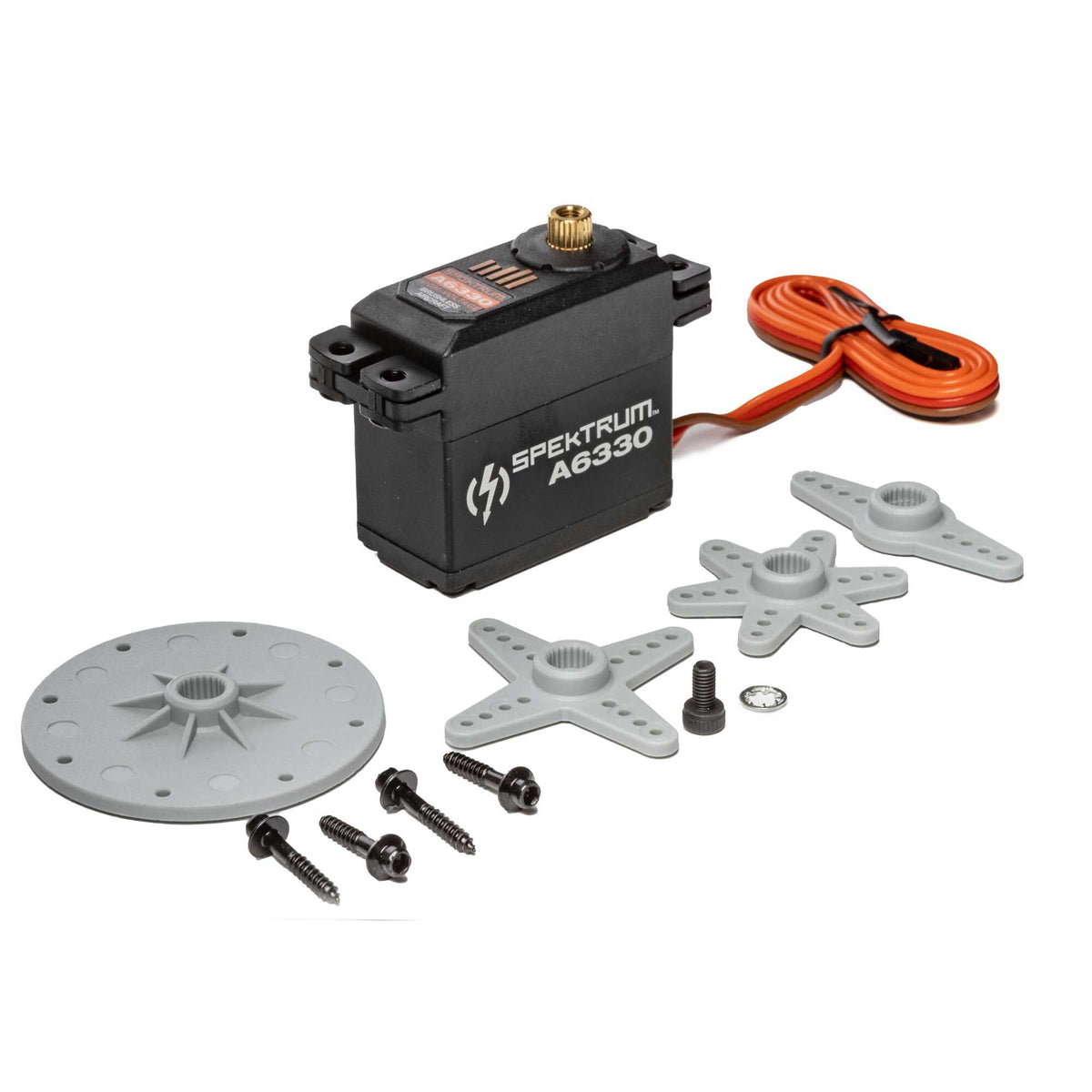

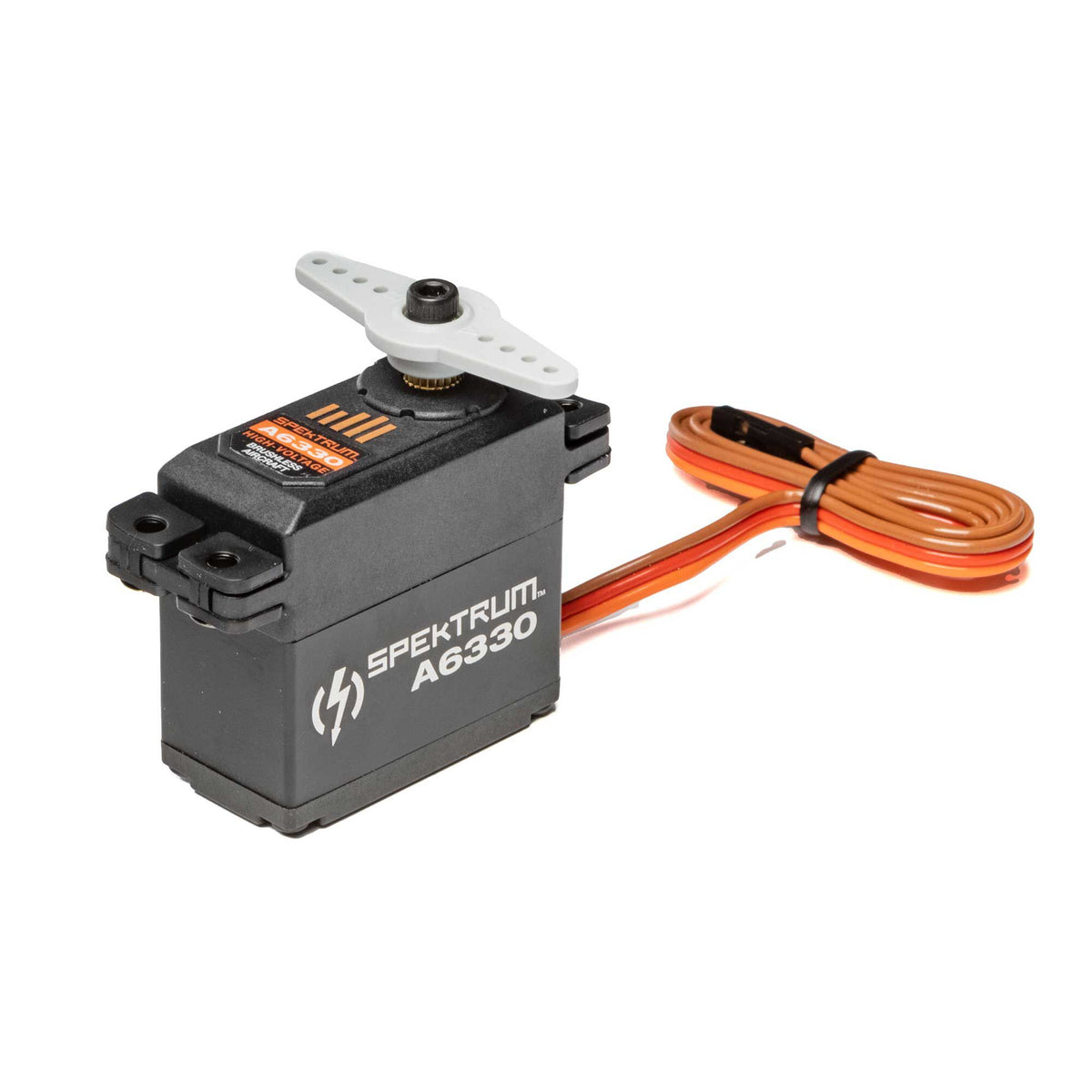

A6330 High Torque High Speed MG HV Brushless Servo

Spektrum A6330 High Torque High Speed metal gear HV brushless servo

For cars as well as planes: the A6330 delivers 248 oz-in (17.8 kg) of torque and 0.10 sec/60° at 8.4 V in a standard servo size – with a brushless motor that lasts a long time and gives impressive power and speed. The all-metal gear train wears little, has tight mesh and runs on two ball bearings, so operation is smooth, and the strong metal case draws heat away.

The long 457 mm (18") lead makes installation easy, the start-up tone tells you when the servo is ready, and soft start protects servo and model in the event of an unintended start-up. Reliable, consistent and precise – like the whole 6300 series.

Features

• HV: runs directly on 6.0-8.4 V
• Brushless motor with long life, high power and speed
• All-metal gears with tight mesh and low wear; dual bearing-supported drivetrain
• Aluminium centre section and strong metal case – durability and heat dissipation
• Long lead: 457 mm (18")
• Soft start, overcurrent and temperature protection; start-up tone
• Built-in failsafe holds the last position if the signal is lost (and power remains)

Specifications

• Voltage: 6.0-8.4 V (HV)
• Torque: 248 oz-in (17.8 kg) at 8.4 V
• Speed: 0.10 sec/60° at 8.4 V
• Frequency: 50-400 Hz

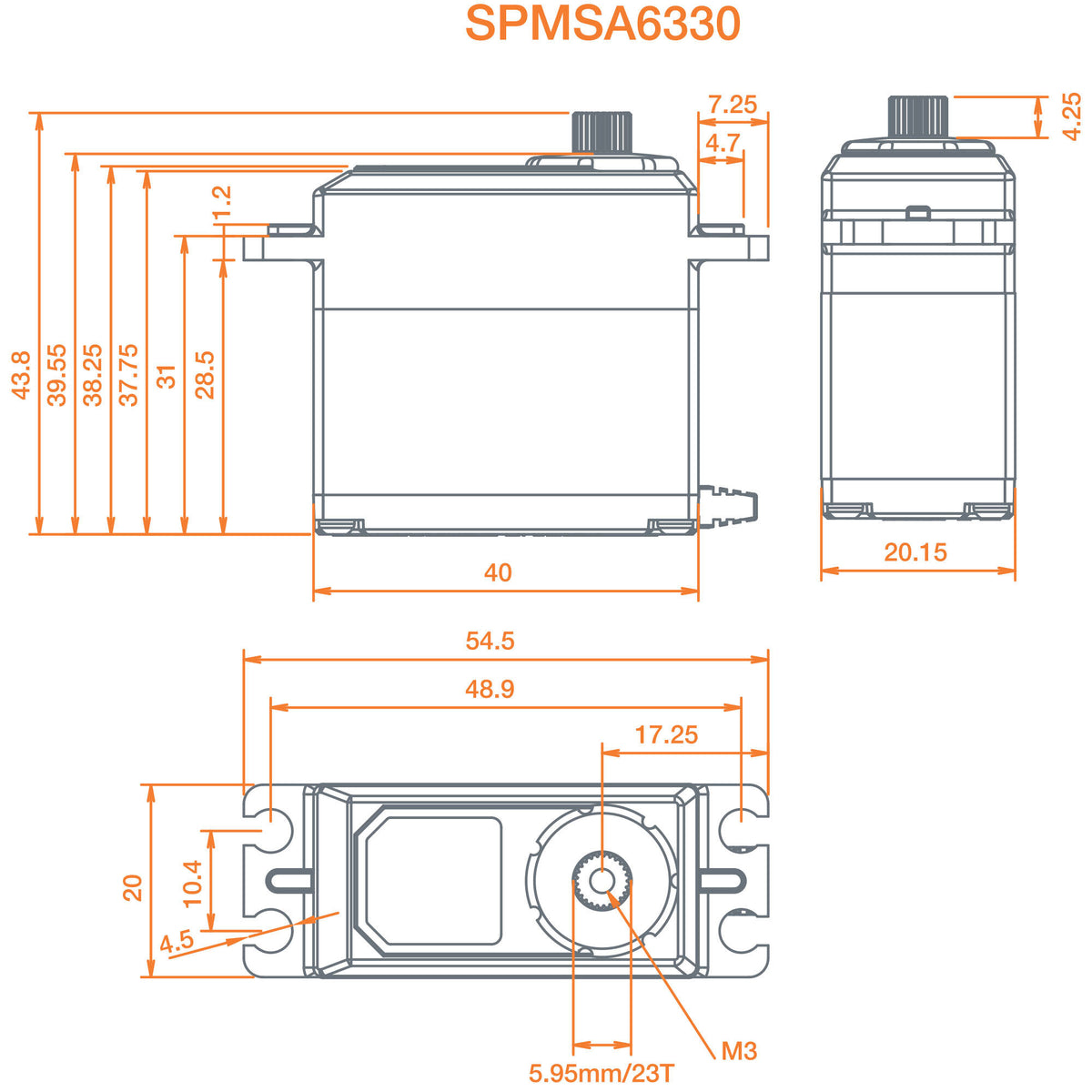

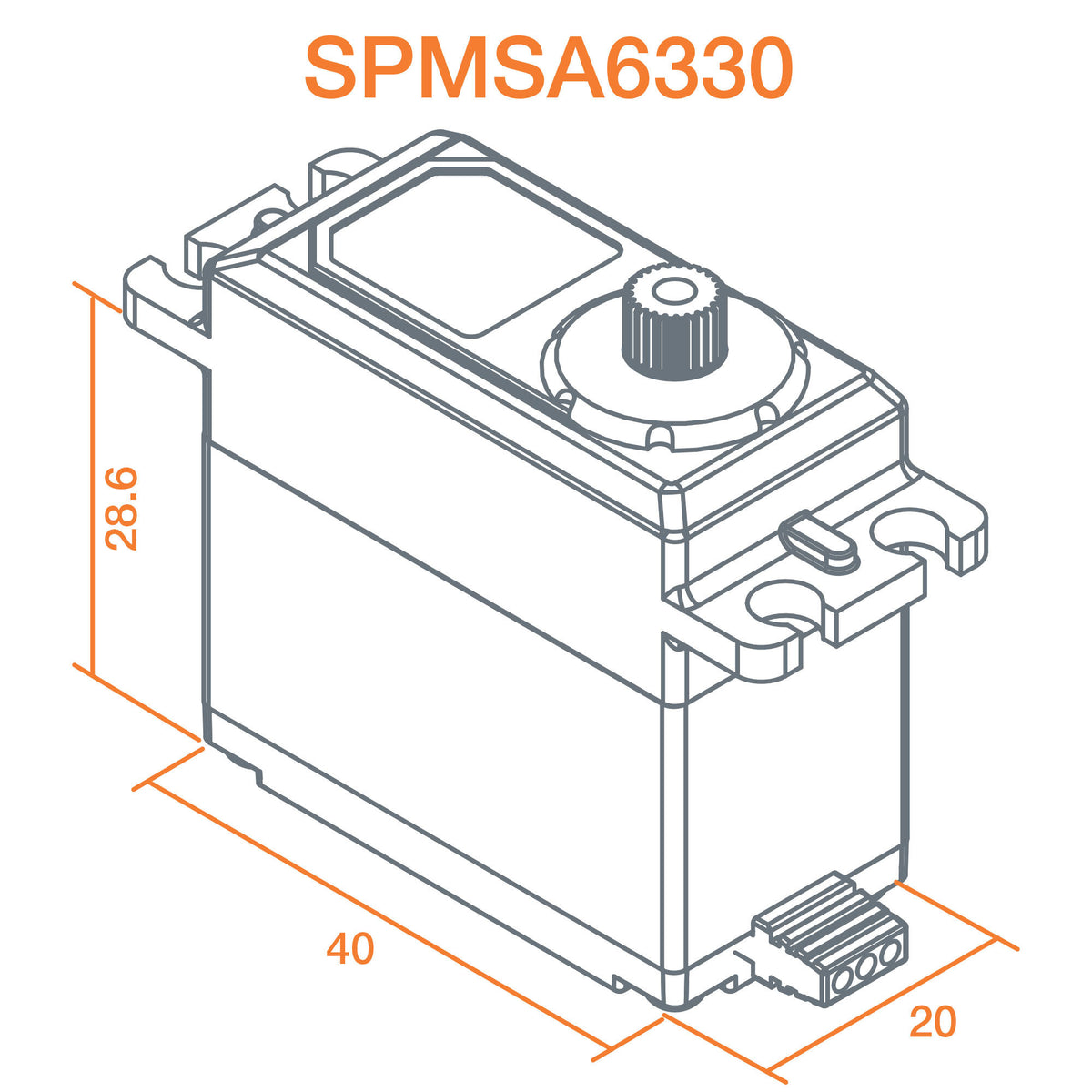

• Size: standard
