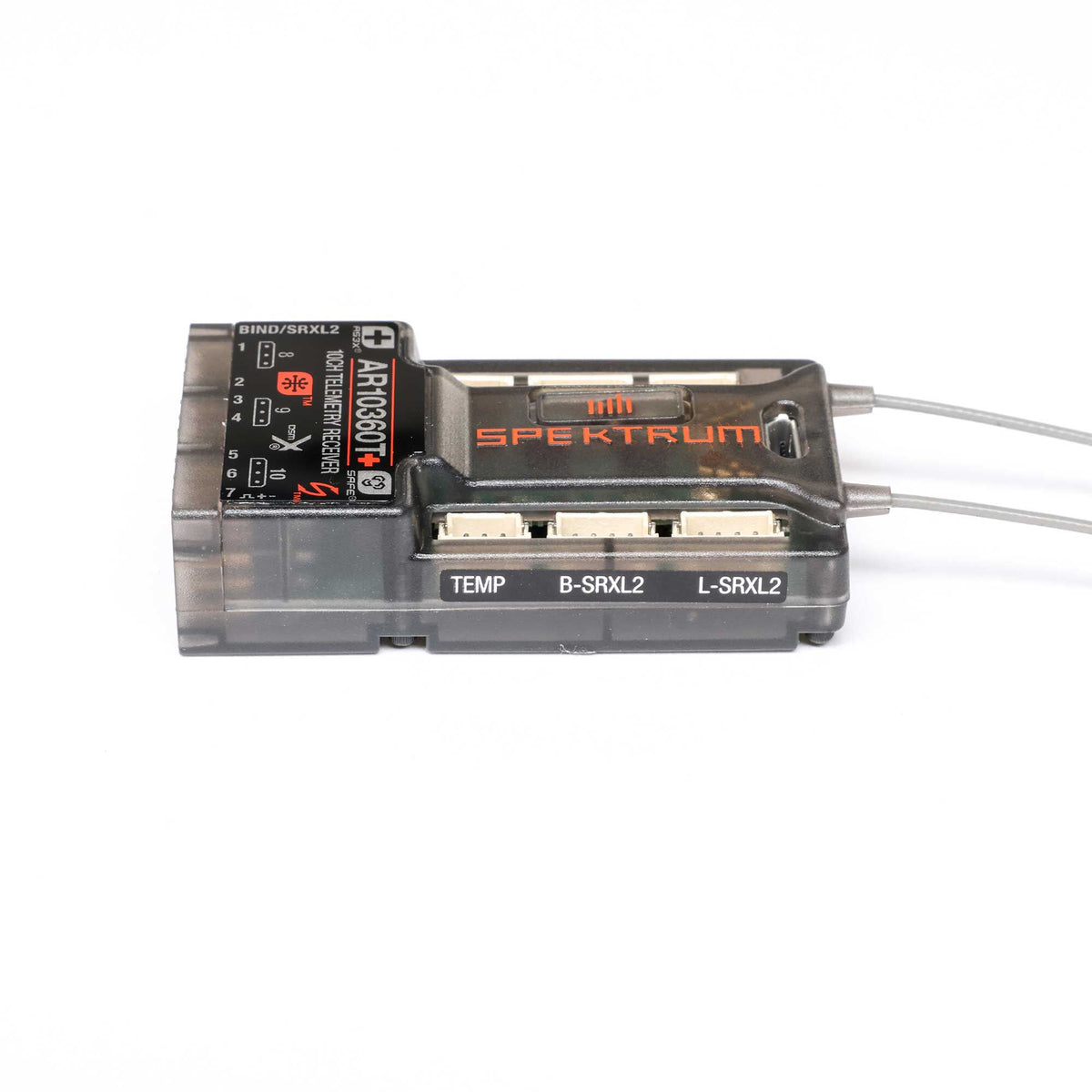

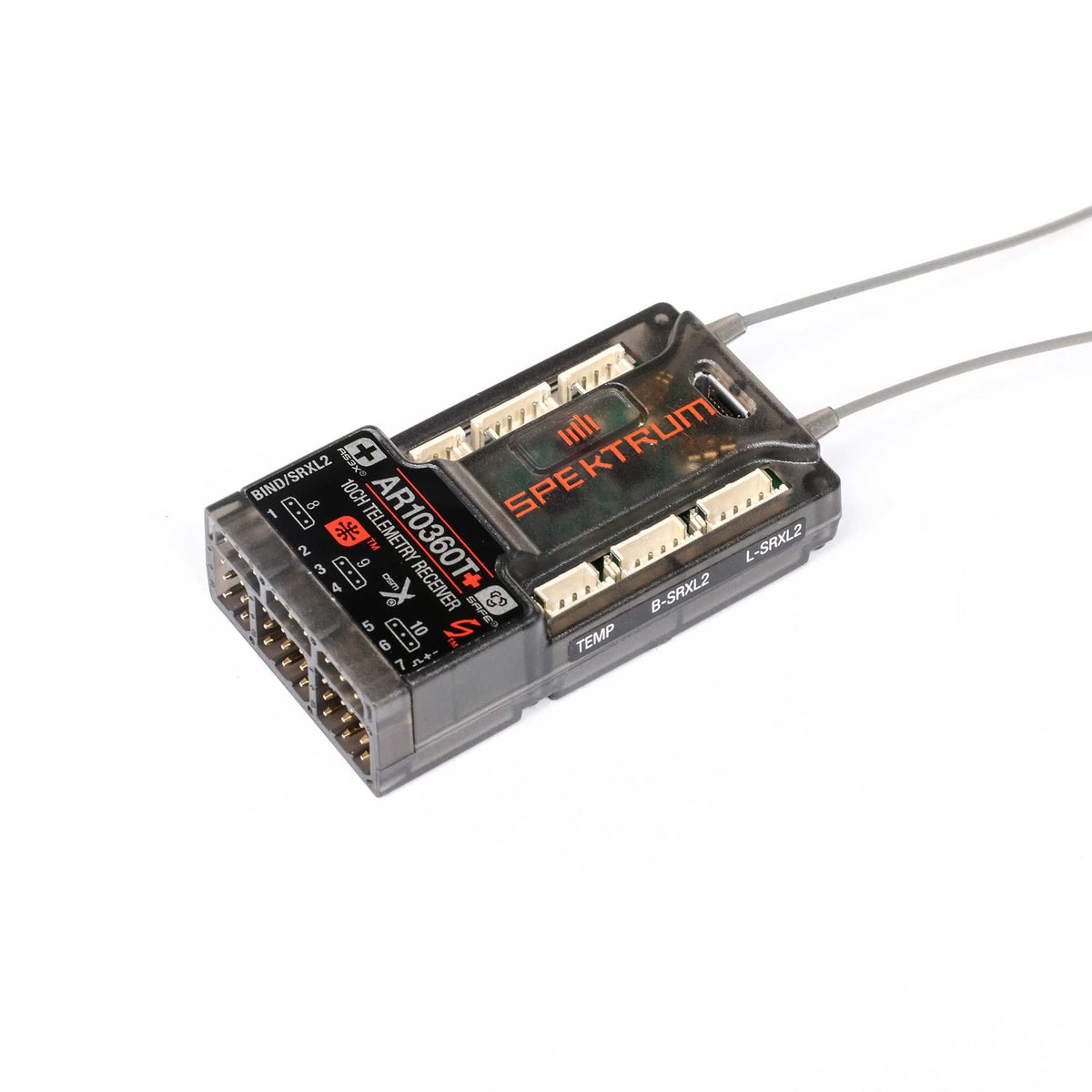

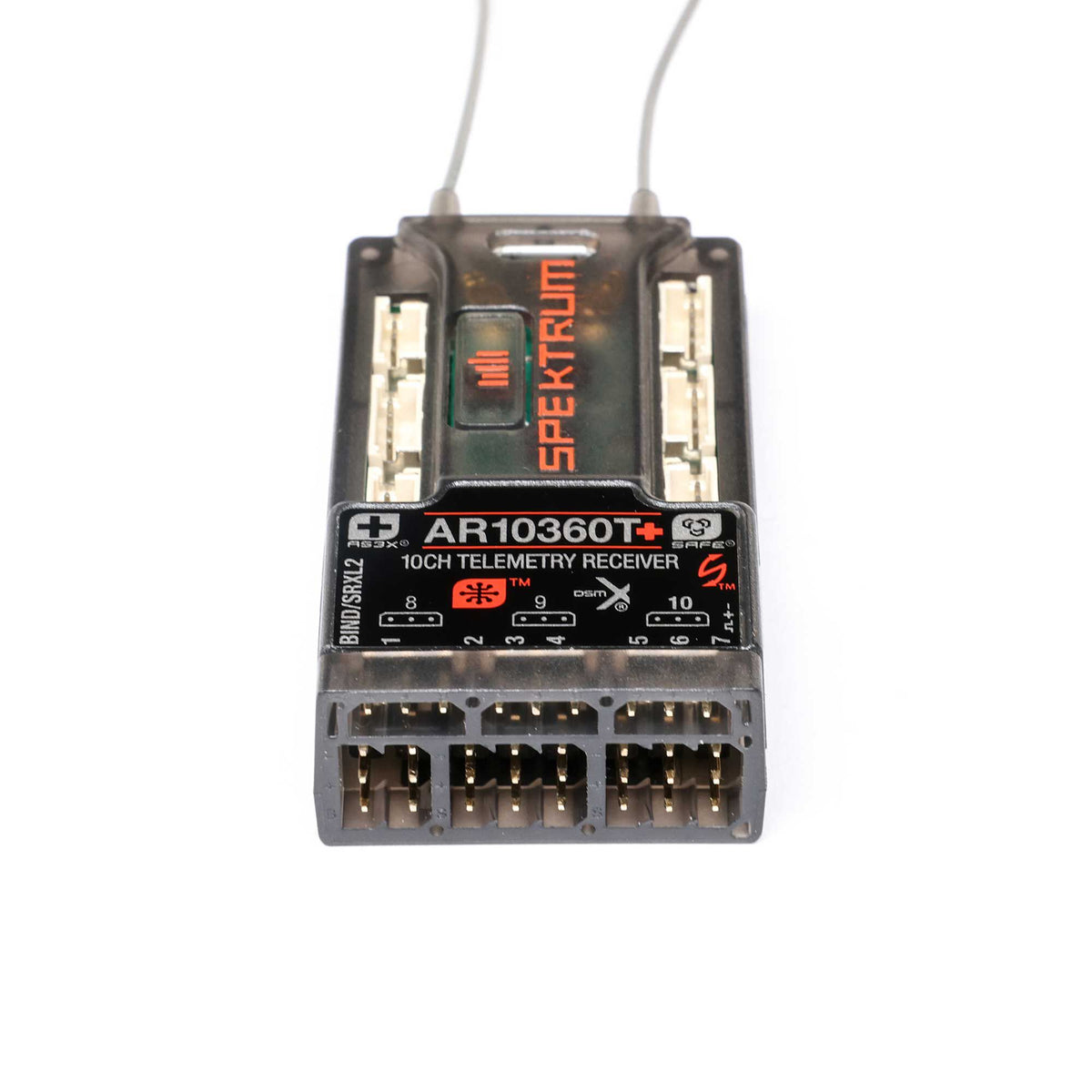

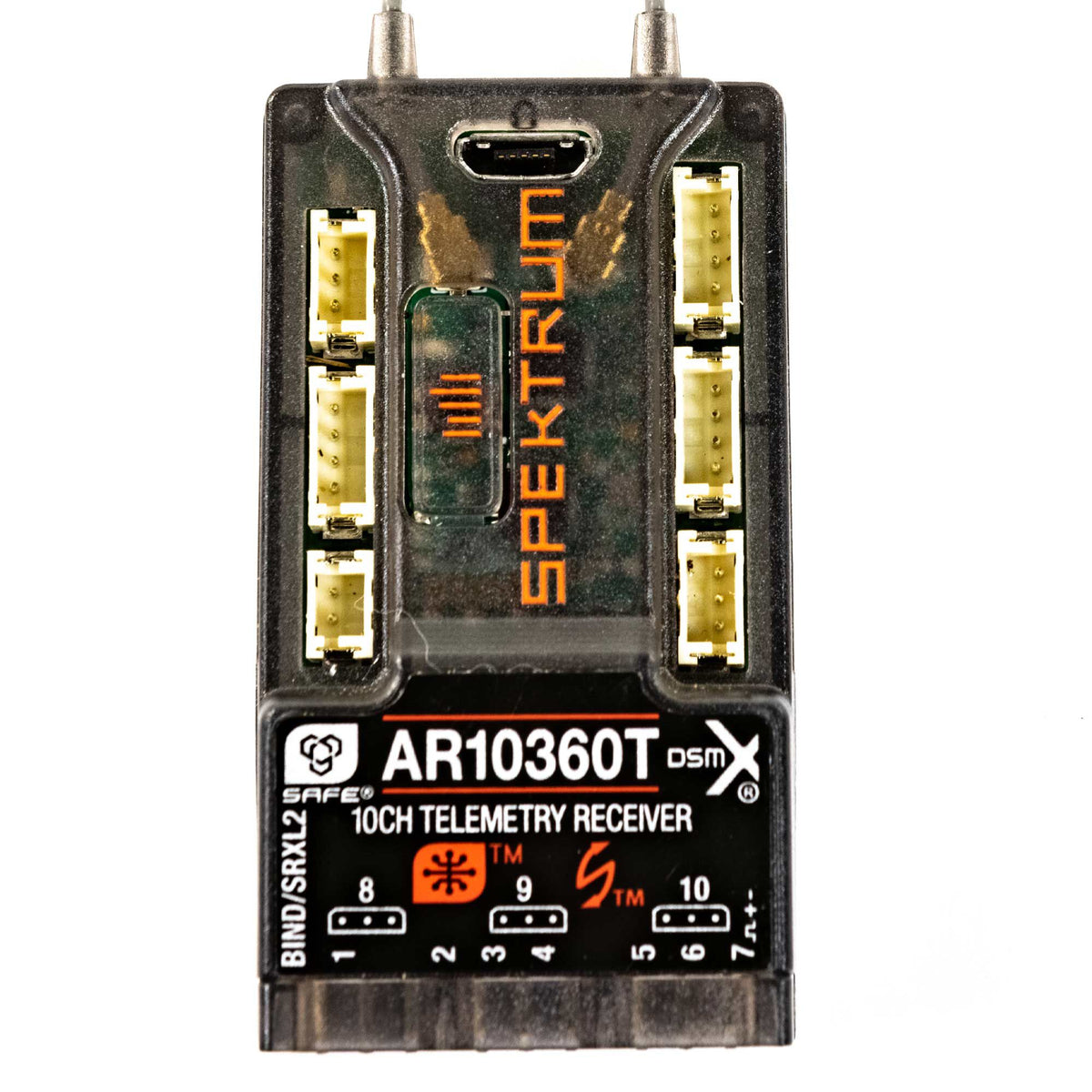

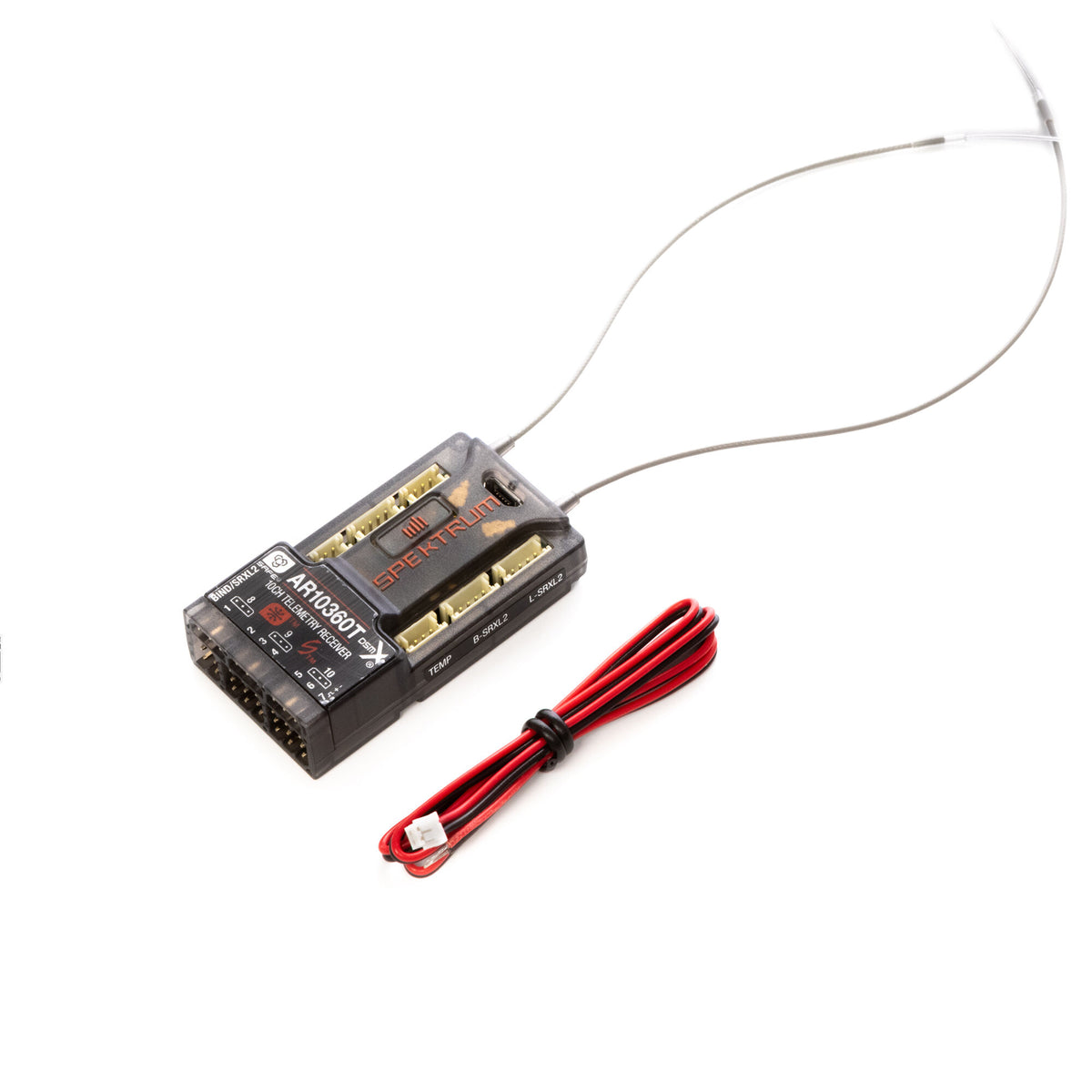

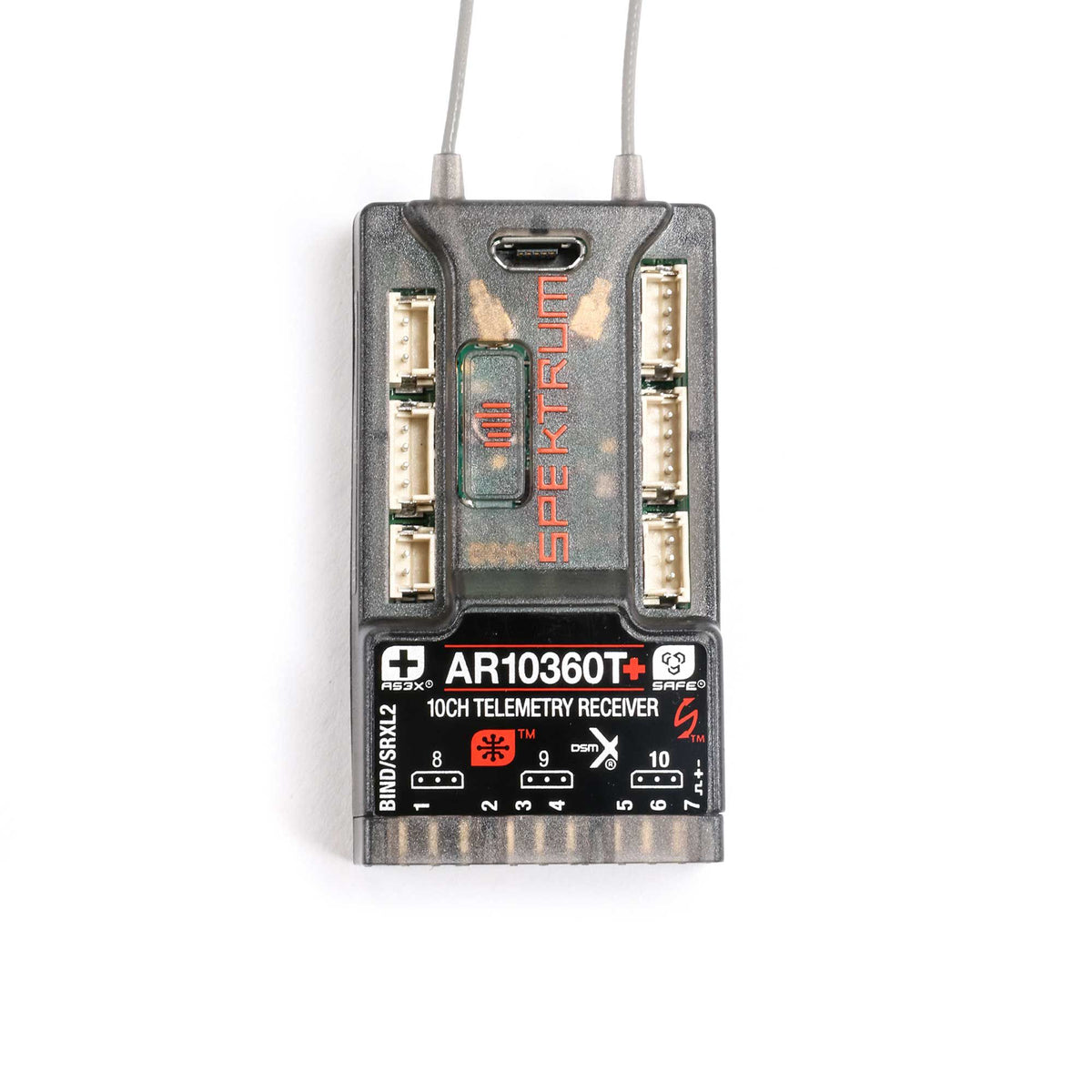

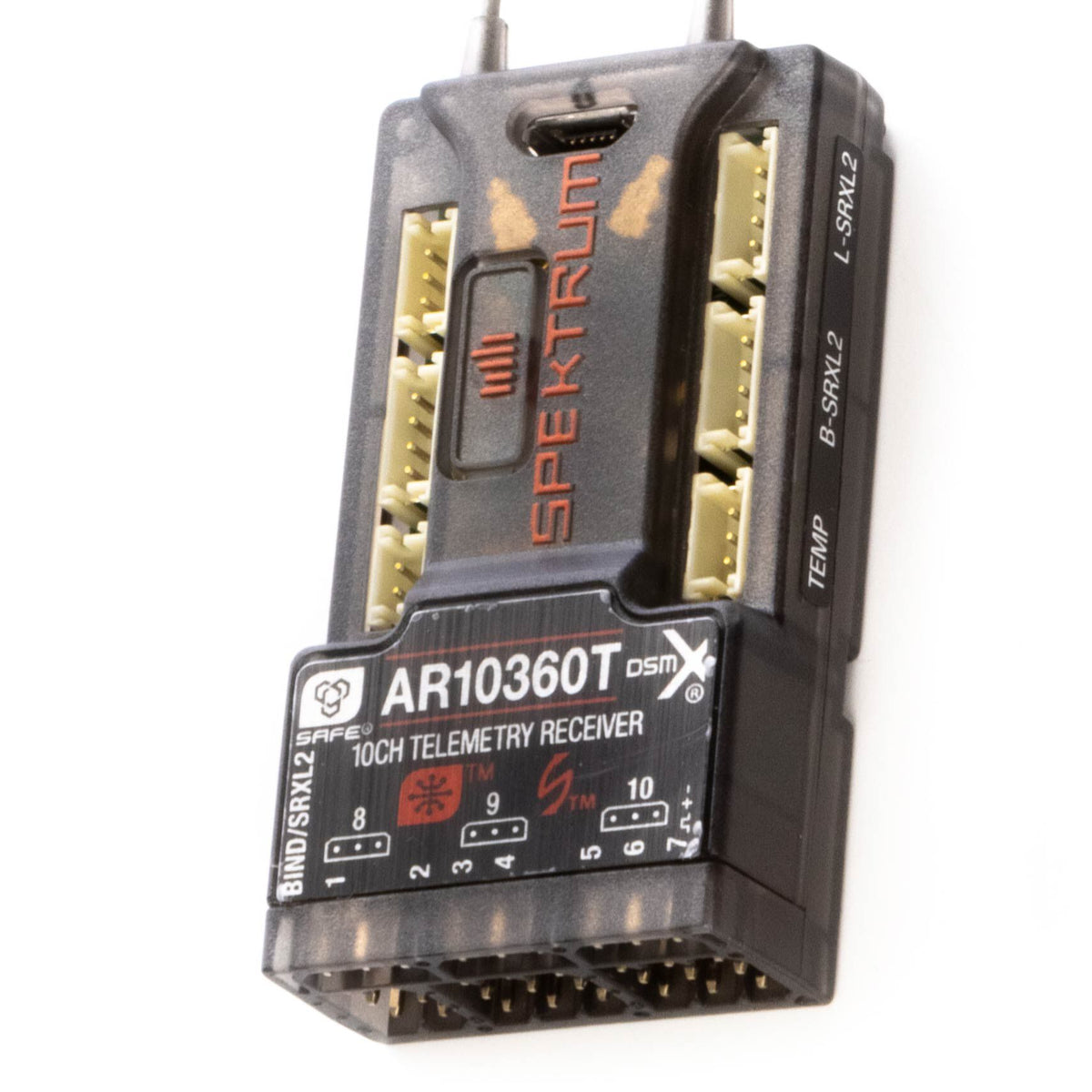

AR10360T+ 10 Channel AS3X+ & SAFE Telemetry Receiver

Spektrum AR10360T+ 10-channel AS3X+ and SAFE telemetry receiver

Wind, turbulence and motor torque? The AR10360T+ takes care of them. The 3-axis MEMS gyro and Spektrum's flight software with the new AS3X+ algorithm give better flight characteristics, more accurate sensors and a higher data rate – without control lag and without limiting control surface throws. It feels like flying an expertly trimmed model that does exactly what you ask. Most aircraft are set up in under 5 minutes, including the first trim flight.

10 channels, DSM2 and DSMX, compact enough for park flyers and big enough for giant scale. Full telemetry with a built-in barometer (altitude and vario), ports for voltage, RPM and temperature, plus XBUS for GPS, airspeed and battery energy. Everything is set up via Forward Programming directly from the transmitter – no PC, no phone. SAFE limits bank and pitch angles, and Panic Recovery returns the aircraft to level flight from any attitude at the press of a button.

Features

• AS3X+ with Stop Lock, Release Rate, improved heading hold and gyro filtering, plus canard/thrust vectoring support
• SAFE flight modes and SAFE Panic Recovery, fully programmable
• Compatible with all Spektrum DSM2 and DSMX transmitters
• Bind button – no bind plug needed (a traditional bind plug also works)
• Two external antennas; up to 2 additional SRXL2 remote receivers (SPM9747 or SPM4651T, sold separately) for RF redundancy

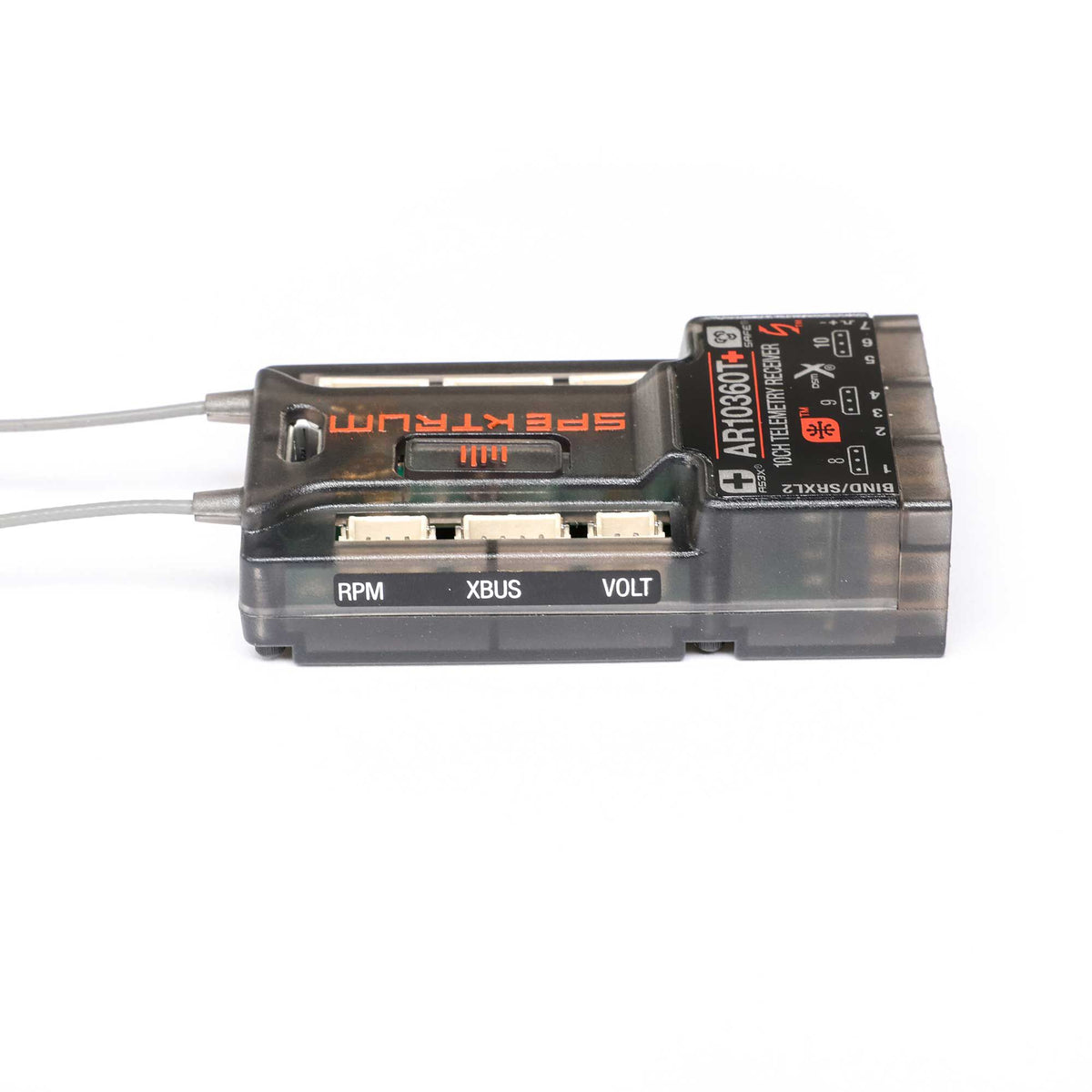

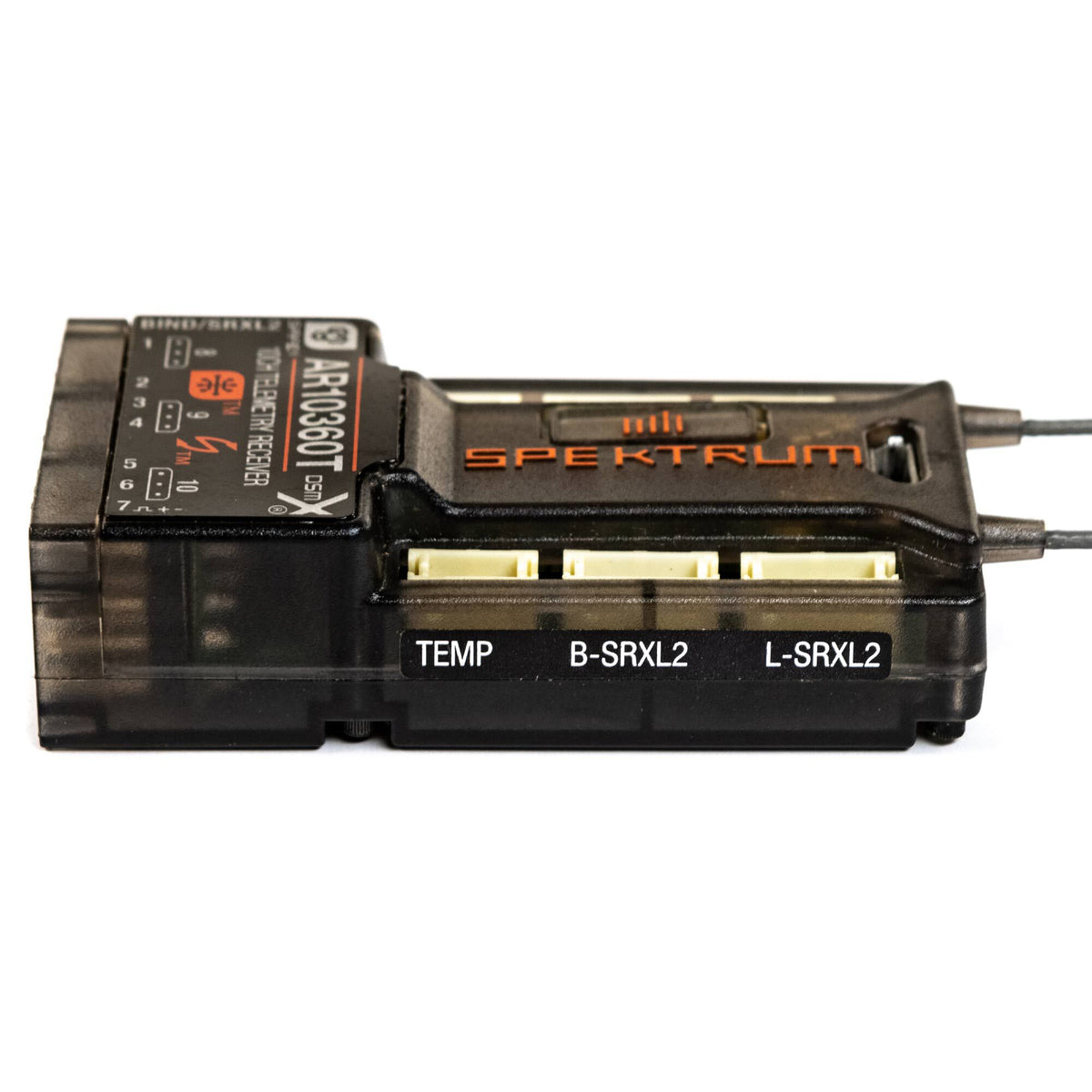

• Built-in barometer; VOLT, RPM and TEMP ports for Spektrum telemetry sensors; XBUS for GPS, airspeed and more
• SRXL2/Bind/Program/Batt header for Smart devices, programming, updates or battery
• Spektrum Smart ESC ready: telemetry via a single wire

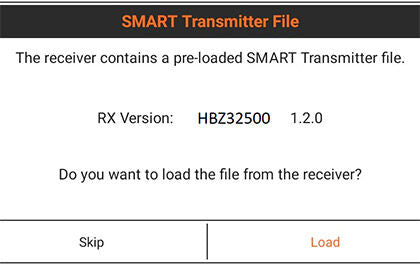

• Smart Transmitter Model Files: the BNF setup is transferred to the transmitter when binding (iX20, iX14 and NX with the latest firmware)

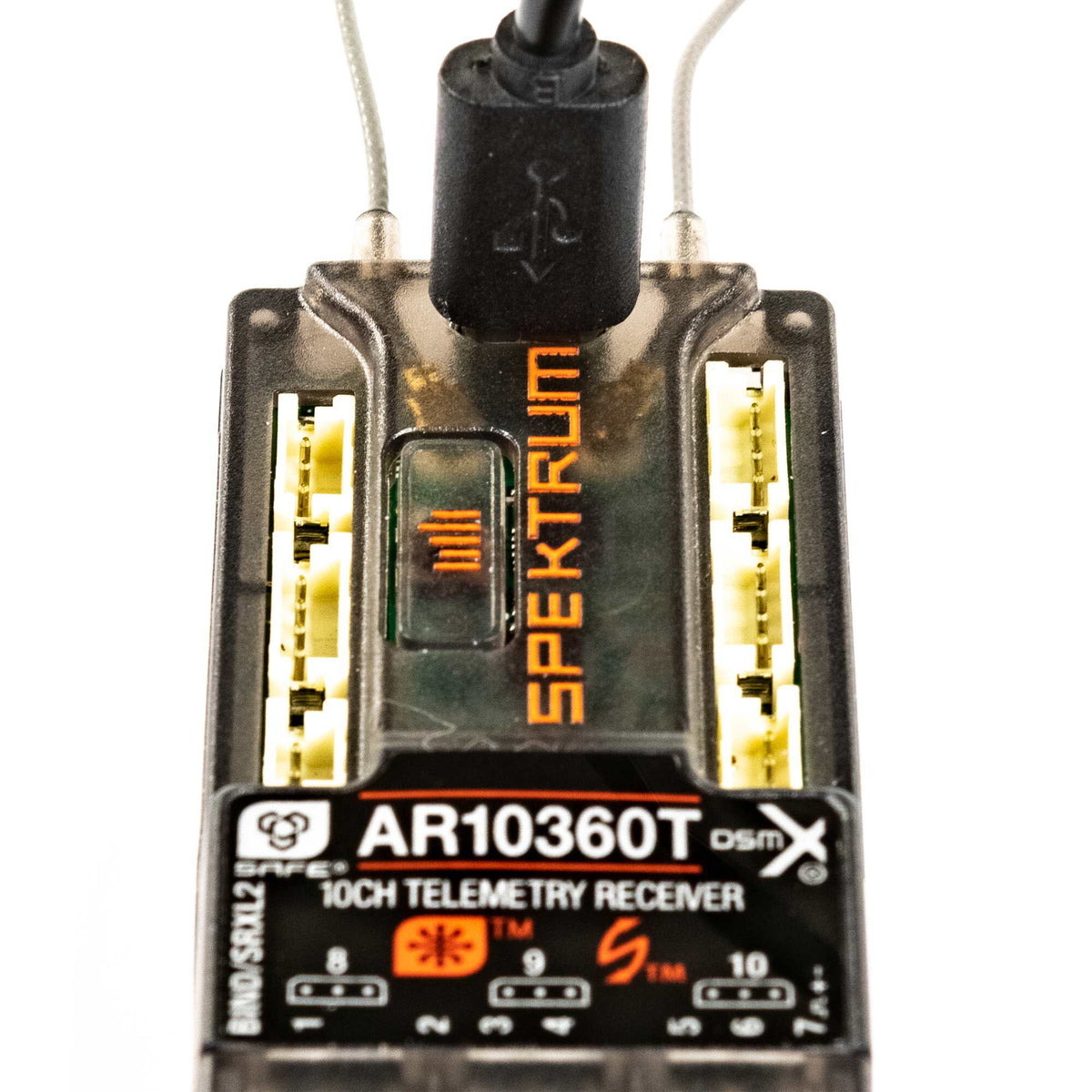

• Micro-USB for registration, updating the receiver and remote receivers, and sharing AS3X+/SAFE model presets (cable not included)
• End-mounted servo pins for compact installation; SmartSafe, Hold Last and preset failsafe types per channel

Specifications

• Channels: 10
• Protocol: DSM2 / DSMX
• Stabilisation: AS3X+ and SAFE, 3-axis MEMS gyro
• Telemetry: full range, built-in barometer

Video

Note: Not recommended for turbine aircraft.
