AR14410T 14 Channel PowerSafe Telemetry Receiver

Spektrum AR14410T PowerSafe telemetry receiver – 14 channels

Does your aircraft have more servos than a standard receiver can supply with power? Then the AR14410T is the answer. 14 channels, full telemetry and Spektrum's PowerSafe system with two isolated batteries: if one short-circuits, the other takes over. Power can be supplied through the servo bus or via the two 13 AWG battery leads with IC3 connectors.

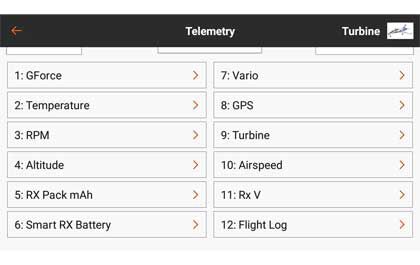

The telemetry is really generous: RPM, flight pack voltage, temperature and X-Bus, plus a built-in barometer for altitude and vario and a mAh meter that keeps an eye on consumption. And if you want stabilisation, the receiver is ready for the Synapse AS3X+/SAFE module (SPMAS6000, not included) – which is typically set up in under 5 minutes, including the first trim flight.

Features

• Patented PowerSafe redundancy with two IC3 battery inputs – up to 35 A (50 A peak)

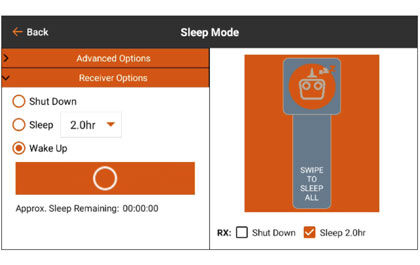

• Sleep mode: put the model to sleep and wake it again from the transmitter between flights
• Forward Programming directly from the transmitter: failsafe, servo frame rate and more – no PC needed
• Regenerative servo support for any number of servos

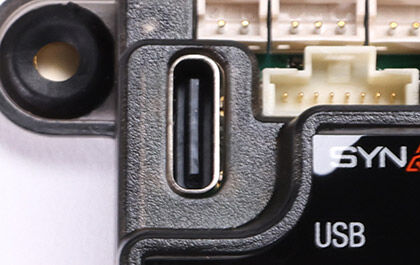

• USB-C for registration and updates; 12 V operation for 12-volt servos (enabled via Forward Programming)

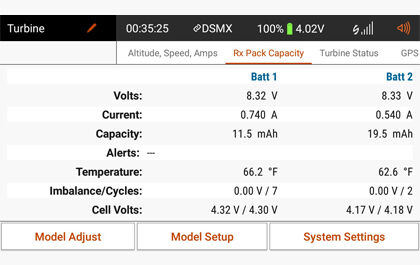

• Capacity meter per battery that resets automatically when charged batteries are connected

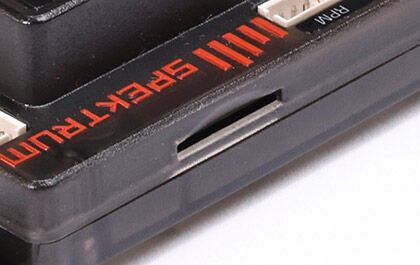

• 'Black box' telemetry log as CSV on micro-SD (card not included)
• Status LED with warnings and modes; a single wire for Spektrum Smart ESC telemetry

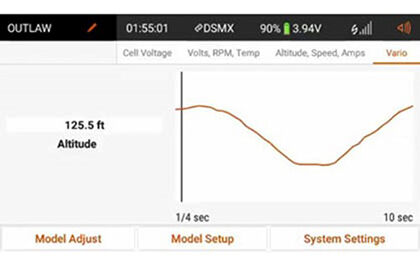

• Barometer for altitude and vario without extra modules
• Included push-button soft switch – servo power bypasses the switch, so it never becomes a weak link
• 11 ms frame rate; four ways to bind (button or bind plug)
• Rubber-isolated mounting points and discreet labelling
• Supports GPS, airspeed, motor RPM and turbine ECU telemetry from Spektrum and third parties

What you need

• Synapse AS3X+/SAFE module (SPMAS6000) if you want stabilisation
• Micro-SD card for the telemetry log
