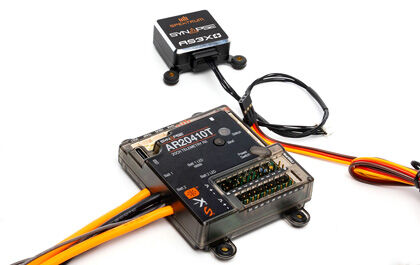

AR20410T 20-Channel PowerSafe Receiver with Synapse AS3X+ Module

Spektrum AR20410T PowerSafe receiver with Synapse AS3X+ gyro – 20 channels

If you fly giant scale or turbine models, you know the problem: lots of servos, high current draw and a gyro system that takes hours to trim. This package solves both. The AR20410T is a 20-channel PowerSafe receiver with full telemetry, and Synapse is Spektrum's new stabilisation module with the AS3X+ algorithm – built specifically for turbine and large-scale aircraft.

Synapse is the successor to the AS3000, and Spektrum has put years of customer feedback into it. With the new Stop Lock and Release Rate parameters you adjust the gyro's 'feel' without turning down the gain, and AS3X+ and SAFE can now be set on 10 adjustable channels – while you fly. Setup is done via Forward Programming on the transmitter in under 5 minutes, without a PC, cables or stick commands. That is smart!

Features – AR20410T

• Patented PowerSafe redundancy with two battery inputs (IC3) – handles up to 35 A (50 A peak)

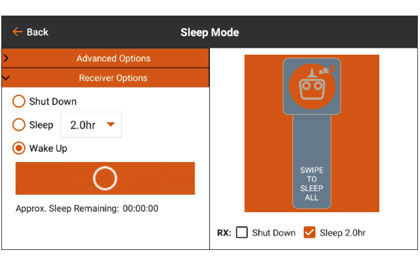

• Sleep mode: switch the model on and off from the transmitter – no hatch, no physical contact
• Fast boot recovery: the gyro restarts within milliseconds after static discharge or a power interruption
• Regenerative servo support for any number of servos
• Forward Programming for failsafe, servo frame rate, AS3X+ settings and more

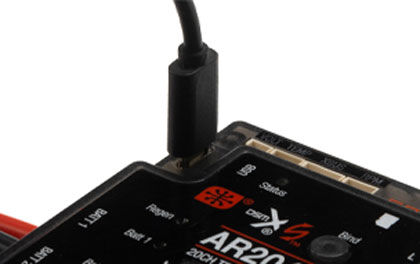

• USB-C for registration and firmware; 12 V operation for 12-volt servos (enabled via Forward Programming)

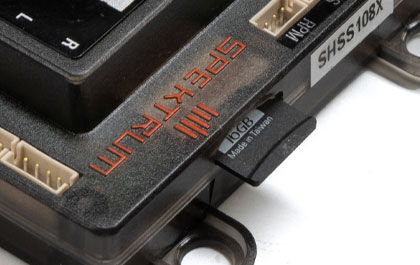

• Built-in capacity meter (mAh used per battery) and 'black box' telemetry log on micro-SD (card not included)
• SRXL2 connection, ready for Smart ESC with a single wire; ports for RPM, flight pack voltage, temperature and X-Bus
• Altitude and vario via barometer when an SPM4651T remote receiver is used
• 11 ms frame rate – can be boosted to 5.5 ms with Synapse if the servos support it
• Four ways to bind; rubber mounting and discreet labelling give a clean installation
• Included push button for power on/off with a protected press-and-hold pattern – the receiver also has its own switch

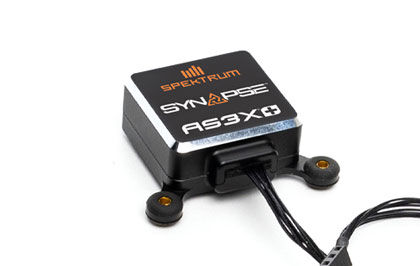

Features – Synapse AS3X+/SAFE

• 20 stabilised outputs with higher sensor accuracy and data rate
• Up to four independent gyro systems in one unit – thrust vectoring and canards without an extra gyro
• SAFE at the flick of a switch: preset bank and pitch angles can also be selected as failsafe
• Improved heading hold with more natural transitions, improved gyro filtering and adjustable outputs (e.g. flaps mixed to ailerons)
• Machined and anodised aluminium housing with three rubber-isolated mounting points

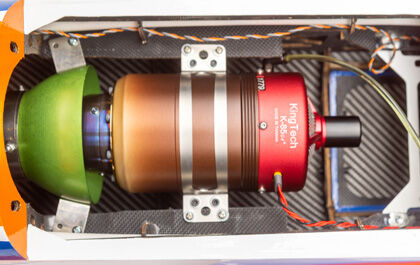

• The gyro sensor is isolated from sound and vibration for turbine use
• Locking sensor cable, so nothing can come loose during flight

Compatible with these models

• All Spektrum DSMX transmitters
• Not compatible with the DSM2 AIRMOD JR module (SPMMSJR720)

Video

Note: Micro-SD card not included. The push button must not be replaced with another switch.
